4022 591 96062 Operating Manual
02.02 FCM Multiflex 61
New Program Selection
8.7 Nozzle Exchange
1. Select “User”- “Maintenance/Service functions” - “LAS”
SCREEN 42
2. Select specific Las number
SCREEN 43
3. Select “Command” - “Exchange nozzle”.
SCREEN 44
4022 591 96062 Operating Manual
02.02 FCM Multiflex 62
New Program Selection

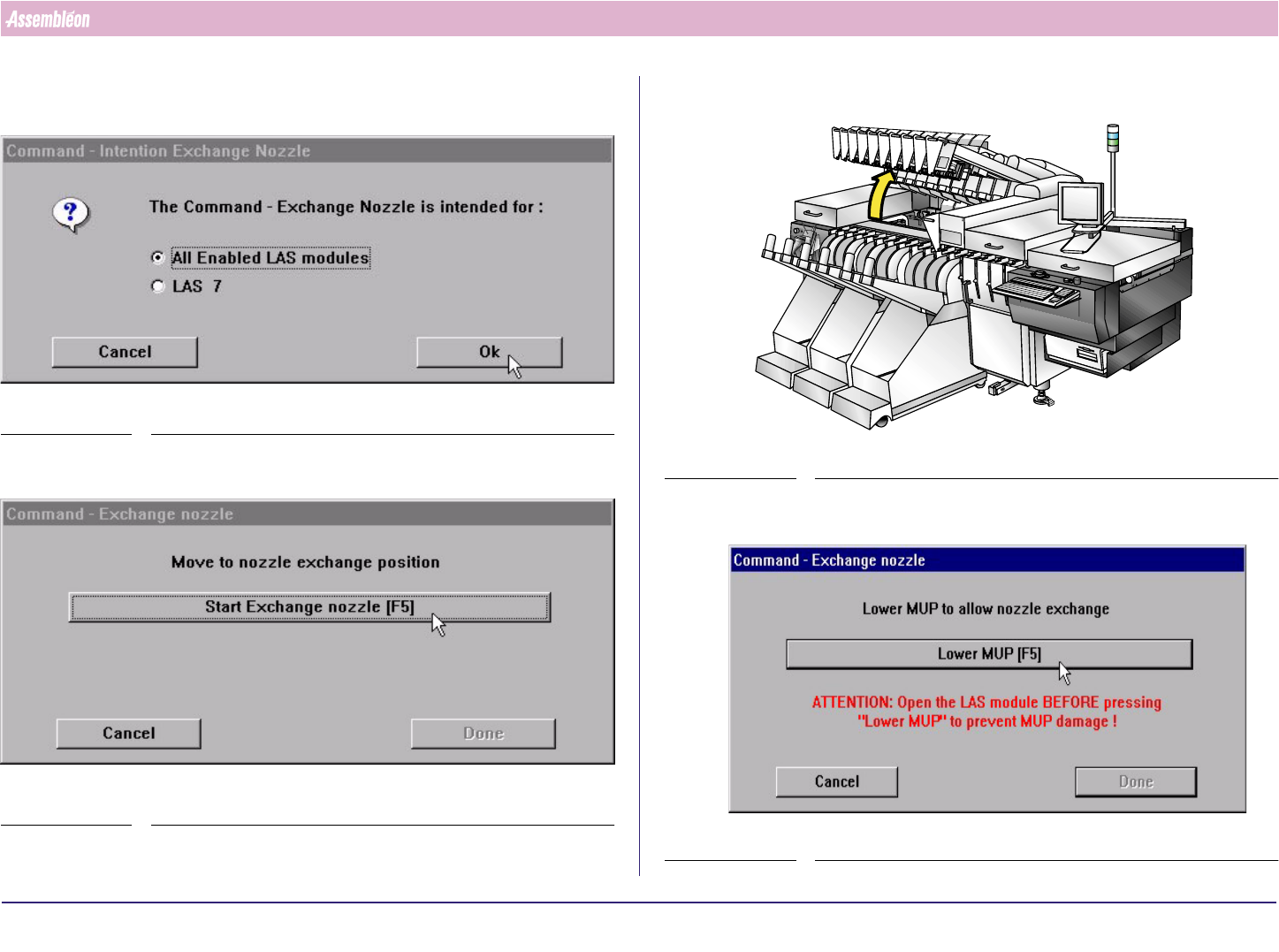

4. Select “all enable LAS Modules” to lower all nozzles or “one LAS module
only” to lower a specific nozzle. Select “OK”
SCREEN 45
SCREEN 46
5. Lift the Compact Laser Modules
FIGURE 103
6. Select “lower MUP” “F5” or press “F5” (MUP will be sent down).
SCREEN 47
4022 591 96062 Operating Manual
02.02 FCM Multiflex 63
New Program Selection
7. For the first Compact Laser Mudule where a nozzle has to be exchanged:
Remove Calibration nozzle
FIGURE 104
8. Place the production nozzle, take care for O-ring and spring be sure the
flange is against the MUP. If not, turn and push.
FIGURE 105
9. Repeat action “remove nozzle” untill “place new nozzle” for all Compact
Laser Modules where calibration nozzles have to be exchanged
10.Select “Done” (MUP will move up)
SCREEN 48
11.Close Run-in and Run-out covers
FIGURE 106
