Mechanical Drawings 23 1 45294S2 Issue 7 T able Assy GA 5 4 3 2 1 A B C C B A 123 45 67 8 91 0 11 12 13 6 7 8 9 10 11 12 13 D E F G H I D E F G H I PROJECTION DRAWN APPROVED DATE C COPYRIGHT DO NOT SCALE SCALE TITLE DRAW…

100%1 / 106

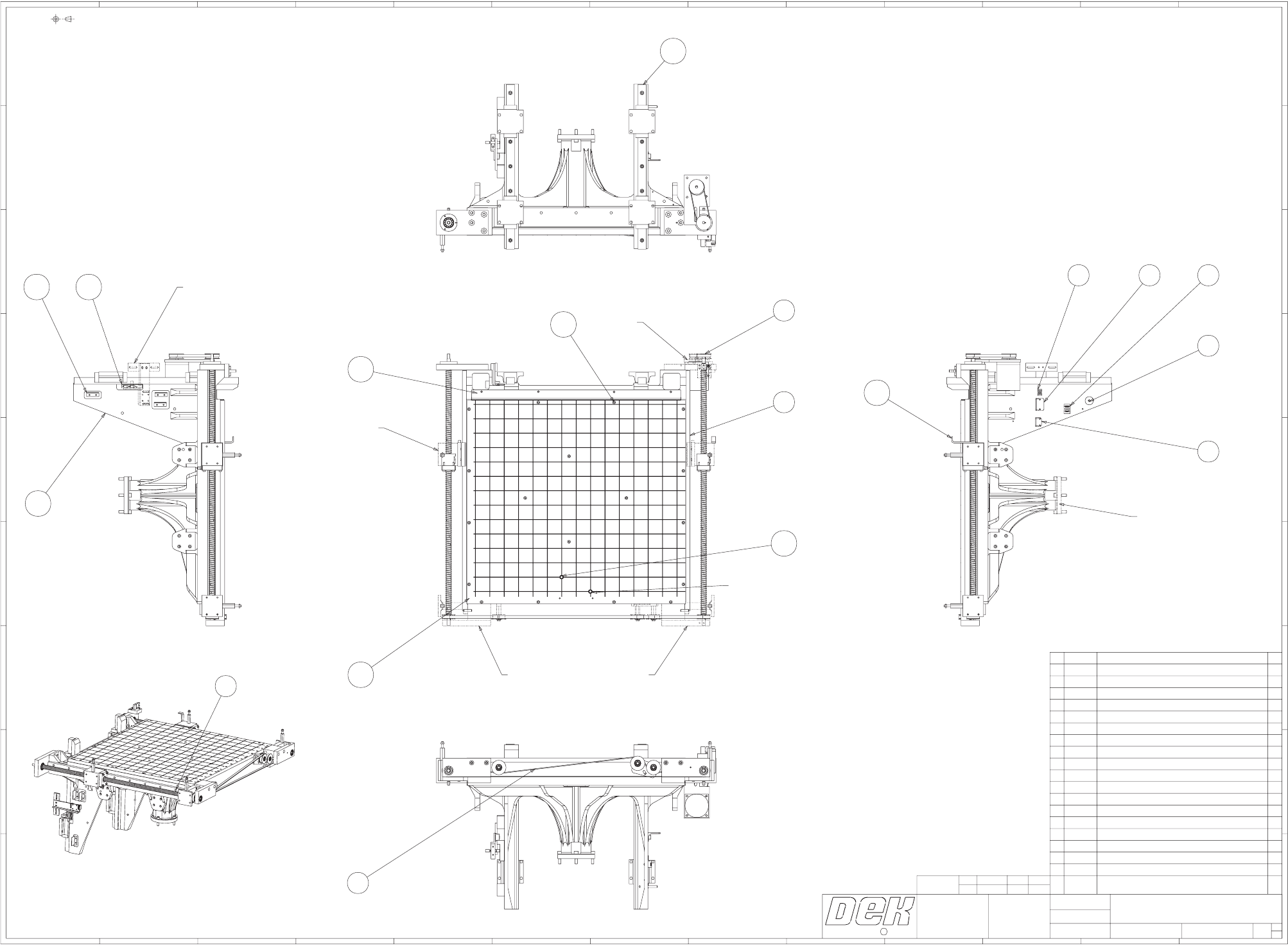

22 Mechanical Drawings
145294S1 Issue 7 Table Assy GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
107647 KEY 3
2
112414 CABLE TIE CLAMP 1
3
112626 SEALING CAP - THK TYPE 3 20
4
112664 EARTHING STUD 1
5
113822 CABLE TIE CLAMP (M5) 1
6
117324 3 WAY BRACKET 1
7
117376 BRACKET,6 WAY 1
8
119666 TIMING BELT (6T5/1355 VZ2771) 1
9
129137 LINEAR BRG, SR 15TB_585 LONG 2
10
145129 OPTO FLAG 1
11
145271 TABLE CASTING, UNIVERSAL 1
12
145297 SPACING PILLAR - TOP PLATE 6
13
145318 PLATE, TOOLING TOP - SHORT 1
14
145331 COVER, ANGLE BRACKET - LONG 1
15
157471 LINEAR GUIDE 2
16
158264 HALL EFFECT VANE (TABLE ASSY) 3
17
158265 HALL EFFECT VANE 1
18
181174 BOM^STEPPER MOTOR^MOVING RAIL 1
19
G3509 BUSH^HARDENED^6MM BORE^ 2
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
7:20
G. MARJASON
TABLE ASSEMBLY
28-Nov-97
145294
145350
SH 1
OF 2
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
07 05/03/03 27654 PB
1
12
13
14
19
DETAIL A
SHEET 2
DETAIL B
SHEET 2
DETAIL C (2 POSN)
SHEET 2
DETAIL D
SHEET 2
HARDENED BUSHES MUST BE INSTALLED
INTO TABLE TOP USING LOCTITE 638
HIGH STRENGTH RETAINER OR EQUIVALENT
9
15
8
11
DETAIL E
SHEET 2
16 17
2
4
5
6
7
10
DETAIL F
SHEET 2
ISOMETRIC VIEW
SCALE 1:4
3

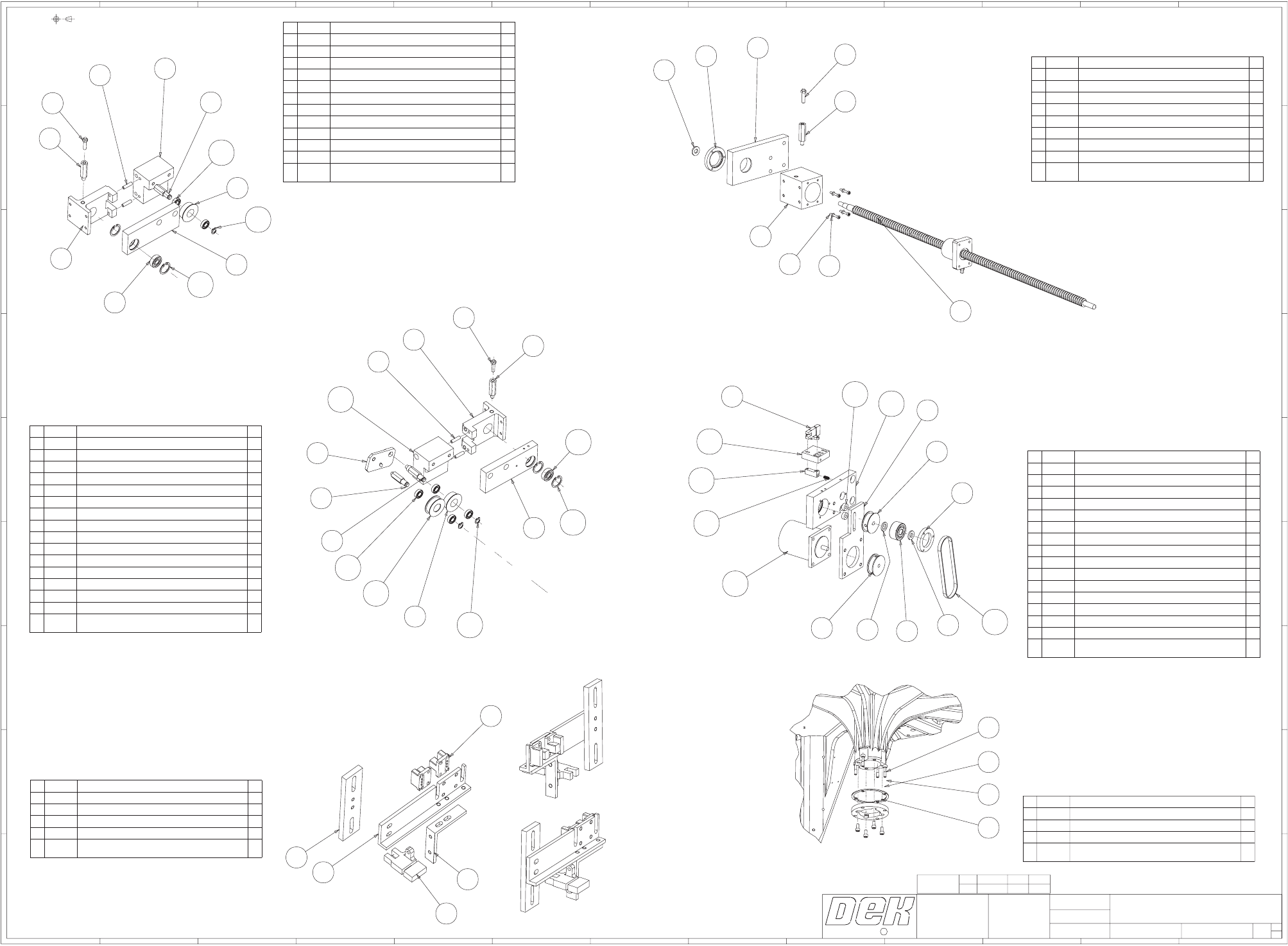

Mechanical Drawings 23
145294S2 Issue 7 Table Assy GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
104278 DOWEL 5DIA X 20LG GRD 1 2
2
107423 LOCATING BUTTON 1
3
112077 REAR RAIL STAND OFF 1
4
114082 BELT GUIDE-ROLLER BRG 1
5
119112 BEARING SUPPORT LH 1
6
140699 RAIL SUPPORT 1
7
140700 PULLEY SPINDLE FIXED (RAIL DRIVE) 1
8
140790 BEARING MOUNT LH 1
9
B0018 BEARING DGBB 608-2RS 1
10
B0059 BEARING DGBB SSL1680ZZ 2
11
G1426 CLP INT D1300/22 2
12
G1434 CLP EXT D1400/8 1
ITEM PART NO. DESCRIPTION QTY.
1
104278 DOWEL 5DIA X 20LG GRD 1 2
2
107423 LOCATING BUTTON 1
3
112077 REAR RAIL STAND OFF 1
4
114082 BELT GUIDE-ROLLER BRG 1
5
119122 BEARING SUPPORT R.H. 1
6
119495 PULLEY ADJ PLATE 1
7
140699 RAIL SUPPORT 1
8
140700 PULLEY SPINDLE FIXED (RAIL DRIVE) 1
9
140701 PULLEY SPINDLE ADJ. (RAIL DRIVE) 1
10
140789 BEARING MOUNT RH 1
11
145153 BELT GUIDE-ROLLER BRG (FLANGED) 1
12
181174 BOM^STEPPER MOTOR^MOVING RAIL 1
13
B0018 BEARING DGBB 608-2RS 1
14
B0059 BEARING DGBB SSL1680ZZ 4
15
G1426 CLP INT D1300/22 2
16
G1434 CLP EXT D1400/8 2
ITEM PART NO. DESCRIPTION QTY.
1
107388 SPL SPACER 1
2
107396 BEARING CAP 1
3
107423 LOCATING BUTTON 1
4
112077 REAR RAIL STAND OFF 1
5
119114 CARRIAGE, LS NUT, (TABLE RAILS) 1
6
119120 LEAD SCREW PLATE L.H. 1
7
165906 BALLSCREW^TABLE^RAIL ADJ^ 2
8
700105 SCREW M3X20 CAP HD ST.ST 8
9
700601 WASHER M3 PLAIN FORM A ST.ST 8
ITEM PART NO. DESCRIPTION QTY.
1
107063 DOUBLE ROW ANGULAR CONTACT BEARING 1
2
107388 SPL SPACER 1
3
107396 BEARING CAP 1
4
107510 TIMING PULLEY (20 TEETH) 1
5
112070 SPACER 1
6
112160 PULLEY (1/4 BORE) 1
7
112246 PHOTO SENSOR (SUNX) 1
8
117905 MOTOR MOUNT 1
9
119031 MOVING RL HOME LOOM BOM FRNT RAIL 1
10
119118 LEAD SCREW PLATE R.H. 1
11
145127 OPTO SPACER 1
12
145128 SLIDE BAR 1
13
145134 SPRING, RAIL HOME ADJ. 1
14
181174 BOM^STEPPER MOTOR^MOVING RAIL 1
15
G1217 TIMING BELT (6T5 270) 1
16
S2029 SPACER 2
ITEM PART NO. DESCRIPTION QTY.
1
107025 RISING TABLE HALL EFFECT BRKT 1
2
109239 SUNX PHOTO SENSOR PM T53 1
3
112092 TABLE LIMIT BRACKET 1
4
112325 TABLE LIMIT VERTICAL BRKT 1
5
E5304 HONEYWELL HALL-SW. 2
ITEM PART NO. DESCRIPTION QTY.
1
145312 LINK COLLAR - CASTING 1
2
145356 COLLAR WASHER 1
3
145357 BOLT, COLLAR WASHER 4
4
700122 SCREW M6X12 CAP HD ST.ST 4
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
7:20
G. MARJASON
TABLE ASSEMBLY
16-Dec-97
145294
145350
SH 2
OF 2
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
07 05/03/03 27654 PB
DETAIL A
SCALE 1:2
2
3
4
5
6
7
8
9
10
11
12
1
DETAIL B
SCALE 1:2
2
3
4
5
6
7
8
9
10
11
13
14
15
16
1
DETAIL C
SCALE 1:2
3
4
5
1
2
6
7
8
9
DETAIL D
SCALE 1:2
1
2
3
4
5
6
7
8
10
11
12
13
16
14
15
DETAIL E
SCALE 1:1
4
1
2
5
3
ASSEMBLED
SCALE 1:1
ASSEMBLED
SCALE 1:1
1
2
3
4
DETAIL F
SCALE 1:2
