Infinity EX Mechanical - 第33页
Mechanical Drawings 31 156536 Issue 2 USC V acuum Option G A
30 Mechanical Drawings
156482S2 Issue 2 Base Casting GA
Mechanical Drawings 31
156536 Issue 2 USC Vacuum Option GA
32 Mechanical Drawings

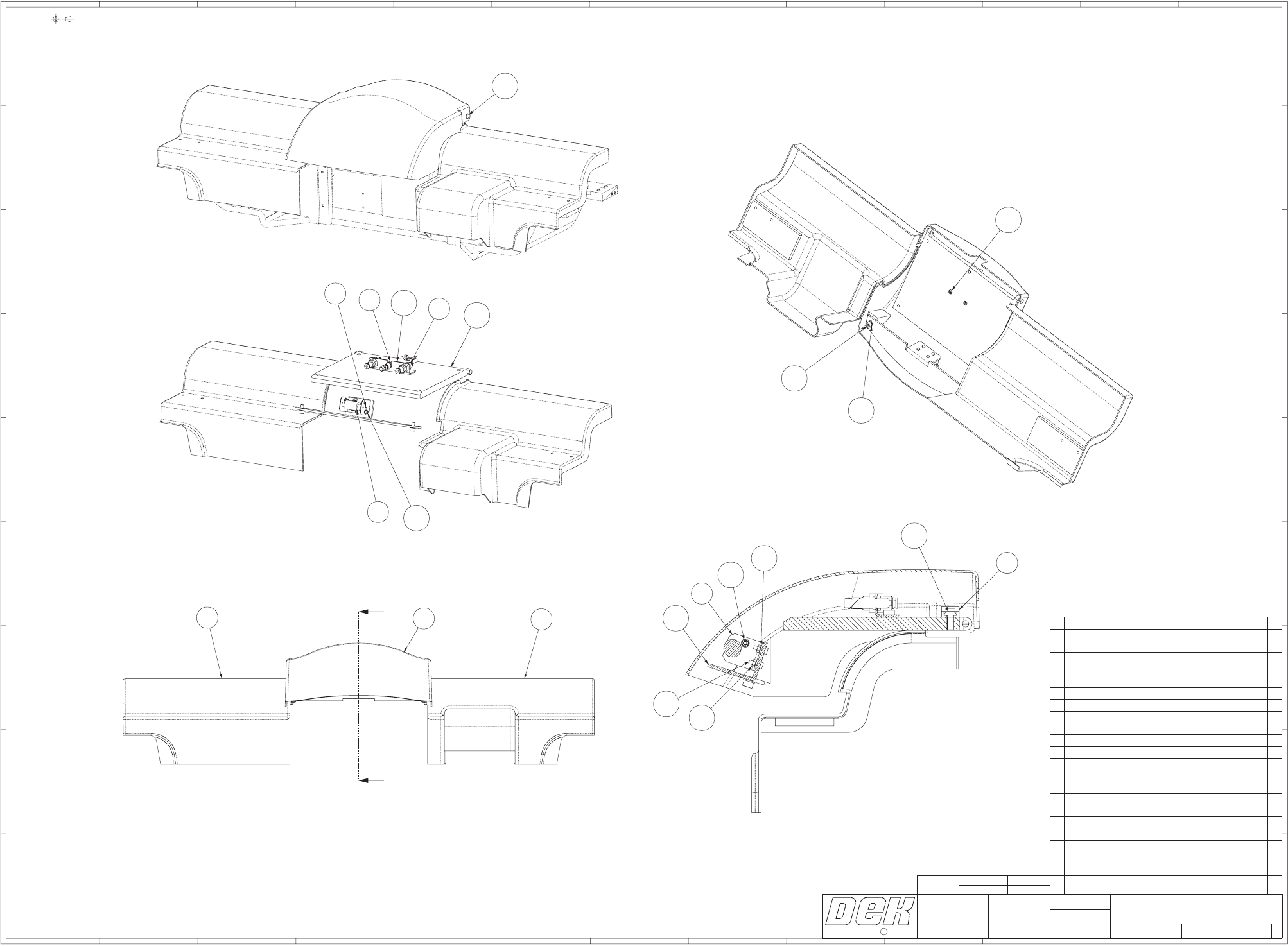

156553 Issue 3 Light Shroud Assembly GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
1999
BOM NUMBER
A
A
ITEM PART NO. DESCRIPTION QTY.
1
113822 CABLE TIE CLAMP (M5) 1
2
137470 BULKHEAD UNION 4.0MM SELF SEAL 2
3
140228 FESTOON BULB 1
4
140251 PLATE,CONTACT 2
5
155868 PROFLOW PRINT CARRIAGE LOOM BOM 1
6
155948 PASTE ROLL LAMP LOOM BOM 1
7
156093 COVER, MIDDLE 1
8
156094 COVER, LEFT 1
9
156095 COVER, RIGHT 1
10
156638 BRACKET, BULKHEAD FITTING 1
11
156640 LIGHT SHIELD 1
12
156641 BELT COVER 1
13
156644 PUSH FASTENER 2
14
700010 SCREW M5X12 PN.HD SLTD MC ST.ST 1
15
700101 SCREW M3X8 CAP HD ST.ST 2
16
700111 SCREW M4X12 CAP HD ST.ST 2
17
700132 SCREW M5X10 CAP HD ST.ST 2
18
700500 NUT M3 FULL ST.ST 5
19
700515 NUT M3 NI-LOCK 985 2
20
700601 WASHER M3 PLAIN FORM A ST.ST 8
21
700603 WASHER M5 PLAIN FORM A ST.ST 2
22
701106 SCREW M3X10 SLTD CH HD NYLON 4
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:2
R PIATEK
LIGHT SHROUD GA (CAST PRINT CARRIAGE)
13-May-99
156553 156659
SH 1
OF 1
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
03 07-Sept-99 21254 DMH
13
16
17
21
2
3
10
12
15
COVER, MIDDLE REMOVED FROM THIS
VIEW FOR CLARITY
6
5
7
8
9
SECTION A-A
SCALE 1:1
4
11
19
20
1
14
18
22
