Mechanical Drawings 35 156824 Issue 6 T op Hinge G A 5 4 3 2 1 A B C C B A 123 45 67 8 91 0 11 12 13 6 7 8 9 10 11 12 13 D E F G H I D E F G H I PROJECTION DRAWN RELEASE STATE DATE C COPYRIGHT DO NOT SCALE SCALE TITLE DR…
34 Mechanical Drawings

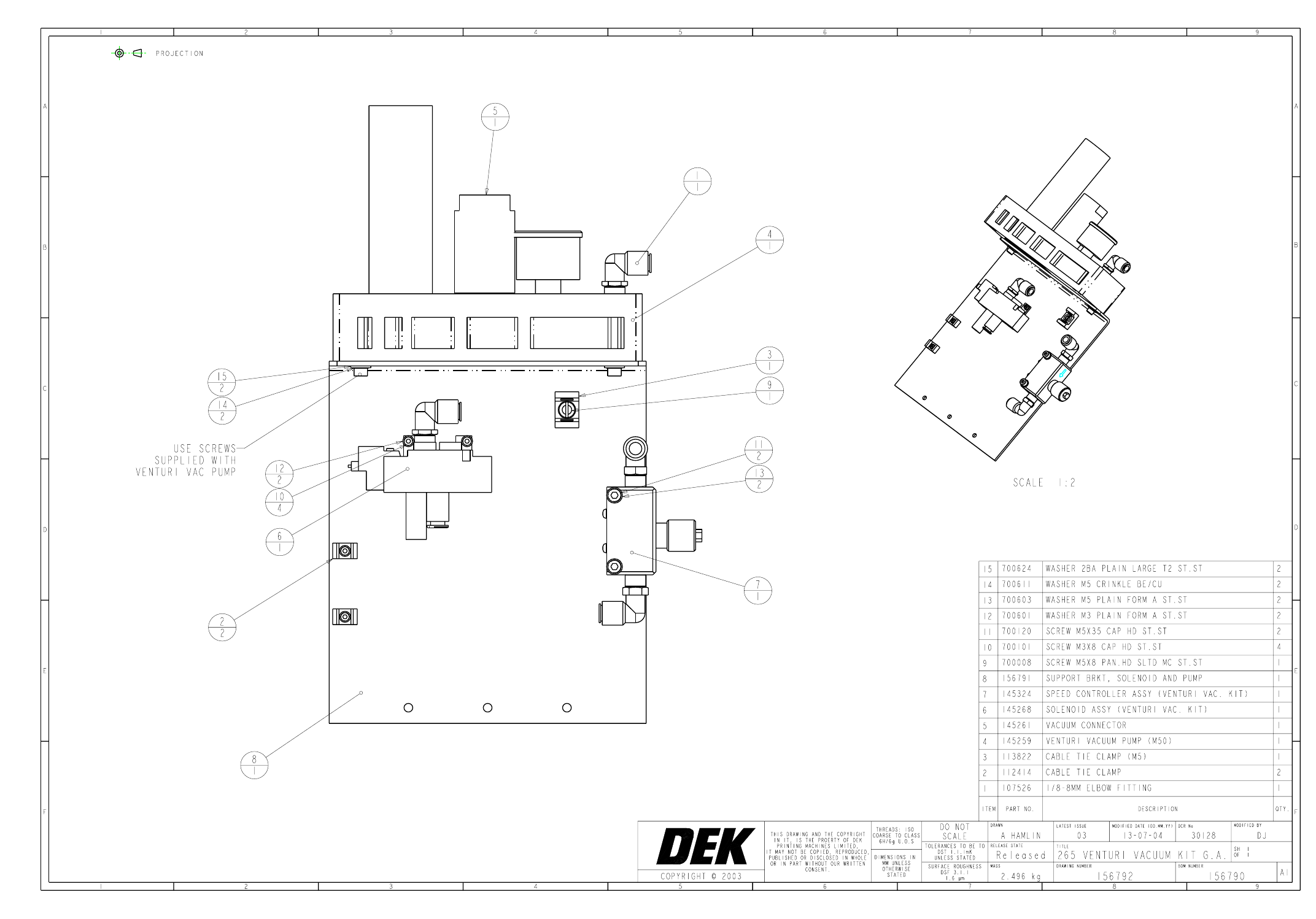

156792 Issue 3 265 Venturi Vacuum Kit GA
Mechanical Drawings 35
156824 Issue 6 Top Hinge GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
RELEASE STATE
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2003
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
112414 CABLE TIE CLAMP 4
2
117376 BRACKET,6 WAY 1
3
133364 BUFFER STOP ASSY. 4
4
156382 PUSH IN BASE & TIE 1
5
156748 HOLE PLATE 2
6
156772 HINGE PLATE 2
7
156773 HINGE ARM, LONG 4
8
156774 HINGE ARM, SHORT 4
9
156775 HINGE PLATE, TOP LEFT 2
10
156776 HINGE PLATE, TOP RIGHT 2
11
156779 DAMPER MOUNT 1
12
156780 DAMPER MOUNT, FRONT RIGHT 1
13
156781 DAMPER MOUNT, FRONT LEFT 1
14
156804 FLANGED OILITE BUSH, 12 OD, 8 ID, 12 LG 16
15
156816 SPACER 16
16
156842 BEACON VERTICAL 1
17
165009 DAMPER MOUNT 1
18
165011 CYLINDER 1
19
165012 CYLINDER 1
20
700518 NUT M8 NI-LOCK 985 4
21
700605 WASH M8 PLAIN FRM A CLEAR ZN.PL 4
22
G5212 4MM-M5 MALE CONNECTOR 2
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
3:4
ACR
TOP HINGE GA
13-Sep-99
156824
SEE NOTE 1.
SH 1
OF 1
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
06 5-Aug-03 27637 MGS
GAS STRUTS
MACHINE
FRONT REAR
PART No QTY PART No QTY
HORIZON 186206 2 186206 2
INFINITY 186206 2 186207 2
NOTES
1. PART OF BOM NUMBERS;
HORIZON; 156407 COVERS BOM, HORIZON
INFINITY; 158019 COVER ASSEMBLY BOM (INF)
2. FOR INITIAL SET-UP USE;
156822 SETTING PLATE, HINGE AND
156823 HEIGHT GAUGE, HINGE (2 OFF)
LEFT HAND VIEW
RIGHT HAND VIEW
SCALE 1:1
1
4
2
1
3
4
4
1
5
2
6
2
7
4
8
4
9
2
10
2
11
1
12
1
13
1
14
16
15
16
16
1
17
1
19
1
20
4
21
4
18
1
22
2
