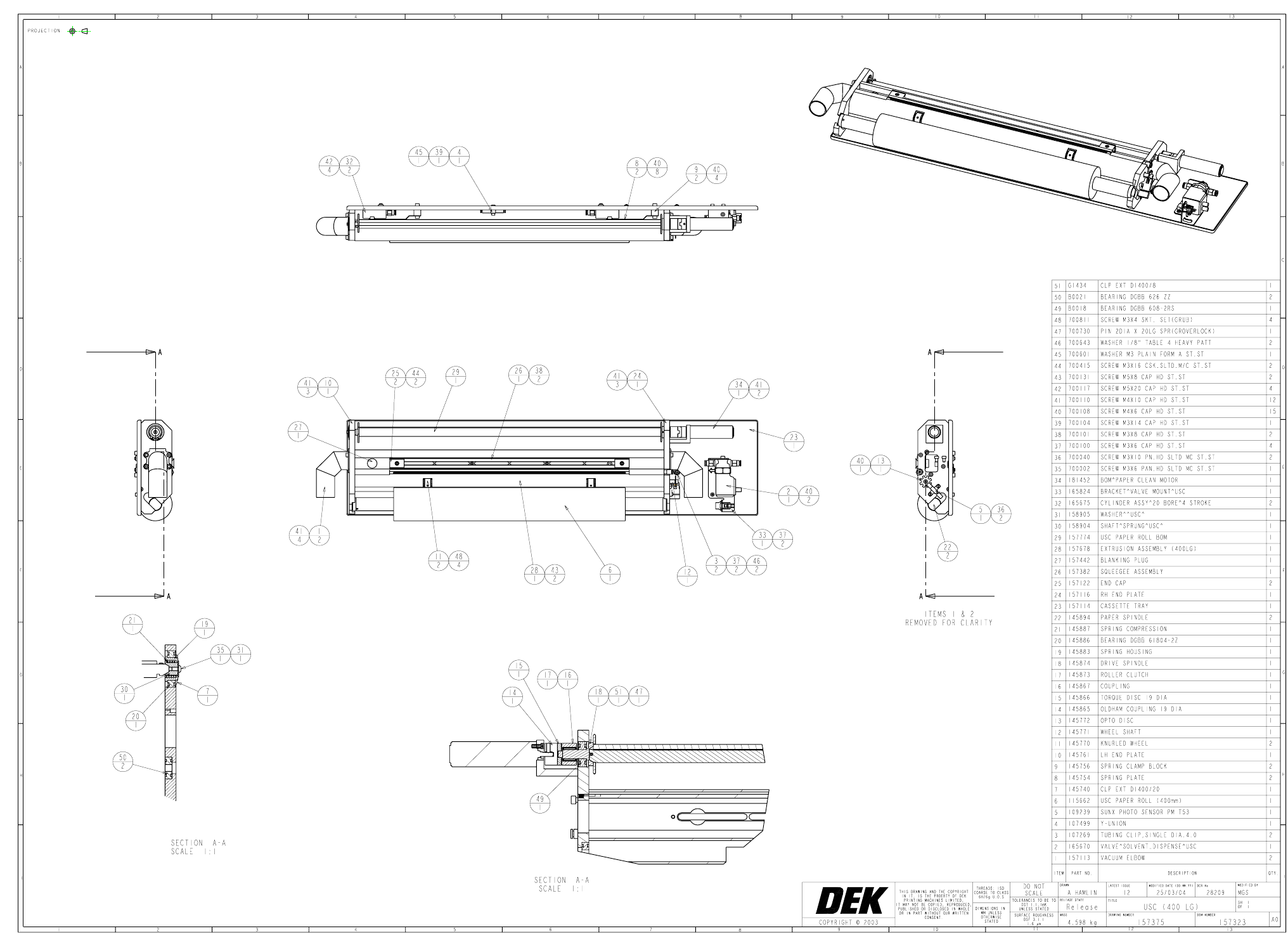

40 Mechanical Drawings 15737 6 Issue 1 2 Un der Screen Cleaner (30 0 LG) GA
Mechanical Drawings 39

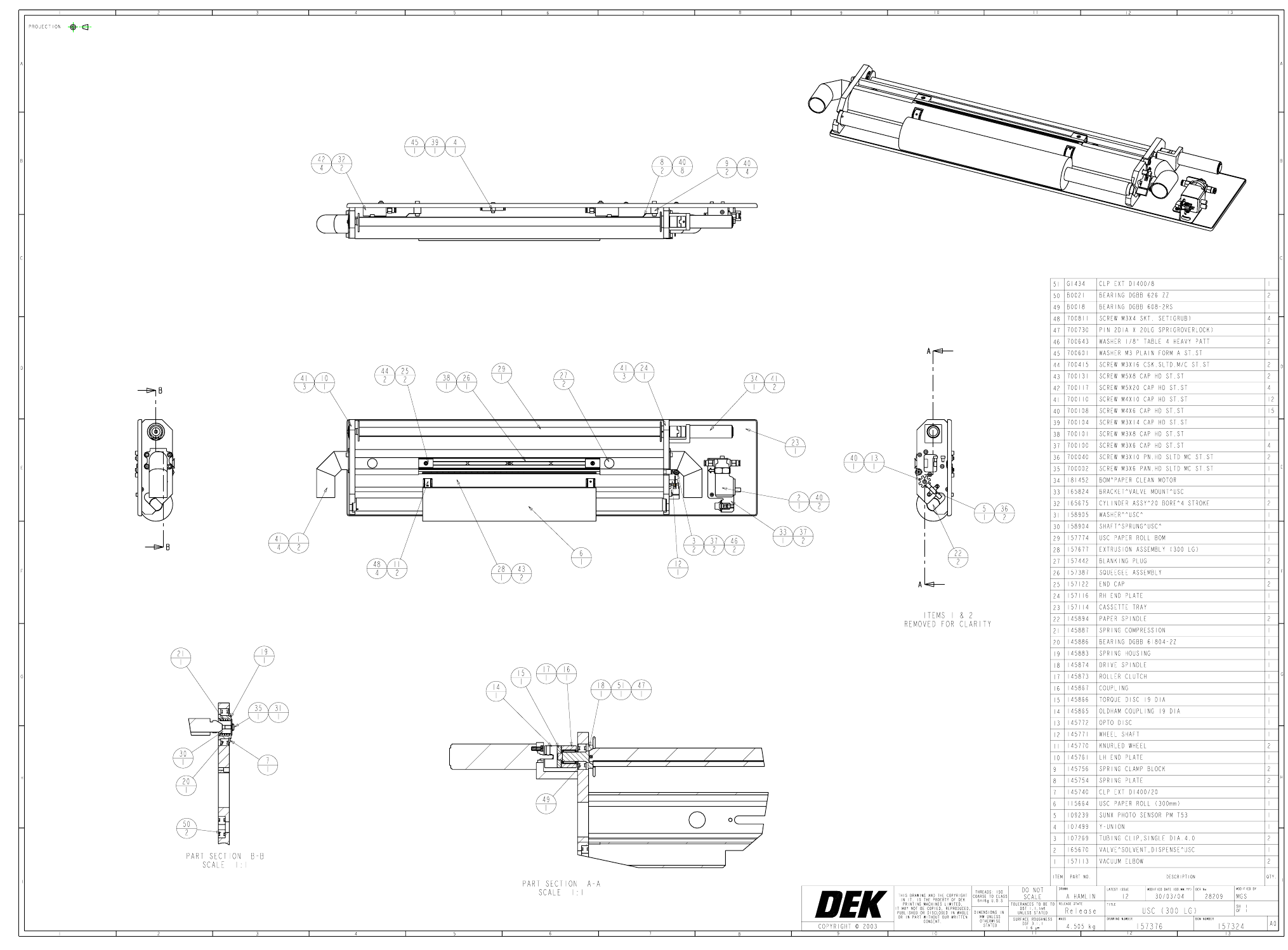

157375 Issue 12 Under Screen Cleaner (400 LG) GA
40 Mechanical Drawings

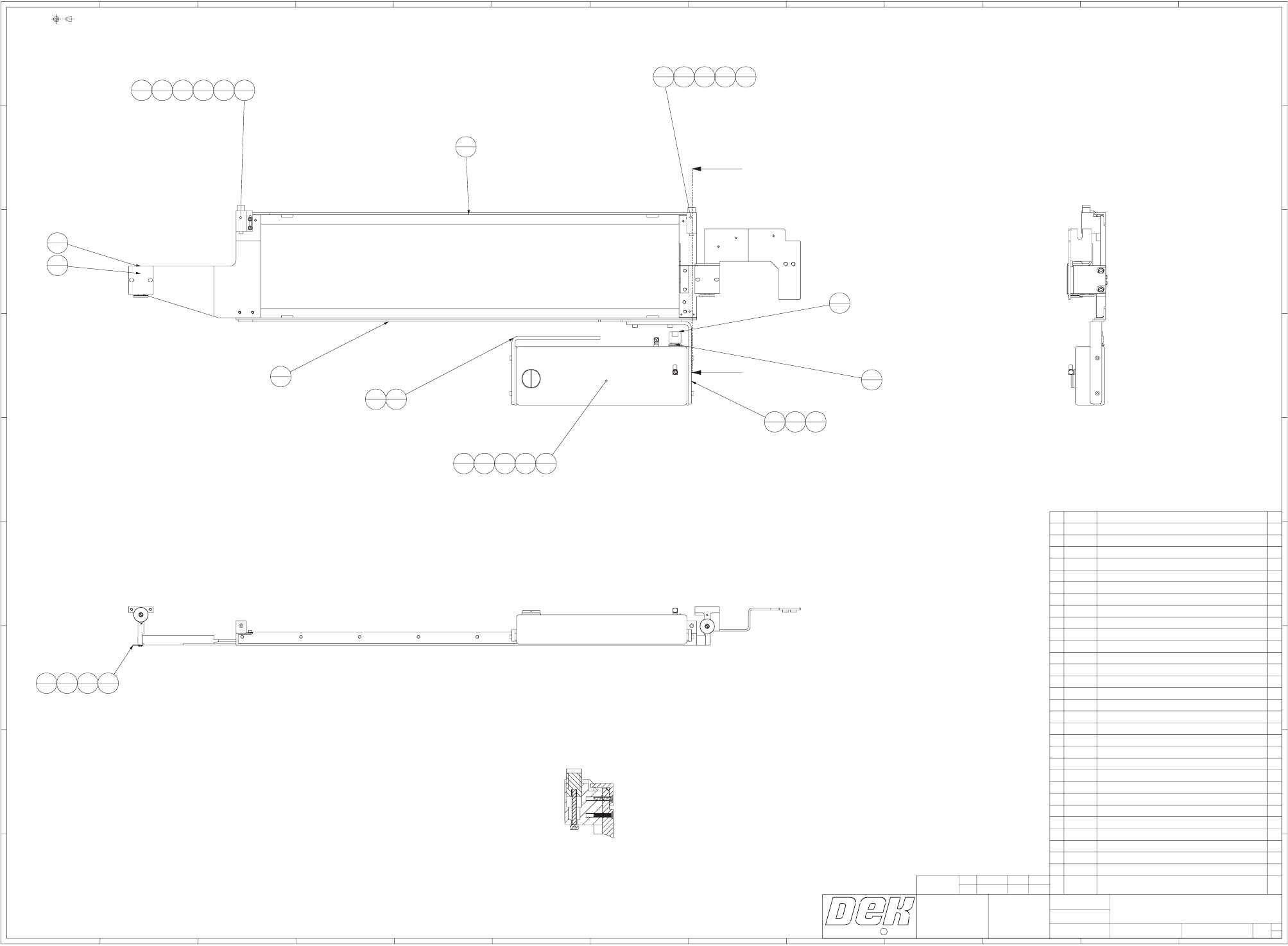

157376 Issue 12 Under Screen Cleaner (300 LG) GA
Mechanical Drawings 41
157509 Issue 5 USC Drive Carriage Assembly GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
Z
Z
ITEM PART NO. DESCRIPTION QTY.
1
107265 ELBOW F/F 2
2
107332 ARMATURE PLATE 2
3
107443 RARE EARTH POT TYPE MAGNET 2
4
107660 VANE 1
5
114245 WASHER 2
6
119664 FILLER CAP 1
7
119667 WASHER SEALING 1
8
129217 MAGNET HOLDER, LH 1
9
129504 MAGNET HOLDER, RH 1
10
129505 SOLVENT TANK 1
11
140535 SEALING WASHER 1
12
156581 BEARING BLOCK 2
13
156583 PLATE, USC CHAIN FRONT 1
14
156924 DRIVE UNIT ASSEMBLY 1
15
157281 INTERFACE BRACKET 1
16
157319 MANIFOLD SPACER 1
17
165677 BRACKET^L/H^SOLVENT TANK 1
18
165678 BRACKET^R/H^SOLVENT TANK 1
19
181161 BOM^LIQUID LEVEL SENSOR^SOLVENT TANK^USC 1
20
700102 SCREW M3X10 CAP HD ST.ST 2
21
700109 SCREW M4X8 CAP HD ST.ST 4
22
700114 SCREW M4X30 CAP HD ST.ST 2
23
700115 SCREW M5X12 CAP HD ST.ST 4
24
700131 SCREW M5X8 CAP HD ST.ST 2
25
700312 SCREW M3X8 BUTT.HD ST.ST 2
26
700415 SCREW M3X16 CSK.SLTD.M/C ST.ST 2
27
700603 WASHER M5 PLAIN FORM A ST.ST 4
28
700609 WASHER M3 CRINKLE BE/CU 2
29
700611 WASHER M5 CRINKLE BE/CU 4
30
700656 6BA T2 WASHER S/S 4
31
G0332 FLEXO 123008 SPRING 2
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:2
A HAMLIN
DRIVE CARRIAGE ASSEMBLY
25-June-02
157509
157538
SH 1
OF 1
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
05 25-June-02 27478 PB
PART SECTION Z-Z
SCALE 1:1
1
2
3
1
5
2
6
1
7
1
9
1
10
1
11
1
14
1
16
1
17
1
18
1
31
1
31
1
3
1
8
1
22
1
22
1
20
2
30
2
26
2
21
2
24
2
21
2
12
2
19
1
29
4
4
1
30
2
25
2
28
2
