74 Mechanical Drawings 171 222 Issue 3 T ransfer Head Dual Chamber 30 0mm Casset te F E D C B A 6 5 4 3 2 1 E F 9 8 7 1 2345678 9 PROJECTION D C B A DRAWN APPROVED DATE C COPYRIGHT DO NO T SCALE SCALE TITLE DRAWING NUMBE…
Mechanical Drawings 73

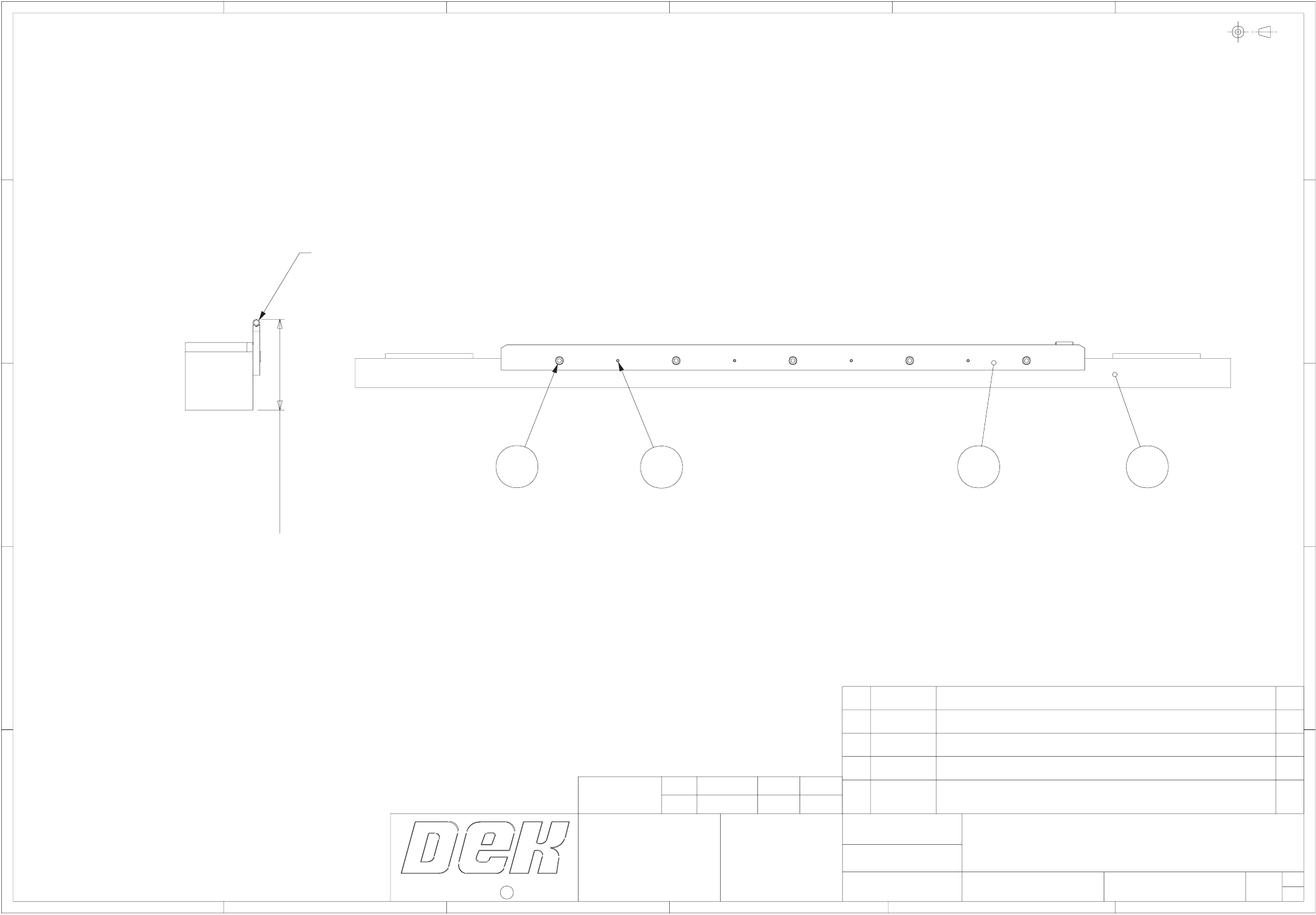

165606 Issue 1 HTC Rail 3mm Support Fitted
A
B
C
D
REMOVE ALL BURRS & SHARP EDGES
456
1
2
3
456
1
2
3
A
B
C
E
E
PROJECTION
D
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
SEE NOTE 1
39.00
+0.05
0
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:2
A HAMLIN
HTC RAIL 3mm SUPPORT FITTED
12-Sep-01
165606
165607
SH 1
OF 1
A
2
ITEM PART NO. DESCRIPTION QTY.
1
129111 O RING SUPPORT RAIL, CENTRE (3mm) 1
2
165019 RAIL, PRINT SECTION 1
3
700003 SCREW M3X8 PAN.HD SLTD MC ST.ST 5
4
700720 DOWEL 3DIA X 6LG H&G(GRD 1) 4
LATEST
ISSUE
No. DATE DCR INITIAL
01 12-Sep-01 ... AH
NOTES
1 THIS DIMENSION TO APPLY ALONG ENTIRE LENGTH OF O RING SUPPORT RAIL.
2 USE DOWEL ø 3.000 m6
+0.008
+0.002
()
.
1 2
3
4
SEE NOTE 2
SCALE 1:1
74 Mechanical Drawings
171222 Issue 3 Transfer Head Dual Chamber 300mm Cassette
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137432 SHOULDER SCREW M3 X 4 4
2
137433 LOWER CARRIER BRACKET 1
3
137434 HINGE PIN 1
4
137442 RETAINING PIN 2
5
137443 CARRIER BRACKET 1
6
137447 BLADE RETAINER STRIP 2
7
137577 LABEL, NOVATEC, SMALL 1
8
137660 SKI, HOLED 2
9
137925 NOZZLE^TRANFER HD^D/C^PROFLOW^300 1
10
137964 METAL ETCHED WIPERS 8/12 2
11
171130 HOOK^PROFLOW^^ 1
12
171169 CHASSIS^CAS^300DC^HM 1
13
171261 CLAMP^BRACKET^^ 2
14
171262 THUMBSCREW^^^TOPSIDE 2
15
171299 CARRIER^CASSETTE^DC^^ 1
16
700118 SCREW M5X25 CAP HD ST.ST 1
17
700313 SCREW M4X10 BUTT.HD ST.ST 3
18
700401 SCREW M3X6 CSK.SLTD.M/C ST.ST 3
19
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
20
700404 SCREW M4X6 CSK.SLTD.M/C ST.ST 2
21
700689 WASHER M5 BLACK PLASTIC 2
22
700801 SCREW M3X3 SKT. SET(GRUB) 1
23
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
03 7-AUG-02 27629 C.L.D
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:5
THONNOR
TRANSFER HEAD^DC^300CASS^HM
09-Oct-01
171222
171177
SH 1
OF 1
A
1
(UNDER SKI)
SCALE 1:1
1
2
3
5
12
16
11
15
SCALE 1:1
6
8
9
10
17
18
19
20
21
22
SCALE 13:20
13
14
SCALE 13:20
4
7
23
Mechanical Drawings 75
171223 Issue 3 Transfer Head Dual Chamber 350mm Cassette
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137432 SHOULDER SCREW M3 X 4 4
2
137433 LOWER CARRIER BRACKET 1
3
137434 HINGE PIN 1
4
137442 RETAINING PIN 2
5
137443 CARRIER BRACKET 1
6
137506 BLADE RETAINER STRIP, 350 CAVITY 2
7
137577 LABEL, NOVATEC, SMALL 1
8
137660 SKI, HOLED 2
9
137965 METAL ETCHED WIPERS Ti 8/12 2
10
171070 NOZZLE^TRANSFER HD^D/C PROFLOW^350 1
11
171130 HOOK^PROFLOW^^ 1
12
171171 CHASSIS^CAS^350DC^HM 1
13
171261 CLAMP^BRACKET^^ 2
14
171262 THUMBSCREW^^^TOPSIDE 2
15
171299 CARRIER^CASSETTE^DC^^ 1
16
700118 SCREW M5X25 CAP HD ST.ST 1
17
700313 SCREW M4X10 BUTT.HD ST.ST 3
18
700401 SCREW M3X6 CSK.SLTD.M/C ST.ST 3
19
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
20
700404 SCREW M4X6 CSK.SLTD.M/C ST.ST 2
21
700689 WASHER M5 BLACK PLASTIC 2
22
700801 SCREW M3X3 SKT. SET(GRUB) 1
23
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
03 7-AUG-02 27629 C.L.D
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:5
THONNOR
TRANSFER HEAD^DC^350CASS^HM
09-Oct-01
171223
171178
SH 1
OF 1
A
1
(BENEATH SKI)
SCALE 1:1
1
2
3
5
12
16
11
15
SCALE 1:1
8
17
18
19
20
21
22
6
9
10
SCALE 13:20
13
14
SCALE 13:20
4
7
23
