Mechanical Drawings 87 171 2 35 Issue 2 T ransfer H ead Single Chamber 350mm Rec hargeable F E D C B A 6 5 4 3 2 1 E F 9 8 7 1 2345678 9 PROJECTION D C B A DRAWN RELEASE STA TE DATE C COPYRIGHT DO NO T SCALE SCALE TITLE …

100%1 / 106
86 Mechanical Drawings

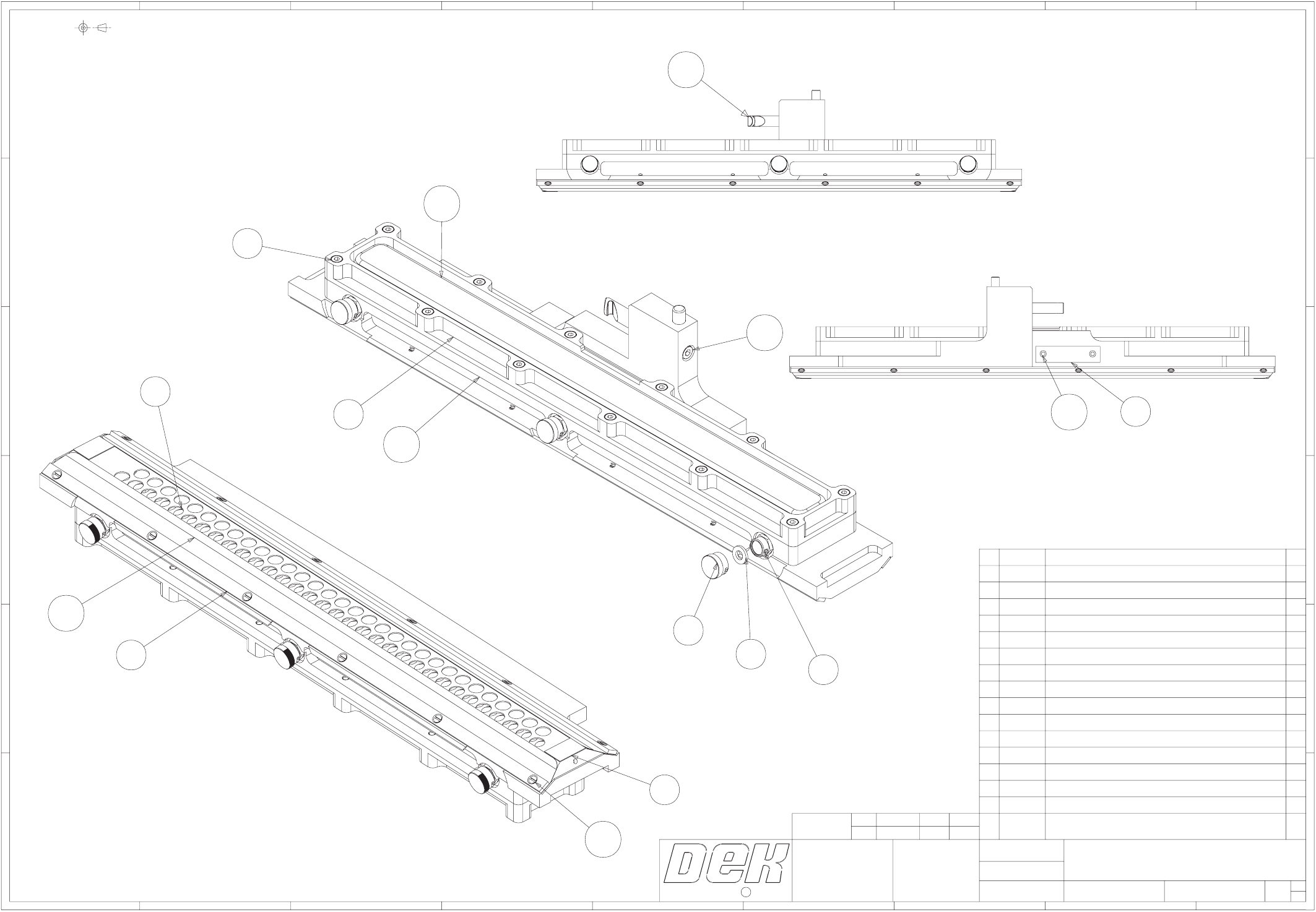

171234 Issue 2 Transfer Head Single Chamber 300mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
RELEASE STATE
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2003
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137447 BLADE RETAINER STRIP 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137704 RETAINER, DIAPHRAGM 1
6
137817 FITTING, BAYONET 3
7
137818 CAP, BAYONET 3
8
137826 RUBBER SEAL 3
9
137881 GRID-300 HD-Pflw 1
10
137964 METAL ETCHED WIPERS 8/12 2
11
171059 DIAPHRAGM 110° 300 MM 1
12
171130 HOOK^PROFLOW^^ 1
13
171217 CHASSIS^SC^300RC^HM 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
701011 TAPTITE SCREW M3X8 PAN POZI (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
02 23-Nov-01 27124 TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^SC^300RC^HM
11-Oct-01
171234
171202
SH 1
OF 1
A
1
4
5
6
7
8
11
13
14
1
3
9
10
15
SCALE 13:20
12
SCALE 13:20
2
16
Mechanical Drawings 87
171235 Issue 2 Transfer Head Single Chamber 350mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
RELEASE STATE
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2003
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137506 BLADE RETAINER STRIP, 350 CAVITY 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137796 RETAINER (350) 1
6
137817 FITTING, BAYONET 3
7
137818 CAP, BAYONET 3
8
137826 RUBBER SEAL 3
9
137884 GRID-350 HD -Pflw 1
10
137965 METAL ETCHED WIPERS Ti 8/12 2
11
171058 DIAPHRAGM 110° 350 MM 1
12
171130 HOOK^PROFLOW^^ 1
13
171218 CHASSIS^SC^RC350^H/MOUNT 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
701011 TAPTITE SCREW M3X8 PAN POZI (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
02 23-Nov-01 27124 TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^SC^350RC^HM
11-Oct-01
171235
171203
SH 1
OF 1
A
1
4
5
6
7
8
11
13
14
1
3
9
10
15
SCALE 13:20
12
SCALE 13:20
2
16
88 Mechanical Drawings
171236 Issue 2 Transfer Head Single Chamber 400mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
RELEASE STATE
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2003
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137564 BLADE RETAINER STRIP, 400 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137797 RETAINER (400) 1
6
137817 FITTING, BAYONET 3
7
137818 CAP, BAYONET 3
8
137826 RUBBER SEAL 3
9
137885 GRID -400 HD- Pflw 1
10
137966 METAL ETCHED WIPERS Ti 8/12 2
11
171057 DIAPHRAGM 110 ° 400 MM 1
12
171130 HOOK^PROFLOW^^ 1
13
171219 CHASSIS^SC^RC400^H/MOUNT 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
701011 TAPTITE SCREW M3X8 PAN POZI (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
02 23-Nov-01 27124 TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^SC^400RC^HM
11-Oct-01
171236
171204
SH 1
OF 1
A
1
4
5
6
7
8
11
13
14
3
9
10
15
1
SCALE 13:20
12
SCALE 13:20
2
