1.16 User Manual Software Version 7
14.Select File.
15.Select Save to retain any changes made to the product file. Select Save As
to make a copy of the product file.
Uploading a Product
File
To upload a product file from the Pocket Off Line Editor to the printing machine,
proceed as follows:
1. Ensure the Start Up Section has been carried out.

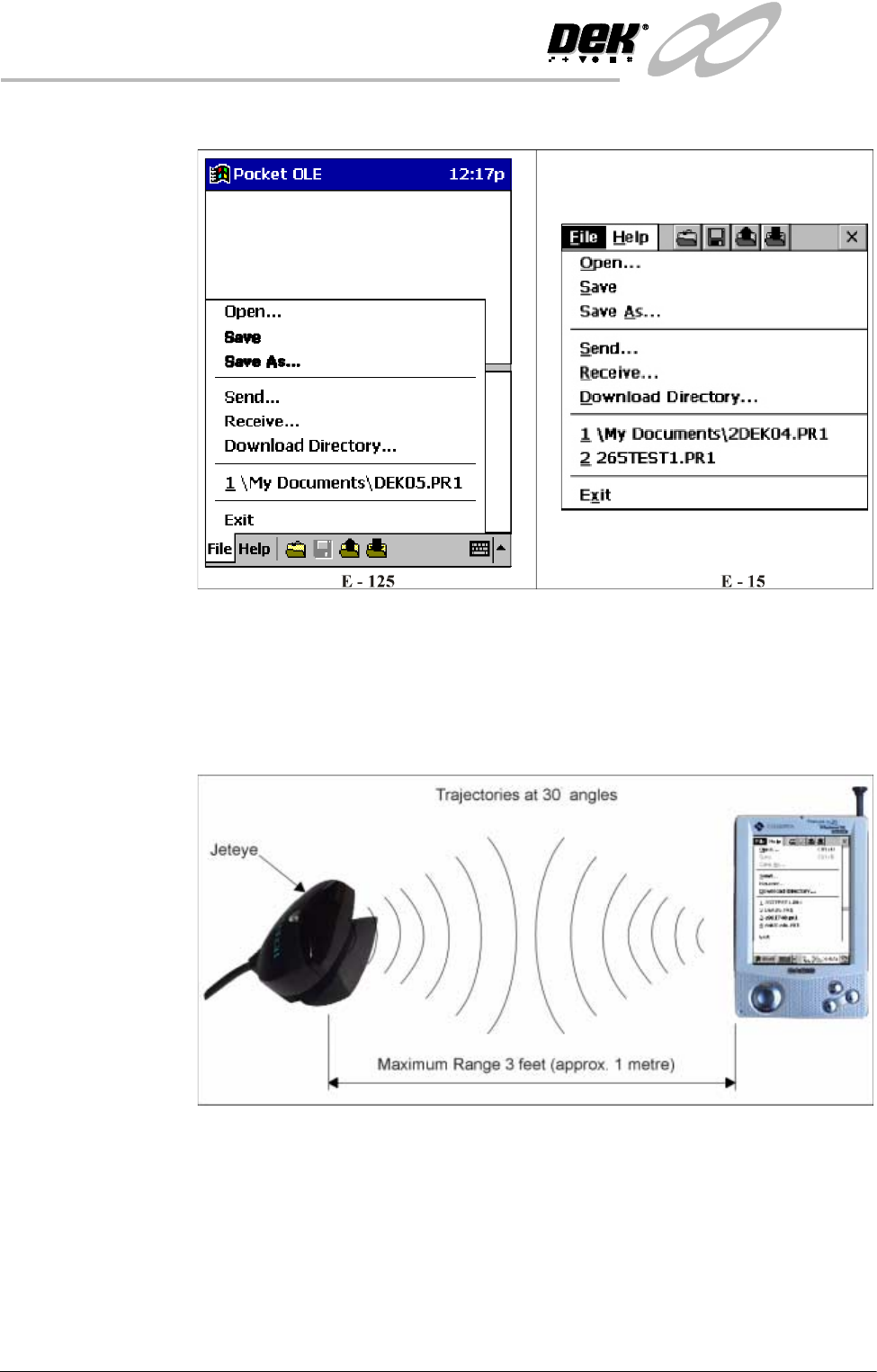

2. With reference to the above figure, aim the infrared port of the Palm-size PC
at the Jeteye.
NOTE
The CASSIOPEIA shown is the E-15, but the information is also valid for the
E-125.
INFINITY
0$&+,1(352*5$00,1*
67$*(&/2$'$352'8&7),/(
Software Version 7 User Manual 1.17

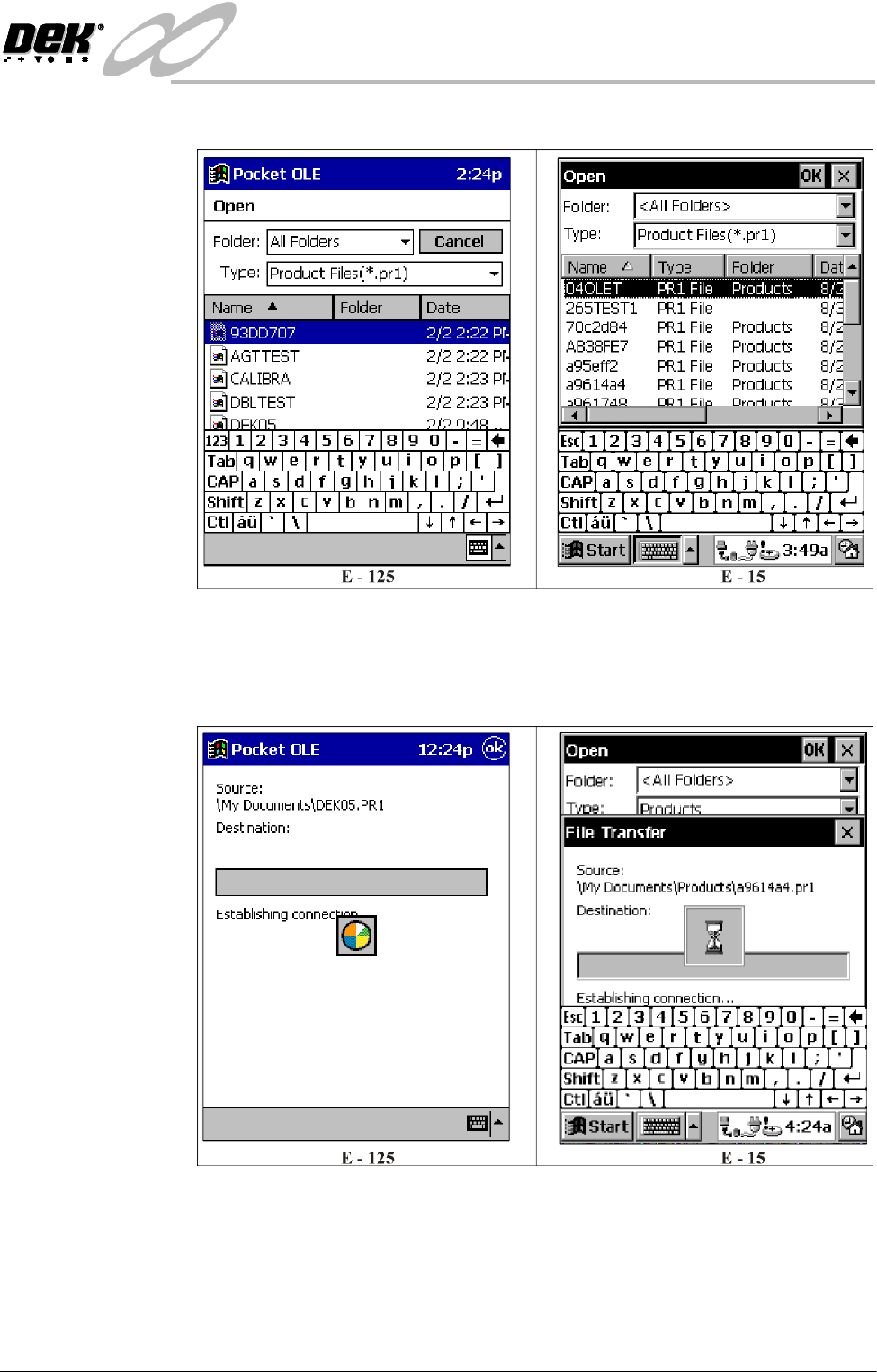

3. Select Send, the following window is displayed:
4. Select the required product file for uploading.
5. On the E-15 only select OK. The following window is displayed, automat-
ically on the E-125, whilst the Pocket Off Line Editor establishes the
connection with the printing machine:
INFINITY
0$&+,1(352*5$00,1*
67$*(&/2$'$352'8&7),/(
1.18 User Manual Software Version 7
6. Once the connection is established the following window is displayed whilst
the selected product file is uploaded:
7. Once the upload is complete the following window is displayed:
8. Select OK.
9. Exit out of Pocket OLE and switch off.
10.Go to Stage 2A to load the product file onto the printer.
