INFINITY +286(.((3,1 * 0$1$* (0(17 ,1)250$7,21 9,(:(5 7.16 User Manual Software Versi on 7 Downloading T o download the data from the printing machine to the palm size PC, proceed as follows: 1. Ensure the Start Up se…
INFINITY
+286(.((3,1*
0$1$*(0(17,1)250$7,219,(:(5
Software Version 7 User Manual 7.15

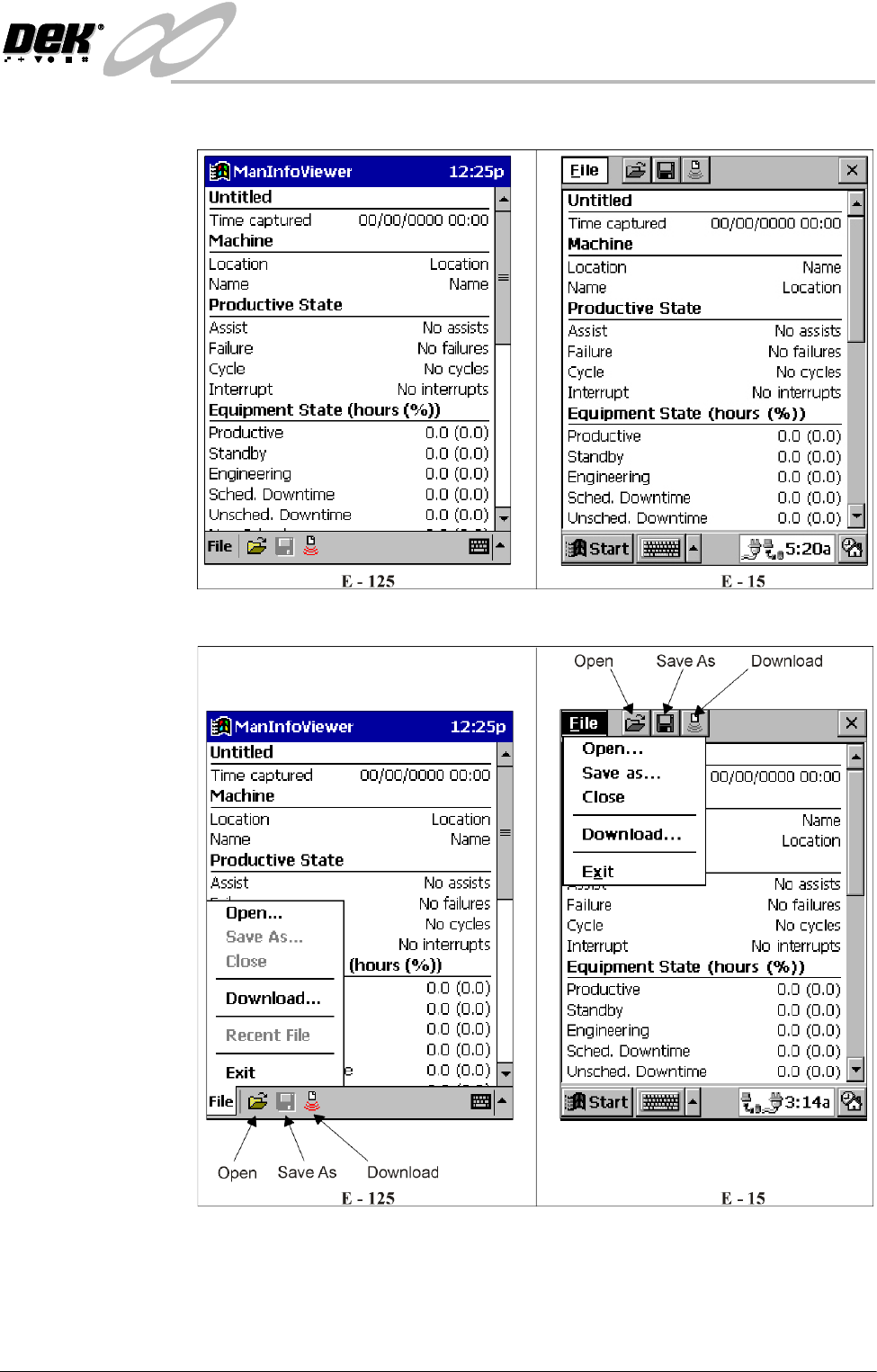

3. Select ManInfoViewer, the following window is displayed:
4. Select File, the following window is displayed:
INFINITY
+286(.((3,1*
0$1$*(0(17,1)250$7,219,(:(5
7.16 User Manual Software Version 7

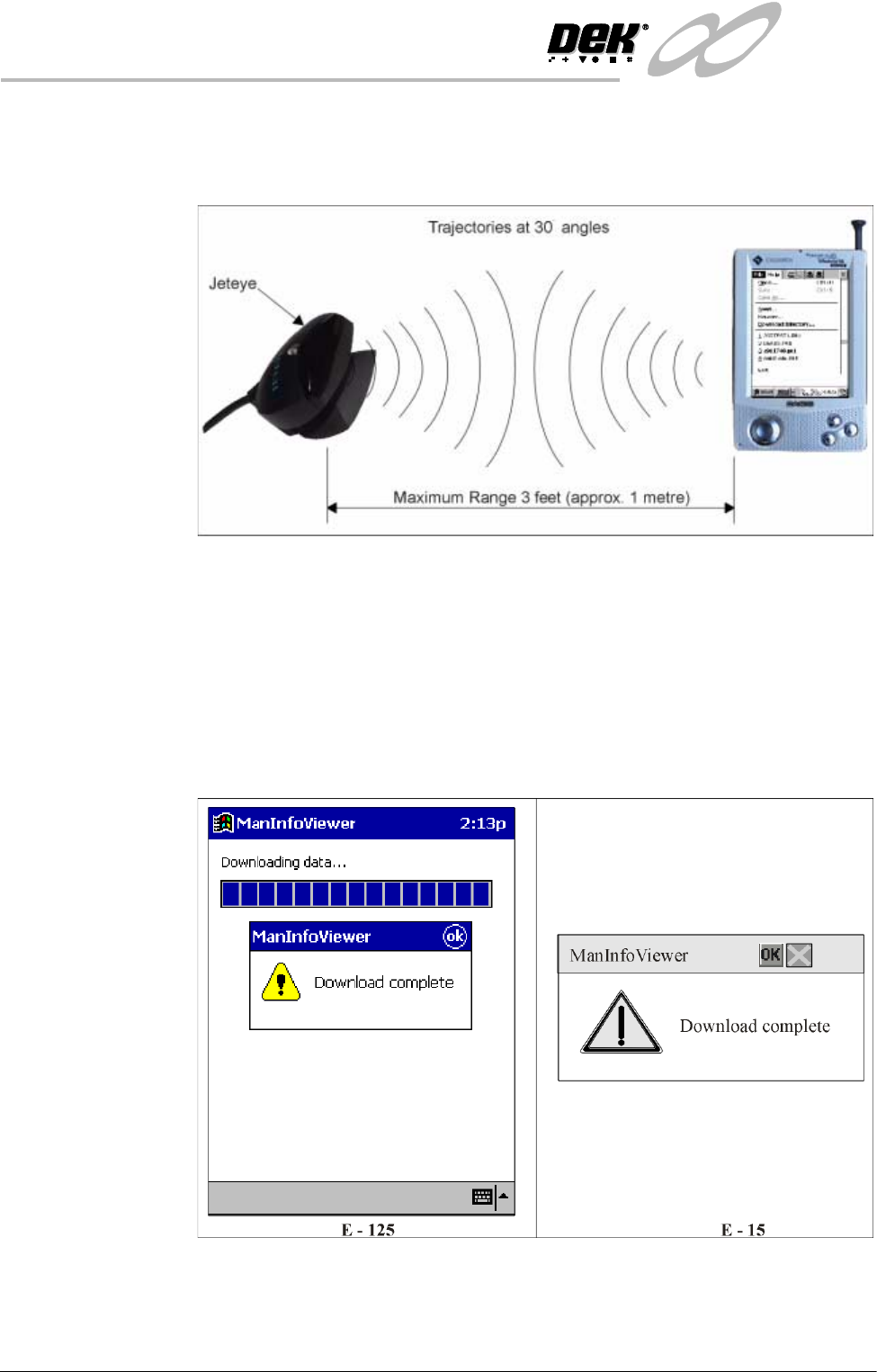

Downloading To download the data from the printing machine to the palm size PC, proceed as
follows:
1. Ensure the Start Up section has been carried out.
2. With reference to the above figure, aim the infrared port of the palm size PC
at the Jeteye.
NOTE
The CASSIOPEIA shown is the E-15, but the information is also valid for the
E-125.
3. Select Download, communications between the printer and the palm size PC
are established and data is downloaded using the infrared link.
4. Once the data is downloaded, a window of the following form is displayed:
NOTE
If the download is unsuccessful see the Error Messages information at the
end of this section.
INFINITY
+286(.((3,1*
0$1$*(0(17,1)250$7,219,(:(5
Software Version 7 User Manual 7.17
5. Select OK, to close the window and access the management information.
6. Use the scroller on the right to view all the data. A complete list of all the
data is shown below.
NOTE
The name, under the heading Machine, is the PC name. The default is the
machine serial number, ie DEK 122354.
MTB(x) = Mean Time Between (x)
MCB(x) = Mean Cycles Between (x)
Where (x) is A = Assist
Where (x) is F = Failure
Where (x) is I = Interrupt
Infinity.man
Machine
Productive State
Equipment State (hours (%))
Equipment Reliability (hours)
Equipment Reliability (cycles)
File Summary
Time captured
Location
Name
Assist
Failure
Cycle
Interrupt
Productive
Standby
Engineering
Sched. Downtime
Unsched. Downtime
Non Sched.
Total
MTBA
MTBF
MTBI
MCBA
MCBF
MCBI
Size
Number of events
First event
Last event
Standard
27/06/2000 04:37
SLANGHAM1
29
94
2613
123
31.02 (19.24)
116.82 (72.44)
0.0 (0.0)
4.55 (2.82)
8.87 (5.5)
0.0 (0.0)
161.26 (100.0)
1.07
0.33
0.25
90
27
21
1048544
16912
07/06/2000 00:10
13/06/2000 17:25
SEMI-E10
