Software Version 7 User Manual 1.21
STAGE 4A - FIT SQUEEGEES
If ProFlow was used when running the last product, carry out the ProFlow to
Squeegee Replacement Procedure, (Squeegee Module Chapter - Replacement
Procedures of Technical Reference Manual refers).
1. Select Setup (F6).
2. Select Setup Squeegee (F4).
3. Select Change Squeegee (F1).
4. Lift the front printhead cover.
5. Before fitting the squeegees to the machine, fix the paste deflectors to each
end of the squeegee assemblies, using the screws supplied. Ensure that the
bottom edge of the deflector is above the lower edge of the squeegee blade.
The setting of the paste deflectors is carried out later in this chapter.
NOTE
The deflectors are handed so care must be taken to fix the correct deflector
to each end of the squeegee assemblies.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change
Squeegee
Calibrat
Heights
Exit
INFINITY
0$&+,1(352*5$00,1*
67$*($),7648((*((6
1.22 User Manual Software Version 7

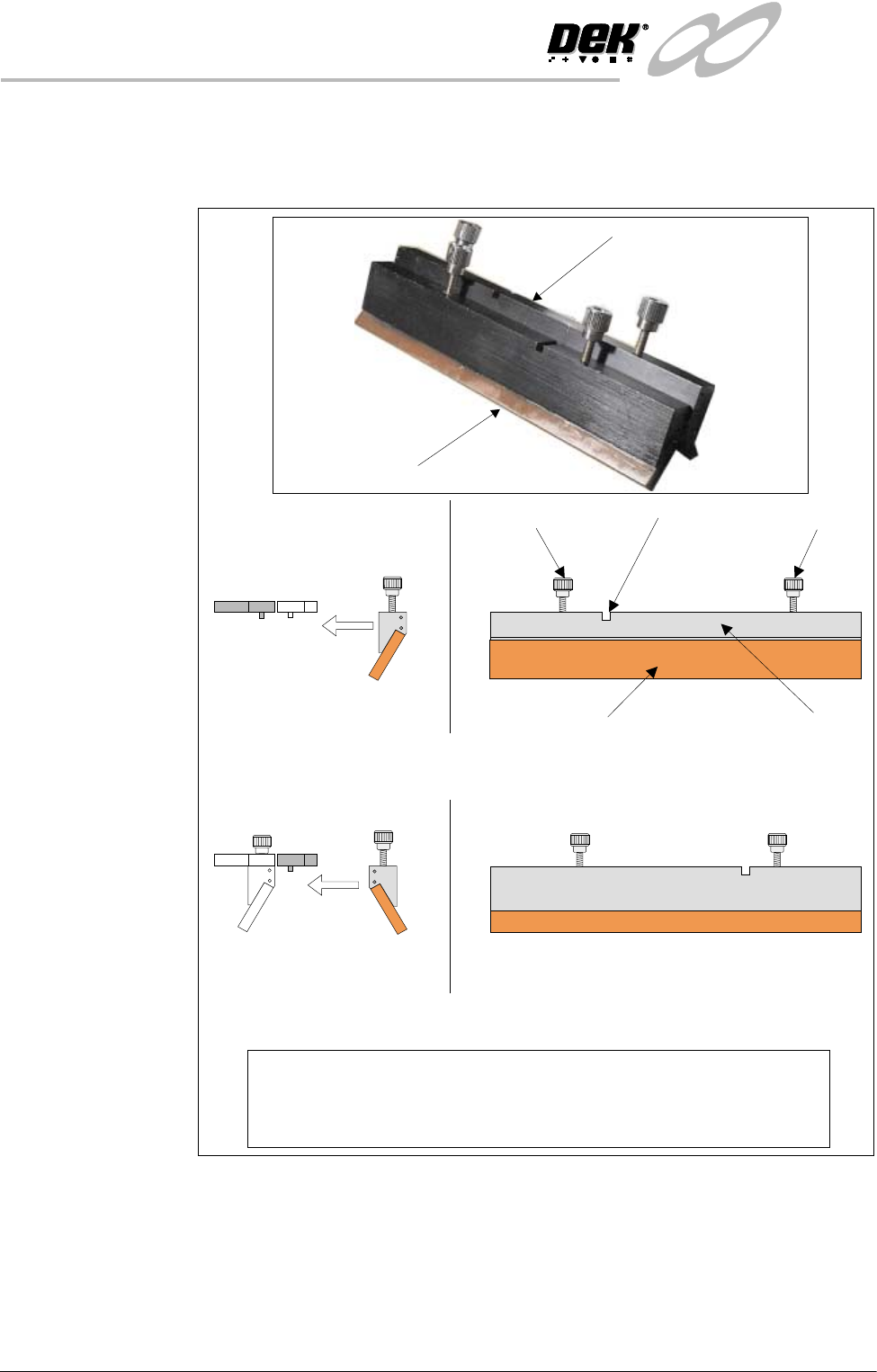

The front and rear squeegees must be fitted in the correct positions. Each
squeegee has a keyway machined into it to ensure that it cannot be incor-
rectly fitted.
NOTE
To prevent incorrect orientation when fitting squeegees, the locking screws on
the rear squeegee are positioned wider apart than those on the front
squeegee. Keyway slots are also in different positions.
Rear Squeegee
Front Squeegee
Rear Squeegee (Front View)
Front Squeegee (Front View)
Squeegee Blade Squeegee Holder
Locking Screw Keyway
Locking Screw
Fit to Rear
Squeegee Mount
Fit to Front
Squeegee Mount
Side View of Squeegee
and Squeegee Mounts
Side View of Squeegee
and Squeegee Mounts
INFINITY
0$&+,1(352*5$00,1*
67$*($),7648((*((6
Software Version 7 User Manual 1.23
6. Fit the rear squeegee onto the rear squeegee mount, tightening the thumb-
screws until they are finger tight.
7. Fit the front squeegee onto the front squeegee mount, ensuring that the
thumbscrews are only finger tight
8. Lower the machine front cover.
9. Press the System button.
10.Select Continue (F1).
11. Press Calibrat Heights (F2). The message ‘Ensure correct squeegees are
fitted’ is displayed.
Continue
Change
Squeegee
Calibrat
Heights
Exit
