Inspection Cycles During setup, sites are given a priority of either Every Cycle (EC) or General
(G). The amount of sites inspected during each cycle is set using the min sites/
cycle parameter, this must be set to at least the amount of every cycle sites. As
the name suggests, EC sites are inspected every cycle. General sites are
inspected depending on the value of the min sites/cycle parameter and the
number of EC sites as follows:
Number of general sites inspected per cycle = Min sites/cycle parameter - EC
sites.
The general sites are inspected in rotation as shown below.

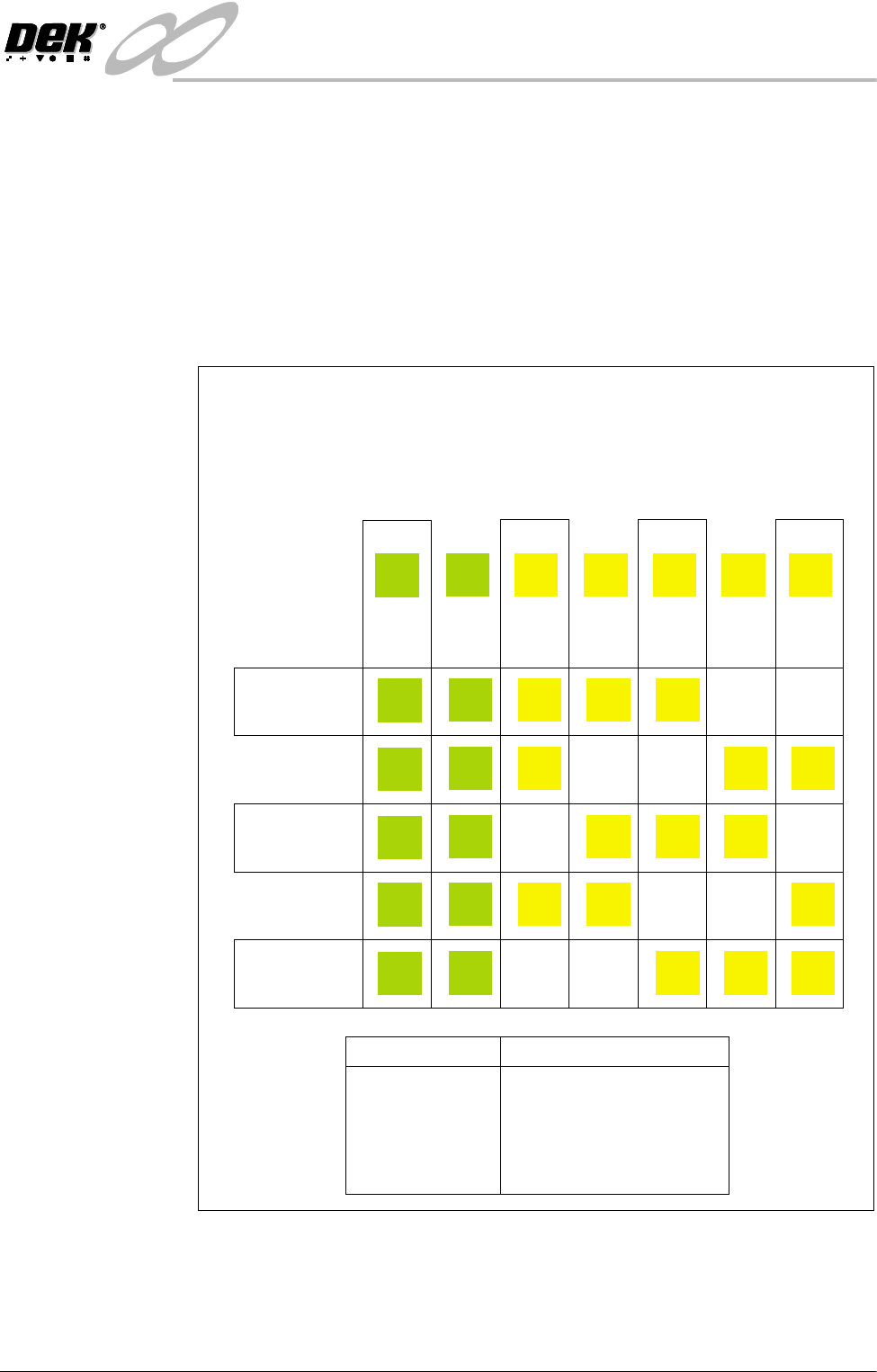

Figure 8-3 Site Inspection Cycles
min sites / cycle = 5
Cycle 1
Cycle 2
Cycle 3
Cycle 4
Cycle 5
In the example below, seven sites have been setup, with two given the priority
of and five given the priority of .
The min sites/cycle parameter is set at 5. As there are two EC sites, this leaves
three G sites to be inspected at each cycle as shown.
Every Cycle (EC) General (G)
Site 1
EC
EC
EC
EC
EC
EC
Site 2
EC
EC
EC
EC
EC
EC
Site 3
G
G
G
G
Site 4
G
G
G
G
Site 5
G
G
G
G
Site 6
G
G
G
G
Site 7
G
G
G
G
SITES
Cycle 1
Cycle 2
Cycle 3
Cycle 4
Cycle 5
Cycle 6
3, 4, 5
6, 7, 3
4, 5, 6
7, 3, 4
5, 6, 7
process repeats
INFINIT
Y
',163(&7,21
02'8/(29(59,(:
8.8 User Manual Software Version 7
Lighting The lighting levels for 2D inspection is software controlled. For a more detailed
description of the camera and optical unit refer to the Technical Reference
Manual, Camera and Vision Systems Module Chapter.
The green camera lighting parameters and functions are shown below. Each
lighting group can be set by the operator to a level between 0 to 15, where 15 is
the brightest.

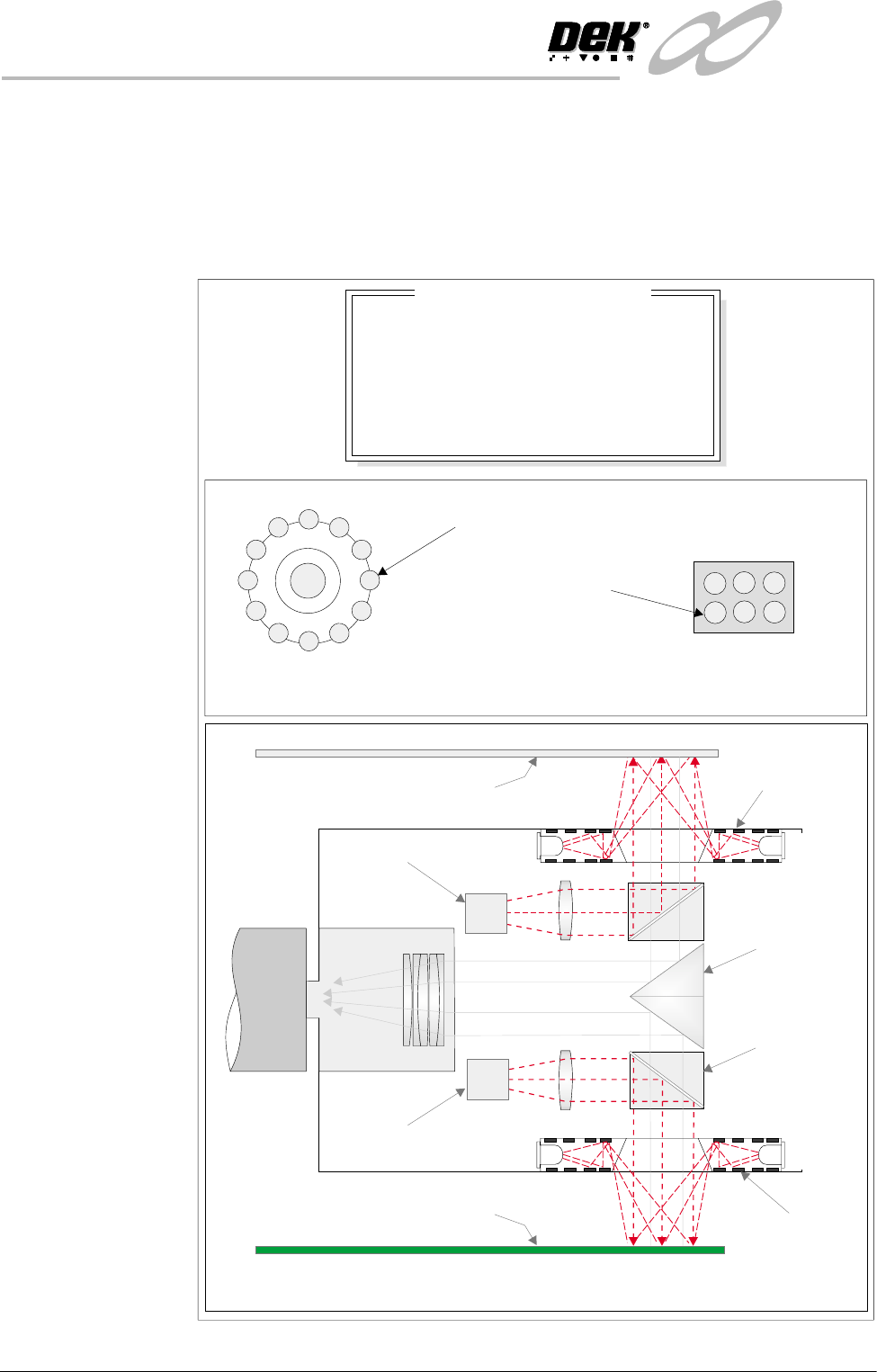

Figure 8-4 Software Controlled Lighting - Green Camera
Oblique Lighting LED
Board and Stencil Lighting LED Configurations
Adjustable iIlumination of Board and Stencil
Direct Lighting LED
Plan ViewPlan View
8
8
8
8
-1.0
-1.5
2.0
2.0
Inspection Lighting Parameters
Screen Vertical
Screen Oblique
Board Vertical
Board Oblique
Window Left
Window Top
Window Width
Window Height
mm
mm
mm
mm
Underside Stencil
Board
Prism
Beam Splitter
Cube
Oblique
Lighting
Oblique
Lighting
Direct Lighting
Direct Lighting
Camera
INFINITY
',163(&7,21
02'8/(29(59,(:
Software Version 7 User Manual 8.9
Image Recording Selecting Save Image saves the inspection object data using the save object
command. This option is only available if image recording in set preferences
is set to VP or PC disk.
It is recommended to use PC disk only for image recording. When saved the file
name is inspnnnn.im2, where n is an incrementing number.
The first image saved after initialization is insp0001.im2.
NOTE
VP disk saves to the Vision HD if fitted.
Inspection Setup Correct inspection setup is the key to effective inspection. By following the
steps of the setup sequence, shown in the summary below and the setup guide
over the page, effective inspection may be achieved. Refer to the 2D Inspection
Setup section of this chapter for step by step procedures on inspection set up.
Figure 8-5 Summary of Setup
Setup
Set Preferences
Edit Data
Load Product File
Inspect Setup
Edit Global
Edit Limits
Run
Inspect
Add Site
Limit Options
Learn Screen
Learn Board
Auto Learn
Light Setup
