15.If the set preference is set to suspend, the tricoloured beacon shows red and
the following window is displayed:
16.Select End Run (F8).
17.Press Head (F2). The message ‘Raise Head using 2-button Control’ is
displayed.
18.Raise the printhead using two button control.
19.Fit the head prop.
20.Press Confirm (F1).
Solvent Replenishment
WARNING
RECOMMENDED SOLVENTS. ANY SOLVENTS USED MUST COMPLY WITH
LOCAL ENVIRONMENTAL GUIDELINES. DEK RECOMMEND USING SOLVENTS
THAT ARE ENVIRONMENTALLLY FRIENDLY, IE CFC FREE AND WATER BASED.
SOLVENTS USED MUST HAVE FAST EVAPORATION RATES AND FLASHPOINT
SPECIFICATIONS GREATER THAN 39ºC.
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLING ANY SOLDER
PASTE OR SOLVENT FORMULATION THE MANUFACTURERS’ RECOMMEND
SAFETY PRECAUTIONS MUST BE STRICTLY ADHERED TO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
WARNING
SOLVENT SOLUTION. DO NOT MIX SOLVENT SOLUTIONS. FLUSH THE
SOLVENT TANK THOROUGHLY WHEN CHANGING TO A DIFFERENT SOLVENT
SOLUTION.
WARNING
SOLVENT SPRAY. THE UNDERSCREEN CLEANER SPRAYS A FINE JET OF
SOLVENT SOLUTION ON TO THE CLEANER. APPROVED PROTECTIVE
CLOTHING SHOULD BE WORN.
Suspend on Warning
Cleaner Solvent Low. Please refill.
End
Run
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Confirm
Lower
Head
INFINITY
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 7 User Manual 9.21

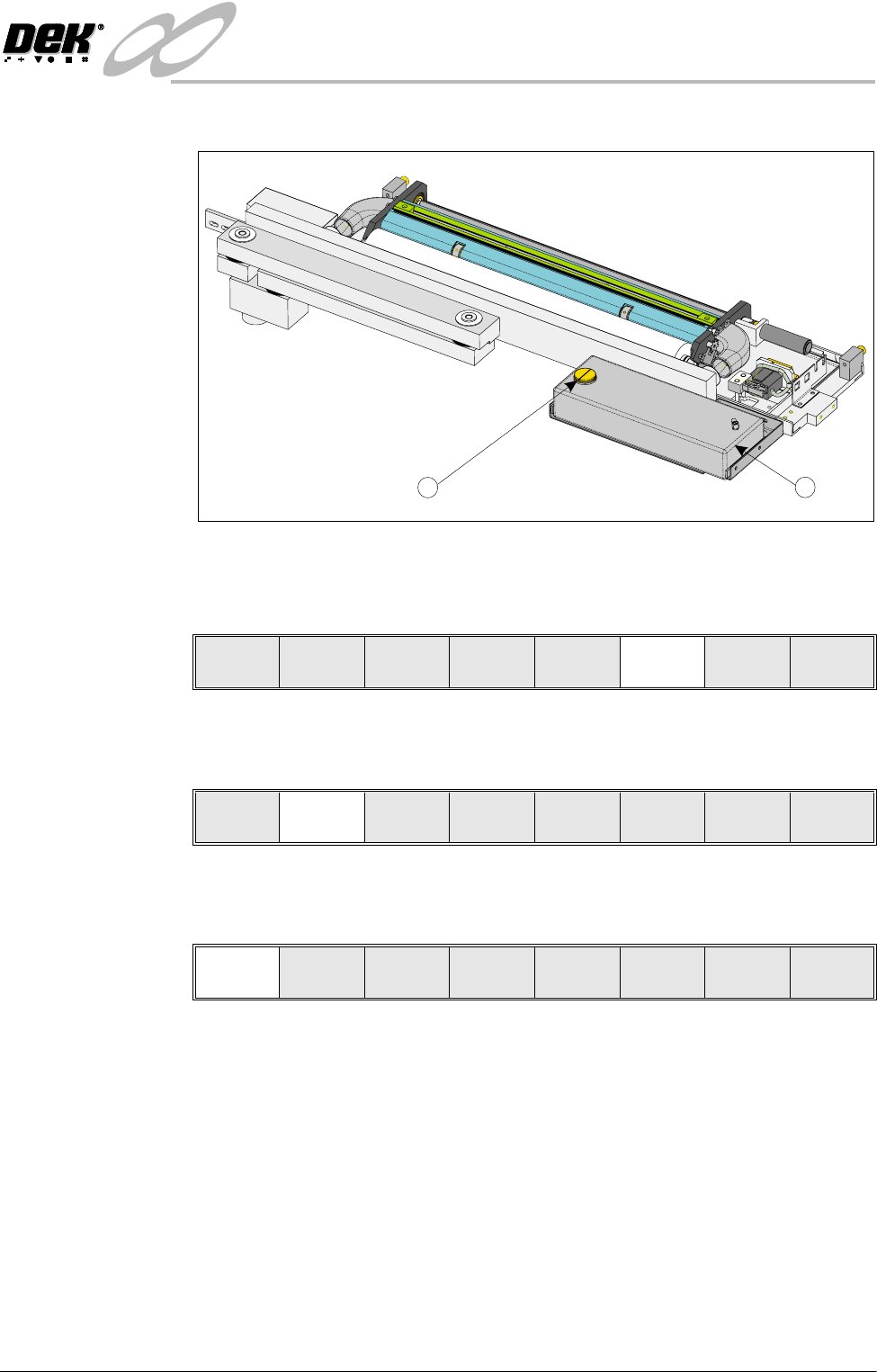

1. Remove the solvent tank cap (1) from the solvent tank (2).
2. Using a suitable container refill the tank and replace the cap.
3. Press Prime Solvent (F6). The message ‘Press the two button control
buttons to prime solvent.’ is displayed.
4. Prime the solvent using the two button control.
5. Press Lower Head (F2).
6. Remove the head prop.
7. Select Confirm (F1).
8. Lower the printhead using two button control.
9. Close the printhead cover.
10.Press the System button.
1
2
Lower
Head
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Lower
Head
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Confirm Cancel
INFINITY
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
9.22 User Manual Software Version 7
Paper Replenishment
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
WARNING
FLAMMABLE. THE USED PAPER ROLL CONTAINS RESIDUES OF
UNDERSCREEN CLEANER FLUID AND SOLDER PASTE. OBSERVE
MANUFACTURERS’ RECOMMENDED DISPOSAL INSTRUCTIONS.
NOTE
When using 300 or 400mm wide paper rolls, ensure the correct paper roll
spacers are used.

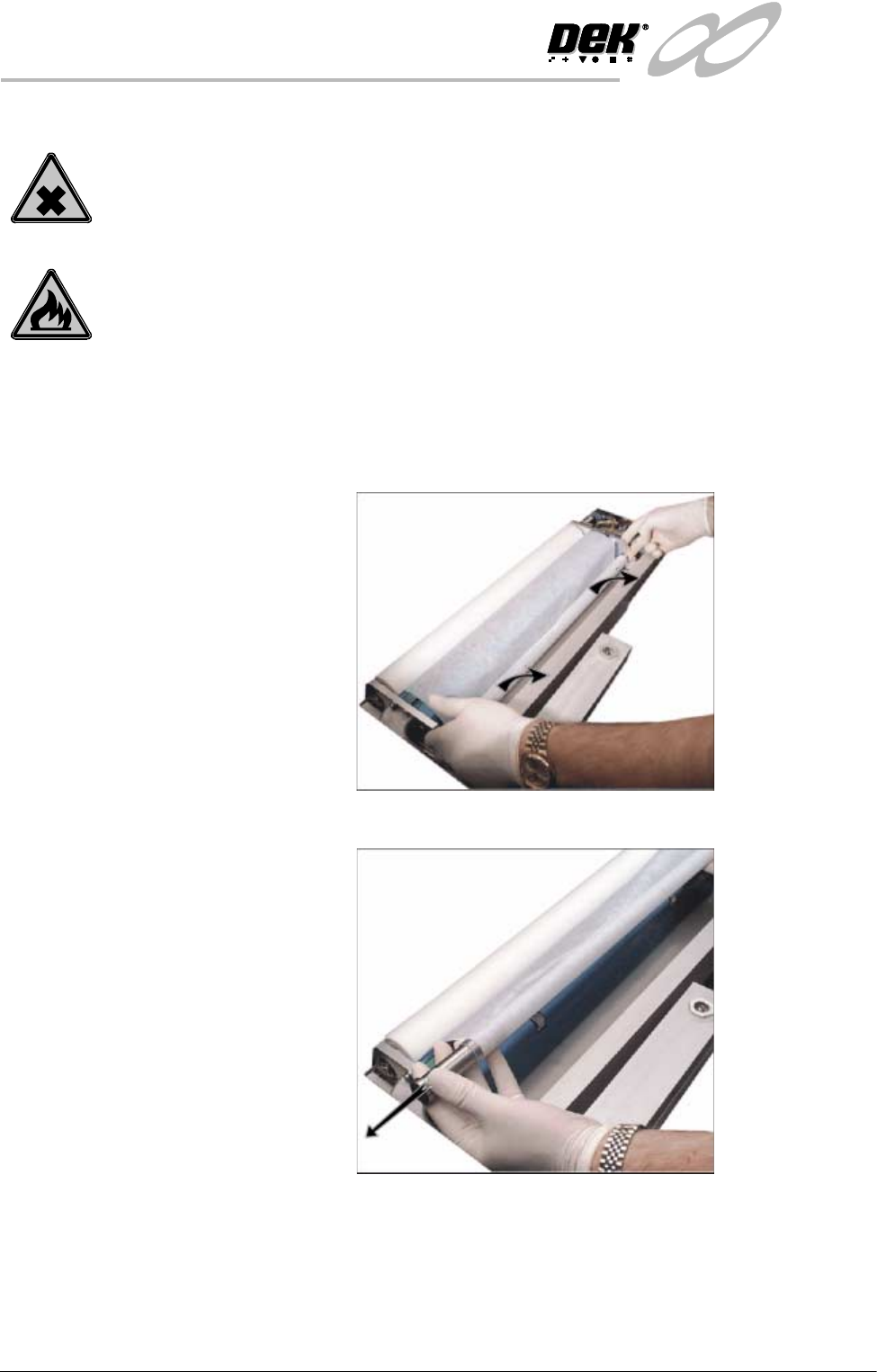

1. Lift the empty roll from the front of the cleaner.
2. Remove the paper spindles from both ends of the empty paper roll.
