INFINITY &21680$ %/(5( 3/(1,6+0(1 76 %/8(81' (56&5 ((1&/($1 (5 Soft ware Ver sion 7 User Manual 9.27 15. Rotate the take up roll one complete revolutions against the motor clutch to tension the cleane…
INFINITY
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
9.26 User Manual Software Version 7
12.Feed the cleaner paper across the body assembly, ensuring the cleaner paper
is aligned parallel to the unit end plate.
13.Insert the paper roll rod into the right hand flange of the shaft. Lay the rod
along the shafts groove trapping the cleaner paper between the shaft and rod.
14.Rotate the end of the flange of the rod towards the rear of the machine to lock
the rod onto the shaft.
INFINITY
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 7 User Manual 9.27

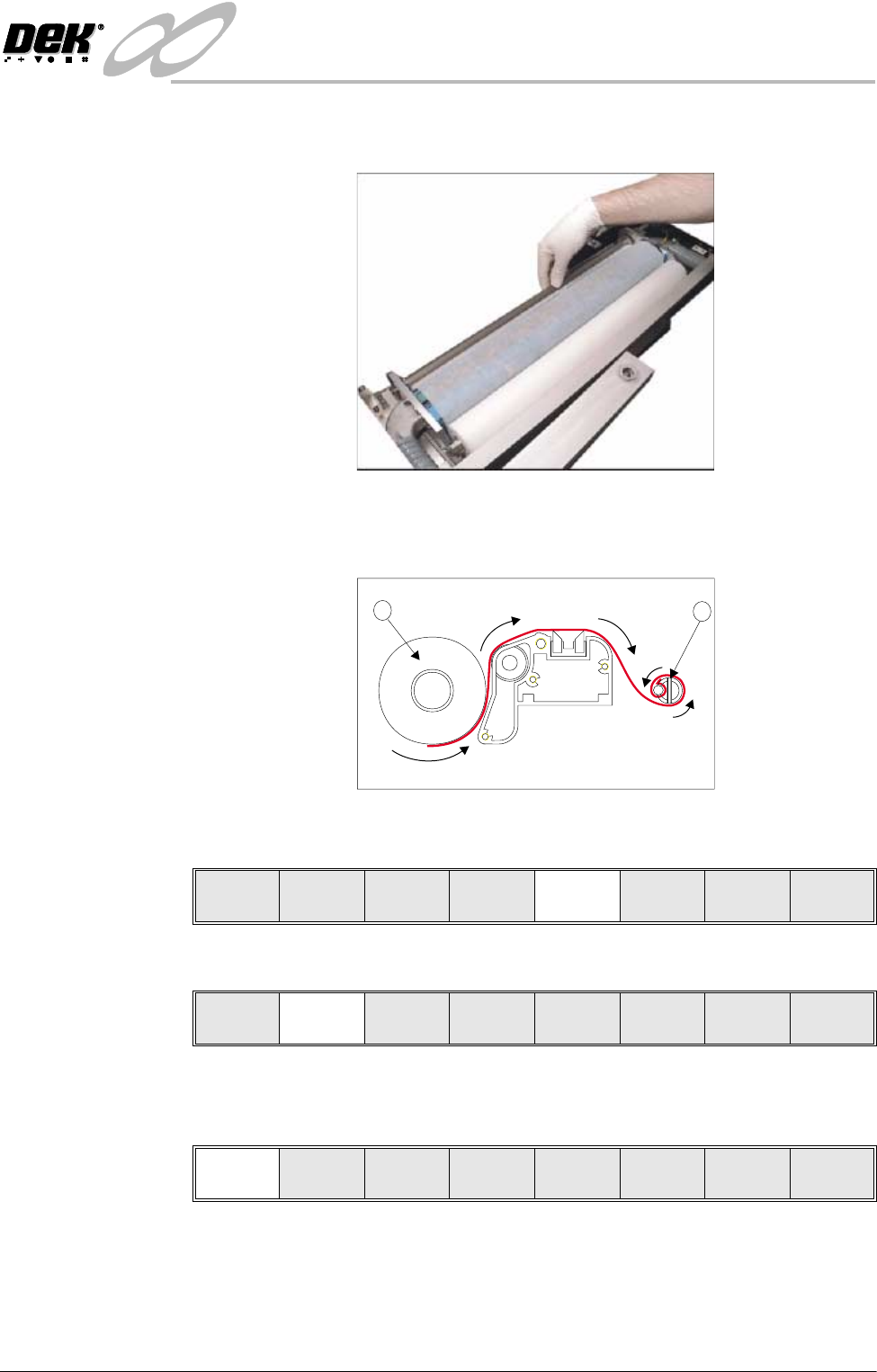

15.Rotate the take up roll one complete revolutions against the motor clutch to
tension the cleaner paper across the cleaner squeegee assembly.
16.Ensure the cleaner paper has been routed correctly, from underneath the
paper roll (1) rearwards across the squeegee assembly and threaded between
paper rod and shaft (2).
17.Press Prime Paper (F5). The message ‘Press the two control buttons to
feed paper’ is displayed.
18.Press Lower Head (F2).
19.Remove the head prop.
20.Select Confirm (F1).
21.Lower the printhead using two button control.
22.Close the printhead cover.
23.Press the System button.
1
2
Lower
Head
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Lower
Head
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Confirm Cancel
INFINITY
&21680$%/(5(3/(1,6+0(176
9257(;81'(56&5((1&/($1(5
9.28 User Manual Software Version 7

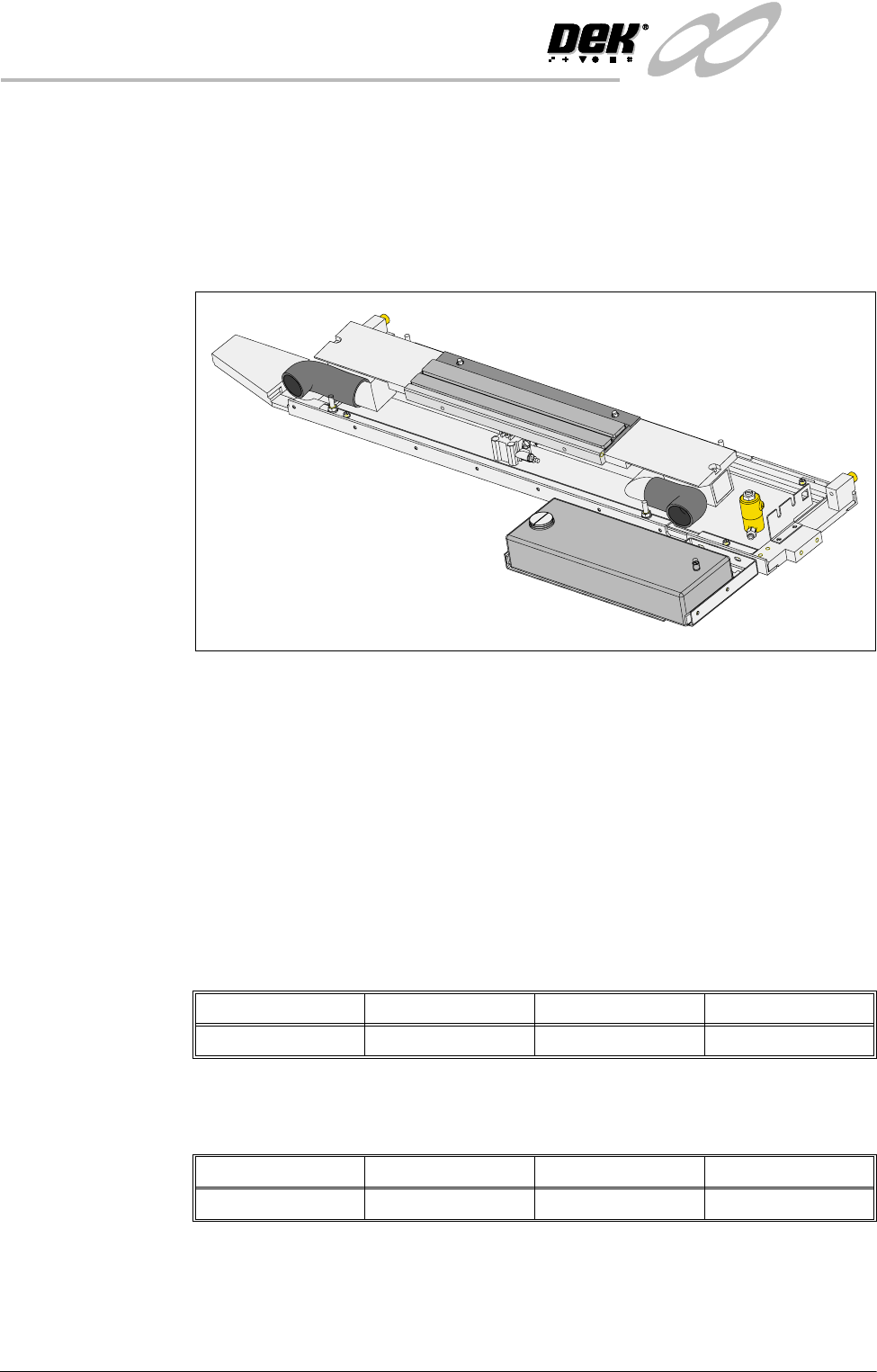

VORTEX UNDERSCREEN CLEANER
Provision is made on the printer for automatic underscreen cleaning. This is
carried out using a cleaning cassette which contains a wet and a dry cell. The
wet cell is impregnated with an appropriate solvent. A cleaning cycle consists
of a single return stroke incorporating a wet and dry wipe with or without
vacuum.
The cleaning options can be programmed into a particular product file so that
they take place at preprogrammed intervals or they can be selected, directly from
the MMI, to take place at the operators discretion.
Programming
Operation
The screen clean parameters can be setup when editing a product file, while
setting up a new product. It may be more convenient to set these after the
product has been setup and printed and screen cleaning requirements have been
decided upon.
The parameters to be edited that affect the operation of the underscreen cleaner
are listed below with a definition of each as an aid to setup:
Front Start Offset The distance, in from the front edge of the board, at which the cleaner is to finish.
While a Vortex USC is in use the minimum value is extended from 0 to -60mm.
Rear Start Offset The distance, in from the rear edge of the board, at which the cleaner is to start.
While a Vortex USC is in use the minimum value is extended from 0 to -60mm.
Minimum Maximum Increment Default
-60mm 60mm 1mm 30mm
Minimum Maximum Increment Default
-60mm 60mm 1mm 30mm
