INFINITY 0$&+,1( 352*5$ 00,1* 67$*(( )250 )/(;722/,1* 1.54 User Manual Software Versi on 7 1 1. Slide a board along the rails to abut the board stop. 12. Se lect Board Clamps (F3) to close the clamps. 13. Se l…
INFINITY
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
Software Version 7 User Manual 1.53

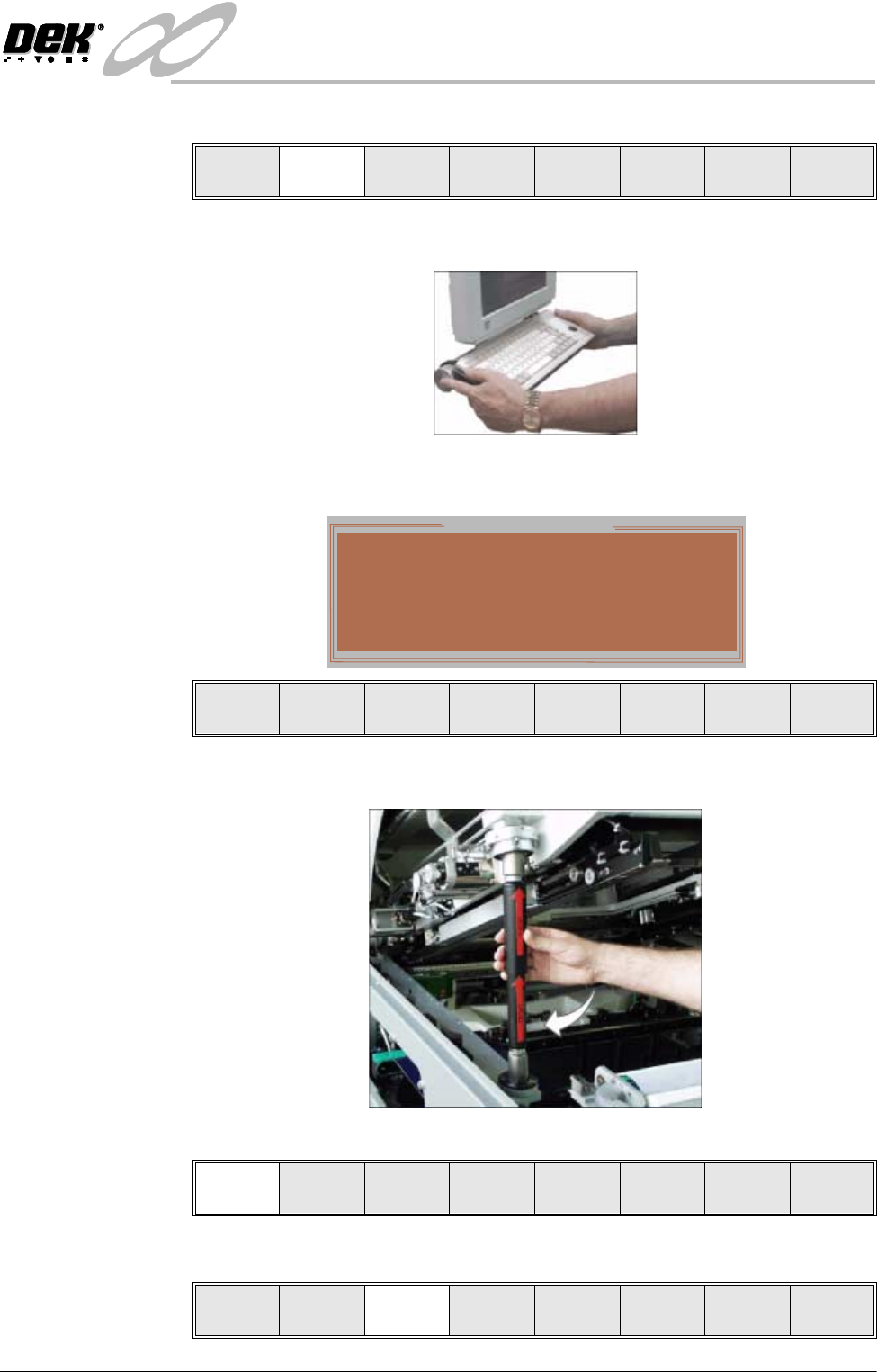

6. Select Raise Head (F2).
7. Raise the printhead using two button control.
The following window and menu bar is displayed:
8. Fit the head prop.
9. Press Confirm (F1).
10.Select Board Clamps (F3) to open the clamps.
Adjust
Raise
Head
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
Confirm
Lower
Head
Adjust
Lower
Head
Board
Clamps
Set
Stop
INFINITY
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.54 User Manual Software Version 7
11. Slide a board along the rails to abut the board stop.
12.Select Board Clamps (F3) to close the clamps.
13.Select Lower Head (F2).
The following window and menu bar is displayed:
Adjust
Lower
Head
Board
Clamps
Set
Stop
Adjust
Lower
Head
Board
Clamps
Set
Stop
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
INFINITY
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
Software Version 7 User Manual 1.55
14.Remove the head prop.
15.Select Confirm (F1).
16.Lower the printhead using two button control.
17.Close the front printhead cover.
18.Press the System button.
19.Select Home Camera (F4).
20.Select Print Height (F7).
21.Select Raise Head (F2).
22.Raise the printhead using two button control.
23.Fit the head prop.
24.Press Confirm (F1).
Confirm Cancel
Adjust
Raise
Head
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
Raise
Head
Home
Position
Exit
Confirm
Lower
Head
