INFINITY
0$&+,1(352*5$00,1*
67$*(9,6,216<67(06(783
1.72 User Manual Software Version 7
6. Select Step (F1).
7. Select Step (F1).

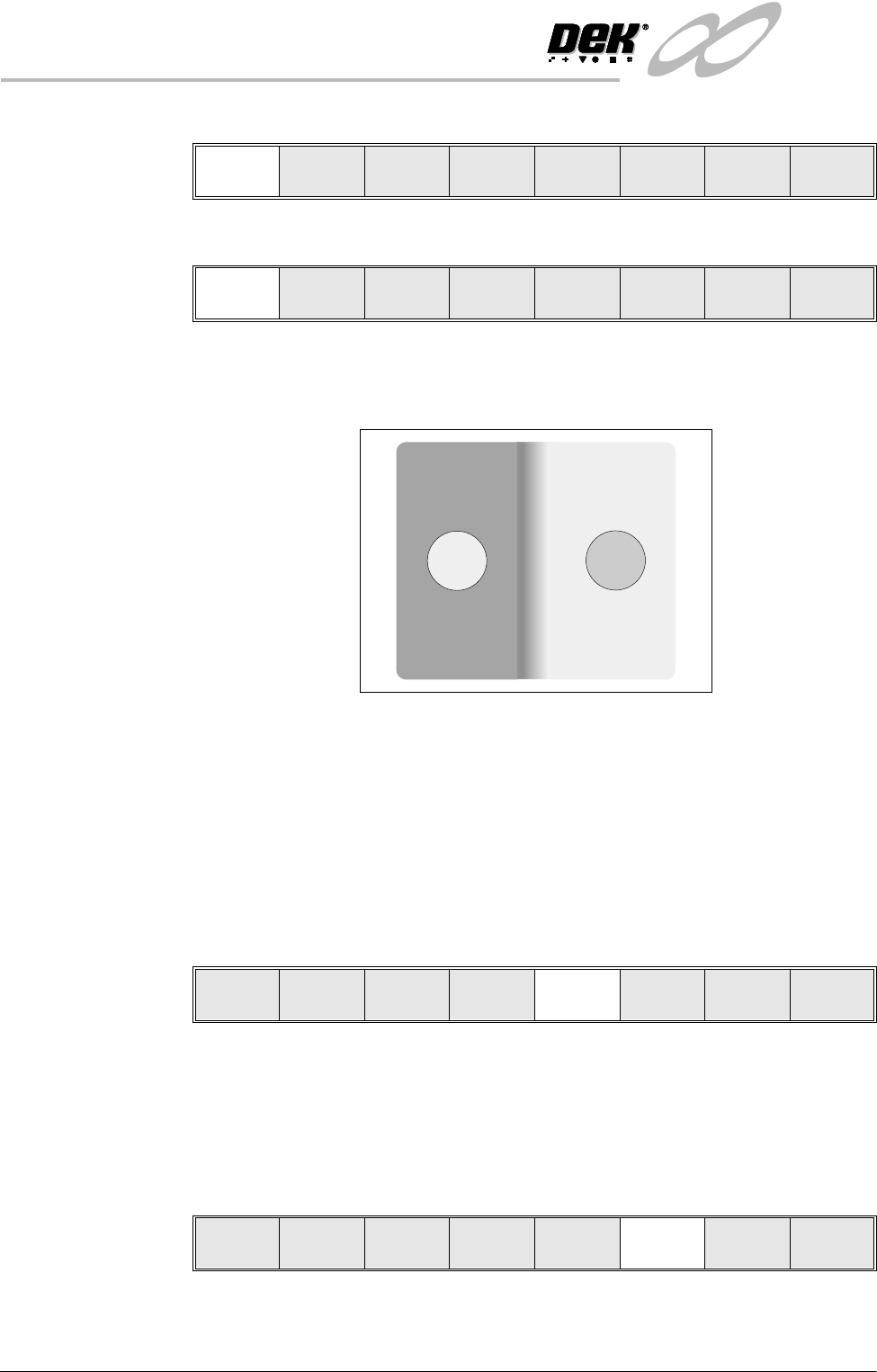

The board fiducial/select mark should now be visible on the vision data
window.
If selective print/pass through is enabled, the image on the left hand side of
the monitor is the board select mark. The right hand side of the monitor
shows the corresponding position on the screen, which is a mirror image of
the board without the select mark. While the select mark is being setup and
the menu bar is as Step 8, the message ‘The form of this fiducial will select
Print / Pass through’. is displayed.
If the fiducial is in the field of view go to Step 10. If the fiducial is not in the
field of view, continue with Step 8.
8. Select Search Step (F5).
For each press of Search Step the camera conducts an increasing spiral search
to enable the operator to locate the fiducial. If this search is not successful
the camera can be returned to its origin. Re-check the fiducial co-ordinates
set in the product file.
9. Select Search Reset (F6). When the fiducial is located continue with Step
10.
10.If auto fiducial setup is enabled go to Step 27, otherwise continue with Step
11.
Step Head
Inspect
Setup
Single Exit
Step Head
Inspect
Setup
Single Exit
Step Head
Fiducial
Setup
Adjust
Search
Step
Search
Reset
Single Exit
Step Head
Fiducial
Setup
Adjust
Search
Step
Search
Reset
Single Exit
INFINITY
0$&+,1(352*5$00,1*
67$*(9,6,216<67(06(783
Software Version 7 User Manual 1.73
11. Select Fiducial Setup (F3).
The screen displays the following:
12.Use the Next, Previous, Incr. and Decr. keys (F4 - F7), to highlight and
adjust each of the parameters in the left hand box, to set the fiducial type,
background, accept score and to position the fiducial in the approximate
centre of the monitor.
13.Select Set Light (F3).
A histogram is displayed on the monitor and the Fiducial Lighting Parame-
ters window is displayed on the status page.
Step Head
Fiducial
Setup
Adjust
Search
Step
Search
Reset
Single Exit
Background
Dark
AcceptScore
FiducialX
FiducialY
800
184.4
77.9
Circle Parameters
BoardFiducial1
mm
mm
mm
Diameter
InnerContour
OuterContour
1.80
0.40
0.40
FiducialType
Circle
Video Model
To setup a video model, choose Video Model from the Fiducial Type
Parameter.
Learn
Fiducial
Locate
Fiducial
Set
Light
Next Previous Incr. Decr. Exit
Learn
Fiducial
Locate
Fiducial
Set
Light
Next Previous Incr. Decr. Exit
Fiducial Lighting Parameters
SCREEN VERTICAL
SCREEN OBLIQUE
BOARD VERTICAL
BOARD OBLIQUE
WINDOW LEFT
WINDOW TOP
WINDOW WIDTH
WINDOW HEIGHT
8
8
8
8
-1.0
-1.5
2.0
2.0
INFINITY
0$&+,1(352*5$00,1*
67$*(9,6,216<67(06(783
1.74 User Manual Software Version 7
14.Use the Next, Previous, Incr. and Decr. keys (F4 - F7), to highlight and
adjust the lighting parameters to a level whereby the fiducials are just
whiting out, without blooming, default level 8 is usually adequate for the
majority of setups.
15.Select Exit (F8).
16.Select Learn Fiducial (F1).
Setup the fiducials appearing in the right hand box on the monitor.
17.Use the Next, Previous, Incr. and Decr. keys (F4 - F7), to highlight and
adjust each circle parameter in turn to obtain the best fit over the fiducial.
NOTE
Once aligned it may be necessary to change the line fiducial dimension to
achieve a better fit.
18.Select Learn Fiducial (F1). The message ‘Learning Fiducial - Please
Wait’ is displayed in the message prompt bar.
19.Select Exit (F8).
Next Previous Incr. Decr. Exit
Next Previous Incr. Decr. Exit
Learn
Fiducial
Locate
Fiducial
Set
Light
Next Previous Incr. Decr. Exit
Circle Parameters
mm
mm
mm
mm
mm
xxx
xxx
xxx
xxx
xxx
Position X
Position Y
Diameter
InnerContour
OuterContour
Video Model
When using video model the parameters are as follows:
Video Model, Position X, Position Y, Fiducial X, Fiducial Y
Learn
Fiducial
Next Previous Incr. Decr. Exit
Learn
Fiducial
Next Previous Incr. Decr. Exit
Learn
Fiducial
Next Previous Incr. Decr. Exit
