Components Trolley 60/2-Slots DX1/2 Page 6 / 7 24.11.2021
Components Trolley 60/2-Slots DX1/2
Page 5 / 7 24.11.2021
Components Trolley 60/2-Slots DX1/2
Page 6 / 7 24.11.2021
Components Trolley 60/2-Slots DX1/2
Page 7 / 7 24.11.2021

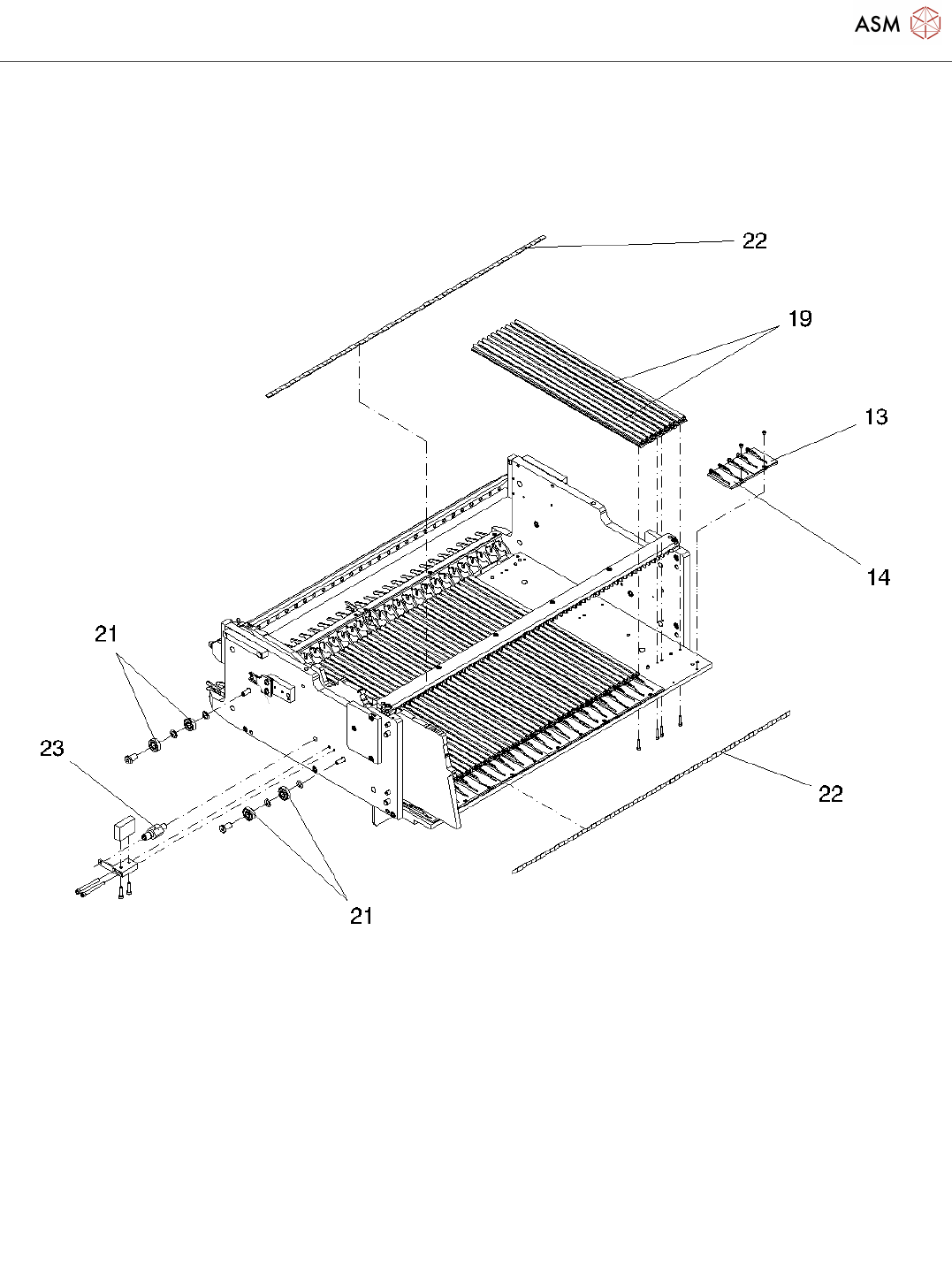

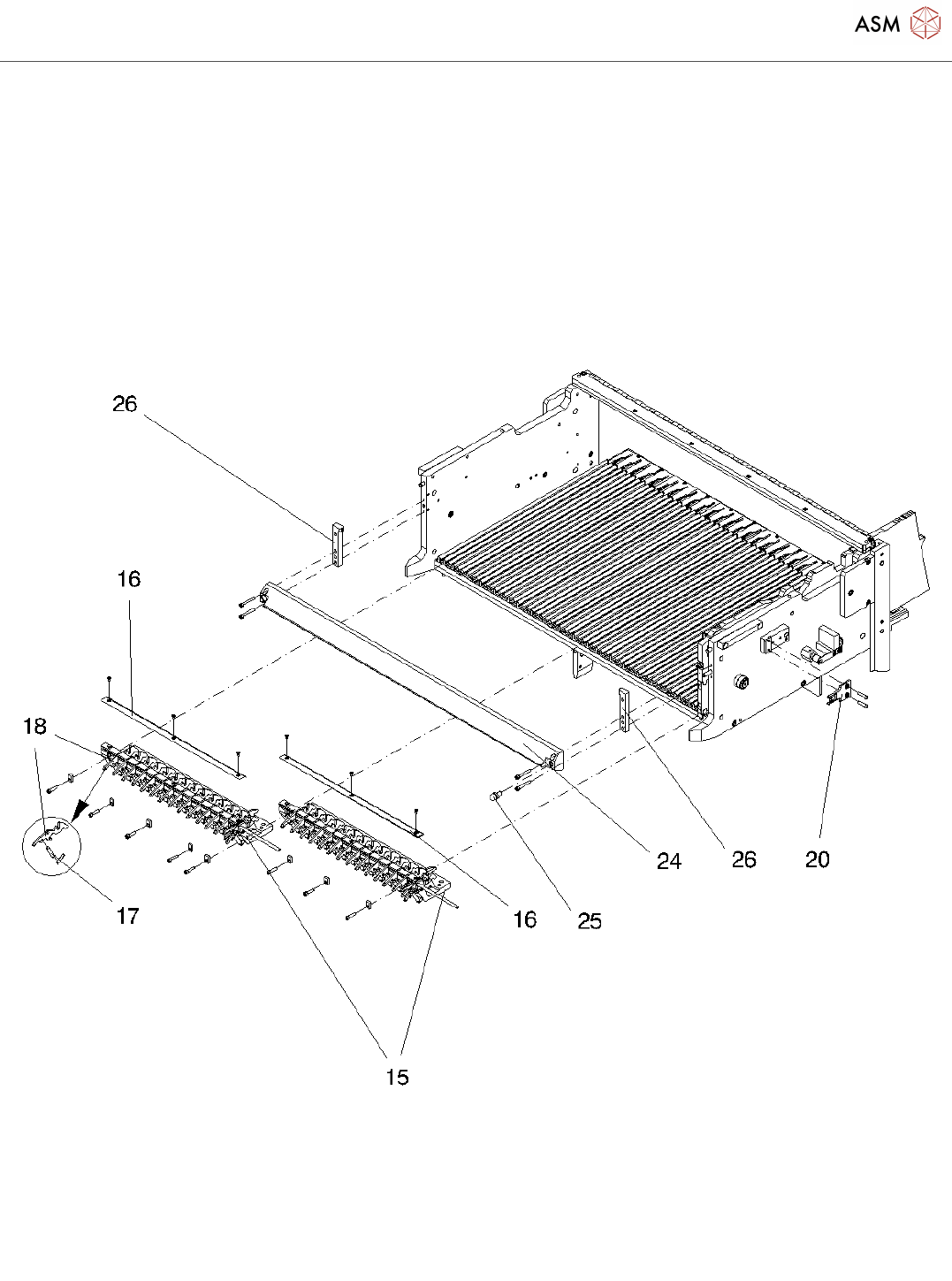

Pos. Item no. Description Part marking
1 03089820-02 COMPONENTS TROLLEY 60/2-H
2 03083386-02 TROLLEY MODULE / COT60
3 03093821-01 TROLLEY WITH CONTAINER / COT60
4 03093819-01 TROLLEY PRE-ASSEMBLED / COT60
5 03093818-01 TROLLEY MOUNTING PARTS /
COT60
6 03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
7 03011658-01 PARTITION PLATE /TAPEREEL
CONTAINER COMP
SPARE PART
8 03100301-01 TENTE FIXED CASTOR B-PTH 100R Spare Part
9 03216493-01 TENTE SWIVEL CASTOR LE-PTH100K-
ELS CPL
10 03059198-01 BLICKLE SWIVEL CASTOR LE-PTH
100K-ELS
SPARE PART
11 03089821-01 TABLE MODULE 60/2-SLOTS
COMPLETE
12 03089825-01 TABLE MODULE 60/2-SLOTS BASIC
13 03085636-01 ENTERING GUIDE FEEDER TYP B SPARE PART
14 03085635-01 ENTERING GUIDE FEEDER TYP A SPARE PART
15 03081586-01 FEEDER LOCKING DEVICE 30/2
SLOTS
SPARE PART
16 03053248-01 COVER PLATE BOLTING RAIL SPARE PART
17 03010352-01 TENSION SPRING D=0,63* D=5,6*
LO=23,3
SPARE PART
18 03069205-02 LATCH SPARE PART
19 03039368-03 GUIDE PROFILE SPARE PART
20 03075848-01 SAFETY KEY FOR MT-GD2 SPARE PART
21 03044704-01 DIN 625 - 609/9 - 2Z
22 03059619S01 TRACK RULER, PITCH 11.8 / X
FEEDER - 60
WEAR PART
23 03090922-01 BEARING CPL. SPARE PART
24 03089826-01 FEEDER CENTERING 60/2-SLOTS SPARE PART
25 03009853-01 CENTERING PIN, ROUND SPARE PART
26 03009974-03 BE - TABLE - MARK /X-SERIES SPARE PART
