2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING 2.3 SOFTWARE INTERFACE GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021 33 3. Select Create Site . 4. Select Load Image . 2.3.5 Load a Product Image Loading an image loads a …

2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING

2.3 SOFTWARE INTERFACE

32 GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021

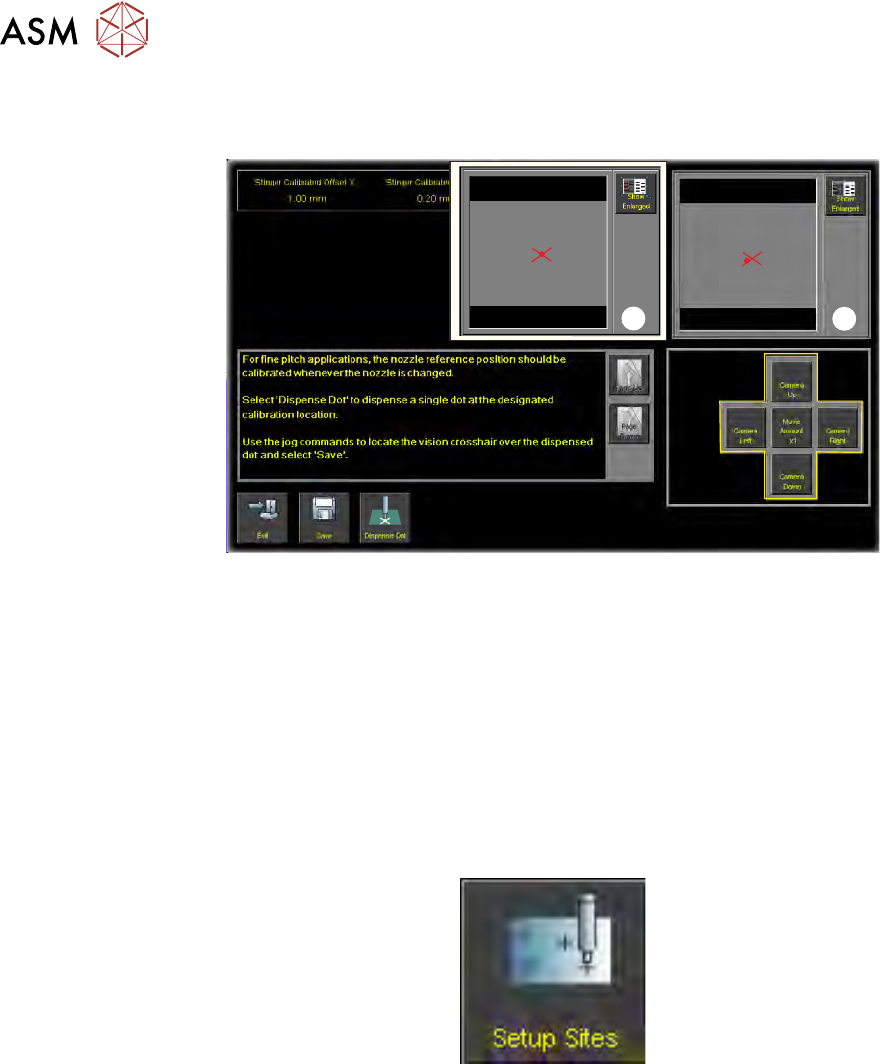

5. Using the camera controls (camera up, down, left and right) align the crosshair with the dot

(1).

6. The offset is calculated as a result of movements made by the user to align a crosshair over a

dispensed dot, which is viewed in the vision window. For fine pitch prints, ensure that the dot

is placed precisely in the centre of the crosshair as shown (2).

NOTE

Save the data before exiting.

For fine pitch printing, the nozzle reference position should be calibrated whenever the nozzle is

changed.

2.3.4 Adding Sites

1. Navigate to Setup Product\Options\Stinger Dispenser.

2. Select Setup Sites.

2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING

2.3 SOFTWARE INTERFACE

GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021 33

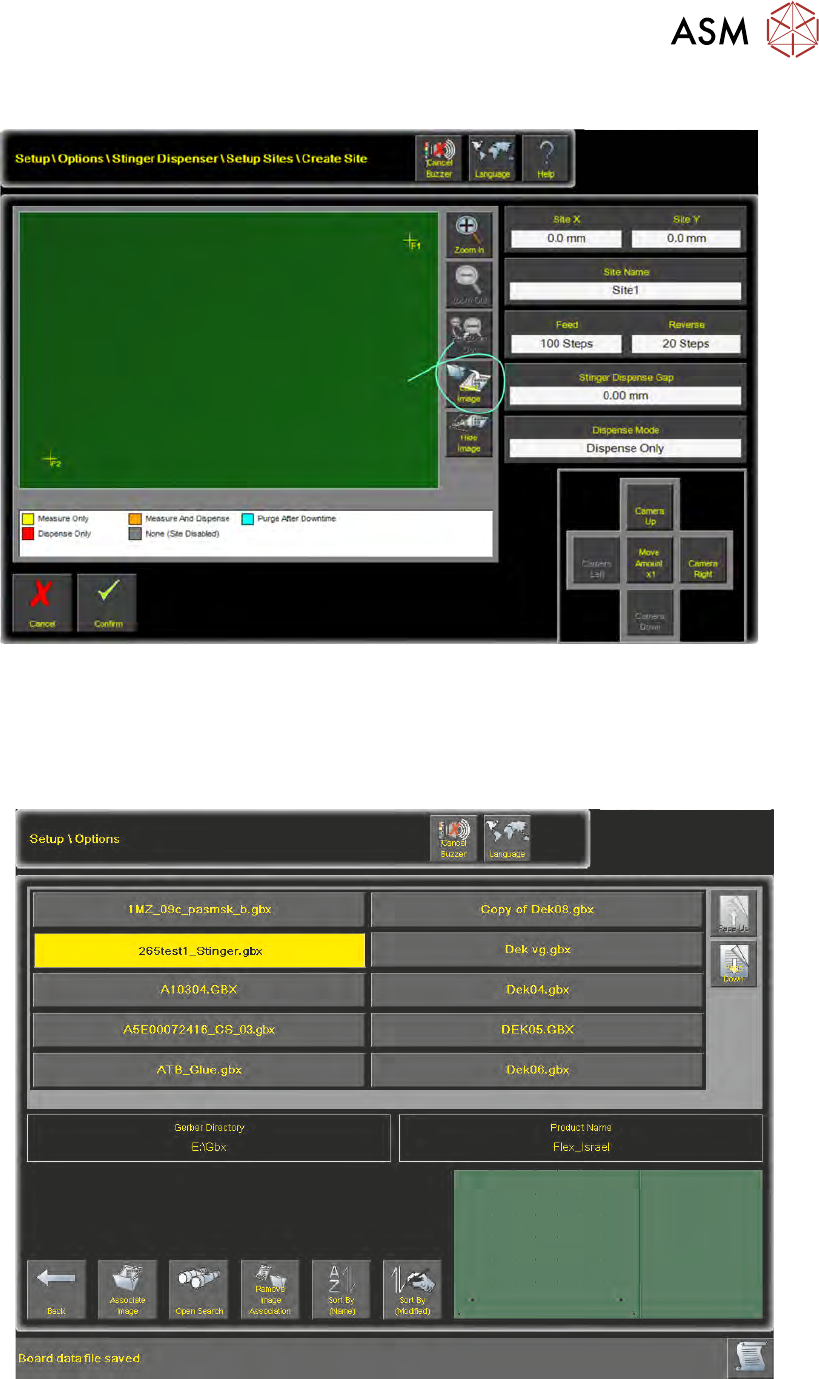

3. Select Create Site.

4. Select Load Image.

2.3.5 Load a Product Image

Loading an image loads a product representation onto the interface. Sites where adhesive dots are

to be deposited can be easily targeted, avoiding on-board features such as pads or tracks.

Select the required product from the table, the Gerber Data is replicated in the product image win-

dow at the bottom right of the page.

2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING

2.3 SOFTWARE INTERFACE

34 GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021

Navigation buttons are available for the user to search for products in long lists, or to organise the

list by name or number. In addition, the user can make or remove associations with the image to a

product file.

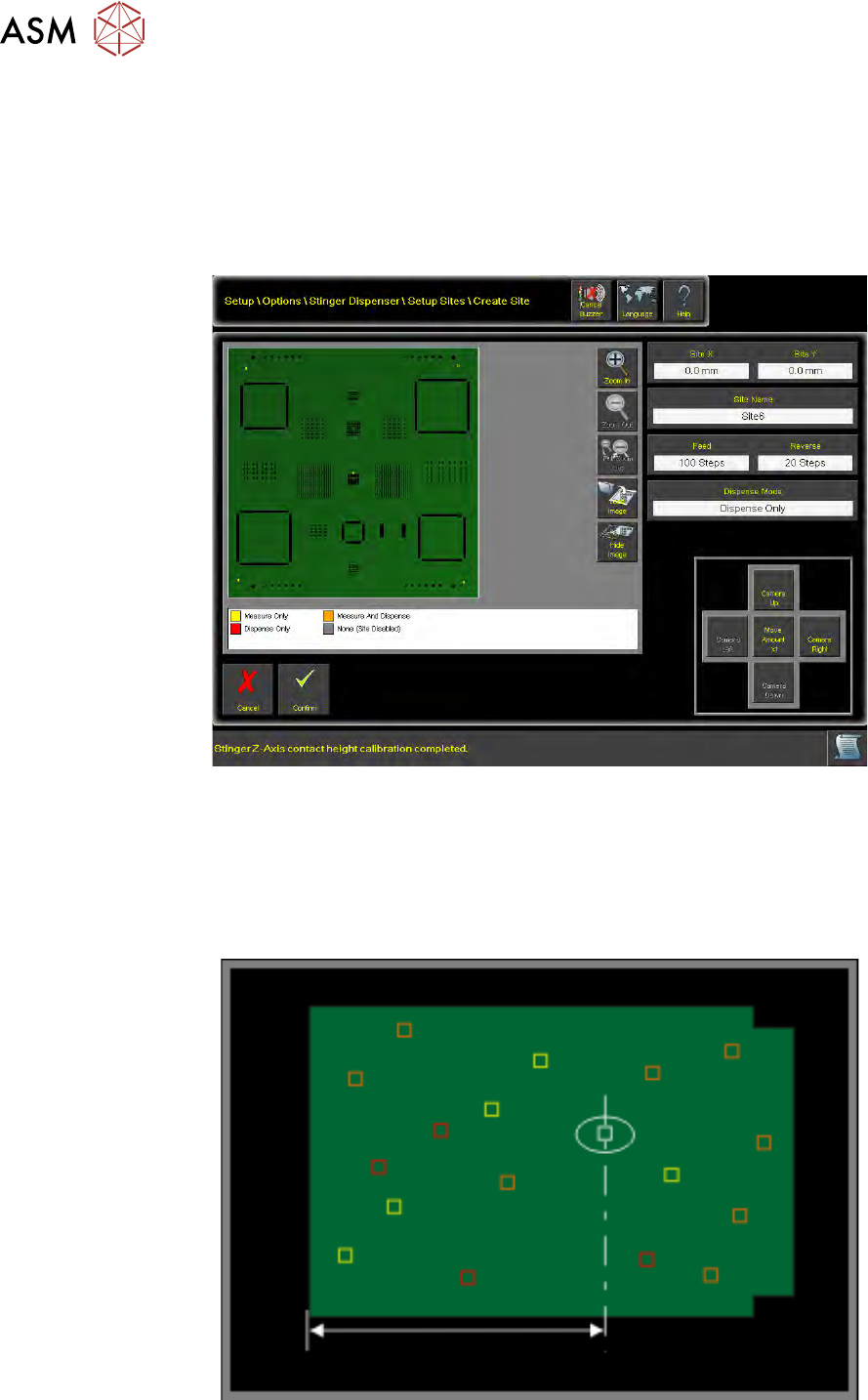

2.3.6 Create Sites

The selected product file image is loaded into the product image view on the Create Sites page of

the user interface.

Identify the area on the product image view, where the site is to be located, and mouse click the

area (point using a touch screen monitor) to create the site location. Alternatively, using the camera

jog functionality, the site location and hence the nozzle location is moved by jogging a factor of x1,

x10 or x100 move amounts.

Site(s) can be placed in the correct location and edited:

1. Edit the Site X and Site Y coordinate parameters
