FK-9F98-27 CP-7 Series Training Text for Service Engineers
Edition 6.0 Chapter 5. Loader and Conveyor Adjustment [15/28]

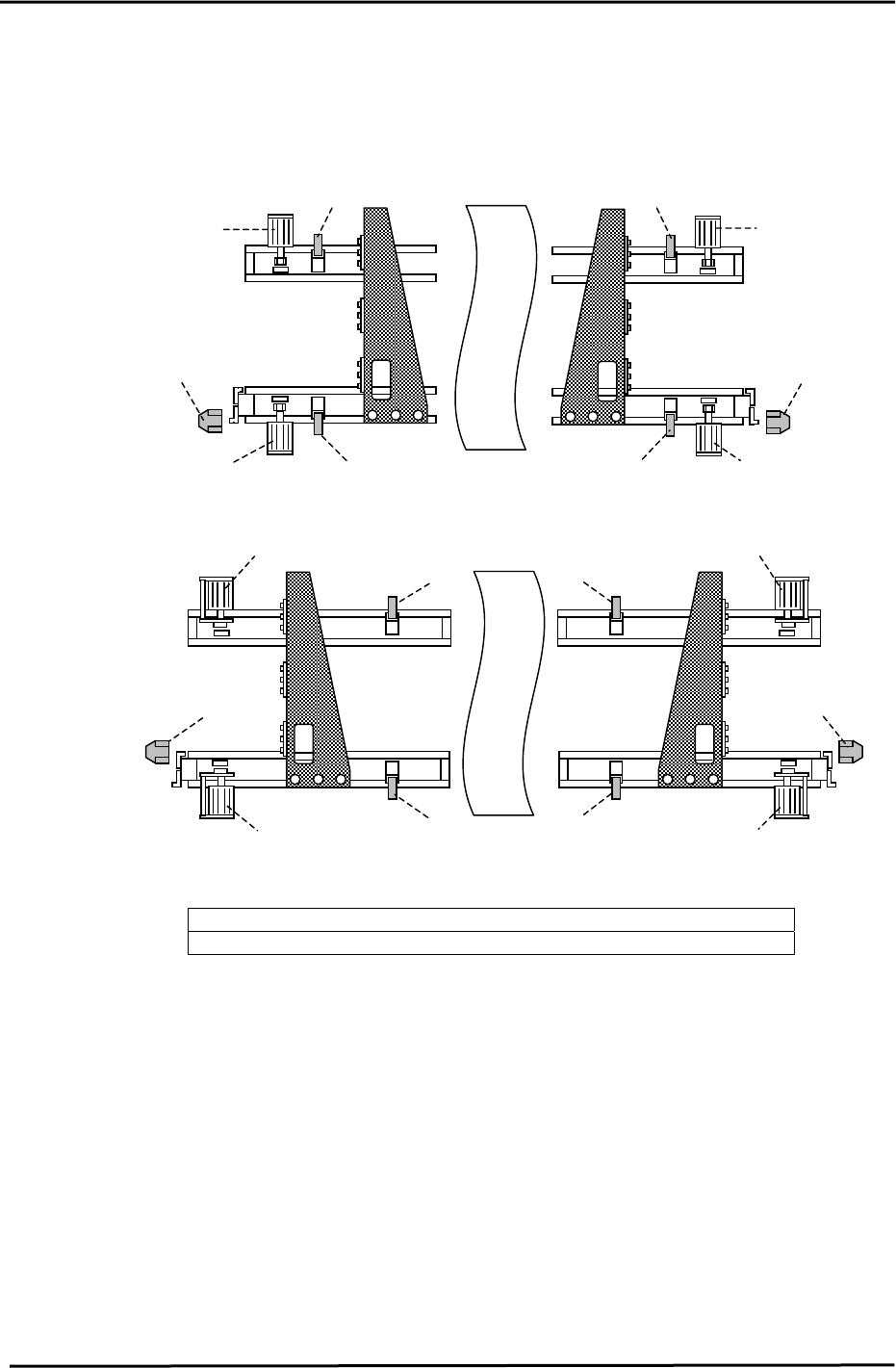

5.18 Loader System Sensor Positions
1. Refer to Fig. 27 for sensor locations along the loader system.
2
1
3
2
3
1
2
2
3
3
<Carrier at retract position>
<IN Carrier>
<Carrier at advance position>
2
2
2
2
3
3
3
3
4
4
<OUT Carrier>
Figure 27
<Carrier Sensors>
1. Carrier retract end sensor 3.Carrier claw close- end sensor
2. Carrier claw open-end sensor 4. Carrier advance end sensor
Fuji Machine Mfg. Co., Ltd. (Okazaki)
SMT Equipment Quality Assurance Dept.
CS Section
5-15
FK-9F98-27 CP-7 Series Training Text for Service Engineers
Edition 6.0 Chapter 5. Loader and Conveyor Adjustment [16/28]

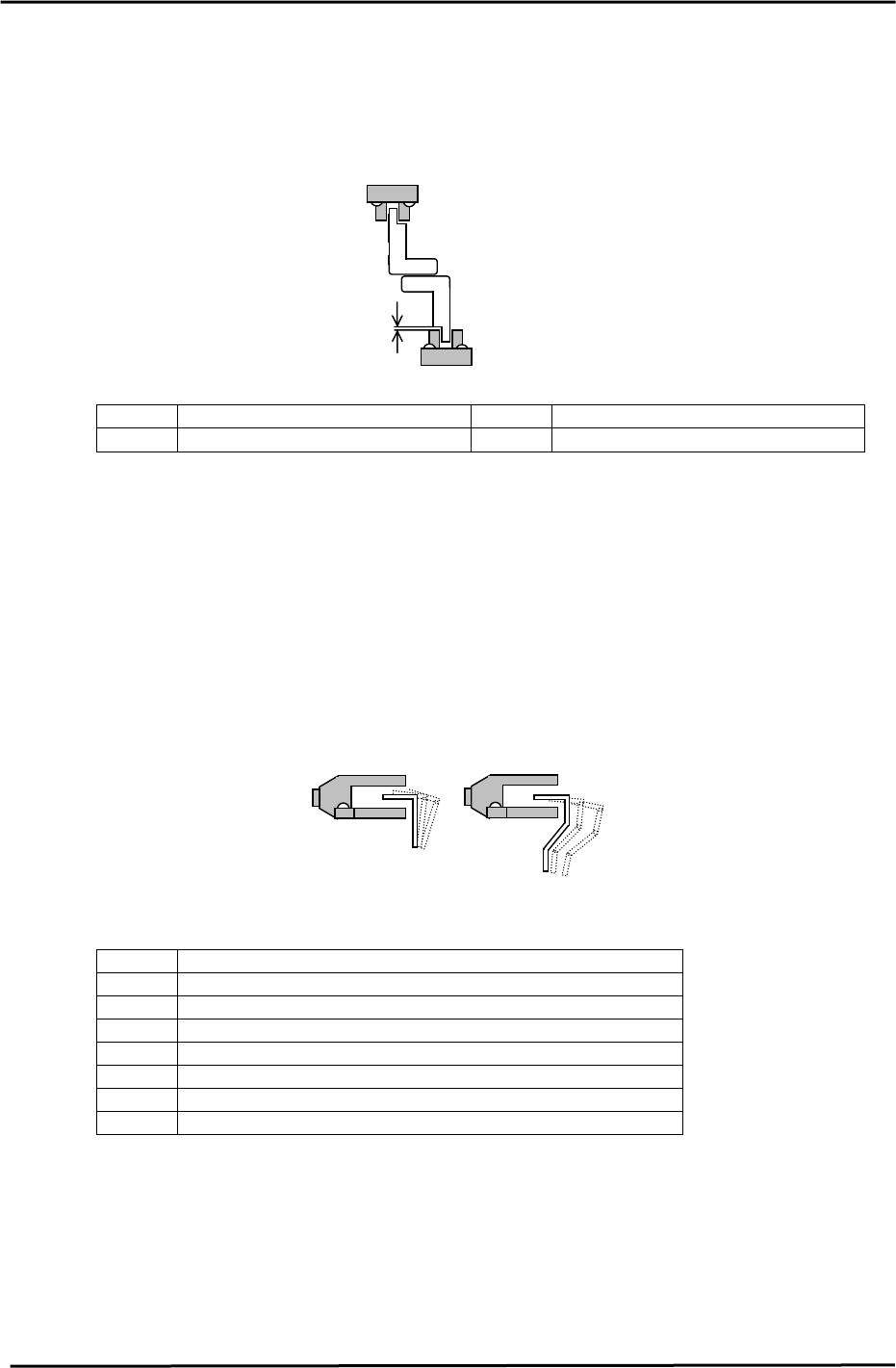

5.19 Advance / Retract End Sensor Adjustment
1. Adjust the Advance and Retract End sensor height so the clearance between the top of the
sensor and dog is 1mm.
2. Align the center of the sensor with the dog in the X and Y directions.
<I/O → Standard → IN>
1mm
Figure 28
X0B3 In-carrier Forward Limit Check X0CE Out-carrier Forward Limit Check
X0B4 In-carrier Retract Limit Check X0CF Out-carrier Retract Limit Check
5.20 Claw Closed-End Sensor Adjustment
1. Close the carrier claws to turn the sensor ON. Move the sensor 1mm toward the ON position and
secure.
2. Align the center of the sensor with the dog in the X- direction.
As for the height, be careful to avoid any interference with the flag and sensor when opening and
closing the carrier claws.
Figure 29
<I/O → Standard → IN>
X0B7 In-carrier Retract Limit Clamp Check (Fixed Rail)
X0B8 In-carrier Retract Limit Clamp Check (Adjustable Rail)
X0B9 In-carrier Forward Limit Clamp Check (Fixed Rail)
X0BA In-carrier Forward Limit Clamp Check (Adjustable Rail)
X0D2 Out-carrier Retract Limit Clamp Check (Fixed Rail)
X0D3 Out-carrier Retract Limit Clamp Check (Adjustable Rail)
X0D4 Out-carrier Forward Limit Clamp Check (Fixed Rail)
X0D5 Out-carrier Forward Limit Clamp Check (Adjustable Rail)
Fuji Machine Mfg. Co., Ltd. (Okazaki)
SMT Equipment Quality Assurance Dept.
CS Section
5-16
FK-9F98-27 CP-7 Series Training Text for Service Engineers
Edition 6.0 Chapter 5. Loader and Conveyor Adjustment [17/28]

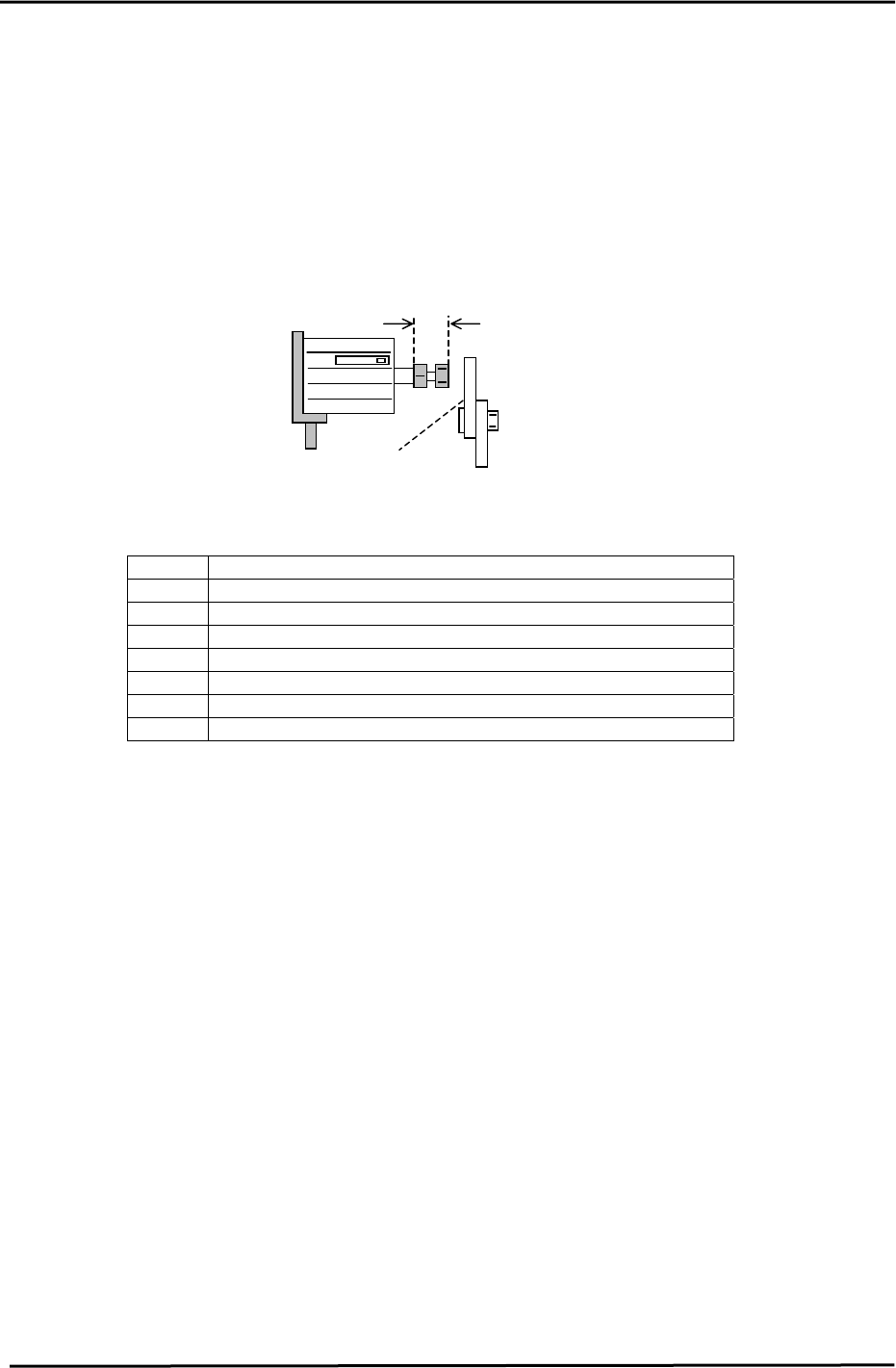

5.21 Claw Open -End Sensor Adjustment
1. Set the carrier at the retract position.
2. Set the length of the cylinder rod to 9mm. (Retract position only)
3. Align the cylinder bolt with the center of the Open-Close lever.
4. Open the carrier claws. Find the edge of the sensor ON position and move the sensor
0.5mm in the ON direction and secure.
9mm
Open-close lever
Figure 30
<I/O → Standard → IN>
X0BB In-carrier Retract Limit Unclamp Check (Fixed Rail)
X0BC In-carrier Retract Limit Unclamp Check (Adjustable Rail)
X0BD In-carrier Forward Limit Unclamp Check (Fixed Rail)
X0BE In-carrier Forward Limit Unclamp Check (Adjustable Rail)
X0D6 Out-carrier Retract Limit Unclamp Check (Fixed Rail)
X0D7 Out-carrier Retract Limit Unclamp Check (Adjustable Rail)
X0D8 Out-carrier Forward Limit Unclamp Check (Fixed Rail)
X0D9 Out-carrier Forward Limit Unclamp Check (Adjustable Rail)
