KKH-1008 25 29 16 34 7 34 20 29 19 20 22 21 24 23 26 32 17 28 35 15 18 13 33 10 1 1 12 14 5 4 2 27 8 3 2 27 9 4 1 6 3 30 30 31 31 31 36 30 31 37 3 1 X-axis Moving-axis

100%1 / 31
KKH-1008
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKH-M1309-00 COVER 9-1
1 /
39
$NK-3N NYLON CLIP
1 /
2
KKH-M130A-00 COVER 9-2
1
/
40
3
KKH-M1340-00 BRKT.1,COVER 9
1 /
41
4
KKH-M1341-00 BRKT.2,COVER 9
1 /
42
5
KKH-M1342-00 BRKT. COVER
1 /
43
6
KKH-M1343-00 BRKT.4, COVER 9
1 /
44
7
KKH-M1344-00 BRKT.5, COVER 9
1 /
45
8
KKH-M1345-00 PLATE,LINK
2 /
46
9
KKH-M134A-00 BRKT. NUT L
1
/
47
10
KKH-M134B-00
BRKT. NUT R
1 /
Í
48
11
KKH-M134C-00 BRKT. 1, SCHMEASAL
1 /
49
12
KKH-M134D-00 BRKT. GAS DAMPER
2 /
50
13
KHT-M134A-00 HINGE
2 /
51
14
KHT-M1346-00 BUSH
4 /
52
15
90990-28J166 WASHER,PLAIN
8 /
53
16
K93-M1392-00 SPACER (TM-180-303)
2 /
54
17
KH2-M1324-01 GRIP
1 /
55
18
KL0-M1374-00 PLATE 1 SCHMEASAL
1 /
Í
56
19
KJJ-M1348-00 STOPPER 65
2 /
57
20
KGS-M1348-00 GAS SPRING
2
A
58
21
KKH-M13D6-00 SEAL 1(YSI-12)
1 /
59
22
KW7-M13D7-01 SEAL 2(YAMAHA)
1 /
60
23
90K41-000360 LABEL,ALERT
1 /
61
24
KGS-M1360-00 BOLT
4 /
Í
62
25
90990-31J006 BOLT,SHOULDER
8 63
26
90990-46J001 BOLT,THIN HEAD
23 64
27
91312-03005 BOLT HEX.SOCKET HEAD
16
M3X5
65
28
91312-04008 BOLT HEX.SOCKET HEAD
14
M4X8
66
29
91312-05006 BOLT HEX.SOCKET HEAD
8
M5X6
67
30
91312-05008 BOLT HEX.SOCKET HEAD
6
M5X8
68
31
92902-04200 WASHER PLAIN
6 69
32
92902-05200 WASHER PLAIN
4 70
33
92902-06200 WASHER PLAIN(N)
4 71
34
95302-06600 NUT HEXAGON
2 72
35
KKH-M1381-00 BRKT. MONITOR
1 /
73
36
90990-12J001 SCREW BIN.HEAD W/W
4 74
37
90990-12J004 SCREW BIN.HEAD W/W
4 75
38
97602-04308 SCREW,PAN HEAD W/W
1 76
2
2
Acryl Door
Cover
KKH-1008
3
1

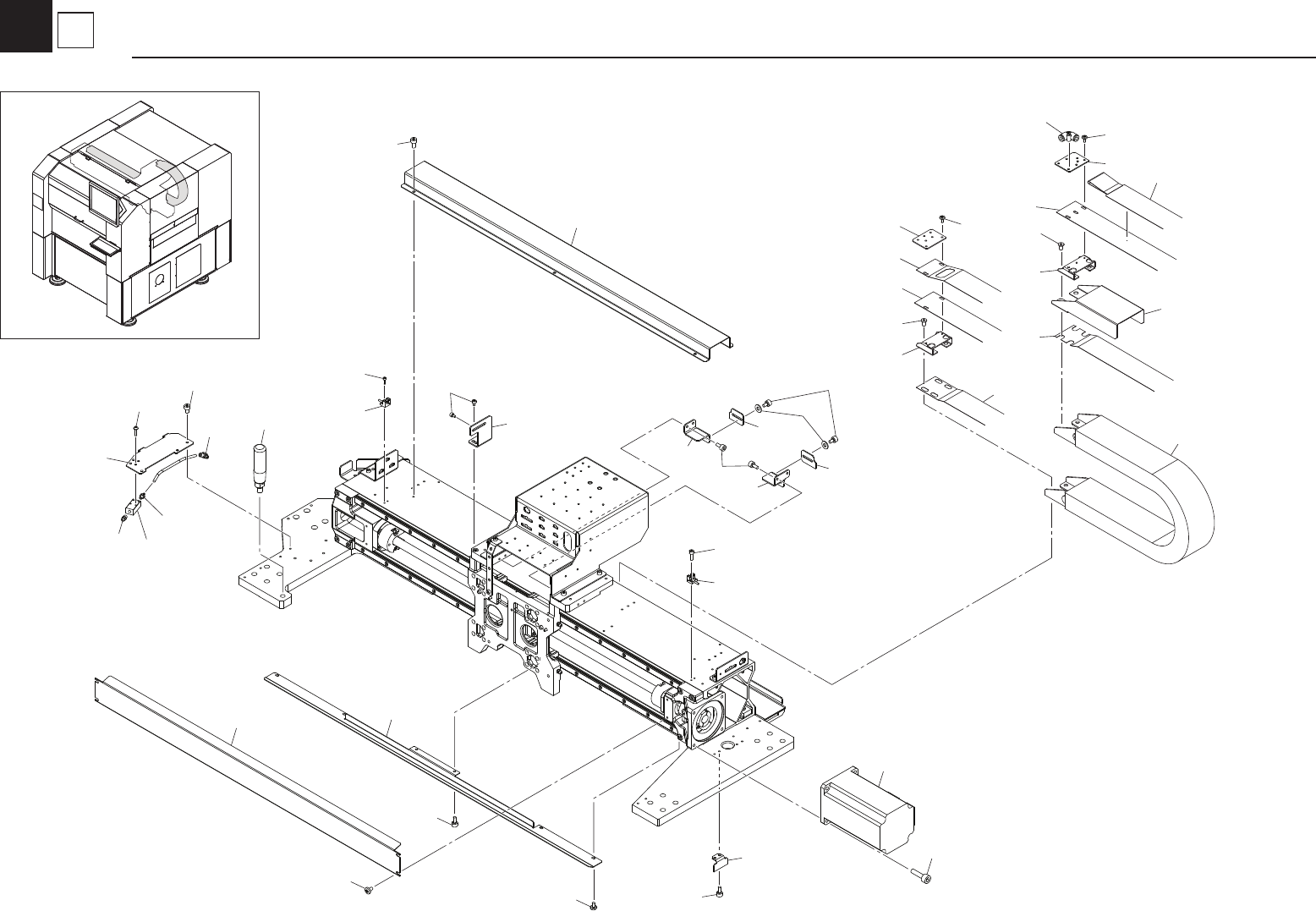

X-axis
Moving-axis
KKH-1008
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKH-M2267-00 GUIDE,CABLE X AXIS
1 B
Í
39
2
KKH-M220A-00
TAPE ,X DUCT
1
/
Í
40
3
KKH-M220B-00 TAPE 2,X DUCT
1 /
Í
41
4
KKH-M220C-00 TAPE 3,X DUCT
1 /
Í
42
5
KGT-M2266-10 PLATE,NUT
1 /
Í
43
6
KHY-M221A-A0 COVER,DUCT ASSY.
1 /
Í
44
7
KHY-M2266-00 PLATE,NUT
1
/
Í
45
8
KHY-M2268-00 BRACKET 1,TAPE
1 /
Í
46
9
KHY-M2269-00 BRACKET 2,TAPE
1
/
Í
47
10
KKH-M266A-00 PLATE,PIPE
1 /
48
11
KHN-M22AD-00 GREASE NIPPLE
1 /
Í
49
12
KHY-M266C-00 BLOCK,JOINT
1 /
Í
50
13
KHY-M266D-00 JOINT
1 /
Í
51
14
KHY-M266E-00 JOINT
1 /
Í
52
15
KKH-M2252-00 PLATE,FIX X AXIS
1 /
53
16
KKH-M226A-00 COVER,CABLE
1 /
54
17
KHY-M227G-00 COVER,B.S.
1 /
55
18
KKH-M652W-01 SENSOR XOT- ASSY
1
B
Í
56
19
KKH-M652X-01 SENSOR XOT+ ASSY
1 B
Í
57
20
KKH-M2282-00 DOG.ORIGIN,X AXIS
2
/
Í
58
21
KKH-M2283-00
STAY,DOG 1
1 /
Í
59
22
KKH-M2284-01 STAY,DOG 2
1 /
Í
60
23
KKH-M2682-00 DOG,ORIGIN Y AXIS
1 /
Í
61
24
KHY-M22C5-00 COVER UNDER,X AXIS
1 /
62
25
KGS-M2256-00 GRIP
1 /
63
26
90K63-511403 AC SERVO MOTOR
1 B
Í
64
27
90990-01J032 BOLT,HEX.SOCKET HEAD
8 65
28
90990-01J011 BOLT,HEX.SOCKET HEAD
4 66
29
91312-03010 BOLT HEX.SOCKET HEAD
4
M3X10
67
30
91312-04006 BOLT HEX.SOCKET HEAD
11
M4X6
68
31
91312-04008 BOLT HEX.SOCKET HEAD
14
M4X8
69
32
91312-06020 BOLT HEX.SOCKET HEAD
4
M6X20
70
33
92012-03010 BOLT,BUTTON HEAD
4 71
34
98902-03006 SCREW BINDING HEAD
4 72
35
98902-04006 SCREW BINDING HEAD
4 73
36
92902-04200 WASHER PLAIN
4 74
37
$UL6 JOINT
1 75
38 76
3
1
X-axis
Moving-axis
