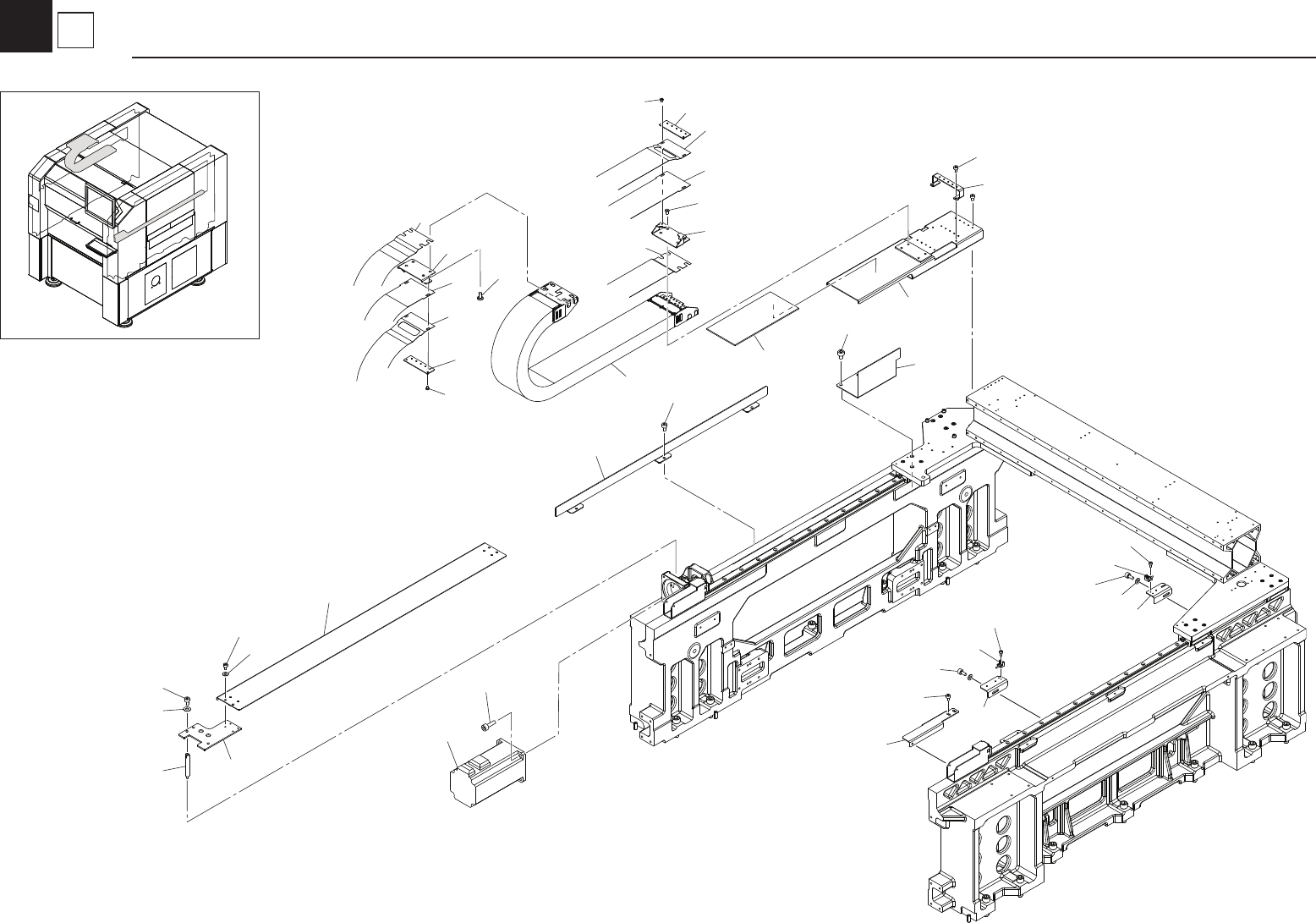

KKH-1008 2 4 3 24 16 8 23 12 25 26 22 10 25 13 1 1 32 6 20 5 31 6 25 23 7 17 26 15 23 24 29 19 18 28 3 2 4 1 30 14 9 21 27 3 2 Y-axis Moving-axis

100%1 / 31
KKH-1008
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKH-M2267-00 GUIDE,CABLE X AXIS
1 B
Í
39
2
KKH-M220A-00
TAPE ,X DUCT
1
/
Í
40
3
KKH-M220B-00 TAPE 2,X DUCT
1 /
Í
41
4
KKH-M220C-00 TAPE 3,X DUCT
1 /
Í
42
5
KGT-M2266-10 PLATE,NUT
1 /
Í
43
6
KHY-M221A-A0 COVER,DUCT ASSY.
1 /
Í
44
7
KHY-M2266-00 PLATE,NUT
1
/
Í
45
8
KHY-M2268-00 BRACKET 1,TAPE
1 /
Í
46
9
KHY-M2269-00 BRACKET 2,TAPE
1
/
Í
47
10
KKH-M266A-00 PLATE,PIPE
1 /
48
11
KHN-M22AD-00 GREASE NIPPLE
1 /
Í
49
12
KHY-M266C-00 BLOCK,JOINT
1 /
Í
50
13
KHY-M266D-00 JOINT
1 /
Í
51
14
KHY-M266E-00 JOINT
1 /
Í
52
15
KKH-M2252-00 PLATE,FIX X AXIS
1 /
53
16
KKH-M226A-00 COVER,CABLE
1 /
54
17
KHY-M227G-00 COVER,B.S.
1 /
55
18
KKH-M652W-01 SENSOR XOT- ASSY
1
B
Í
56
19
KKH-M652X-01 SENSOR XOT+ ASSY
1 B
Í
57
20
KKH-M2282-00 DOG.ORIGIN,X AXIS
2
/
Í
58
21
KKH-M2283-00
STAY,DOG 1
1 /
Í
59
22
KKH-M2284-01 STAY,DOG 2
1 /
Í
60
23
KKH-M2682-00 DOG,ORIGIN Y AXIS
1 /
Í
61
24
KHY-M22C5-00 COVER UNDER,X AXIS
1 /
62
25
KGS-M2256-00 GRIP
1 /
63
26
90K63-511403 AC SERVO MOTOR
1 B
Í
64
27
90990-01J032 BOLT,HEX.SOCKET HEAD
8 65
28
90990-01J011 BOLT,HEX.SOCKET HEAD
4 66
29
91312-03010 BOLT HEX.SOCKET HEAD
4
M3X10
67
30
91312-04006 BOLT HEX.SOCKET HEAD
11
M4X6
68
31
91312-04008 BOLT HEX.SOCKET HEAD
14
M4X8
69
32
91312-06020 BOLT HEX.SOCKET HEAD
4
M6X20
70
33
92012-03010 BOLT,BUTTON HEAD
4 71
34
98902-03006 SCREW BINDING HEAD
4 72
35
98902-04006 SCREW BINDING HEAD
4 73
36
92902-04200 WASHER PLAIN
4 74
37
$UL6 JOINT
1 75
38 76
3
1
X-axis
Moving-axis
KKH-1008
2
4
3
24
16
8
23
12
25
26
22
10
25
13
11
32
6
20
5
31
6
25
23
7
17
26
15
23
24
29
19
18
28
3
2
4
1
30
14
9
21
27
3
2
Y-axis
Moving-axis
KKH-1008
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKH-M2678-00 GUIDE,CABLE Y AXIS
1 A
Í
39
2
KKH-M260B-00
TAPE,Y DUCT
1
/
Í
40
3
KKH-M260C-00 TAPE 2, Y DUCT
1 /
Í
41
4
KKH-M260D-00 TAPE 3, Y DUCT
1 /
Í
42
5
KHY-M2669-00 BRACKET,HARNESS
2 /
Í
43
6
KV7-M2266-00 PLATE,NUT
2 /
Í
44
7
KHY-M2657-00 BRACKET 1,HARNESS
1
/
Í
45
8
KKH-M2658-00 PLATE,FIX Y AXIS
1 /
Í
46
9
KHY-M260A-00 TAPE, Y AXIS
1
/
Í
47
10
KKH-M652A-00 SENSOR YOT+ ASSY
1 B
Í
48
11
KKH-M652F-00 SENSOR YOT- ASSY
1 B
Í
49
12
KKH-M2691-00 BRACKET,SENSOR F
1 /
Í
50
13
KKH-M2692-01 BRACKET,SENSOR R
1 /
Í
51
14
KKH-M2697-00 BRACKET GUIDE,Y AXIS
1 /
Í
52
15
KKH-M26C1-00 COVER TOP,BALL SCREW
1 /
53
16
KHY-M26C2-01 COVER1,BALL SCREW
1 /
54
17
KHY-M26C3-00 COVER2,BALL SCREW
1 /
55
18
KKH-M26C5-00 SHAFT,COVER
3
/
Í
56
19
KKH-M2655-00 BRKT. COVER Y AXIS
1 /
Í
57
20
90990-01J032 BOLT,HEX.SOCKET HEAD
8
58
21
90K63-611H04
AC SERVO MOTOR
1 B
Í
59
22
91312-03006 BOLT HEX.SOCKET HEAD
4
M3X6 60
23
91312-04006 BOLT HEX.SOCKET HEAD
12
M4X6 61
24
91312-05008 BOLT HEX.SOCKET HEAD
6
M5X8 62
25
91312-05010 BOLT HEX.SOCKET HEAD
18
M5X10 63
26
91312-05016 BOLT HEX.SOCKET HEAD
40
M5X16 64
27
91312-06008 BOLT HEX.SOCKET HEAD
12
M6X8 65
28
91312-06018 BOLT HEX.SOCKET HEAD
4
M6X18 66
29
92902-04200 WASHER PLAIN
8
67
30
92902-05200 WASHER PLAIN
8
68
31
92902-05600 WASHER PLAIN
8
69
32
98502-03004 SCREW PAN HEAD
4
70
33
71
34
72
35
73
36
74
37
75
38
76
3
2
Y-axis
Moving-axis
