31-D デュアルコン ベア:NPM Du al Con veyo r: NPM パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N6 1009 391 8AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - O155 ( KN610093918AA-06-4 )
Ref
No.
Remarks
R
1
Q'ty
31-C
デュアルコンベア:NPM
Dual Conveyor:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610093918AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
1
34 N210121483AB
COVER
1
38 N210114623AB
RAIL
1
39 N210121481AA
BRACKET
1
41 N210114625AB
BRACKET
1
42 N210114626AA
BRACKET
1
51 N210116171AB
AMP
10
94 N510035086AA FX-101-PFS
SPACER
2
95 N510029536AA CF-414E
SPACER
2
96 N510029495AA ASF-458E
CABLE-BEAR
1
97 N510047882AA TKP0250W20R28X14LINK
CABLE-BEAR
2
98 N510047881AA TKP0250W20R28X10LINK
BRACKET
3
99 N510044606AA TKP0250W20-PIA
BRACKET
3
100 N510044607AA TKP0250W20-PKA
BOLT
12
101 N510017614AA
Hexagon socket Flat head bolt M4X10-10.9 A2J (Trivalent)
BOLT
8
119 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
6
120 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
6
123 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
WASHER
28
130 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
4
137 N510020099AA Thick washer M4
NUT
12
144 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
TRIM
2
151 KXF0DULAA00 CE-024
TRIM
3
152 KXF0DULAA00 CE-024
TRIM
1
153 KXF0DUUAA00 CE-016
TRIM
1
154 KXF0DUUAA00 CE-016
TUBE
1
157 N434UFF046
TUBE
2
158 N434UFF046
O154
--
( KN610093918AA-06-3 )

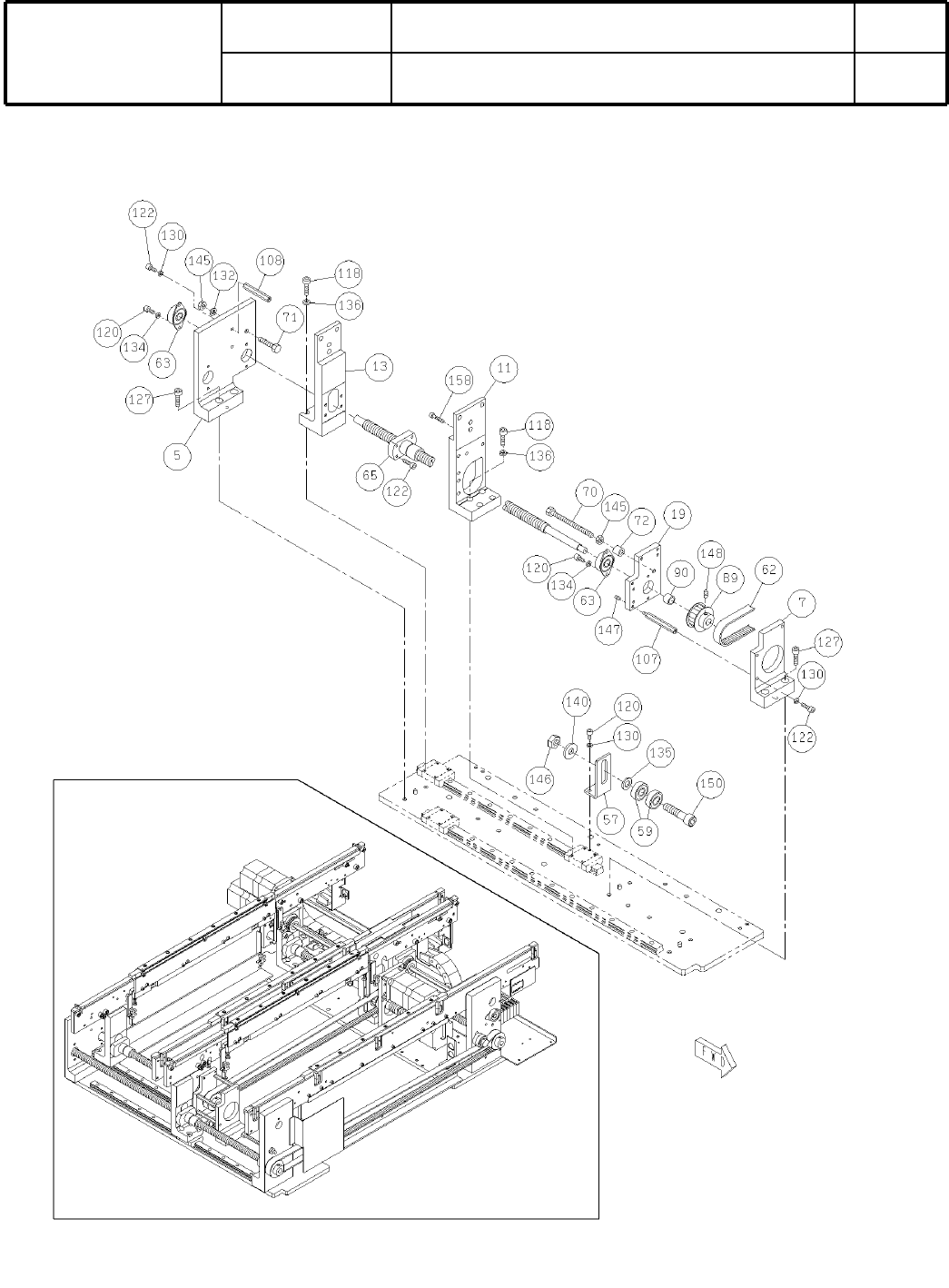

31-D
デュアルコンベア:NPM
Dual Conveyor:NPM
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610093918AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
O155
( KN610093918AA-06-4 )
Ref
No.
Remarks
R
1
Q'ty
31-D
デュアルコンベア:NPM
Dual Conveyor:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610093918AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
1
5 N210119100AA
BRACKET
1
7 N210119101AB
BLOCK
1
11 N210119103AA
BLOCK
1
13 N210122582AA
PLATE
1
19 N210120591AA
BRACKET
1
57 N210121482AA
BEARING
2
59 N510024787AA 6000ZZ
T-BELT
1
62 N510050379AA 430XL037
BEARING
2
63 KXF03G0AA00 SFB38-10
BALL-SCREW
1
65 N510051266AA JPF1404S-4G0+388LT(B)(32344933K000)
BOLT
1
70 N510038131AA M6X80-6g A2-70
BOLT
1
71 N510020810AA
Hexagon head bolt Best class M6X30-6g A2-70 no marking
COLLAR
1
72 N510047891AA 87NCLBH6-10-15.0
PULLEY
1
89 N510030782AA R101-N610058297AAS-F-PK
COLLAR
1
90 N510045839AA 87FNCLB-V10.0-D13.0-L10.0
SPACER
3
107 N510020913AA ASF-455E
SPACER
4
108 N510015573AA ASF-448E
BOLT
8
118 N510017313AA
Hexagon socket head cap screw M3X16-10.9 A2J (Trivalent)
BOLT
6
120 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
11
122 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
4
127 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
WASHER
9
130 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
1
132 N510018501AA
Round finish plain washer 6 10H A2J (Trivalent)
WASHER
4
134 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
1
135 N510018483AA
Small round-plain washer 10 10H A2J (Trivalent)
WASHER
8
136 N510020098AA Thick washer M3
WASHER
1
140 N510020103AA Thick washer M10
NUT
2
145 N510017867AA
Hexagon nut Type-1 Best class M6-6H-4T A2J (Trivalent)
NUT
1
146 N510017887AA
Hexagon nut Type-1 Best class M10-6H-4T A2J (Trivalent)
SCREW
3
147 XXE4D12FT
Hexagon socket set screw Cup point M4X12-45H SOB
SCREW
2
148 XXE5D6FT
Hexagon socket set screw Cup point M5X6-45H SOB
BOLT
1
150 N510017171AA
Hexagon socket head cap screw M10X45-10.9 A2J (Trivalent)
BOLT
2
158 N510053448AA P=1CAP M4X20-10.9(Trivalent blue plated)
O156
--
( KN610093918AA-06-4 )
