TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
Chapter Issue 1 June 15 Appendix to Micron Technical Manuals 3.109
SEMI Level Chase Tick
Inspect the condition of wiring/pneumatic connections.
Clean and lubricate with light oil, the omni track bearings and the underside of the track
plates.
Clean the left and right screen at centre optos.
Clean the stencil guide strips of debris/paste.
Remove the ASM pneumatic cylinder covers.
Ensure ASM cable assembly is seated correctly around all pulleys.
Loosen cable retainer bracket securing screws. Adjust position of bracket to eliminate any
cable slack.
Ensure all screen clamps are at their home position. Tighten retainer bracket securing
screws.
Refit ASM pneumatic cylinder covers.
Check operation of the chase clamps.
Check operation of the ASM.
Estimated time required for Monthly tasks 6.0 hours
Summary/Remarks
Signed: Date:
SEMI 1
SEMI 2
TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
3.110 Appendix to Micron Technical Manuals Chapter Issue 1 June 15
Cleaning, Lubrication and Maintenance Diagrams

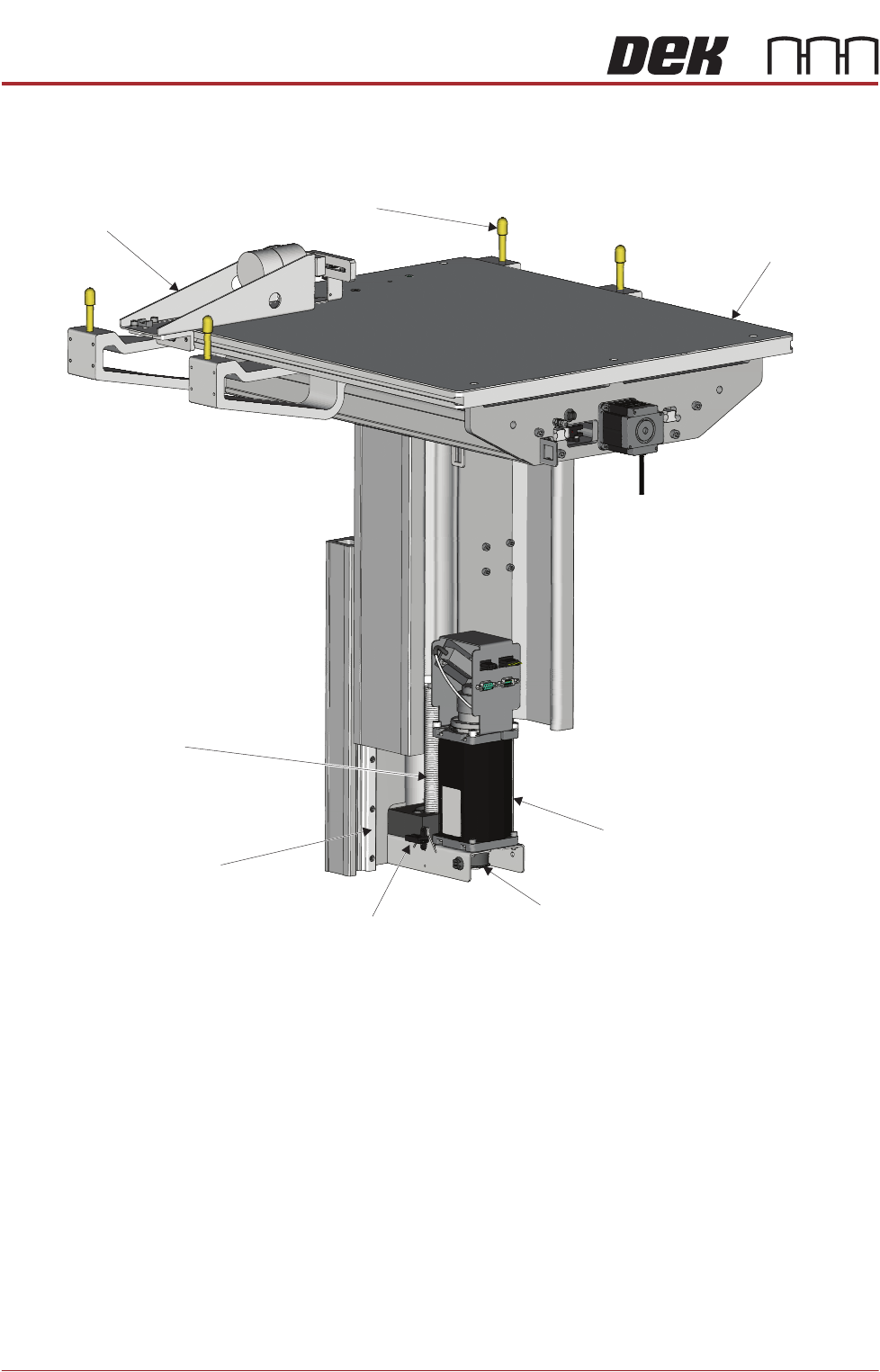

Figure 3-7 Rising Table
Manual Tooling
Plate (clean)
Rising Table Motor with Integral
Electromagnetic Brake
Rising Table drive belt
Home Sensor
Linear Bearing
Guide (in 2 positions)
Rising Table
Leadscrew
Remote Board Stop
(Optional)
Rail to Table Height
Adjuster (in 4 positions)
TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
Chapter Issue 1 June 15 Appendix to Micron Technical Manuals 3.111

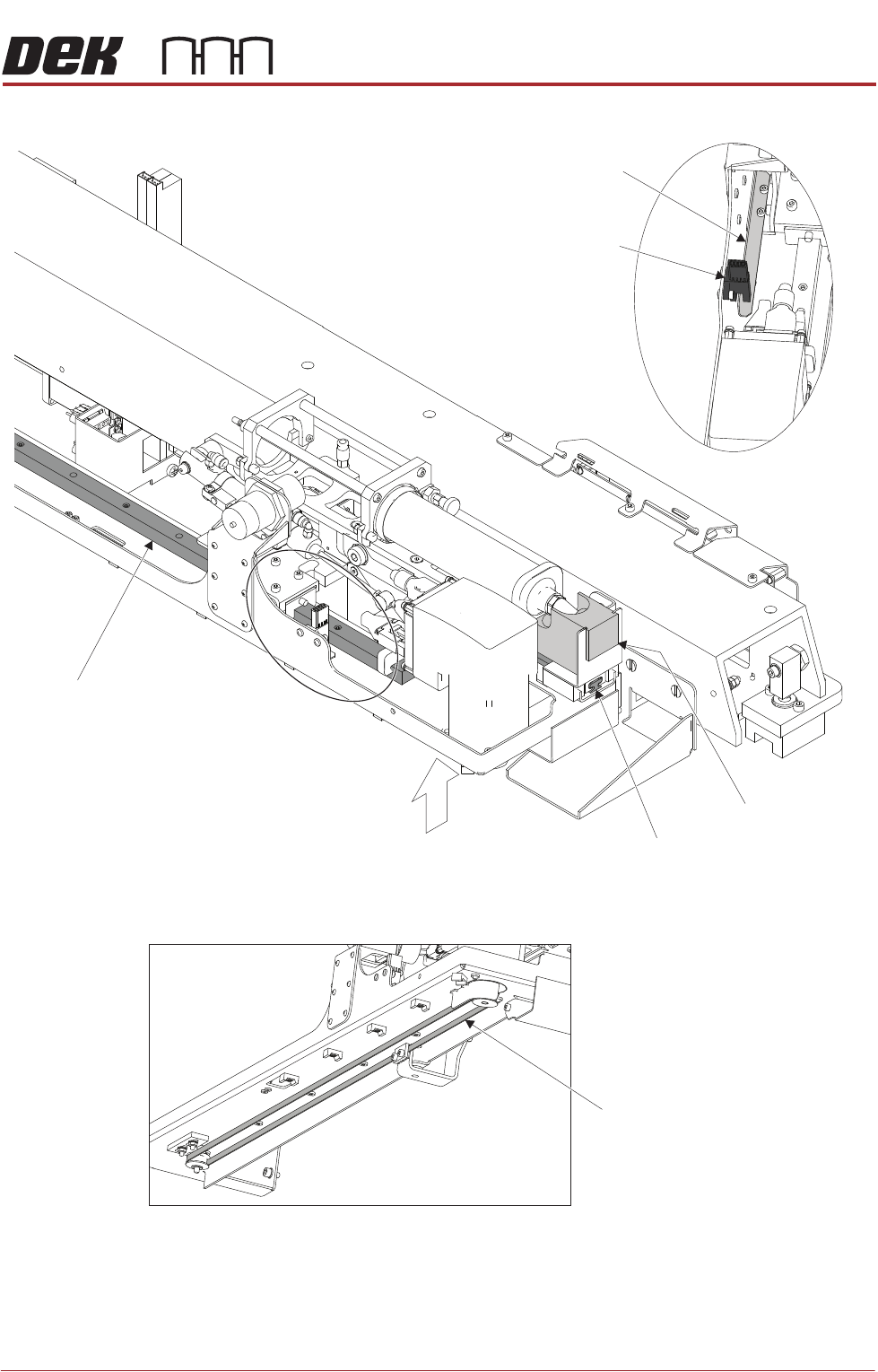

Figure 3-8 Paste Dispenser
