OPERATOR APPENDIX
MACHINE OVERVIEW
1.4 Appendix to Micron Technical Manuals Chapter Issue 1 June 15
MACHINE OVERVIEW
NOTE
The monitor could be sited on either side of the machine front panel, dependant
on customer confguration. The front panel EMO button is always sited on the
opposite front panel to the monitor (i.e. monitor sited left-hand front panel - EMO
button sited right-hand front panel).
Tricolour Beacon
Monitor
Emergency
Machine Off Button
Emergency Machine Off Button
(at rear of machine)
View on Front of Machine
Two Button Control
Internal Light
Two Button Control
Mains Isolator
System Button
Start Button
OPERATOR APPENDIX
POWER UP
Chapter Issue 1 June 15 Appendix to Micron Technical Manuals 1.5

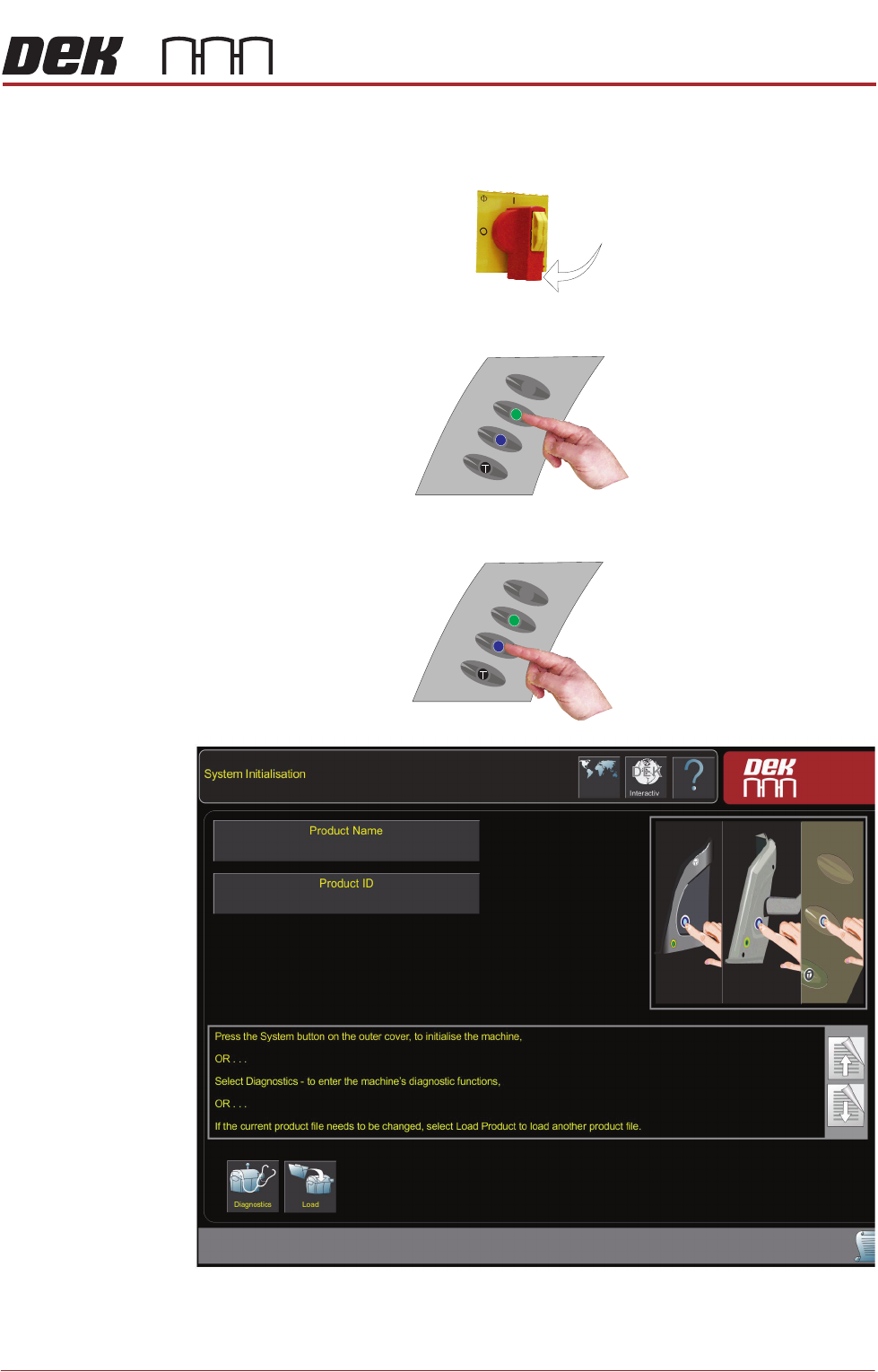

POWER UP
Switch the Mains Isolator On.
Press the Start button.
When the System Initialisation page is displayed, press the System button.
OPERATOR APPENDIX
POWER UP
1.6 Appendix to Micron Technical Manuals Chapter Issue 1 June 15
