Test Research, Inc.
TR7600 SIII Series User Guide – Operation 15
3 R
EPAIR
S
TATION
C
ONFIRMATION
3.1 Confirm Inspection Data
1) Open TRI AXI Repair Station program.

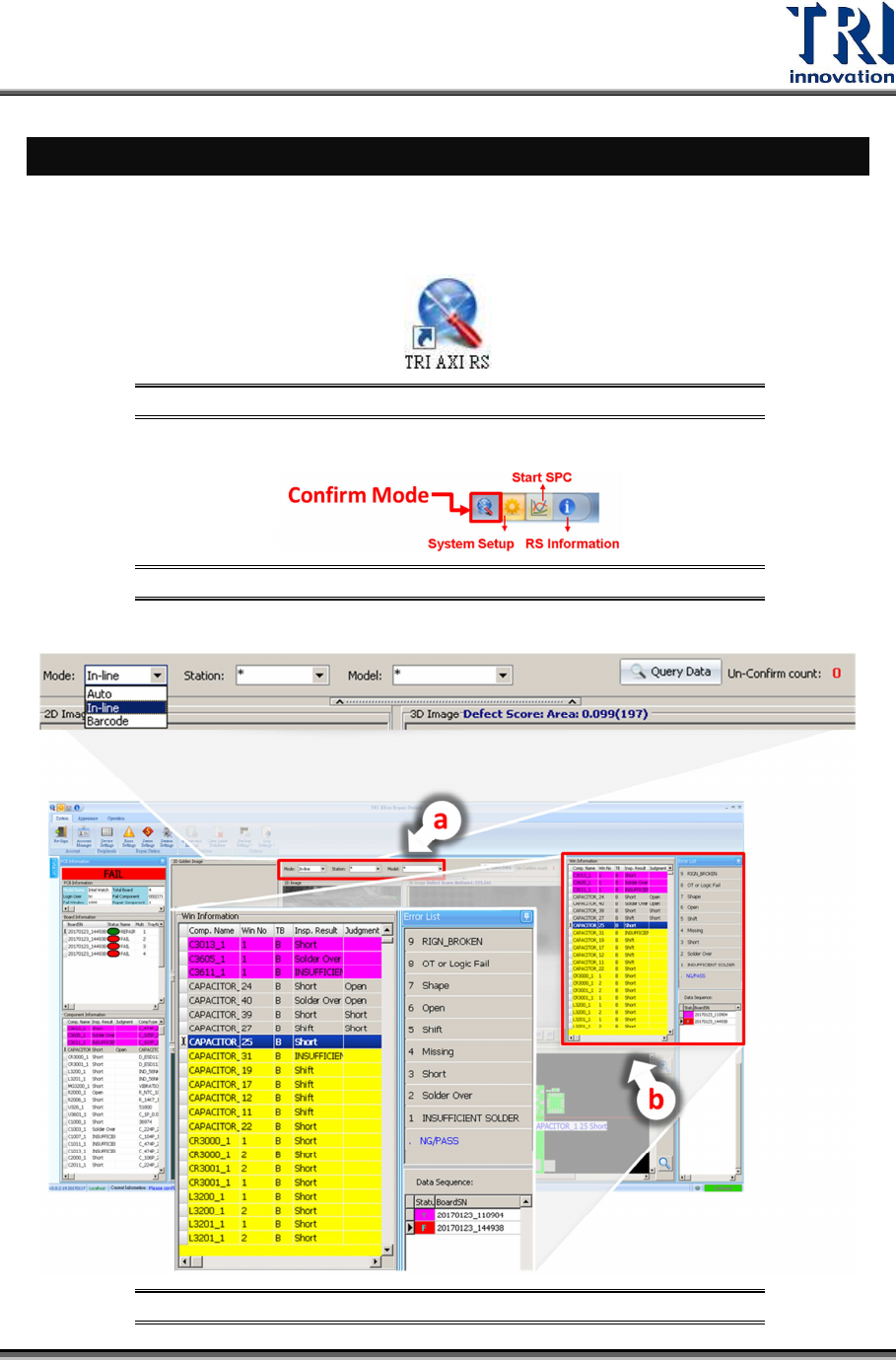

Figure 21: TRI AXI Repair Station
2) Enter Confirm Mode.
Figure 22: Confirm Mode
3) Start to confirm by query the inspection data based on Auto, In-line or Barcode mode.
Figure 23: Query Data by Auto, In-line or Barcode
Test Research, Inc.
16 TR7600 SIII Series User Guide – Operation
a) Query by Auto mode, in-line mode or barcode mode. Number displayed on the right
hand side is the number of un-confirmed units.
b) Check the defect images and use the keyboard or mouse to confirm the image defect
type displayed at the right side of the window.
c) Press [Enter] button to send out the data.
4) In Offline mode, type in the barcode manually or using barcode scanner, and then click
“Query” to retrieve the board data.

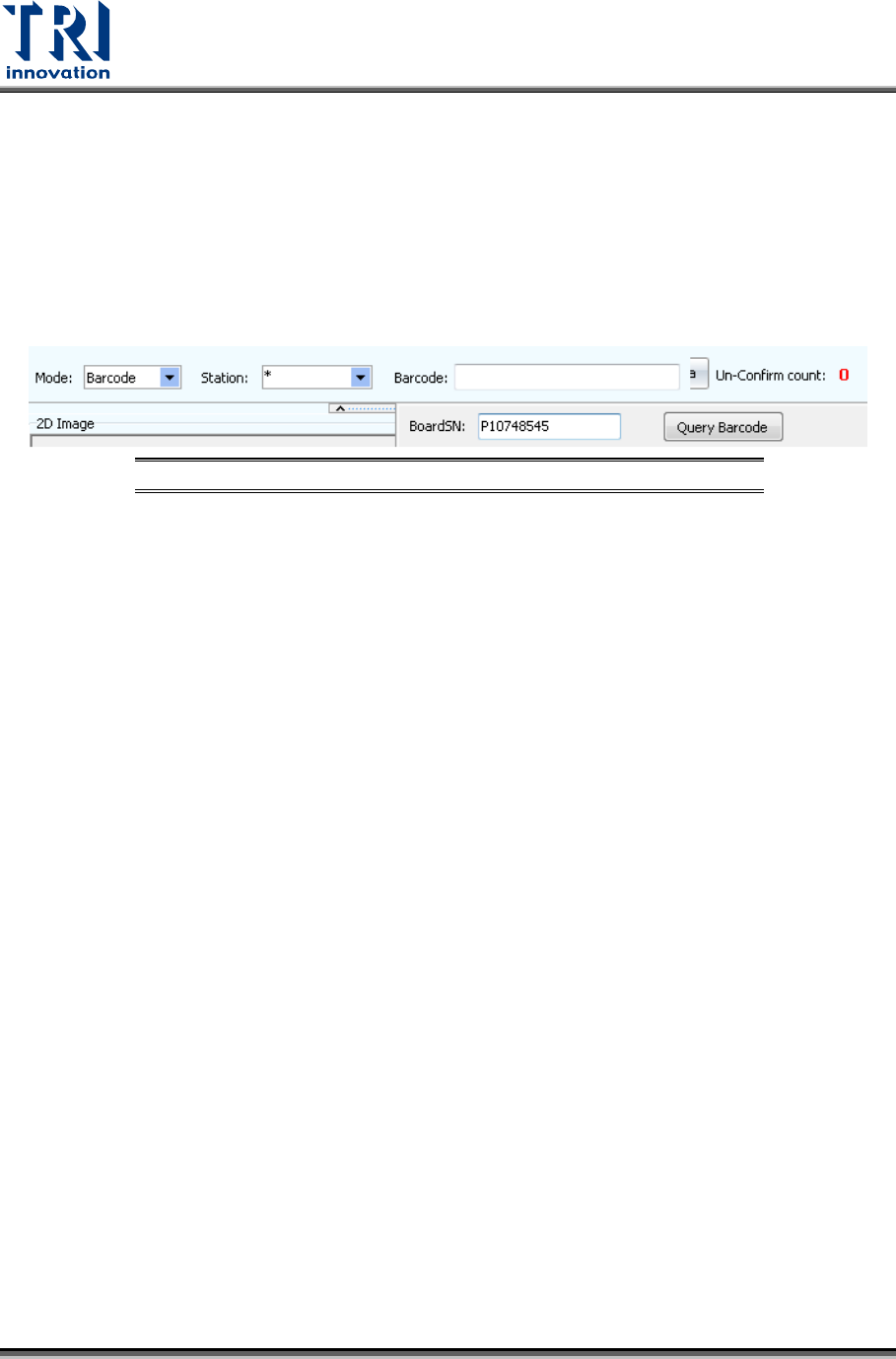

Figure 24: Query Data by Offline Mode
Test Research, Inc.
TR7600 SIII Series User Guide – Operation 17
3.2 Report Generation

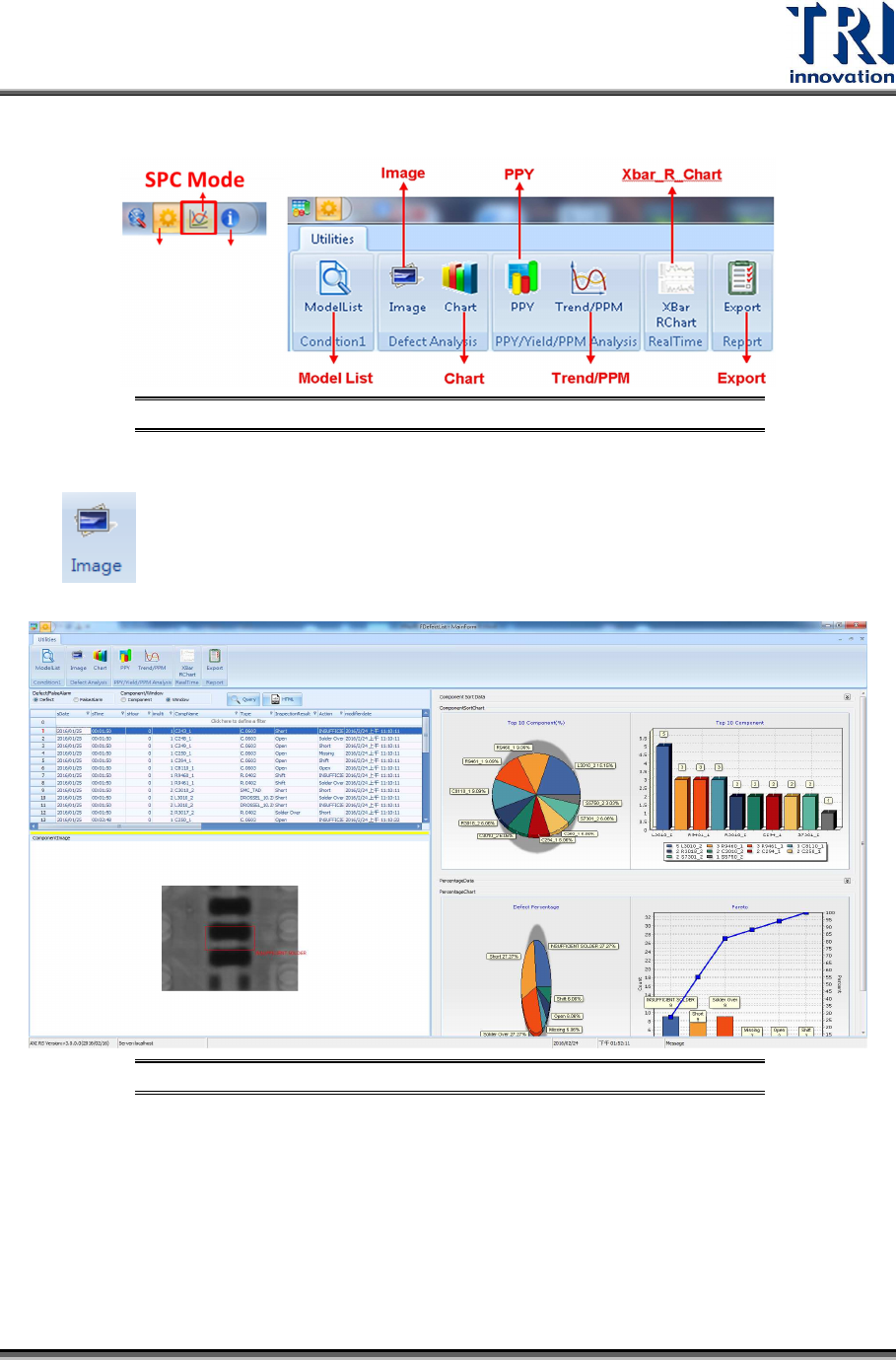

Figure 25: SPC Mode
Here you can decide which type of format you want to display and export as a report.
1) [Image] tab: Display defect images for you to double confirm and present simple
charts to help you find out defect components and improve production quality.
Figure 26: Defect Image and Simple Charts Display
