Version 1 Page 13 / 16 24.11.2021 Pos. Item no. Description Part marking 1 03015680S07 CO TROLLEY, DOCKING UNIT, X- SERIES, CMPL SPARE PART 2 03019941S05 TAPE CUTTER PNEUM. SIPLACE HF SPARE PART 3 03000489-06 MOUNTING PL…

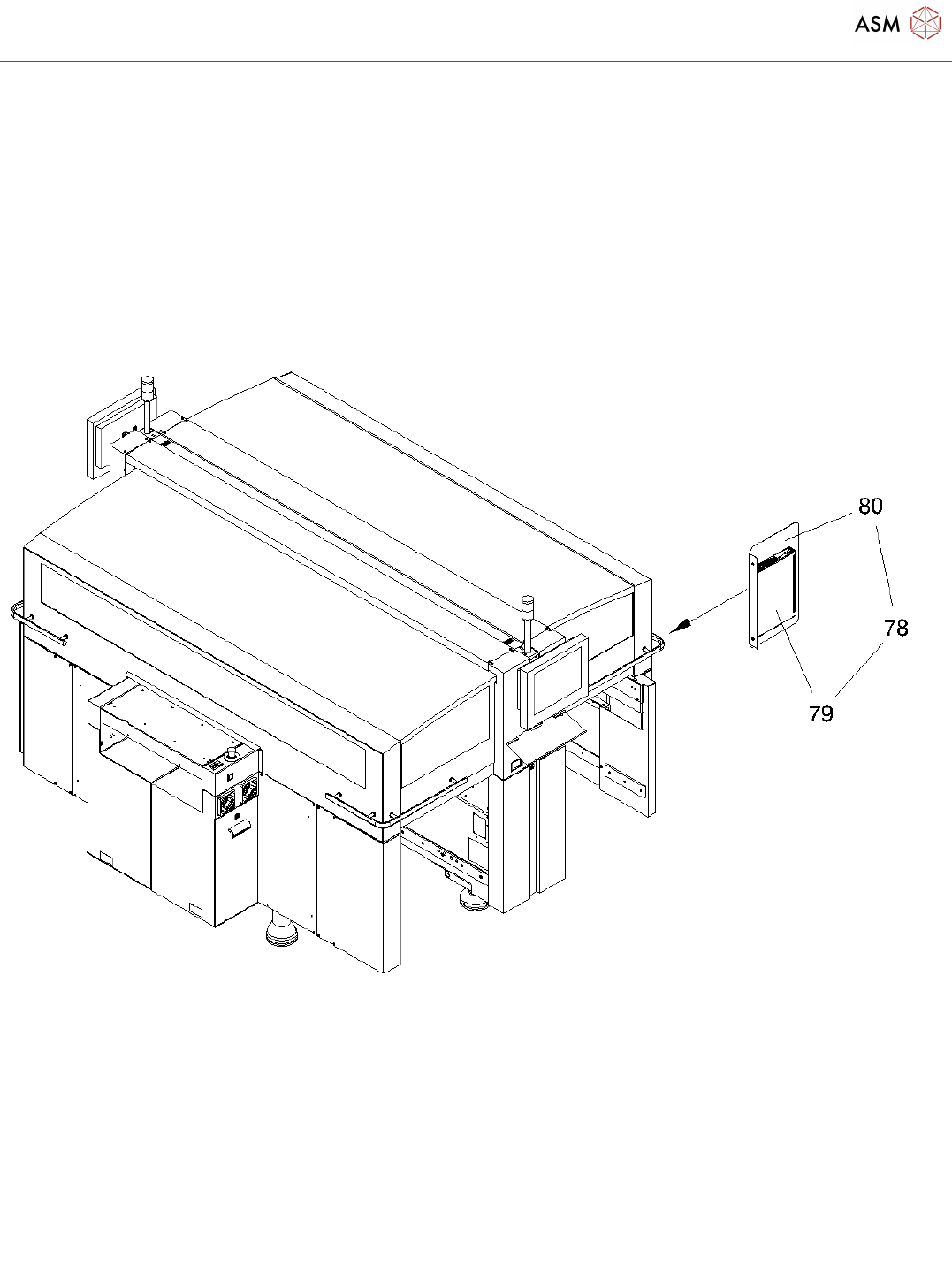

Version 1
Page 12 / 16 24.11.2021
Version 1
Page 13 / 16 24.11.2021
Pos. Item no. Description Part marking
1 03015680S07 CO TROLLEY, DOCKING UNIT, X-
SERIES, CMPL
SPARE PART
2 03019941S05 TAPE CUTTER PNEUM. SIPLACE HF SPARE PART
3 03000489-06 MOUNTING PLATE FINISH PART
(SIPLACE HF)
SPARE PART
4 03000491-02 WIPER (TAPE CUTTER HF) SPARE PART
5 03019894-03 PROTECTIVE GUARD (SIPLACE HF) SPARE PART
6 03019896-03 BAFFLE PLATE (SIPLACE HF) SPARE PART
7 03000495-05 COVER PLATE (TAPE CUTTER HF)
8 03005526-01 HOLD-DOWN BRIDGE LE (TAPE
CUTTER HF)
9 03000506-03 WIPER-CLIP LEFT (SIPLACE HF) SPARE PART
10 03000505-03 WIPER-CLIP RI (TAPE CUTTER HF) SPARE PART
11 03000518-03 HINGE (TAPE CUTTER HF) SPARE PART
12 03000493-02 CABLE TRAY (TAPE CUTTER HF)
13 03000553-02 MEASURER COVER (TAPE CUTTER
HF)
STANDARD PARTS
14 03000630-01 VALVE COMPL. (TAPE CUTTER HF)
15 00310744-01 SILENCER G-1/8 WEAR PART
16 03009259-03 MEASURER SET ALIGNET (TAPE
CUTTER HF)
SPARE PART
17 00329209-01 METAL BUFFER M4,65 SHORE SPARE PART
18 00332894S03 PROXIMITY SWITCH W/ CABLE TAPE
CUT. S50
SPARE PART
19 03038587-01 SHORT STROKE CYLINDER 50X40 SPARE PART
20 03000600-01 THROTTLE VALVE AS2201F-02-06SA SPARE PART
22 00332896-01 CABLE: CONTROL UNIT -CUTTER
LEFT VALVE
SPARE PART
23 00334380-01 CABLE: CONTROL UNIT-CUTTER
RIGHT VALVE
SPARE PART
24 03006411-02 CONTROL UNIT TAPE CUTTER HF SPARE PART
27 03000650-01 MOUNTING PLATE F. CONTROL BOX
28 00304900S01 BRACKET RAIL T35*7,5MM W.HOLE
ST.0.25M
SPARE PART
29 03005529-01 HOLD-DOWN BRIDGE RI (TAPE
CUTTER HF)
30 00333778S01 PLASTIC TUBE PUN-6X1 BLUE 5M WEAR PART
31 03007432-02 SPACER DISTANCE PIECE SPARE PART
Version 1
Page 14 / 16 24.11.2021
Pos. Item no. Description Part marking
03014048-01 QSY-6 Y-STECKVERBINDUNG STANDARD PARTS
03051003-01 ONE TOUCH FITTINGS SERIES
KQ2L06-U02
32 03020068S08 FCU X-SERIES
33 03052576-02 USED TAPE CHANNEL SPARE PART
34 03006050-01 COVER PLATE
35 03017800-01 BRACKET
36 03021044-01 NC DETACHABLE BACKING PLATE SPARE PART
37 03021079-01 NOZZLE CHANGER SHIM PLATE SPARE PART
38 03006335-02 USED TAPE CHANNEL
39 03009547-03 RIGHT SIDE PANEL, USED TAPE
CHANNEL
40 03007447-01 ROUND CORD, 475 LONG
41 03017820-01 TRACK RULER, PITCH 11.8 / X
FEEDER
SPARE PART
42 03021163-02 LEFT SIDE PANEL, USED TAPE
CHANNEL
43 03023092-01 USED TAPE CHANNEL, INTERNAL
44 03023144-01 USED TAPE CHANNEL, EXTERNAL
(BOTTOM)
45 03023168-01 USED TAPE CHANNEL, EXTERNAL
(TOP)
46 03023337-01 USED TAPE CHANNEL, INSERT (TOP)
47 03023309-01 USED TAPE CHANNEL, INSERT
(BOTTOM)
48 03039517-02 DETACH. BACKING PLATE F.
NOZZLE REJECT D
49 03039514-02 SHIM PLATE FOR NOZZLE REJECT
DEVICE
SPARE PART
03050316-01 GUIDE COMPONENT REJECT BOX
RIGHT
03050285-01 GUIDE COMPONENT REJECT BOX
LEFT
50 03006619-06 CO TROLLEY DOCKING UNIT, X-
SERIES
51 03047616-01 CYLINDER 50X60 SA-207074 SPARE PART
52 03002876-01 SHORT STROKE ZYLINDER 20X10 SPARE PART
54 00353412-01 ONE-WAY FLOW CONTROL
VALVEAS2201F-01-04S
SPARE PART
55 03006245-01 THROTTLE VALVE SPARE PART
