MODEL TCM-3100J-2 0108-001 104 See Fig.4-1 Key No.11 2 6 17 17 18 18 19 19 8 9 1 0 14 14 15 15 11 11 12 12 13 13 1 4 1 5 8 9 1 0 2 7 2 8 2 9 1 5 3 4 2 5 3 4 1 6 7 6 ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION Fig. 4-12 ਛ㑆ࡌࠬࠞࡃ Middle Ba…
MODEL TCM-3100J-2
0108-001
103
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-11
1 630 056 9551 BOX 1 659E--03B-025
1 -1 630 000 7497 BOLT,HEX-SCT 1 M3X4
2 630 000 7749 BOLT,HEX-SCT 2 M5X10
3 630 053 1312 SHEET 1 659E--03B-021
4 411 141 3902 WASHER V 3X7X0.5 2 FW3
5 411 141 2806 WASHER SPR 3 2 SW3
6 630 000 7497 BOLT,HEX-SCT 2 M3X4
7 411 050 5004 SCR TRS 3X6 1 M3X6 TRS
8 630 070 9407 BOX 1 659E--03B-026
9 630 071 0212 SHEET 1 659E--03B-027
11 630 052 3225 BRACKET 1 659E--03B-040
12 630 052 8169 SENSOR,PROXIMITY 1 PXS21 659E--03H-013
13 411 141 3902 WASHER V 3X7X0.5 2 FW3
14 411 141 2806 WASHER SPR 3 2 SW3
15 630 000 7510 BOLT,HEX-SCT 2 M3X8
16 630 000 1150 ACCESSORY,WIRING 2
17 630 000 7510 BOLT,HEX-SCT 2 M3X8
MODEL TCM-3100J-2
0108-001
104
See Fig.4-1
Key No.11
26
17
17
18
18
19
19
8
9
10
14
14
15
15
11
11
12
12
13
13
14
15
8
9
10
27
28
29
1
5
3
4
2
5
3
4
16
7
6
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION

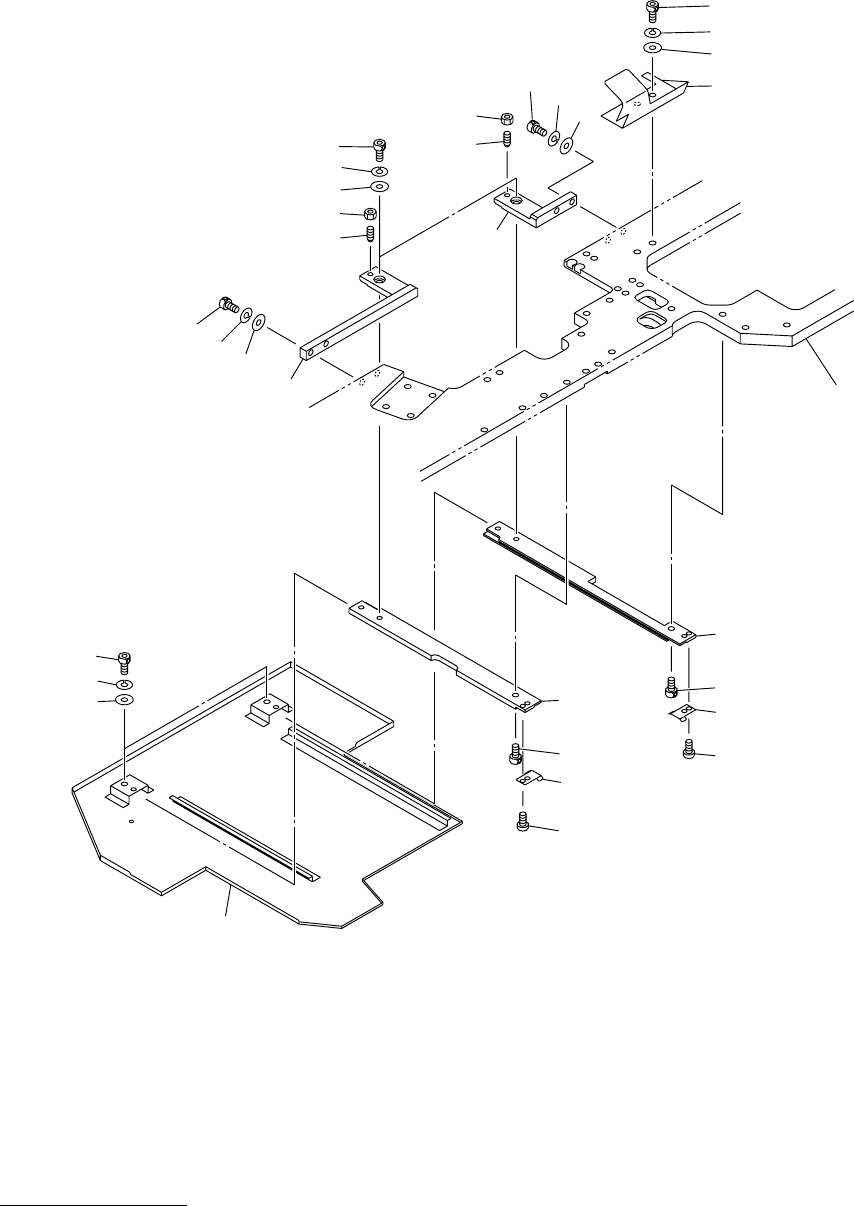

Fig. 4-12 ਛ㑆ࡌࠬࠞࡃ Middle Base Cover
MODEL TCM-3100J-2
0108-001
105
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-12
1 630 070 9117 SUPPORT 1 659E--03B-046
2 630 070 9124 SUPPORT 1 659E--03B-047
3 630 069 5694 SPRING,FLAT 2 659E--03B-045
4 630 070 9902 MACHINE SCREW 4 659E--03H-018
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
6 630 069 5731 SUPPORT 1 659E--03B-049
7 630 069 5724 SUPPORT 1 659E--03B-048
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 411 141 4008 WASHER V 4X9X0.8 2 FW4
12 411 141 2905 WASHER SPR 4 2 SW4
13 630 000 7626 BOLT,HEX-SCT 2 M4X10
14 630 069 4598 PLUNGER 2 659E--03H-017
15 411 141 0406 NUT HEX 4 2 M4-3
16 630 070 9100 COVER 1 659E--03B-044
17 411 141 4008 WASHER V 4X9X0.8 2 FW4
18 411 141 2905 WASHER SPR 4 2 SW4
19 630 000 7619 BOLT,HEX-SCT 2 M4X8
26 630 070 9391 COVER 1 659E--03B-051
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7626 BOLT,HEX-SCT 2 M4X10
