MODEL TCM-3100J-2 0108-001 163 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 8-2 1 630 053 0681 B RA CK ET ( M OTOR) 1 6 59H--03B-010 1 -1 630 055 291 1 B RA CK ET (M OTOR) 1 6 59H--03B-031 2 630 003 2574 GE AR ,R E D…
MODEL TCM-3100J-2
0108-001
162
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

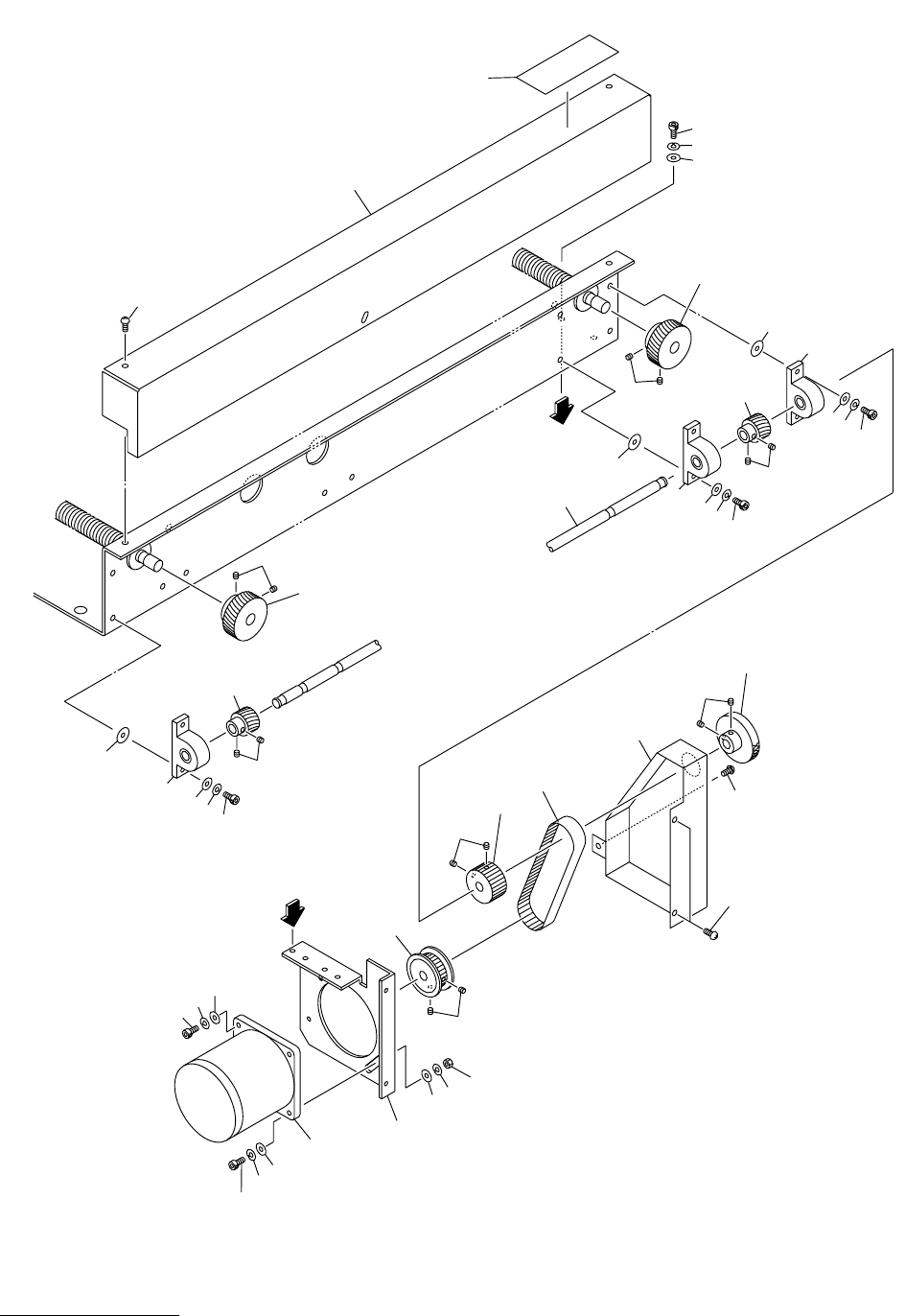

Fig. 8-2 ࠦࡦࡌࠕ㚟േㇱ Conveyor Driver
See Fig.8-1
See Fig.8-1
Key No.2
6
10
12
11
13
15
15
7
8
14
6-1
3
8
7
2
4
5
1-1
9-1
9-1
9
8
12
12
10
10
11
11
6-1
5
6
4
1
3
2
15
15
7
13
14
16
16
17
17
8
7
MODEL TCM-3100J-2
0108-001
163
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-2
1 630 053 0681 BRACKET(MOTOR) 1 659H--03B-010
1 -1 630 055 2911 BRACKET(MOTOR) 1 659H--03B-031
2 630 003 2574 GEAR,REDUCTION 2 659H--03H-016
3 630 049 0831 MOTOR,REVERSIBLE 2 M4, M100, 3RK15GN-AUL 100V
659H--03H-015
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7824 BOLT,HEX-SCT 4 M5X45
6 -1 411 087 1109 WASHER IN TW 5 2
7 630 009 2684 PULLEY,TIMING 4 659H--03H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 053 2395 BELT,TIMING 1 659H--03H-018
9 -1 630 013 6296 BELT,TIMING 1 659H--03H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
13 630 001 0220 WASHER 2 659H--03H-027
14 411 141 6705 WASHER SPR 5 2 SW5
15 630 000 7756 BOLT,HEX-SCT 2 M5X12
16 630 055 2935 COVER(MOTOR) 1 659H--03B-032
17 411 051 1708 SCR TRS 4X6 1 M4X6 TRS
MODEL TCM-3100J-2
0108-001
164
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. 8-3 ࠼ࠗࡉࠪࡖࡈ࠻ Driving Shaft
27
26
25
25
24
24
28
20
20
34
33
A
A
17
16
35
36
39
38
37
37
37
37
30
30
29
27-1
27-1
26
2
1
7
8
9
6
6-1
5
4
5
4
2
1
7
8
9
6
6
6-1
6-1
6-1
7
8
9
3
14
13
13
23
50
22
21
Fig.8-3
