MODEL TCM-3100J-2
0108-001
14
࠲ࡦ࠹ࡉ࡞ㇱ TURNTABLE SECTION

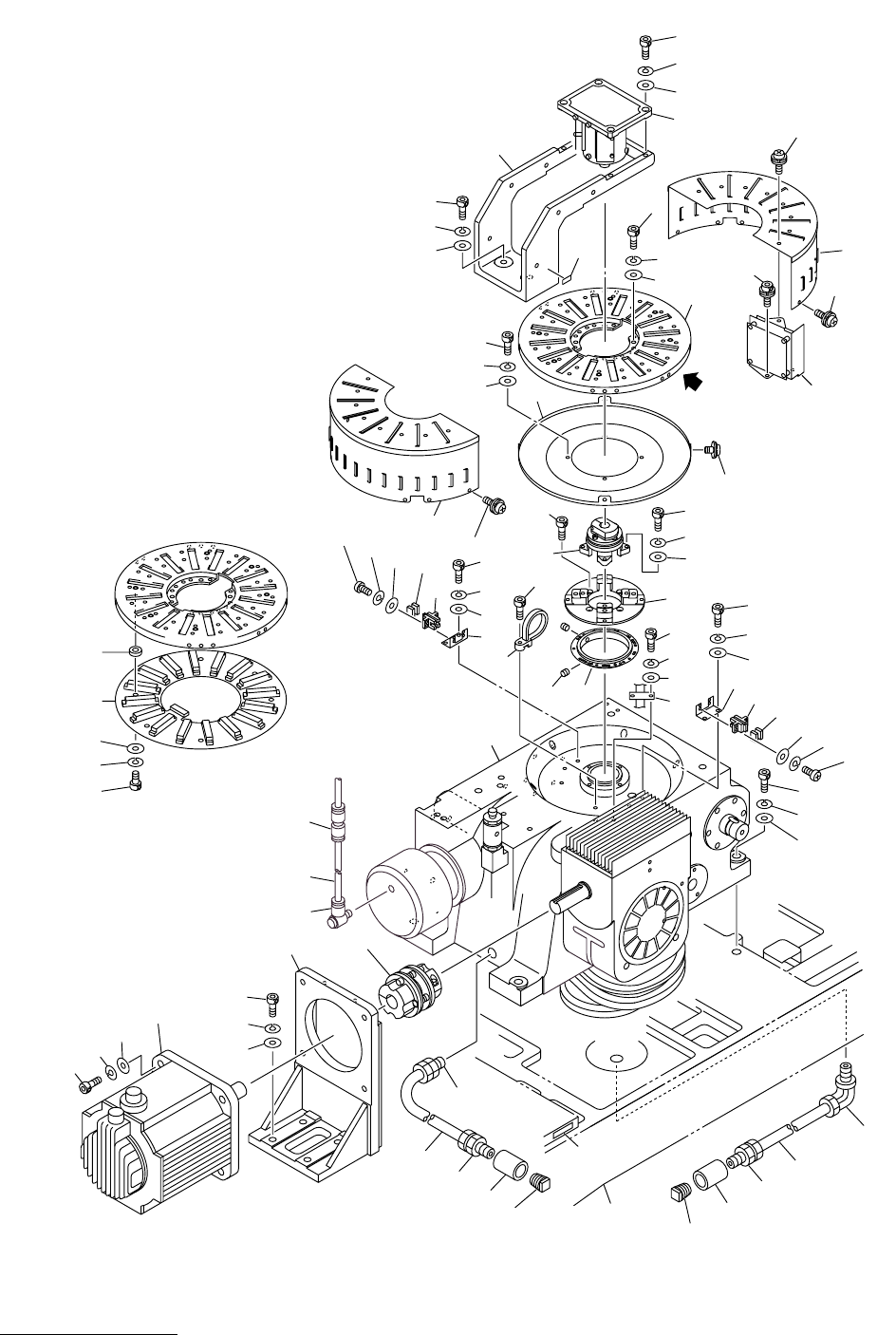

Fig. 2-1 ࠗࡦ࠺࠶࡙ࠢࠬ࠾࠶࠻ Indexing Drive Unit
1
9
8
7
62
71
72
73
65
65
64
64
63
63
66
67
68
69
13
13
25
25
24
24
23
23
22
22
11
11
12
28
28
29
45
48
48
47
47
46
46
30
30
31
32
33
34
44
44
59
59
60
57
58
60
49
49
52
51
50
53
56
55
54
DETAIL"A"
DETAIL"A"
A
14
15
17
16
20
19
18
59
60
60
35
38
39
40
91
92
93
93
94
95
See Fig.1-1
Key No.13
101
61
3
4
5
6
2
102
27
26
26
36
17
20
20
19
19
18
18
13
14
14
15
16
14-1
14-1
41
42
43
43
Fig.2-1
TCM-3100J-2
MODEL TCM-3100J-2
0108-001
15
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
2-1
1 630 072 8446 INDEXING DRIVE 1 659B--03H-001
2 630 004 0845 PIPE FITTINGS 1 659B--03H-024
3 630 004 1279 TUBE 1 659B--03H-025
4 630 003 7159 PIPE FITTINGS 1 659B--03H-026
5 630 003 7937 PIPE FITTINGS 1
6 630 003 8125 PIPE FITTINGS 1
7 411 141 4800 WASHER V 12X24X2.5 5 FW12
8 411 141 3308 WASHER SPR 12 5 SW12
9 630 000 8265 BOLT,HEX-SCT 5 M12X60
11 630 053 8786 DISK 1 659B--03B-007
12 630 000 8944 SET SCREW 2 M5X6 SET
13 630 048 6414 BRACKET 2 659B--03B-006
14 630 004 1798 SENSOR,PHOTO 4 PHS15, PHS16, PHS17, PHS18
659B--03H-010
14 -1 630 000 0269 SENSOR,PHOTO(CONNECTOR) 4
15 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
16 411 086 4408 WASHER SPR 3 8 SW3 F
17 411 040 7803 SCR PAN 3X12 8 M3X12 PAN
18 411 141 4008 WASHER V 4X9X0.8 4 FW4
19 411 141 2905 WASHER SPR 4 4 SW4
20 630 000 7626 BOLT,HEX-SCT 4 M4X10
22 630 050 6228 PLATE 1 659B--03B-028
23 411 141 4008 WASHER V 4X9X0.8 2 FW4
24 411 141 2905 WASHER SPR 4 2 SW4
25 630 000 7619 BOLT,HEX-SCT 2 M4X8
26 630 000 1167 ACCESSORY,WIRING 1
27 630 000 7626 BOLT,HEX-SCT 1 M4X10
28 630 053 8779 ROTOR 1 659B--03B-002
29 630 000 7879 BOLT,HEX-SCT 4 M6X12
30 630 048 6391 ROTOR 1 659B--03B-004
31 411 141 4008 WASHER V 4X9X0.8 4 FW4
32 411 141 2905 WASHER SPR 4 4 SW4
33 630 000 7619 BOLT,HEX-SCT 4 M4X8
34 630 056 2156 ROTOR 1 659B--03B-003
35 630 048 6834 COLLAR 6 659B--03B-025
36 630 074 4101 P.C.B,MOUNT (HEAD MOTHER) 1 U934*002*0000 659FH-03U-001
38 411 141 4008 WASHER V 4X9X0.8 6 FW4
39 411 141 2905 WASHER SPR 4 6 SW4
40 630 000 7633 BOLT,HEX-SCT 6 M4X12
41 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
42 411 141 3001 WASHER SPR 6 4 SW6
43 630 000 7886 BOLT,HEX-SCT 4 M6X16
44 630 052 3881 BOLT 4 659B--03H-009
45 630 048 5813 COUPLING 1 659B--03H-007
46 411 141 4107 WASHER V 5X10X1 4 FW5
47 411 141 6705 WASHER SPR 5 4 SW5
48 630 000 7770 BOLT,HEX-SCT 4 M5X20
49 630 052 2716 FRAME 1 659B--03B-008
50 630 001 0244 WASHER 2 BW8
51 411 141 3100 WASHER SPR 8 2 SW8
MODEL TCM-3100J-2
0108-001
16
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
2-1
52 630 000 8043 BOLT,HEX-SCT 2 M8X35
53 630 052 4338 COUPLING 1 659B--03H-008
54 411 141 4107 WASHER V 5X10X1 4 FW5
55 411 141 6705 WASHER SPR 5 4 SW5
56 630 000 7763 BOLT,HEX-SCT 4 M5X16
57 630 053 1664 UNIT,DRIVER 16 PMD1-16, #D2332B 659FH-03D-003
58 630 067 0240 BOLT 32 659B--03H-031
59 630 048 6407 COVER 2 659B--03B-005
60 630 052 3881 BOLT 24 659B--03H-009
61 630 048 5806 COUPLING 1 659B--03H-002
62 630 048 5950 BRACKET 1 659B--03B-001
63 411 141 4701 WASHER V 10X21X2 4 FW10
64 411 141 3209 WASHER SPR 10 4 SW10
65 630 000 8142 BOLT,HEX-SCT 4 M10X35
66 630 091 2982 MOTOR,AC-SERVO 1 SVM1(H), #SGMGH-44ACA-TV11
659B--03H-003
67 411 141 4701 WASHER V 10X21X2 4 FW10
68 411 141 3209 WASHER SPR 10 4 SW10
69 630 000 8142 BOLT,HEX-SCT 4 M10X35
71 630 073 9558 PIPE FITTINGS 1 659B--03H-037
72 630 072 7883 TUBE 1 659B--03H-021
73 630 071 1677 PIPE FITTINGS 1 659B--03H-036
91 630 003 7449 PIPE FITTINGS 1 659L--03H-064
92 630 004 1279 TUBE 1 659L--03H-065
93 630 003 7159 PIPE FITTINGS 1 659L--03H-066
94 630 003 7937 PIPE FITTINGS 1
95 630 003 8125 PIPE FITTINGS 1
101 630 052 2013 NAME PLATE,PARTS 1 659L--03H-076
