MODEL TCM-3100J-2 0108-001 212 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-11 ᓟ㕙ᠲࡄࡀ࡞ Rear Operation Panel 1 0 2 9 2 3 4 5 4 3 4 4 4 5 4 6 4 7 4 9 4 8 5 2 53 53 54 54 B 4 7 4 6 4 5 4 4 4 2 4 1 50 50 51 51 5 5 56 56 5 7 5 8 42 42 B 3…
MODEL TCM-3100J-2
0108-001
211
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-10
1 630 074 9014 PANEL 1 659DC-03V-001
11 630 033 4609 SWITCH,BUTTON 1 PB1 659DC-03D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED1 659DC-03D-002
13 630 033 4593 ACCESSORY,SW 1 659DC-03D-003
14 630 066 7042 SWITCH,BUTTON 1 PB3 659DC-03D-004
15 630 000 3130 SWITCH,SELECTOR 1 SW3 659DC-03D-012
16 630 000 2713 SWITCH,BUTTON 1 PB5(LED2) 659DC-03D-006
17 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
18 630 000 2515 SWITCH,BUTTON 2 PB7, PB8 659DC-03D-005
19 630 000 2713 SWITCH,BUTTON 2 PB6(LED3), PB11(LED4)
659DC-03D-006
20 630 000 0382 ACCESSORY,SW 2 659DC-03D-009
21 630 000 2713 SWITCH,BUTTON 1 PB12(LED5) 659DC-03D-006
22 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
23 630 007 6066 SWITCH,BUTTON 1 PB9 659DC-03D-007
24 630 007 6066 SWITCH,BUTTON 1 PB10 659DC-03D-007
25 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
26 630 035 0074 BUZZER 1 BZ1 659DC-03D-011
27 630 000 2744 SWITCH,BUTTON 1 PB13(LED6) 659DC-03D-008
28 407 035 4704 LED SLP-721F 1 LED7 659DC-03D-010
41 411 141 4107 WASHER V 5X10X1 2 FW5
42 411 141 6705 WASHER SPR 5 2 SW5
43 630 000 7749 BOLT,HEX-SCT 2 M5X10
MODEL TCM-3100J-2
0108-001
212
㔚᳇ᓮㇱ ELECTRICAL SECTION

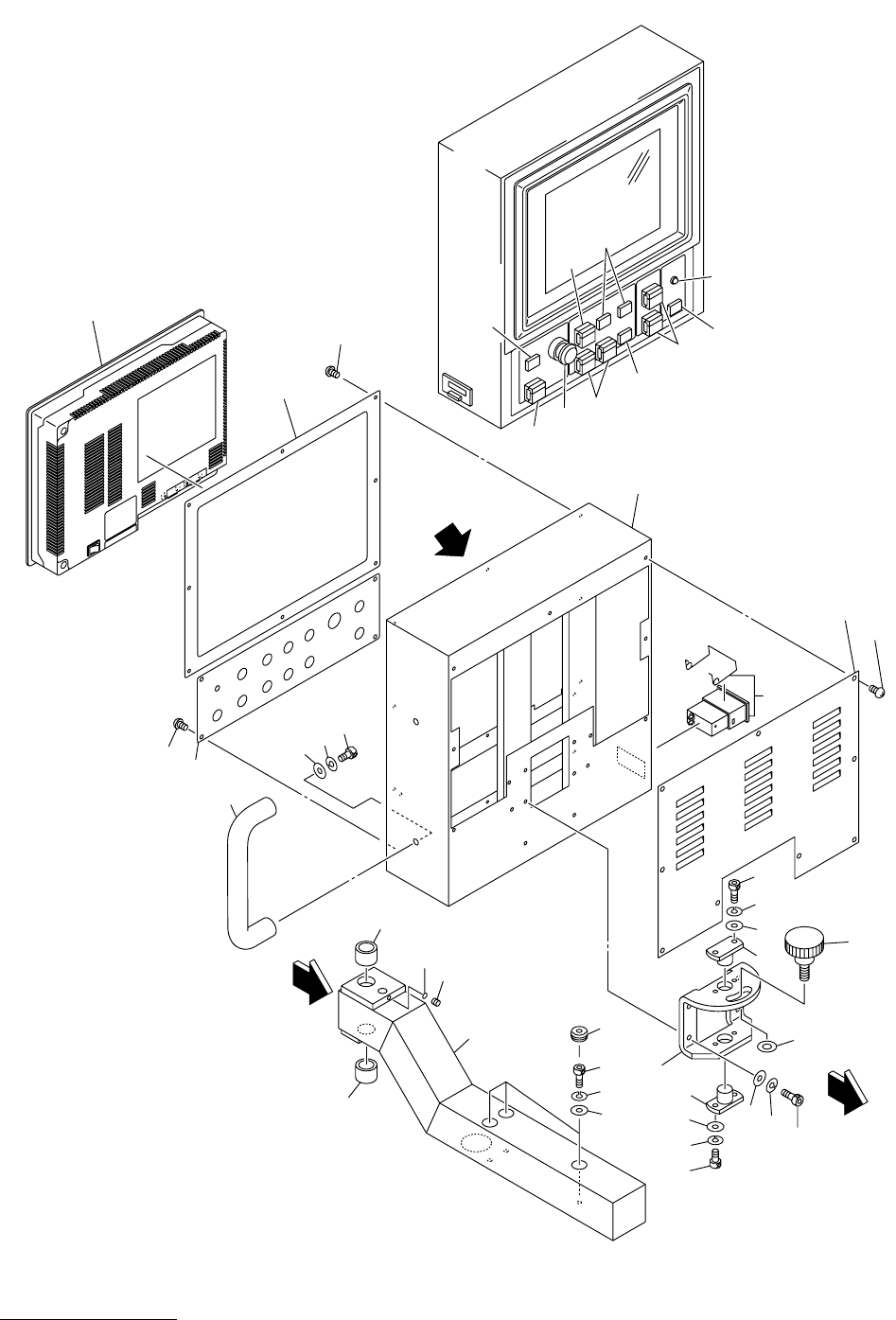

Fig.11-11 ᓟ㕙ᠲࡄࡀ࡞ Rear Operation Panel
10
29
2
3
4
5
43
44
45
46
47
49
48
52
53
53
54
54
B
47
46
45
44
42
41
50
50
51
51
55
56
56
57
58
42
42
B
31
31
32
6
8
7
1
30
A
DETAIL"A"
11
12
13
.
.
24
25
.
21
21
22
22
.
16
16
17
17
.
18
23
19
20
.
27
27
28
28
14
Fig.11-11
TCM-3100J-2
MODEL TCM-3100J-2
0108-001
213
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-11
1 630 094 6161 BOX 1 659DD-03V-001
2 630 051 6173 HANDLE 1 659DD-03D-018
3 411 141 4503 WASHER V 8X17X1.6 2 FW8
4 411 141 3100 WASHER SPR 8 2 SW8
5 630 000 8005 BOLT,HEX-SCT 2 M8X16
6 630 094 4877 UNIT,DISPLAY 1 #GM-1000RJ C 659DD-03D-014
7 630 094 2972 PANEL 1 659DD-03V-008
8 411 140 8304 SCR BIN 4X10 8 M4X10 BIN
10 630 058 5728 PANEL 1 659DD-03V-002
11 630 033 4609 SWITCH,BUTTON 1 PB2 659DD-03D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED8 659DD-03D-002
13 630 033 4593 ACCESSORY,SW 1 659DD-03D-003
14 630 066 7042 SWITCH,BUTTON 1 PB4 659DD-03D-004
16 630 000 2713 SWITCH,BUTTON 1 PB14(LED9) 659DD-03D-006
17 630 000 0382 ACCESSORY,SW 1 659DD-03D-009
18 630 000 2515 SWITCH,BUTTON 2 PB18, PB19 659DD-03D-005
19 630 000 2713 SWITCH,BUTTON 2 PB15(LED10), PB22(LED11)
659DD-03D-006
20 630 000 0382 ACCESSORY,SW 2 659DD-03D-009
21 630 000 2508 SWITCH,BUTTON 2 PB16, PB17 659DD-03D-012
22 630 000 0382 ACCESSORY,SW 2 659DD-03D-009
23 630 007 6066 SWITCH,BUTTON 1 PB20 659DD-03D-007
24 630 007 6066 SWITCH,BUTTON 1 PB21 659DD-03D-007
25 630 000 0382 ACCESSORY,SW 1 659DD-03D-009
27 630 000 2744 SWITCH,BUTTON 1 PB23(LED12) 659DD-03D-008
28 407 035 4704 LED SLP-721F 1 LED13 659DD-03D-011
29 411 140 8304 SCR BIN 4X10 5 M4X10 BIN
30 630 000 5059 COUNTER 1 MCT 659DD-03D-013
31 630 085 7566 COVER 1 659DD-03V-006
32 411 113 9109 SCR TRS 5X10 9 M5X10 TRS
41 630 066 0968 SUPPORT 1 659DD-03V-004
42 630 051 6180 BUSH,BEARING 2 659DD-03D-015
43 630 052 3041 BRACKET 1 659DD-03V-003
44 630 051 5923 PIN,LOCATE 2 659DD-03V-005
45 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
46 411 141 3001 WASHER SPR 6 4 SW6
47 630 000 7886 BOLT,HEX-SCT 4 M6X16
48 630 051 6166 MECH PARTS(DRYMET WASHER) 1 659DD-03D-016
49 630 051 6159 MECH PARTS(7LOBE KNOB) 1 659DD-03D-017
50 630 041 6770 COLLAR 1 659DD-03V-007
51 630 000 8944 SET SCREW 1 M5X6 SET
52 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
53 411 141 3001 WASHER SPR 6 4 SW6
54 630 000 7886 BOLT,HEX-SCT 4 M6X16
55 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
56 411 141 3001 WASHER SPR 6 4 SW6
57 630 000 7893 BOLT,HEX-SCT 4 M6X20
58 630 066 1033 MECH PARTS (GROMMETS) 3 659DD-03D-019
