MODEL TCM-3100J-2 0108-001 224 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-15 ᓟ㕙ࠦࡦ࠰࡞ Rear Console 1 1 0 9 8 7 3 4 4 5 5 6-1 6-1 6-3 6-3 6 - 2 6 - 3 6 20 20 See Fig.13-1 Key No.10 2 4 2 3
MODEL TCM-3100J-2
0108-001
223
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-14
1 630 087 7465 BOX 1 659FG-03V-001
2 630 049 1098 SWITCH,TOGGLE 2 SW1, SW2 659FG-03D-001
3 630 000 4243 SOCKET 1 659FG-03D-002
4 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
5 411 086 4408 WASHER SPR 3 2 SW3 F
6 411 041 8908 SCR PAN 3X6 1 M3X6 PAN
6 -1 411 086 9809 WASHER IN TW 3 1
6 -2 411 114 7005 SCR PAN+SW+W 3X8 1
6 -3 411 054 6809 NUT HEX 3 2 M3 F
7 630 057 9291 CORD 1 CN116-CN190 659FB-03D-122
8 630 000 2744 SWITCH,BUTTON 1 PB30 659FG-03D-008
9 407 035 4704 LED SLP-721F 1 LED17 659FG-03D-011
21 630 057 0694 UNIT,I/O 1 FDD1, #FD-05HGS-750
659FG-03D-006
22 630 036 4736 MECH PARTS 4 659FG-03V-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 411 140 9905 NUT HEX 3 4 M3
26 630 058 7272 CORD 1 CN178-CN87 659FB-03D-125
27 630 060 5730 SWITCH,SELECTOR 1 SW4 659FG-03D-012
27 -1 630 061 2325 NAME PLATE,NOTICE 2 659FG-03D-014
28 630 001 0237 WASHER 2 BW6
29 411 141 3001 WASHER SPR 6 2 SW6
30 630 000 7879 BOLT,HEX-SCT 2 M6X12
31 630 061 1441 COVER 1 659FG-03V-003
32 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
35 411 087 1109 WASHER IN TW 5 1
36 411 036 8609 SCR PAN+SW+W 5X12 1
50 630 059 8964 NAME PLATE,PARTS 1 659FG-03D-010
MODEL TCM-3100J-2
0108-001
224
㔚᳇ᓮㇱ ELECTRICAL SECTION

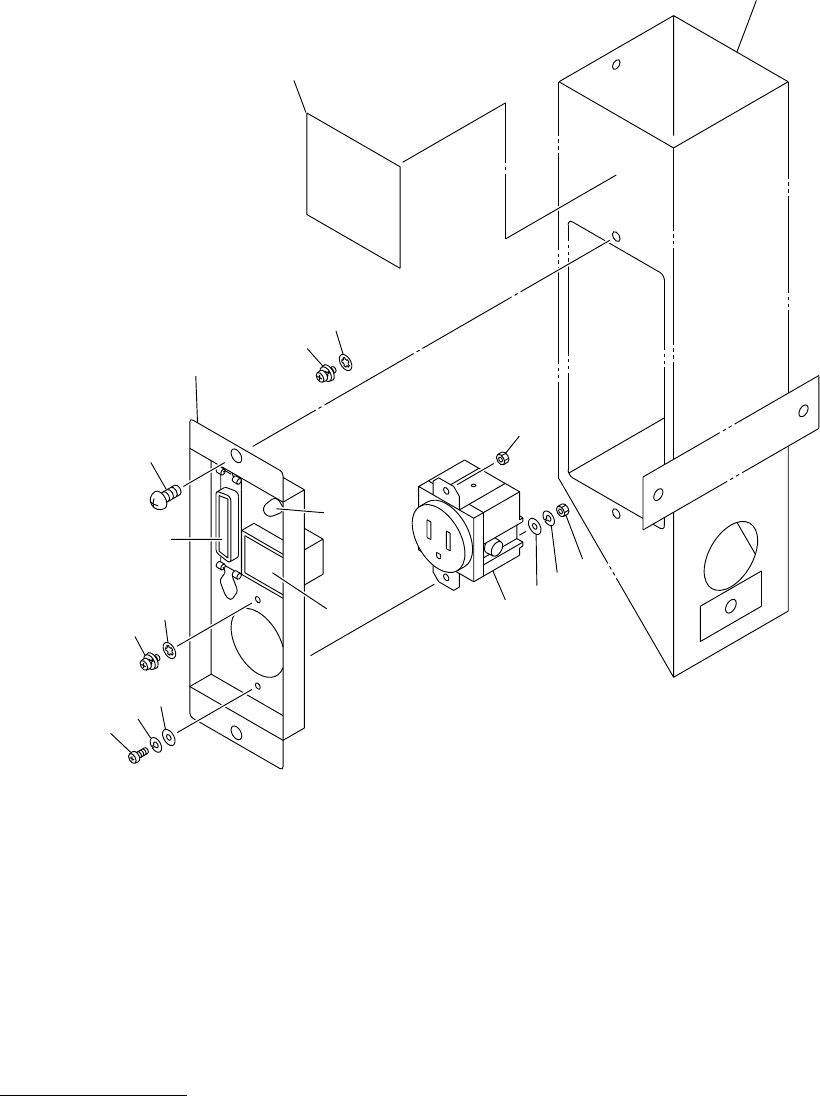

Fig.11-15 ᓟ㕙ࠦࡦ࠰࡞ Rear Console
1
10
9
8
7
3
4
4
5
5
6-1
6-1
6-3
6-3
6-2
6-3
6
20
20
See Fig.13-1
Key No.10
24
23
MODEL TCM-3100J-2
0108-001
225
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-15
1 630 059 7066 BRACKET 1 659FG-03V-004
3 630 000 4243 SOCKET 1 659FG-03D-002
4 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
5 411 086 4408 WASHER SPR 3 2 SW3 F
6 411 042 0703 SCR PAN 3X8 1 M3X8 PAN
6 -1 411 086 9809 WASHER IN TW 3 1
6 -2 411 114 7005 SCR PAN+SW+W 3X8 1
6 -3 411 054 6809 NUT HEX 3 2 M3 F
7 630 058 9191 CORD 1 CN120-CN192 659FB-03D-124
8 630 000 2744 SWITCH,BUTTON 1 PB31 659FG-03D-008
9 407 035 4704 LED SLP-721F 1 LED18 659FG-03D-011
10 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
20 630 059 9251 NAME PLATE,PARTS 1 659FG-03D-013
23 411 087 1109 WASHER IN TW 5 1
24 411 036 8609 SCR PAN+SW+W 5X12 1
