MODEL TCM-3100J-2 0108-001 239 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 630 093 3420 P A NE L 1 659F B- 03V -05 2 2 630 001 0220 W AS HE R 4 BW5 3 411 1 41 67 05 WASHER SPR 5 4 SW5 4 630 000 7756 BO L T ,HEX-SC…
MODEL TCM-3100J-2
0108-001
238
㔚᳇ᓮㇱ ELECTRICAL SECTION

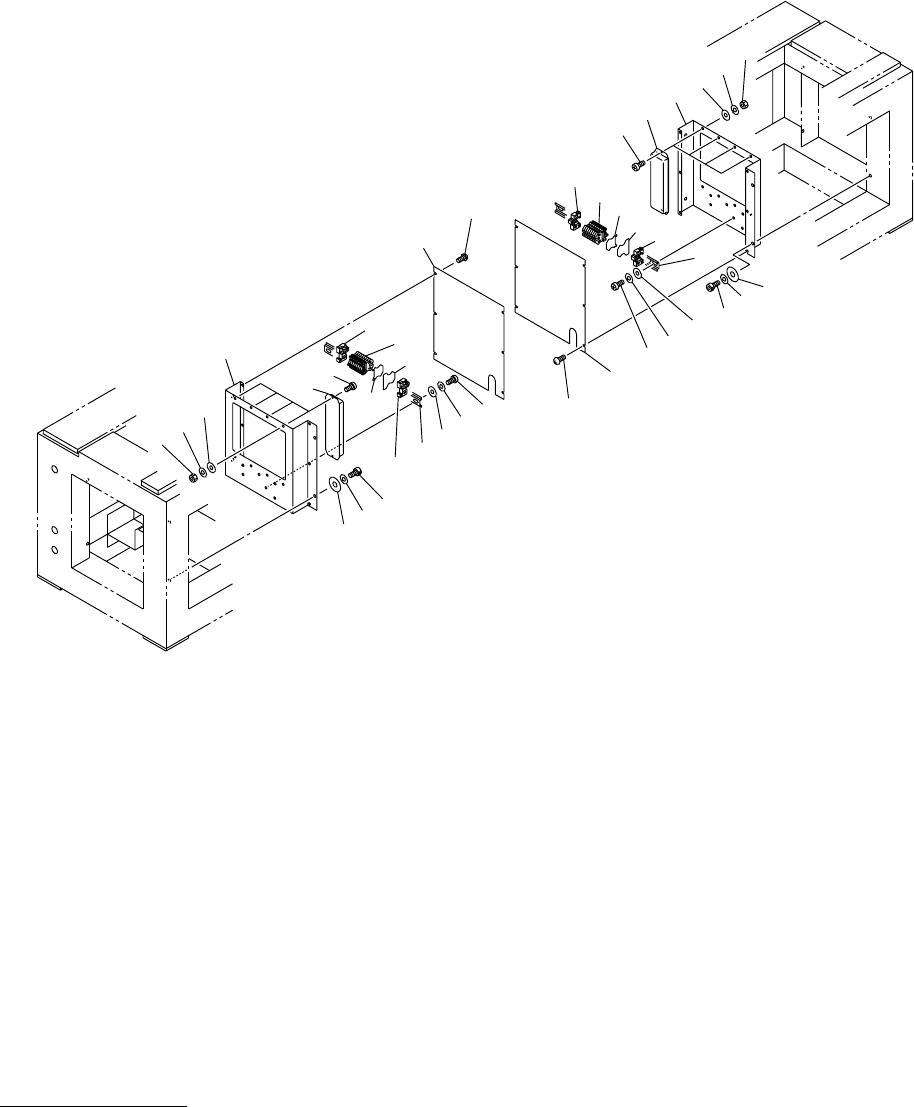

Fig.11-21 ࿁↢ᛶ᛫ Regenerative Resistance
26
38
39
40
29
28
27
27
45
45
41
44
43
42
35
17
16
16
20
18
3
2
4
14
15
15
13
1
12
11
19
19
9
20
20
22
21
24
24
23
.
47
45
49
49
46
48
.
10
10
34
36
37
MODEL TCM-3100J-2
0108-001
239
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
1 630 093 3420 PANEL 1 659FB-03V-052
2 630 001 0220 WASHER 4 BW5
3 411 141 6705 WASHER SPR 5 4 SW5
4 630 000 7756 BOLT,HEX-SCT 4 M5X12
9 630 093 3376 COVER 1 659FB-03V-053
10 411 051 2804 SCR TRS 4X8 6 M4X8 TRS
11 630 094 7250 RESISTOR,SPECIAL 4 RR11, RR12, RR13, RR14
659FB-03D-906
12 411 113 2209 SCR PAN 4X16 8 M4X16 PAN
13 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
14 411 008 1706 WASHER SPR 4 8 SW4 F
15 411 054 8506 NUT HEX 4 8 M4 F
17 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
18 411 008 1706 WASHER SPR 4 2 SW4 F
19 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
20 630 049 3672 BRACKET,WIRING 2 659FB-03D-158
21 630 049 3757 ACCESSORY,WIRING 1 659FB-03D-174
22 630 049 3696 TERMINAL 8 659FB-03D-918
23 630 049 3726 ACCESSORY,WIRING 1 659FB-03D-919
24 630 049 3733 ACCESSORY,WIRING 1 659FB-03D-156
26 630 094 2958 PANEL 1 659FB-03V-055
27 630 001 0220 WASHER 4 BW5
28 411 141 6705 WASHER SPR 5 4 SW5
29 630 000 7756 BOLT,HEX-SCT 4 M5X12
34 630 093 3376 COVER 1 659FB-03V-053
35 411 051 2804 SCR TRS 4X8 6 M4X8 TRS
36 630 094 7250 RESISTOR,SPECIAL 4 RR21, RR22, RR23, RR24
659FB-03D-906
37 411 113 2209 SCR PAN 4X16 8 M4X16 PAN
38 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
39 411 008 1706 WASHER SPR 4 8 SW4 F
40 411 054 8506 NUT HEX 4 8 M4 F
42 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
43 411 008 1706 WASHER SPR 4 2 SW4 F
44 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
45 630 049 3672 BRACKET,WIRING 2 659FB-03D-158
46 630 049 3757 ACCESSORY,WIRING 1 659FB-03D-174
47 630 049 3696 TERMINAL 8 659FB-03D-918
48 630 049 3726 ACCESSORY,WIRING 1 659FB-03D-919
49 630 049 3733 ACCESSORY,WIRING 1 659FB-03D-156
11-21
MODEL TCM-3100J-2
0108-001
240
ࠞࡃㇱ COVER SECTION
Fig.12-1 ᚻߔࠅ Handrail
11
34
30
30
31
32
33
12
12
30
31
30
31
32
33
32
33
41
41
42
30
30
30
31
31
31
31
32
32
32
33
33
33
33
33
32
30
41
42
43
44
44
45
13
14
15
35
43
44
44
45
7
10
9
8
13
14
15
16
18
17
30
30
31
32
33
1
2
3
4
6
10
9
8
6
13
14
14
15
10
9
8
10
9
8
7
13
14
15
13
14
15
