MODEL TCM-3100J-2 0108-001 60 ࡋ࠶࠼㚟േㇱ HEAD DRIVING SECTION Fig. 3-15 ࠞࡓゲ㧙 3 ࠬ࠻࠶ࡄ Cam Shaft-3 Stopper 1 1 1 2 1 5 1 6 1 3 1 4 1 7 2 1 2 0 2 2 1 9 1 8 5 6 7 8 See Fig.1-1 See Fig.1-1 Key No.13 1 5 16 16 11 11 1 2 15 15 15 1…
MODEL TCM-3100J-2
0108-001
59
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
3-14
1 630 060 9394 ASSY,LEVER(CUTTER) 1
2 630 056 1876 LEVER 1 659K--03B-059
3 630 049 0367 CAM FOLLOWER 1 659K--03H-016
4 411 141 4800 WASHER V 12X24X2.5 1 FW12
5 411 141 3308 WASHER SPR 12 1 SW12
7 630 049 0374 CAM FOLLOWER 1 659K--03H-017
8 411 141 4800 WASHER V 12X24X2.5 1 FW12
9 411 141 3308 WASHER SPR 12 1 SW12
11 411 141 6002 WASHER F 6X11.5X1.6 1 FWS6
12 630 003 4301 GREASE NIPPLE 1 659K--03H-036
13 630 049 1395 SHAFT 1 659K--03B-083
14 630 000 8944 SET SCREW 2 M5X6 SET
15 630 049 0176 BUSH,BEARING 2 659K--03H-034
16 630 048 9699 SHAFT 1 659K--03B-065
17 630 049 0152 SPRING,COMP 1 659K--03H-032
18 630 048 9415 COLLAR 1 659K--03B-067
19 630 052 4246 MECH PARTS(PARALLEL PINS) 1 659K--03H-033
20 630 002 5828 SPRING,COMP 1 659K--03H-031
21 630 048 9408 COLLAR 1 659K--03B-066
22 630 005 0868 BEARING,PARTS(LOCK NUT) 1 659K--03H-035
23 630 055 3604 ROD END 1 659EB-03H-012
24 630 048 9439 PLATE 1 659K--03B-069
25 630 048 9422 PIN,HINGE 1 659K--03B-068
26 411 141 4503 WASHER V 8X17X1.6 1 FW8
27 411 141 3100 WASHER SPR 8 1 SW8
28 411 141 0901 NUT HEX 8 1 M8
29 630 056 2132 BOX 1 659K--03B-100
30 630 056 2149 BOX 1 659K--03B-101
31 411 141 4008 WASHER V 4X9X0.8 4 FW4
32 411 141 2905 WASHER SPR 4 4 SW4
33 630 000 7619 BOLT,HEX-SCT 4 M4X8
41 630 060 4917 ASSY,SUPPORT(CUTTER2) 1
41 -1 630 056 2170 SUPPORT 1 659K--03B-058
41 -2 630 049 0084 BEARING,RADIAL 1 659K--03H-013
42 630 060 4900 ASSY,SUPPORT(CUTTER1) 1
42 -1 630 056 2163 SUPPORT 1 659K--03B-057
42 -2 630 049 0084 BEARING,RADIAL 1 659K--03H-013
43 411 141 4503 WASHER V 8X17X1.6 4 FW8
44 411 141 3100 WASHER SPR 8 4 SW8
45 630 000 8036 BOLT,HEX-SCT 4 M8X30
51 630 050 0950 BRACKET 1 659K--03B-070
52 630 000 0252 SENSOR,PHOTO 2 PHS40, PHS41 659K--03H-041
53 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 659K--03H-043
54 411 088 9005 WASHER F 3X6X0.5 4 FWS3 F
55 411 086 4408 WASHER SPR 3 4 SW3 F
56 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
57 411 141 4107 WASHER V 5X10X1 2 FW5
58 411 141 6705 WASHER SPR 5 2 SW5
59 630 000 7763 BOLT,HEX-SCT 2 M5X16
MODEL TCM-3100J-2
0108-001
60

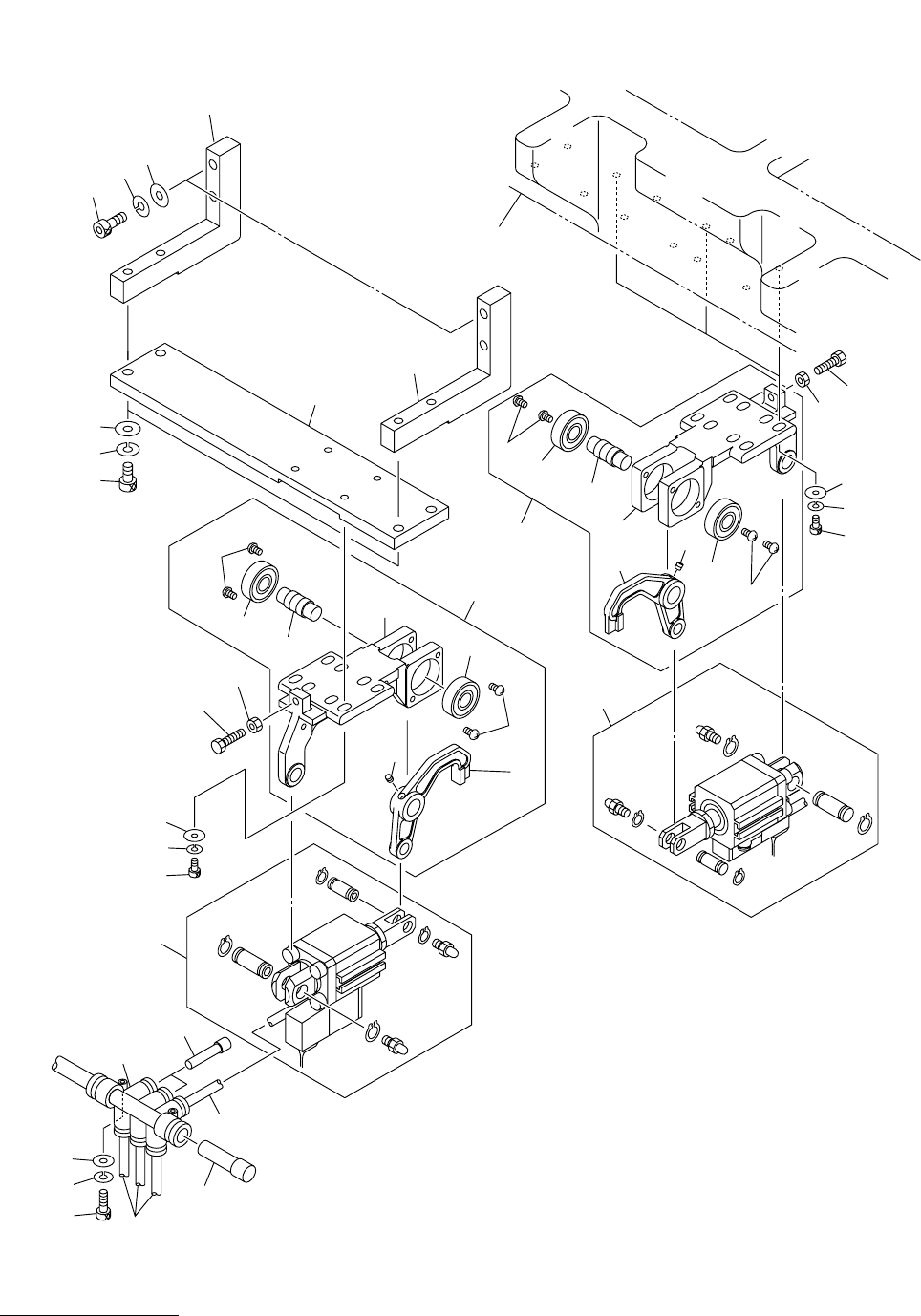

ࡋ࠶࠼㚟േㇱ HEAD DRIVING SECTION
Fig. 3-15 ࠞࡓゲ㧙 3 ࠬ࠻࠶ࡄ Cam Shaft-3 Stopper
11
12
15
16
13
14
17
21
20
22
19
18
5
6
7
8
See Fig.1-1
See Fig.1-1
Key No.13
15
16
16
11
11
12
15
15
15
15
16
16
13
13
14
17
20
21
22
19
18
1
1
2
3
4
54
54
55
55
56
56
57
58
58
53
52
51
10
10
10
10
Fig.3-15
TCM-3100J-2
MODEL TCM-3100J-2
0108-001
61
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
3-15
1 630 048 9736 SUPPORT 2 659K--03B-062
2 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
3 411 141 3001 WASHER SPR 6 4 SW6
4 630 000 7923 BOLT,HEX-SCT 4 M6X35
5 630 052 1559 PLATE 1 659K--03B-063
6 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
7 411 141 3001 WASHER SPR 6 4 SW6
8 630 000 7909 BOLT,HEX-SCT 4 M6X25
10 630 060 4856 ASSY,LEVER(STOPPER TYPE3) 4
11 630 051 6494 BASE 1 659K--03B-093
12 630 055 2881 SHAFT 1 659K--03B-030
13 630 048 7251 LEVER 1 659K--03B-032
14 630 000 8944 SET SCREW 1 M5X6 SET
15 630 001 1272 BEARING,RADIAL 2 659K--03H-012
16 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
17 630 060 4931 ASSY,CYLINDER(STOPPER R) 4 SV22, SV25, SV26, SV27
17 -1 630 055 2874 CYLINDER 1 659K--03H-053
17 -2 630 000 0436 CASE,CONN 1
17 -3 630 000 4281 CABLE JOINT,TERMINAL 2
18 411 118 8503 NUT HEX 5 4 M5 F
19 630 000 8630 BOLT,HEX 4 M5X20 HEX
20 630 029 1391 WASHER 16 659K--03H-048
21 411 141 6705 WASHER SPR 5 16 SW5
22 630 000 7770 BOLT,HEX-SCT 16 M5X20
51 630 051 3813 PIPE FITTINGS 1 659K--03H-054
52 630 003 7814 PIPE FITTINGS 1
53 630 003 7791 PIPE FITTINGS 2
54 411 141 3902 WASHER V 3X7X0.5 2 FW3
55 411 141 2806 WASHER SPR 3 2 SW3
56 630 000 7572 BOLT,HEX-SCT 2 M3X25
