KY8030 Electric Drawings_Ver2.0 - 第26页

FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE A DSG. HO.KIM REV. DWG. D.W.JIN SUBNET CHK. K.H.KIM X APPR. E.H.S MODEL NAME SHEET DWG NO KY-8030 Servo Driver Control Power Cable 3 OF 18 E015-02412 00 ASS ’ Y …

100%1 / 75
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
A
DSG.
HO.KIM
REV.
DWG.
D.W.JIN
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030

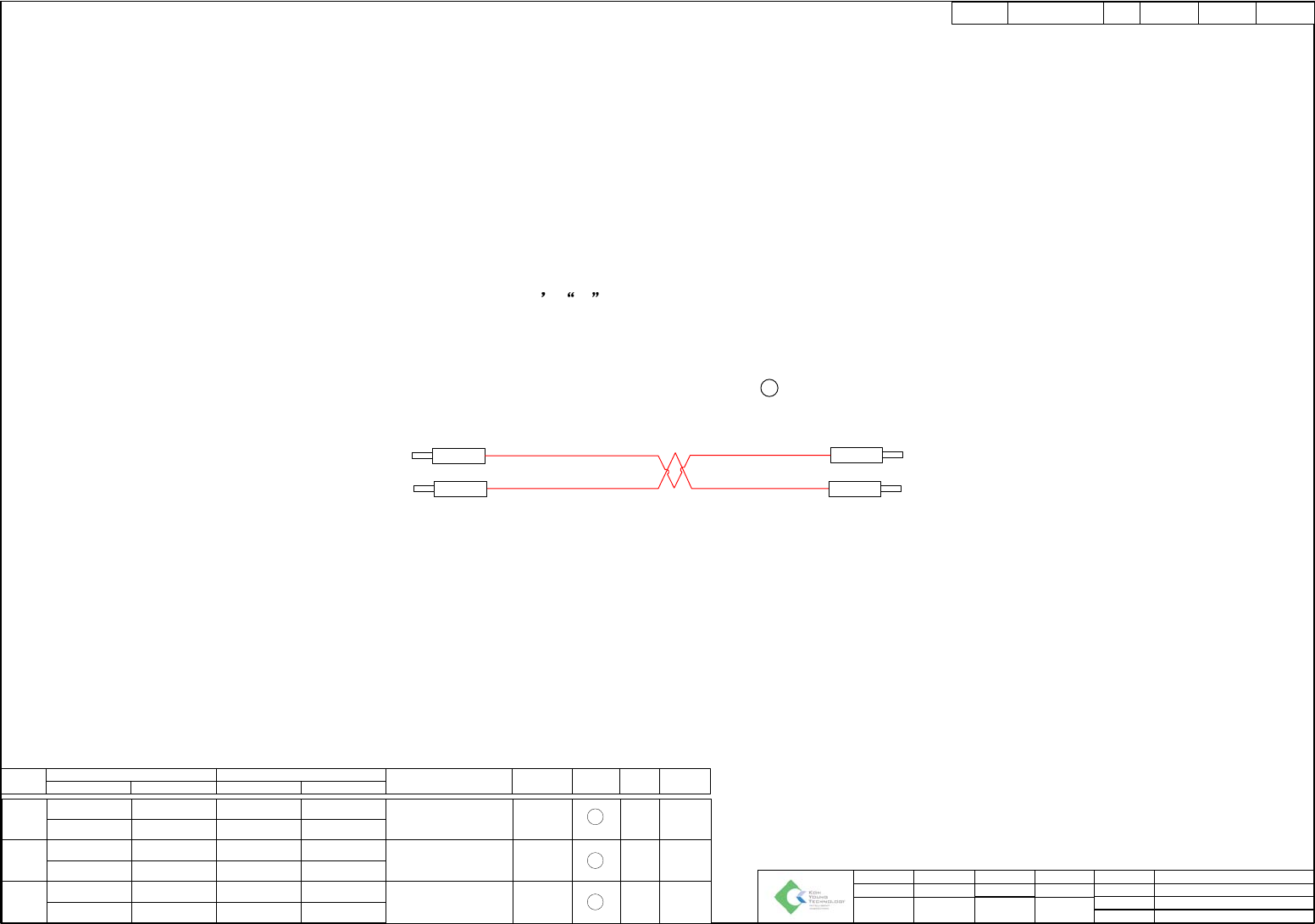

Servo Driver Main Power Cable
2 OF 18
E015-0241100
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
X-CON-L1CT/B01-A06 I-LUG(M4)
I-LUG(M4) AWG#18 800 1 01
X-CON-L2CT/B01-B06 I-LUG(M4)
Y-CON-L1CT/B01-A07 I-LUG(M4)
Y-CON-L2CT/B01-B07 I-LUG(M4)
AWG#18
1
A I-LUG(M4) 700 1 02
1
Z-CON-L1CT/B01-A08 I-LUG(M4)
Z-CON-L2CT/B01-B08 I-LUG(M4)
AWG#18A I-LUG(M4) 900 03
1
1
I-LUG
I-LUG
WHT
BLK
ASS’Y : “A”
ASS Y A HARNESS PIN MAPPING
1
I-LUG
I-LUG
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
A
DSG.
HO.KIM
REV.
DWG.
D.W.JIN
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030

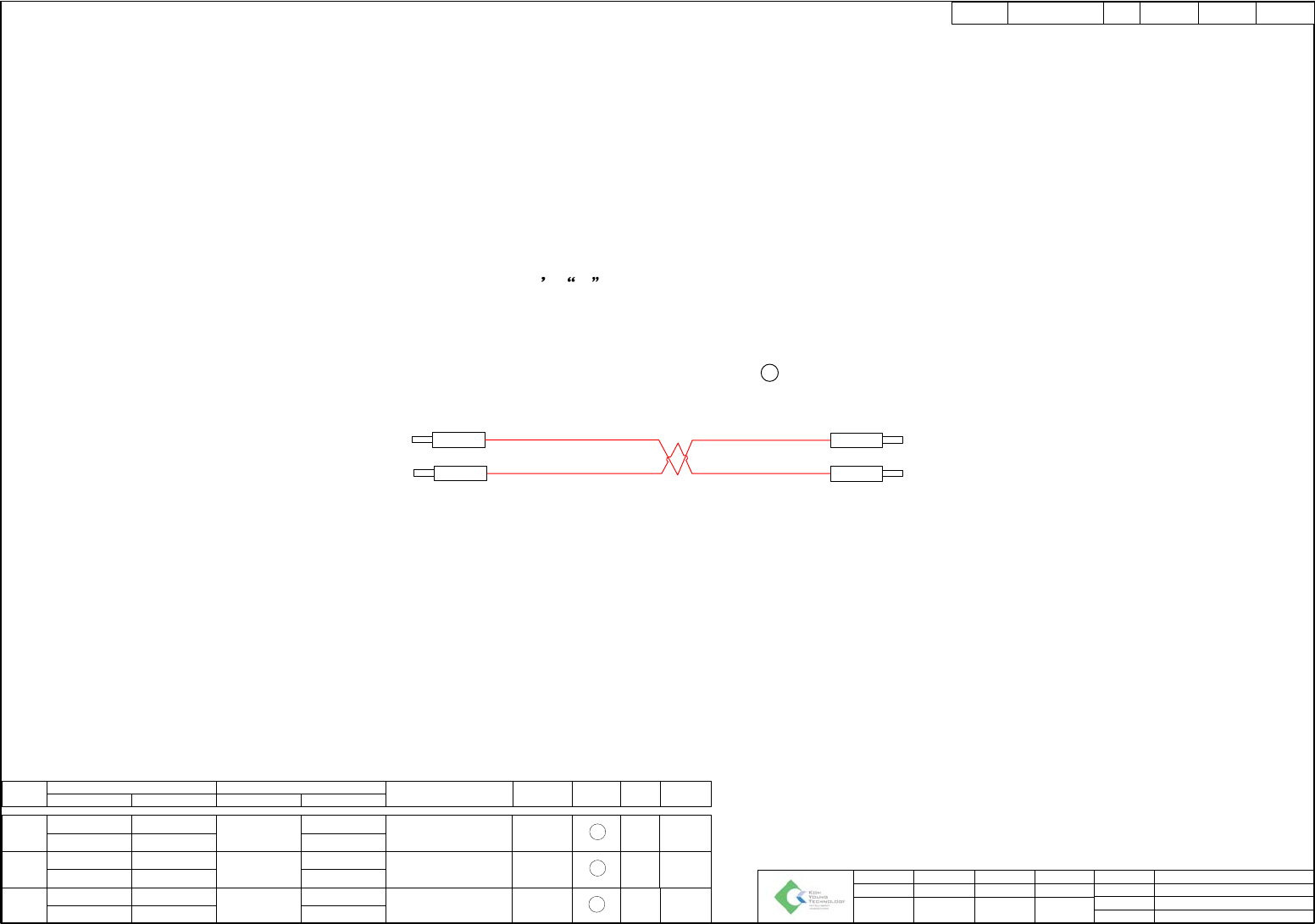

Servo Driver Control Power Cable
3 OF 18
E015-0241200
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
X-AM-L1T/B04-A01 I-LUG(M4)I-LUG(M4)
LG,2464,#18 600 1 01
X-AM-L2T/B04-B01 I-LUG(M4)I-LUG(M4)
1
A
Y-AM-L1T/B04-A02 I-LUG(M4)I-LUG(M4)
LG,2464,#18 500 1 02
Y-AM-L2T/B04-B02 I-LUG(M4)I-LUG(M4)
1
A
Z-AM-L1T/B04-A03 I-LUG(M4)I-LUG(M4)
LG,2464,#18 700 1 03
Z-AM-L2T/B04-B03 I-LUG(M4)I-LUG(M4)
1
WHT
BLK
ASS’Y : “A”
ASS Y A HARNESS PIN MAPPING
1
I-LUG
I-LUG
I-LUG
I-LUG
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
A
DSG.
HO.KIM
REV.
DWG.
D.W.JIN
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030

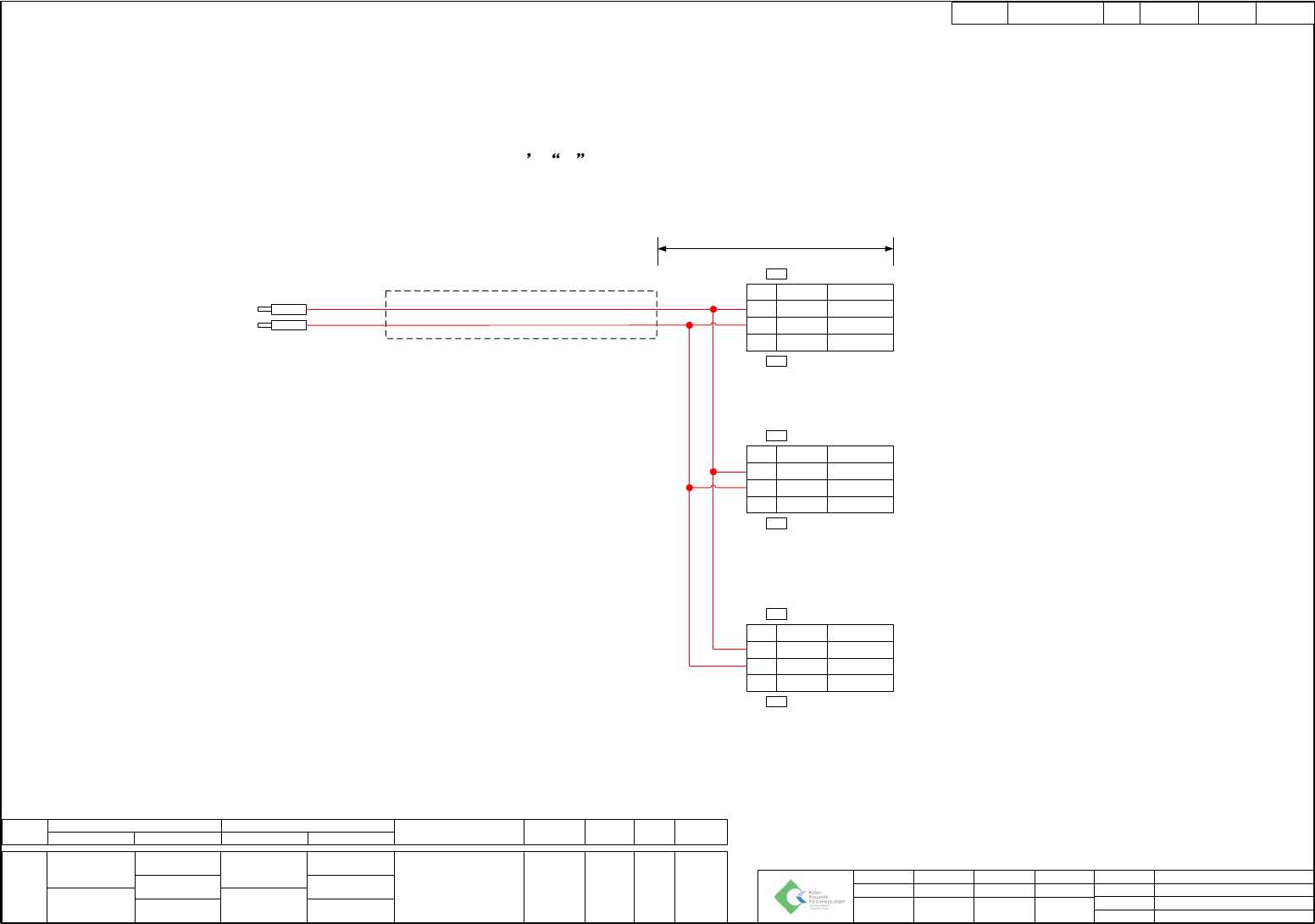

Limit Sensor 24V Power Cable
4 OF 18
E015-0241300
To Limit Sensor Cable
DWG.E015-0247100
AWG22, BLU
RED
BLU
I-LUG
(JST)SMP-03V-NC
Y-LMT +24V
AWG22, 2C
AWG22, RED
(JST)SMP-03V-NC
X-LMT +24V
(JST)SMP-03V-NC
Z-LMT +24V
I-LUG
I-LUG
ASS Y A HARNESS PIN MAPPING
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
X-LMT +24V
T/B03-A03
UL 2426 #22, 2C 700 1 1 01
I-LUG(M4)
(JST)SMP-03V-NC
(JST)SMP-03V-NC
(JST)SMP-03V-NC
I-LUG(M4)T/B03-B03
Y-LMT +24V
Z-LMT +24V
No Color Sig.Name
1 RED +24V
2 BLU G24V
3
No Color Sig.Name
1 RED +24V
2 BLU G24V
3
No Color Sig.Name
1 RED +24V
2 BLU G24V
3
150mm
