FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE ASS ’ Y RIGHT LEFT LABEL RIGHT LEFT CONNECTOR CABLE LENGTH (mm) TYPE Q ’ TY (EA) SERIAL NUMBER A LMT X+ LMT X+ (JST)SMP-03V-N (JST )SMR-03V-N Robot Cable #24*3P …

100%1 / 75
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
MT-LMT-X+X-LMT +24V
(JST)SMP-03V-N(JST)SMR-03V-NC
1500 1 011
MT-LMT-X-LMT JP23
(JST)SMP-03V-N(Molex)5051-04
A
MT-LMT-Y+Y-LMT +24V
(JST)SMP-03V-N(JST)SMR-03V-NC
1300 1 02
MT-LMT-Y-LMT JP24
(JST)SMP-03V-N(Molex)5051-04
1
A
MT-LMT-Z+Z-LMT +24V
(JST)SMP-03V-N(JST)SMR-03V-NC
1500 1 03
MT-LMT-Z-LMT JP24
(JST)SMP-03V-N(Molex)5051-04
1
UL 2464 #24*3P
UL 2464 #24*3P
UL 2464 #24*3P

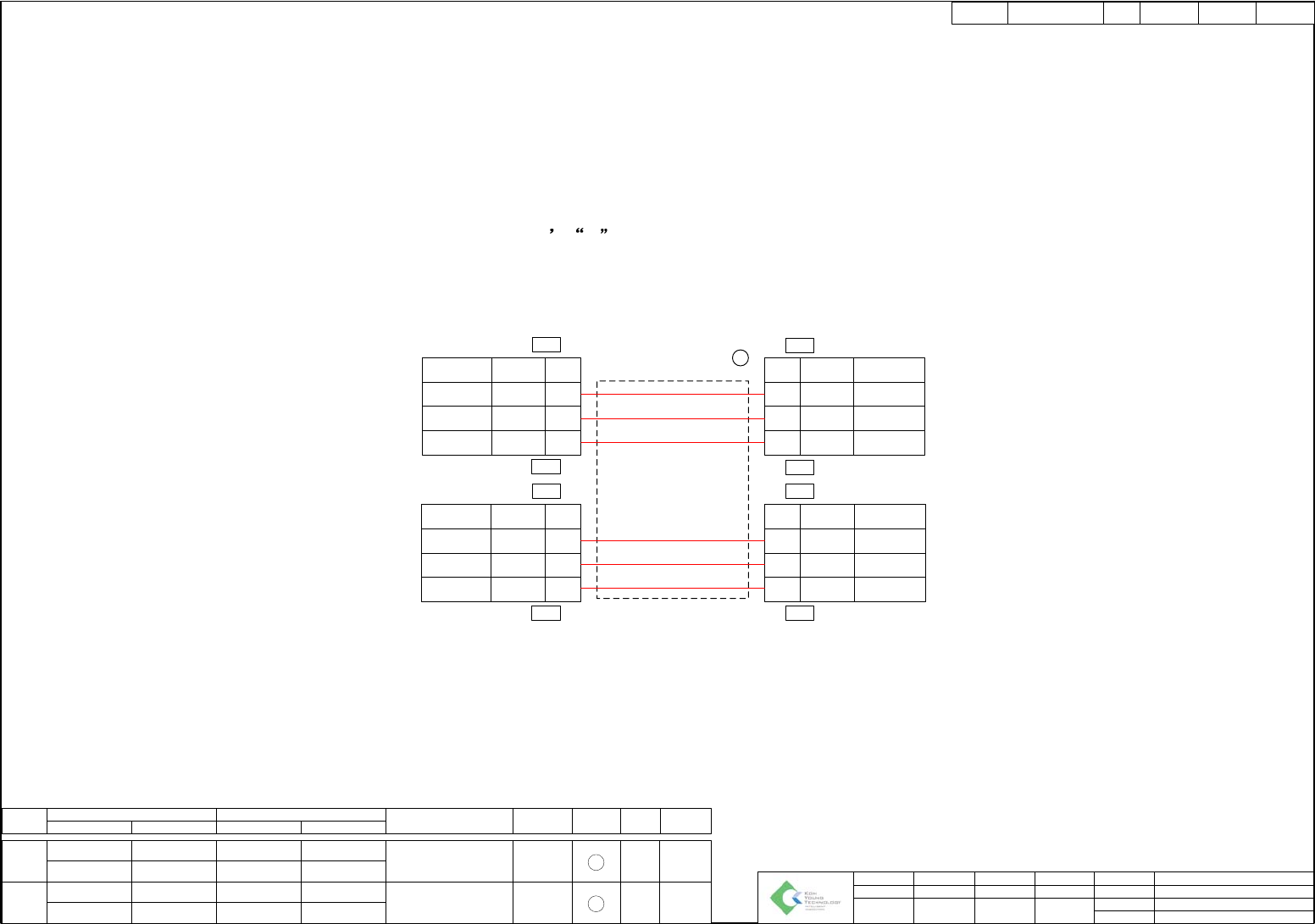

ASS Y A HARNESS PIN MAPPING
Sig.Name Color No
+24V RD 1
G24 BU 2
3
Sig.Name Color No
LP 1
LM 2
DOG 3
COMM 4
Sig.NameColorNo
+24V1
G24V2
SIG. +3
Sig.NameColorNo
+24V1
G24V2
SIG. -3
Extend : 300mm
100mm
1
ASS’Y : “A”
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030
Limit Sensor Cable 1
16 OF 18
E015-0247100
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
LMT X+LMT X+
(JST)SMP-03V-N(JST)SMR-03V-N
Robot Cable #24*3P 700 1 01
1
LMT X-LMT X-
(JST)SMP-03V-N(JST)SMR-03V-N
A
LMT Z+LMT Z+
(JST)SMP-03V-N(JST)SMR-03V-N
Robot Cable #24*3P 1200 1 02
1
LMT Z-LMT Z-
(JST)SMP-03V-N(JST)SMR-03V-N
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030
Limit Sensor Cable 2
17 OF 18
E015-0247200
ASS Y A HARNESS PIN MAPPING
Sig.Name Color No
+24V RD 1
G24 BU 2
Sig+ BLK 3
Sig.Name Color No
+24V RD 1
G24 BU 2
Sig+ BLK 3
1
ASS’Y : “A”
Sig.NameColorNo
+24VRD1
G24BU2
Sig+BLK3
Sig.NameColorNo
+24VRD1
G24BU2
Sig+BLK3
FILE NAME E015-0240000.SCH DATE 2008.06.02 CHANGER Y.M.LEE
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A LMT X-LMT X- SENSORSMR-03V-N 1000 1 01
A LMT X+LMT X+ SENSORSMR-03V-N 500 1 02
A LMT Y-LMT Y- SENSORSMR-03V-N 1300 1 03
A LMT Y+LMT Y+ SENSORSMR-03V-N 700 1 04
A LMT Z+LMT Z+ SENSORSMR-03V-N 600 1 05
A LMT Z-LMT Z- SENSORSMR-03V-N 500 1 06
1
1
1
1
1
1
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY-8030
Limit Sensor Connector
18 OF 18
E015-0247300
ASS Y A HARNESS PIN MAPPING
Sig.Name Color No
+24V RED 1
G24 BLU 2
Sig+ BLK 3
Limit Sensor
ASS’Y : “A”
1
