Performing the Test – Switching on the Live Image
21
– Switching on the Live Image
The feeder to be tested can be set to one or two pickup po-
sitions. For testing purposes, you need the pickup position
in which the teeth of the toothed wheel are exactly in the
center. Use the live image function to check the correct pick-
up position.
► Click on the Live Image Tape Position (F7) button or
press the F7 button.
Performing the Test – Checking the Pickup Position
22
– Checking the Pickup Position
Top
The pickup position has been set correctly. The tooth is in
the center and can be easily recognized for measurement
by the camera.
Bottom
The space between the teeth can be seen. The camera is
not able to recognize the tooth. If the automatic test is start-
ed with this setting, you will see an error message and the
test will be terminated.
► Manually adjust the pickup position on the feeder to be
tested so that the tooth is positioned in the center, as
shown in the top image.
Performing the Test – Switching Tracks
23
– Switching Tracks
Check all the tracks to be tested, to make sure that the tooth
is always in the center of the image.

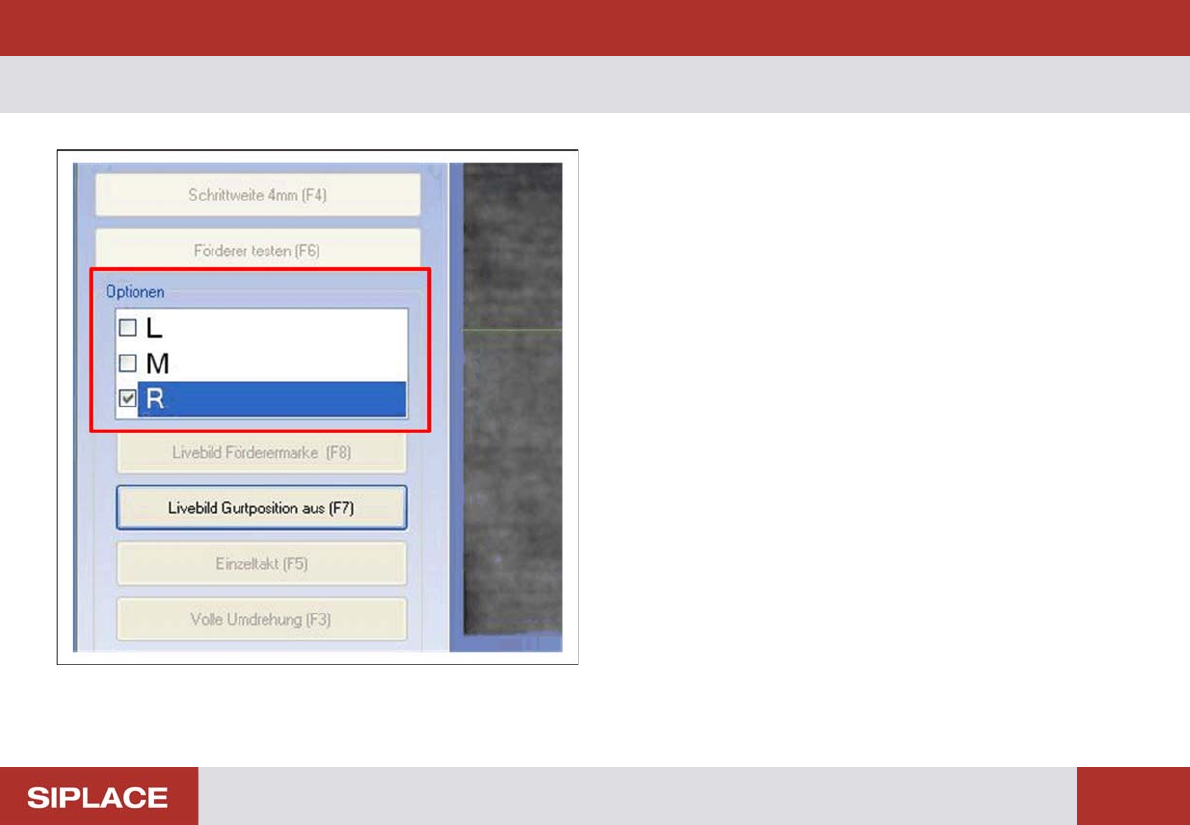

To switch over tracks while the live image is shown, use the
Options list.
L = Left track
M = Middle track
R = Right track
