Performing the Test – Switching off the Live Image
24
– Switching off the Live Image

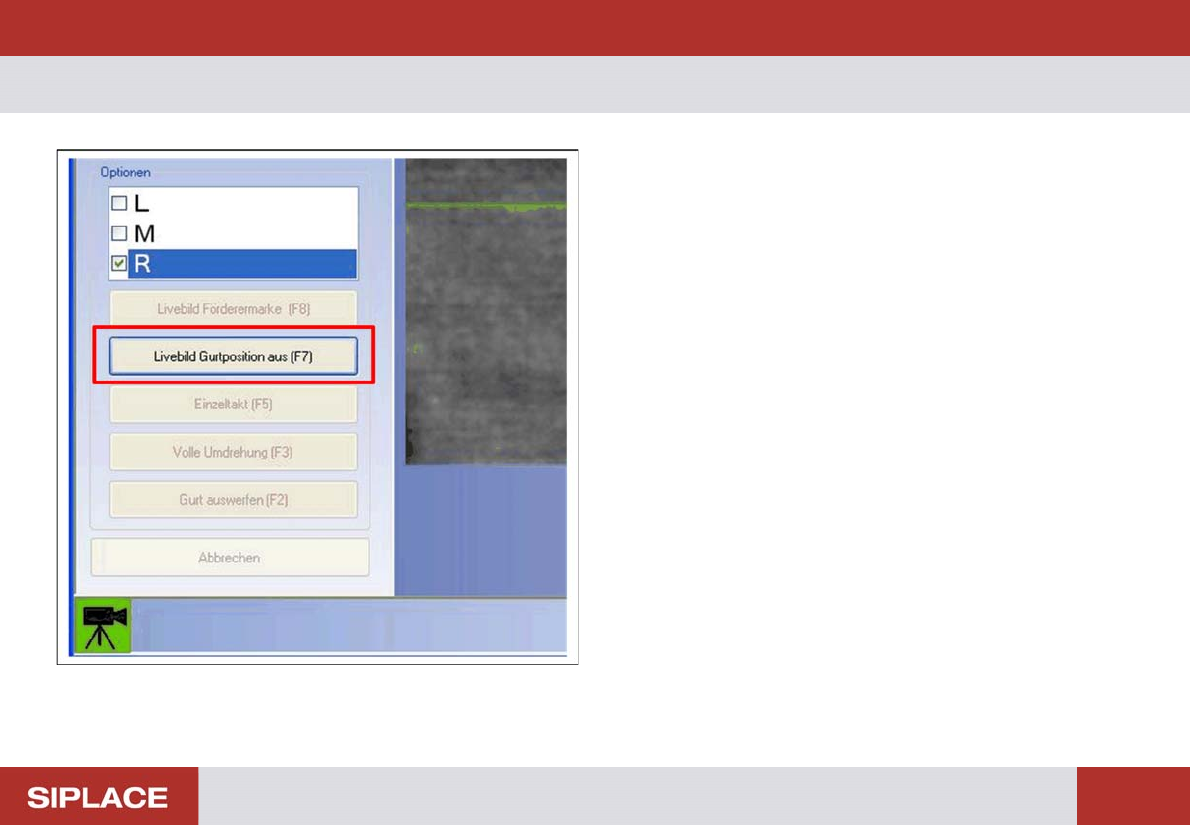

The live image can be switched off with the Live Image Tape
Position Off (F7) button. You will see the normal view again,
in which all buttons are active.
► Click on the Live Image Tape Position Off (F7) button or
press the F7 key.
TIP: To view all measuring points, click again on the select-
ed feeder type in the selection list at the top left.
Performing the Test – Setting the Pitch to 4 mm.
25
– Setting the Pitch to 4 mm.
The feeder to be tested can be set to any required pitch.
However, a pitch of 4 mm is needed for testing purposes.
2x8 mm and 3x8 mm S feeders:

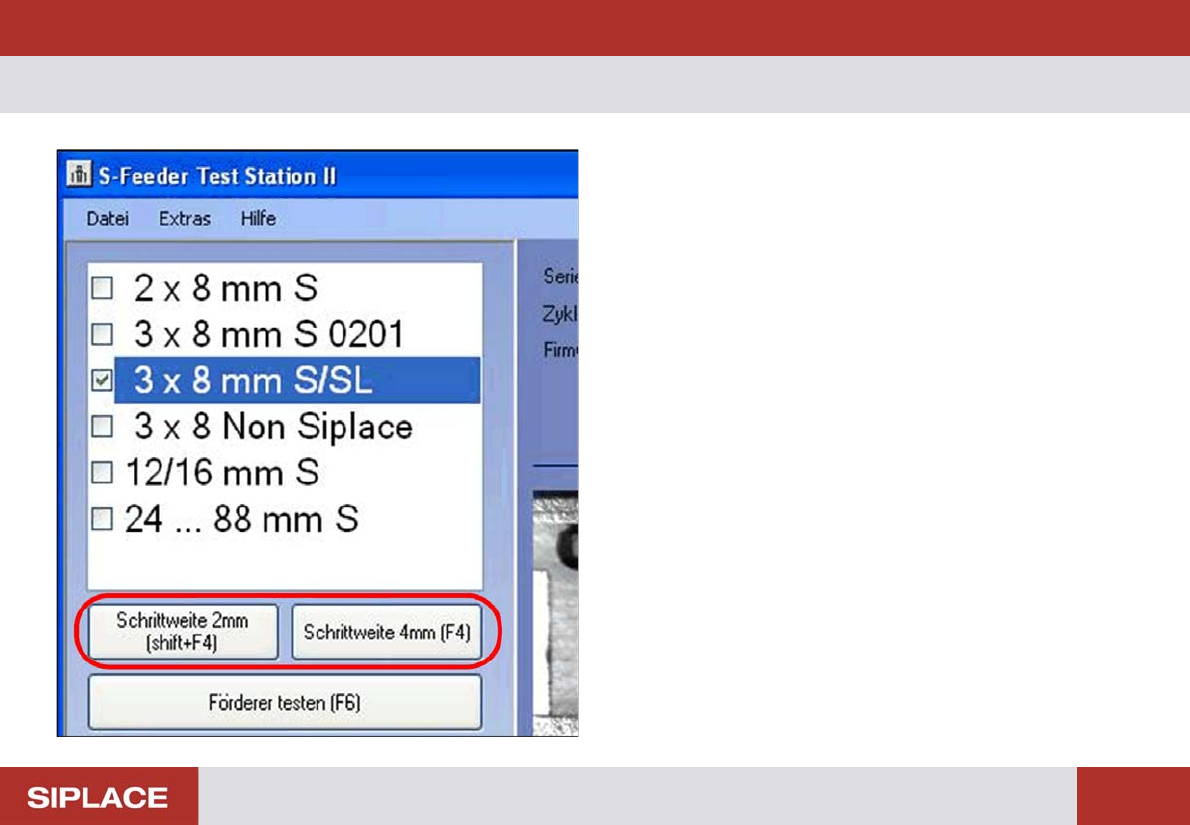

Underneath the feeder type selection list, you will see the
button for setting the pitch to 4 mm (F4). Click on this to set
the feeder to be tested to a pitch of 4 mm.
► Click on the Pitch 4 mm (F4) button or press the F4 key.
12/16 mm to 88 mm S feeders:
The pitch can be switched over manually on the feeder.
Performing the Test – Test Tapes for the Different Feeder Types
26

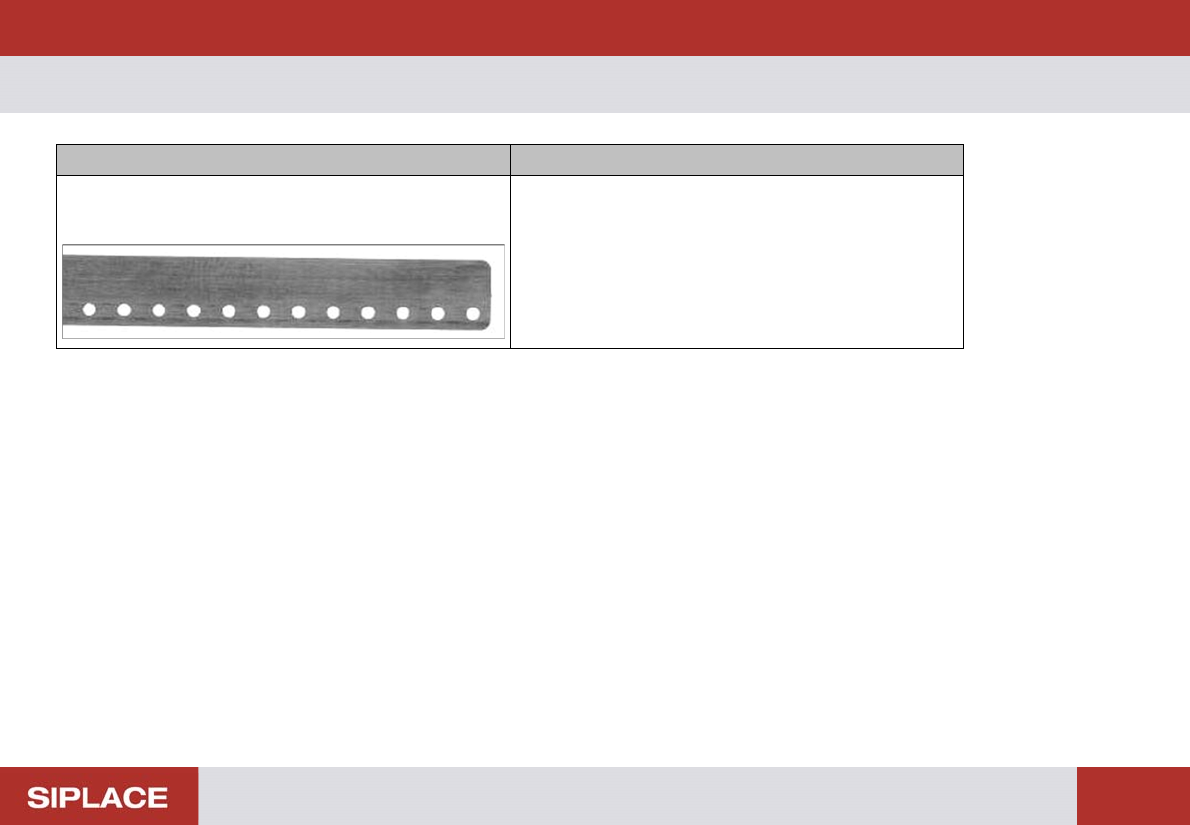

– Test Tapes for the Different Feeder Types
Taste tape (master tape) For feeder type
Master Tape 8mm Feeder [03079307-xx]
without a second row of holes
3 x 8mm SL (shutterless)
3 x 8mm S 0201 / 0402 BE
