Performing the Test – Test Tapes for the Different Feeder Types
26
– Test Tapes for the Different Feeder Types
Taste tape (master tape) For feeder type
Master Tape 8mm Feeder [03079307-xx]
without a second row of holes
3 x 8mm SL (shutterless)
3 x 8mm S 0201 / 0402 BE
Performing the Test – Test Tapes for the Different Feeder Types
27

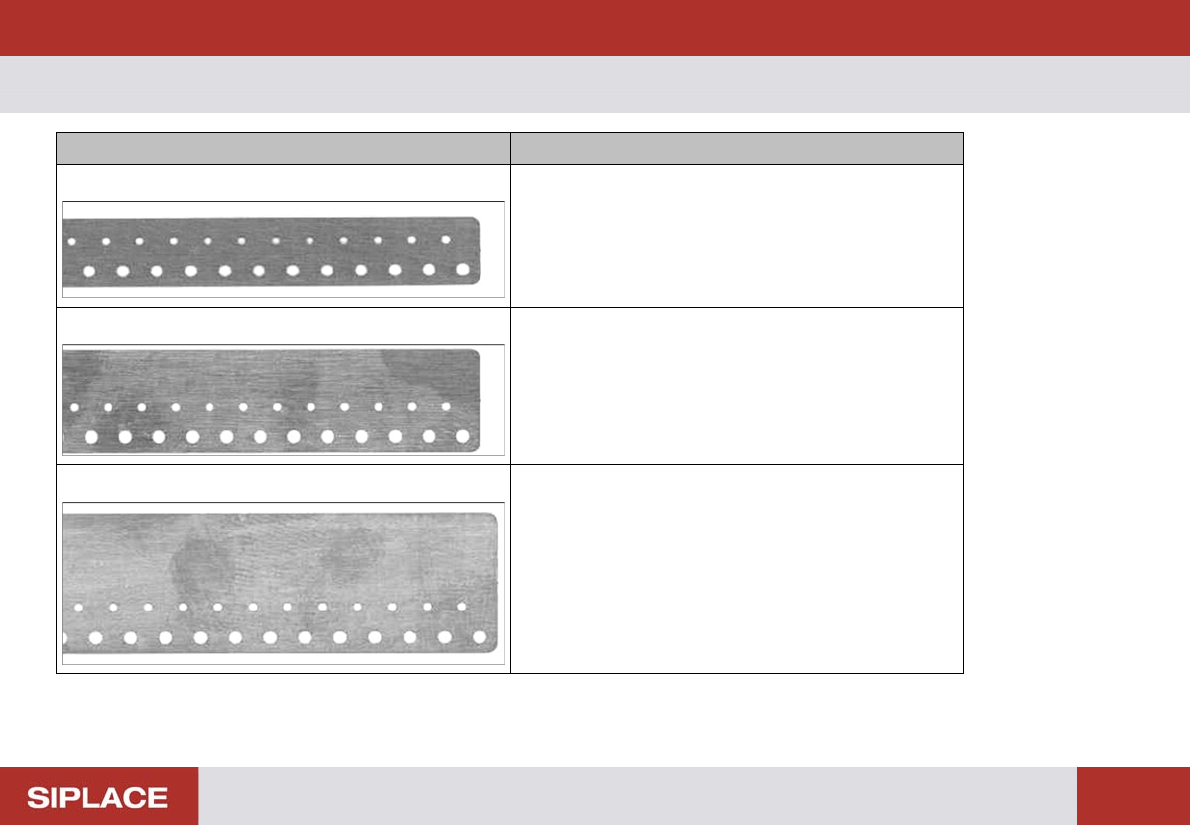

Master Tape 8mm Feeder [03071549-xx] 2 x 8mm S
3 x 8mm S
3 x 8mm (others)
Master Tape 12mm Feeder [03071708-xx] 12/16mm with setting plate
Master Tape 16mm Feeder [03071725-xx] 12/16mm without setting plate
24/32mm
44mm … 88mm
Taste tape (master tape) For feeder type
Performing the Test – Inserting the Test Tape
28
– Inserting the Test Tape
► Insert the correct test tape for the respective track width
into each of the tracks to be tested (see the "Test Tapes
for the Different Feeder Types" table).
► Open the pickup window.

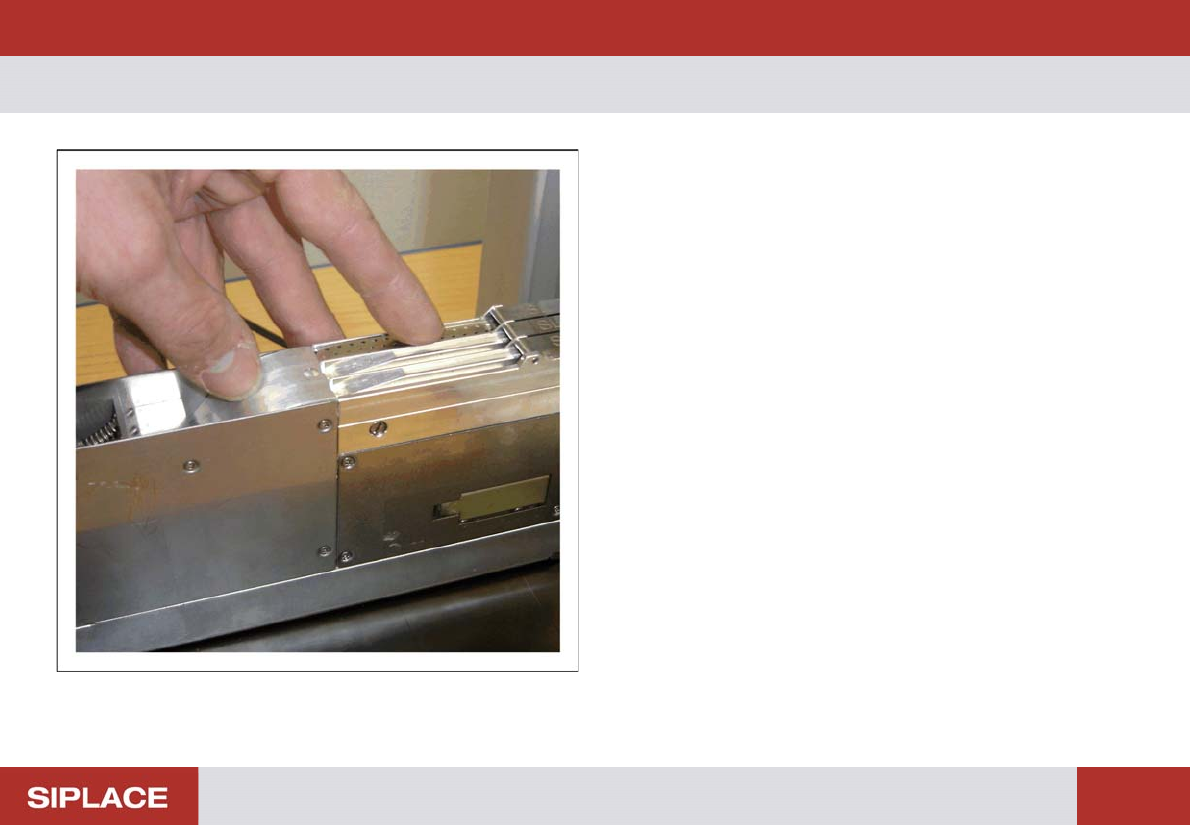

► Insert the test tape into the pickup area and make sure
that the toothed wheel engages correctly with the perfo-
rations in the test tape.
► Close the pickup window.
► Step the test tape once or twice to check.
