Performing the Test – In serting the Test Tape 28 – I n s e r t in g t h e T e s t T a p e ► Insert the correct test tape f or the respective track width into each of the tra cks to be tested (see th e "Test Tapes f…
Performing the Test – Test Tapes for the Different Feeder Types
27
Master Tape 8mm Feeder [03071549-xx] 2 x 8mm S
3 x 8mm S
3 x 8mm (others)
Master Tape 12mm Feeder [03071708-xx] 12/16mm with setting plate
Master Tape 16mm Feeder [03071725-xx] 12/16mm without setting plate
24/32mm
44mm … 88mm
Taste tape (master tape) For feeder type
Performing the Test – Inserting the Test Tape
28
– Inserting the Test Tape
► Insert the correct test tape for the respective track width
into each of the tracks to be tested (see the "Test Tapes
for the Different Feeder Types" table).
► Open the pickup window.
► Insert the test tape into the pickup area and make sure
that the toothed wheel engages correctly with the perfo-
rations in the test tape.
► Close the pickup window.
► Step the test tape once or twice to check.
Performing the Test – Testing the Feeder
29
– Testing the Feeder

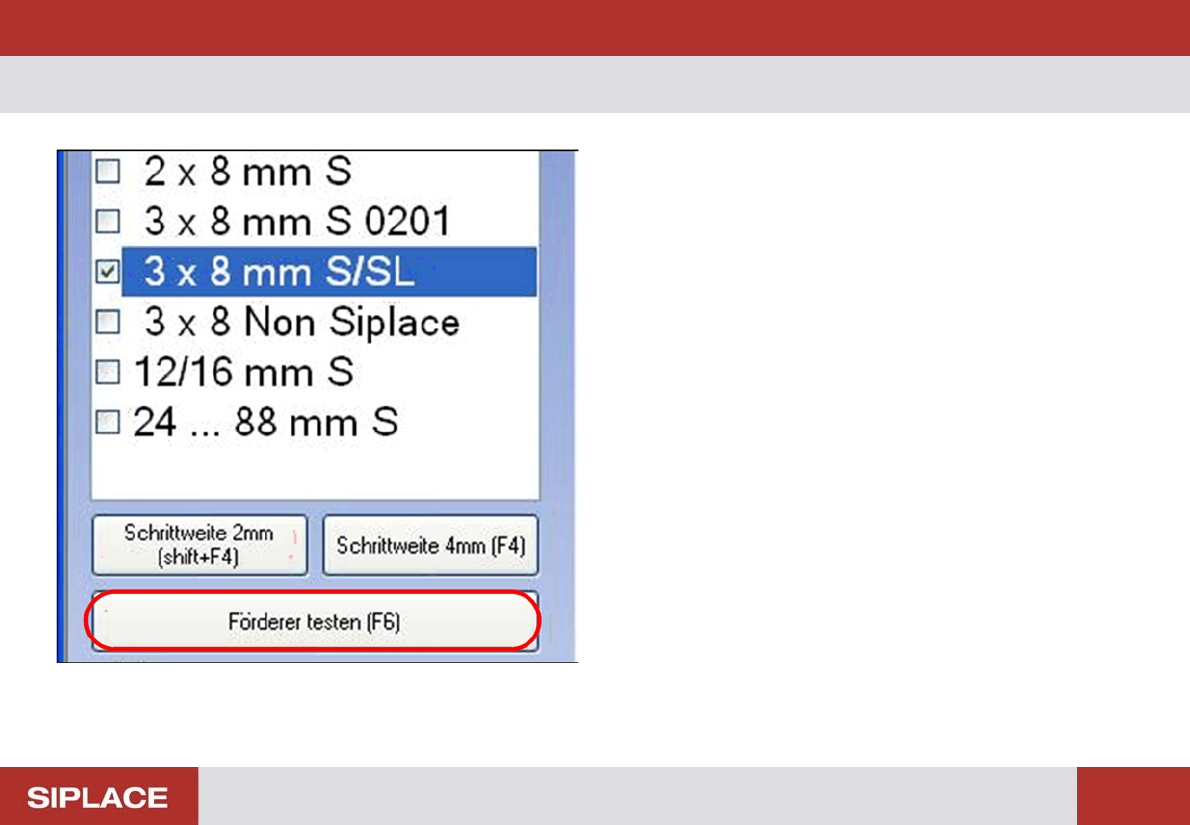

In the selection area on the right you will see the Test Feed-
er (F6) button. This button starts the standard feeder test.
The toothed wheels for all the tracks on the feeder will all be
tested in sequence. The result of the test will then be shown
in a separate dialog box.
► Click on the Test Feeder (F6) button or press the F6
key.
