Performing the Test – Selecting the Track
30
– Selecting the Track

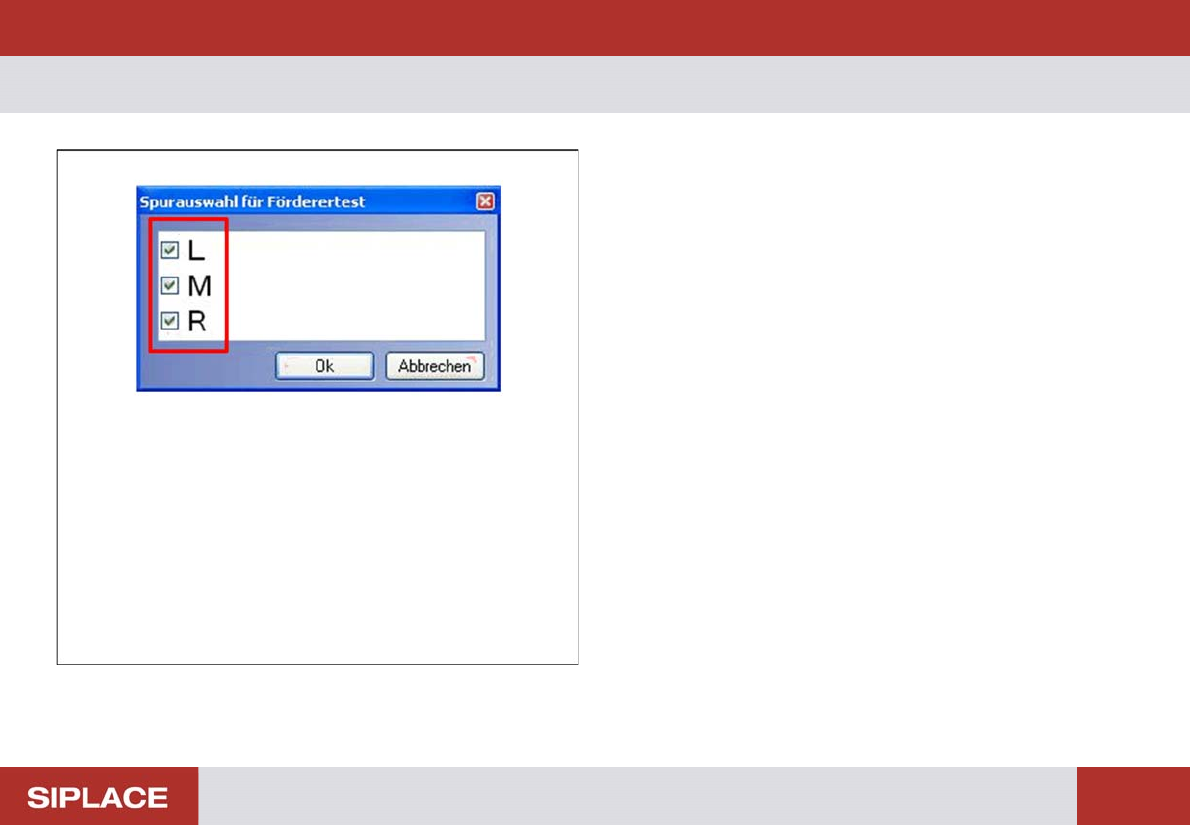

Before the test run, you will see the Track Selection for
Feeder Test selection menu.
This is where you can deselect tracks which are not to be
tested.
► Click with the mouse on the box to select or deselect the
tracks for the test.
Performing the Test – Results Display
31
– Results Display

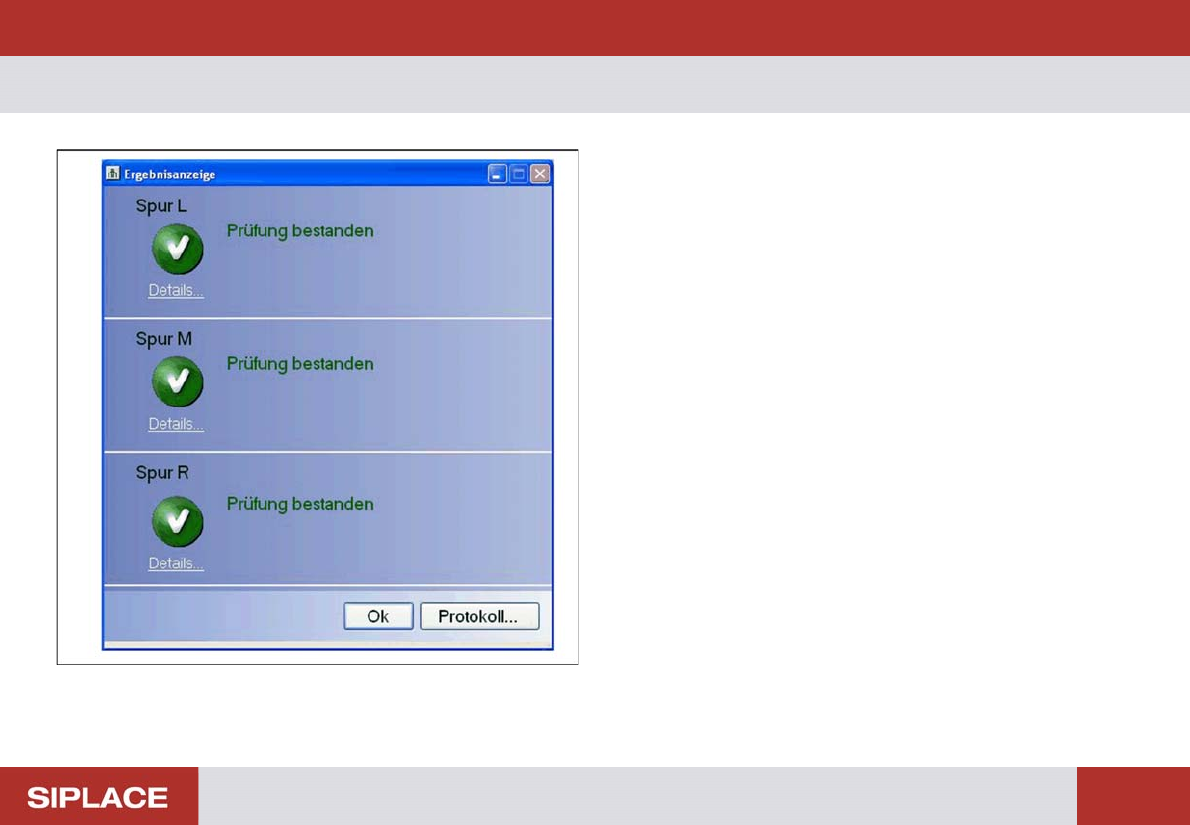

The results of the Test Feeder function will be shown in the
Result Display.
Each tested track will be shown separately.
Click on OK to close the dialog box and to automatically
eject the tape.
Click on Details to view the detailed test results for an indi-
vidual track.
Click on the Protocol… button to view the whole test result
as a PDF file which can then be saved and/or printed out.
To make sure that you are able to clearly identify or assign
the PDF file later on, enter the serial number of the tested
feeder in a dialog box before saving or printing.
Performing the Test – Results Display: Details
32
– Results Display: Details

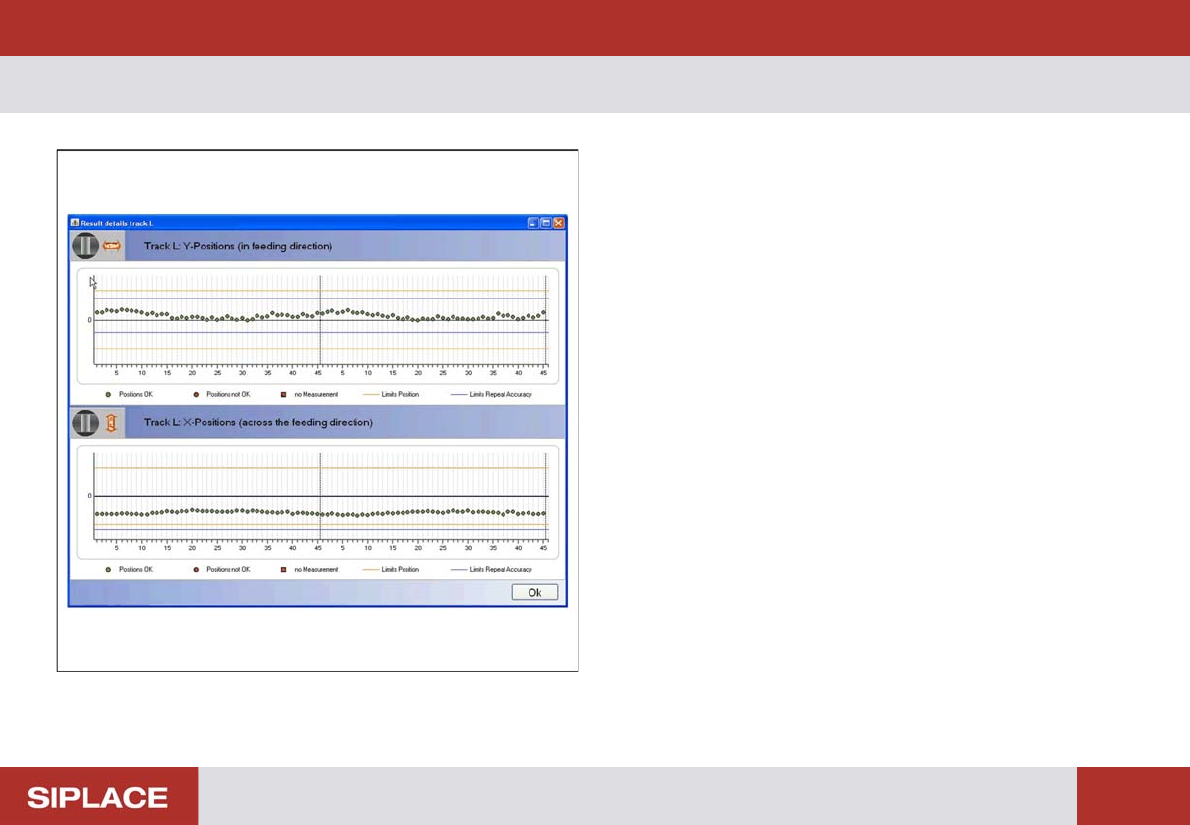

The Result Display Details Track L / M / R shows the meas-
uring result for each individual track in the X and Y directions
as a graphic. The upper part of the displayed graphic shows
the position of the individual teeth in the direction of feeding
while the lower part shows the individual teeth across the di-
rection of feeding.
