Performing the Test – Results Display: Details
33

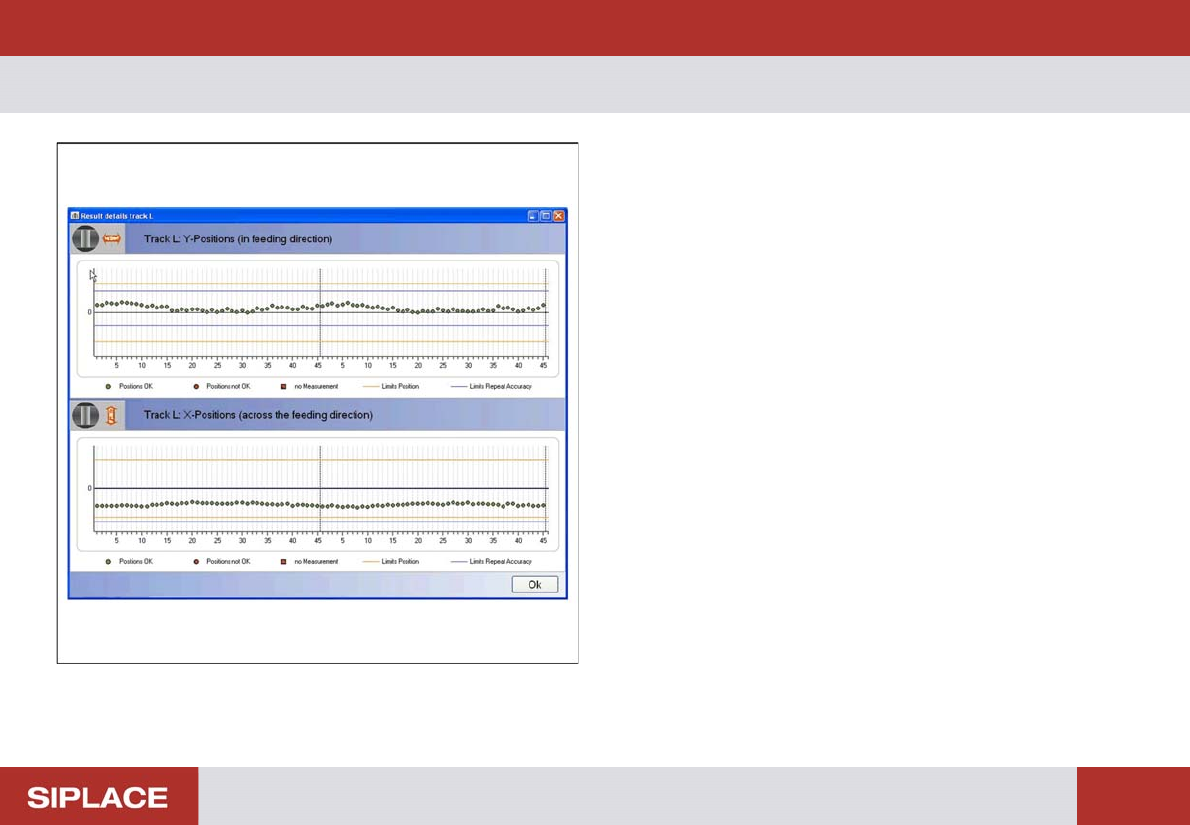

There are two tolerance areas:
1. The two orange lines mark the limits of the tolerance area.
These lines have a fixed position. The lines correspond to
the orange rectangle in the camera image.
2. The two blue lines mark the limits of the worm gear play.
These lines can be shifted according to the average value
of the measurements.
The green dots show the measuring results which are inside
the two tolerance areas.
The red dots show measuring values which are outside at
least one of the tolerance areas.
Red squares show positions at which measurement failed.
Click on OK to close the dialog box and view the results dis-
play again.
Performing the Test – Results Display: Name Protocol
34
– Results Display: Name Protocol

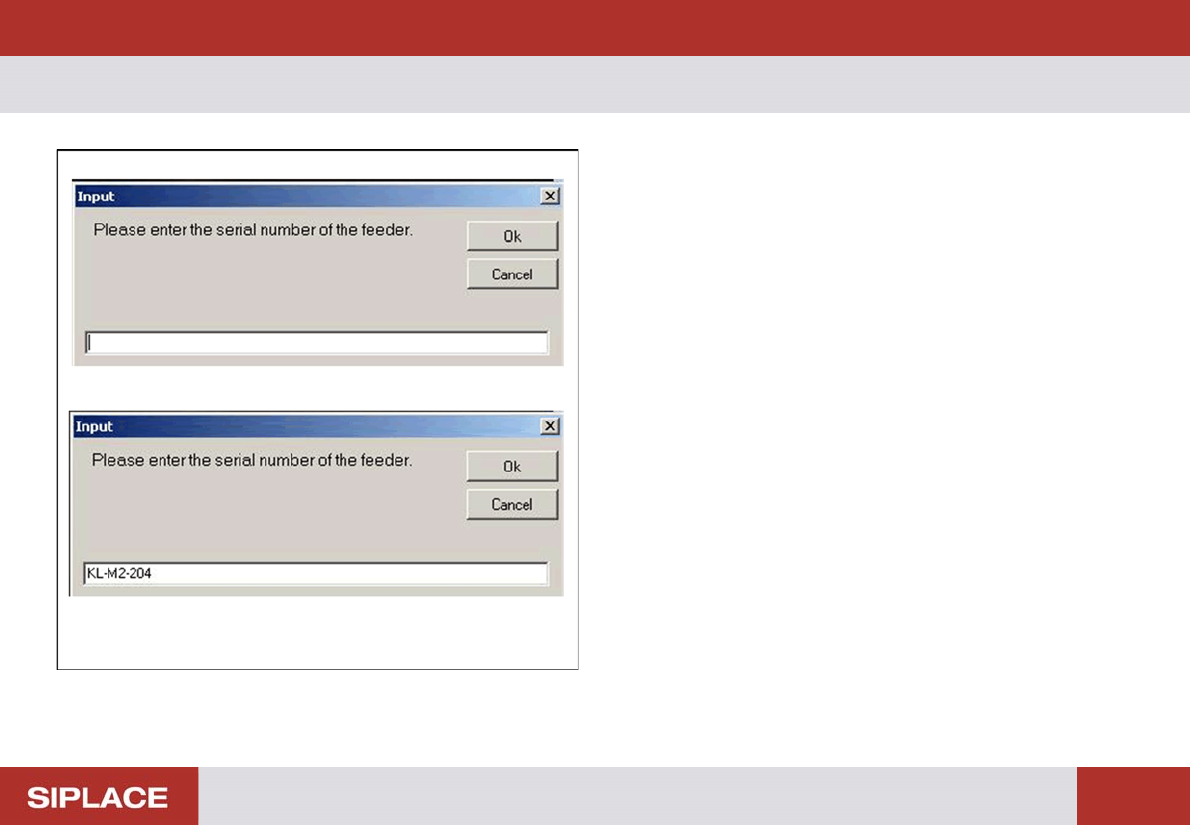

If you click on the Protocol… button in the results display,
the adjacent dialog box will be shown. To make sure that
you are able to clearly identify or assign the log file later on,
enter the serial number of the tested feeder in the dialog
box.
If installed, a BC scanner can be used as input device.
Place the cursor in the input window for that.
Scan the feeder barcode.
The name entered will be shown in the header of the log file.
Click on OK to close the dialog box and view the log file.
Performing the Test – Results Display: Name Protocol
35

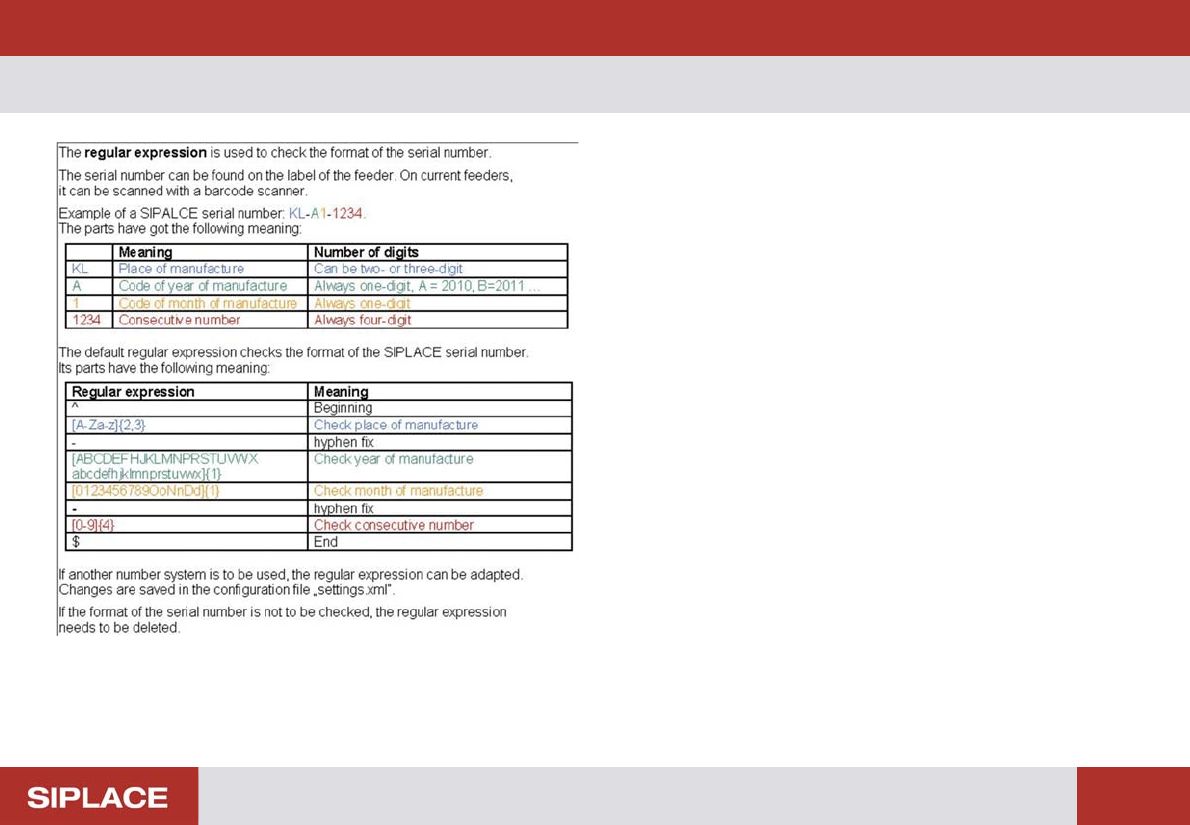

If a different number system should be used for the feeder
management the standard print–out can be modified re-
spectively.
Changes are saved to the configuration file "settings.xml".
Delete all entries in the "standard print-out for format check
of the serial number" input mask if the formatting of the se-
rial number should not to be verified and confirm this by click
on OK.
