Function Test – Introduction 51 F u n c t io n T e s t – I n t r o d u c t io n Via menu "Extras" and "funct ion test" more feeder checks are available . As for the other function you need to select t…
Performing the Test – Test with feeder feducial (for 2x8mm S Feeder only)
50
Function Test – Introduction
51
Function Test– Introduction
Via menu "Extras" and "function test" more feeder checks
are available.
As for the other function you need to select the right feeder
type in the basic menu.

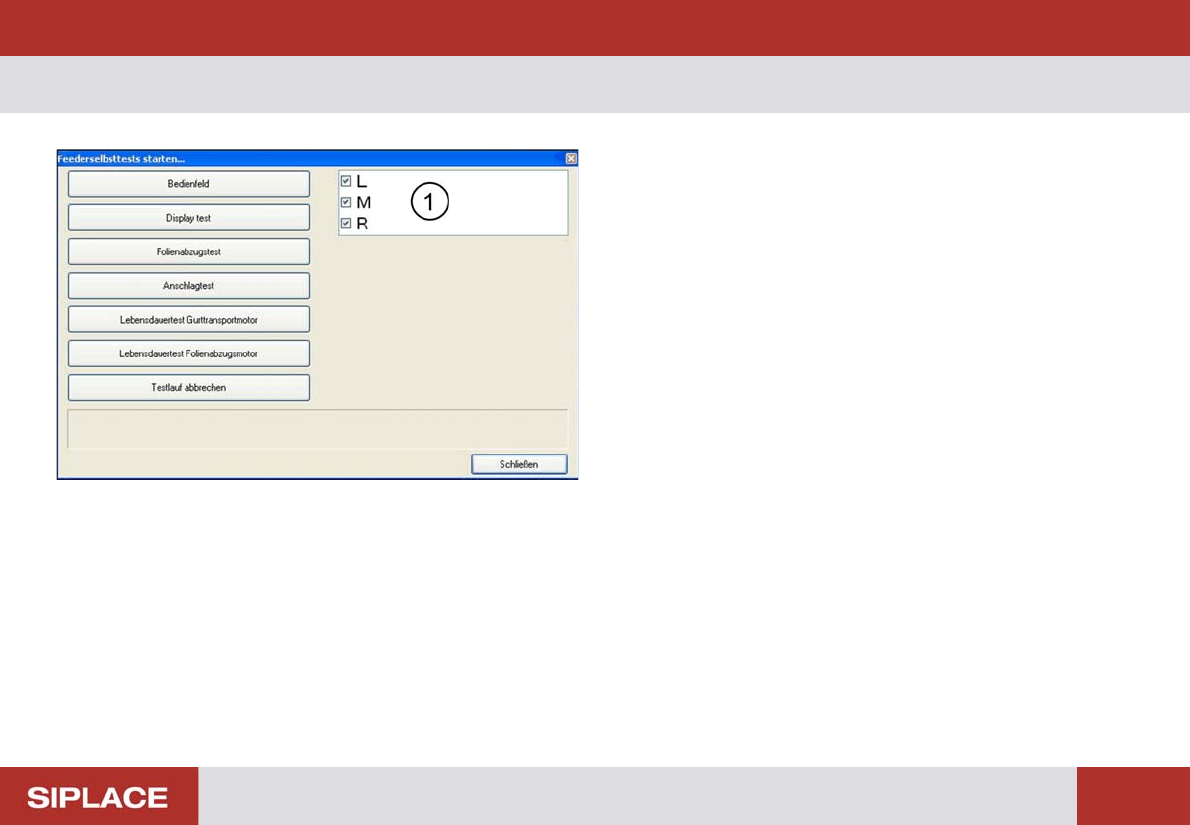

You can select the tracks (1) to be check for the foil retrac-
tion and stop position measurement.
Each test can be canceled using the "Cancel test" button.
Function Test – Control Panel
52
– Control Panel
Verifying the operational function.

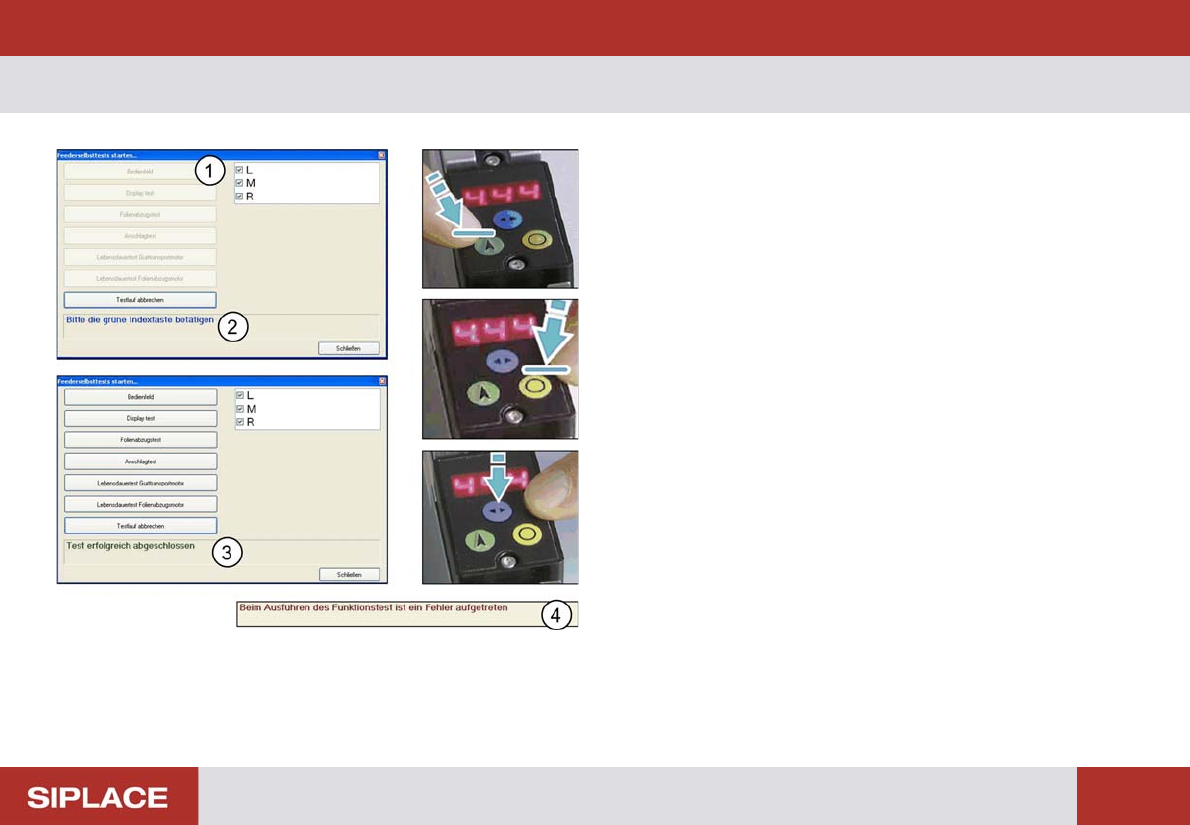

Start the test via the control panel button (1).
Via the software (2) you are asked consecutively to operate
the available functions at the feeder.
The test result (3) is provided after all functions have been
operated.
An error message (4) appears if the software is not recog-
nizing an operation within ~20s.
