Function Test – Control Panel
52
– Control Panel
Verifying the operational function.
Start the test via the control panel button (1).
Via the software (2) you are asked consecutively to operate
the available functions at the feeder.
The test result (3) is provided after all functions have been
operated.
An error message (4) appears if the software is not recog-
nizing an operation within ~20s.
Function Test – Display Test
53

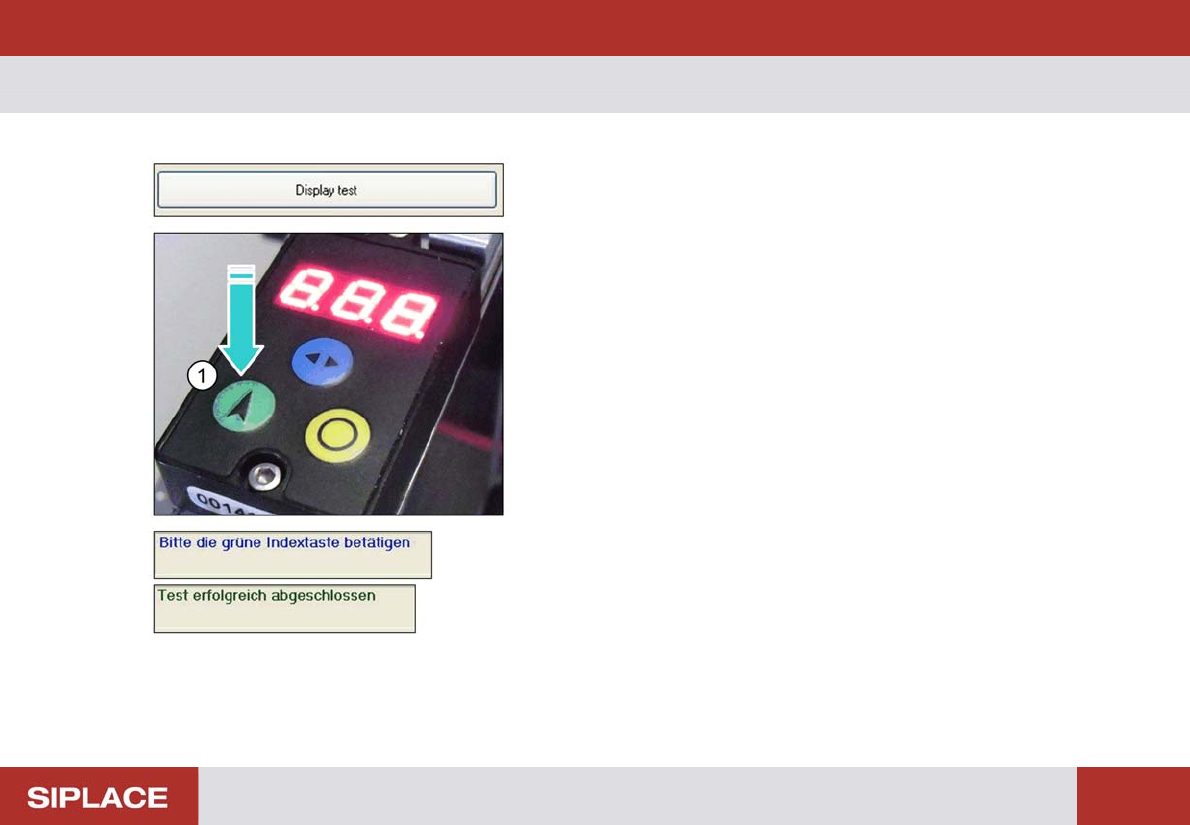

– Display Test
Verifying the display elements
Activate the button "Display test"
The display flashes with all display elements.
To terminate this function click on the green button (1) at the
feeder.
Function Test – Foil Retrival
54

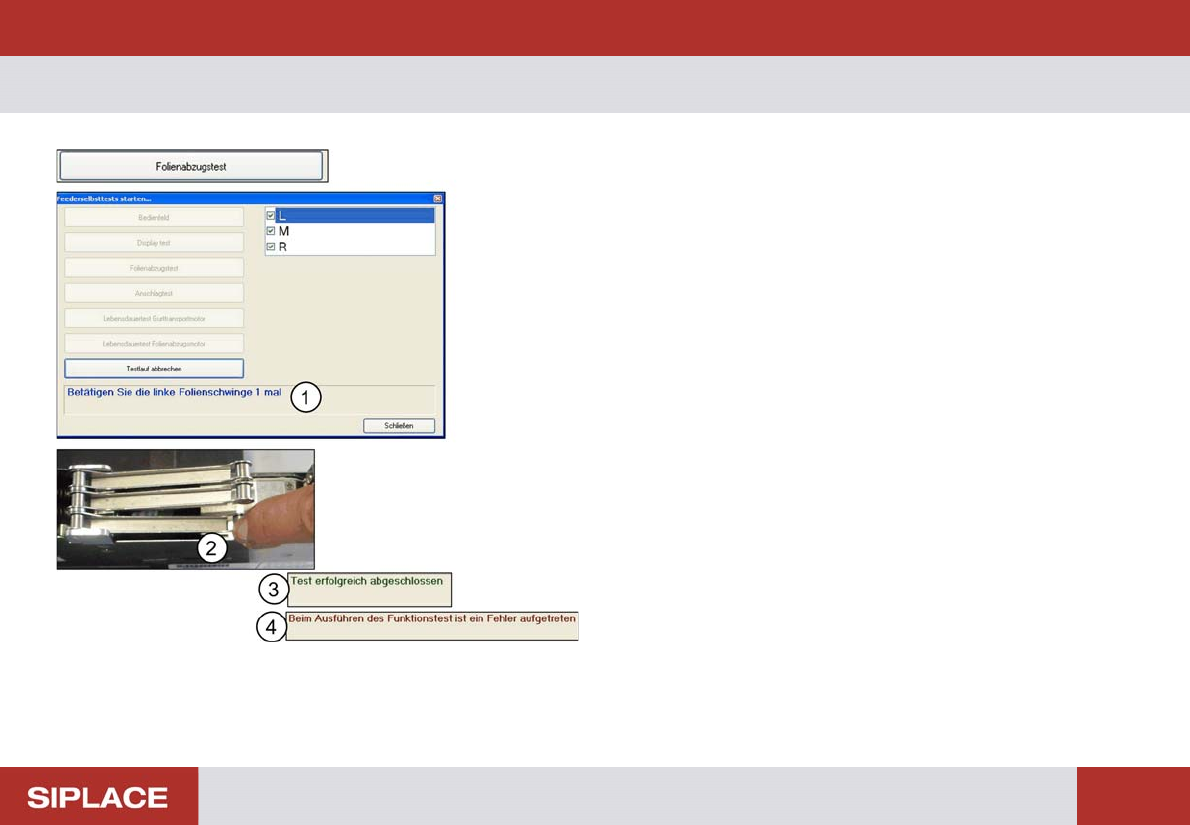

– Foil Retrival
Verifying the foil retrival drive and the light barrier in the foil
rocker
Activate the buttonm "foil retrival test"
Via the software (1) you are asked consecutively to operate
the foil rocker (2) of the selected track.
The test result (3) is provided after all foil rockers have been
operated as requested by the software.
An error message (4) appears if the software is not recog-
nizing an operation within ~20s.
