13 Placement Head Nozzle Changer Technica l data Dimensions (length x wid th x height) 472.5 x 63 x 77 mm³ Number of m agazines min. 1 / max . 5, each with 12 nozzle holders Nozzle types 9xx Compressed air connection 0.4…

Placement Head

Technical Data

12-nozzle

Collect&Place head

CO camera type 28

12-nozzle

Collect&Place head

CO camera type 30

Component range

a) Please note that the range of components that can be placed is also affected by the pad geometry,

customer-specific standards, component packaging tolerances and component tolerances

0402 to PLCC44, BGA, µBGA, flip-

chip, TSOP, QFP, SO to SO32,

DRAM

01005

to flip-chip, bare die,

PLCC44, BGA, µBGA, TSOP, QFP,

SO to SO32, DRAM

b) With 01005 package

Component specification

max. height

min. lead pitch

min. lead width

min. ball pitch

min. ball diameter

min. dimensions

max. dimensions

max. weight

6 mm

0.5 mm

0.2 mm

0.35 mm

0.2 mm

1.0 x 0.5 mm²

18.7 x 18.7 mm²

2 g

6 mm

0.3 mm

0.15 mm

0.25 mm

0.14 mm

0.4 x 0.2 mm²

18.7 x 18.7 mm²

2 g

Programmable set-down

force

2.4 N - 5.0 N 2.4 N - 5.0 N

Nozzle types 9xx 9xx

X/Y accuracy

c) The accuracy value was measured using the vendor-neutral IPC standard

± 50 µm/3σ

± 67 µm/4σ

± 50 µm/3σ

± 67 µm/4σ

Angular accuracy ± 0.53°/3σ

± 0.71°/4σ

± 0.53°/3σ

± 0.71°/4σ

Component range 98% 98.5%

Component camera type 28 30

Illumination levels 5 5

Possible illumination level

settings

256

Placement Head

Nozzle Changer

Technical data

Dimensions

(length x width x height) 472.5 x 63 x 77 mm³

Number of magazines min. 1 / max. 5,

each with 12 nozzle

holders

Nozzle types 9xx

Compressed air connection 0.48 MPa (4.8 bar)

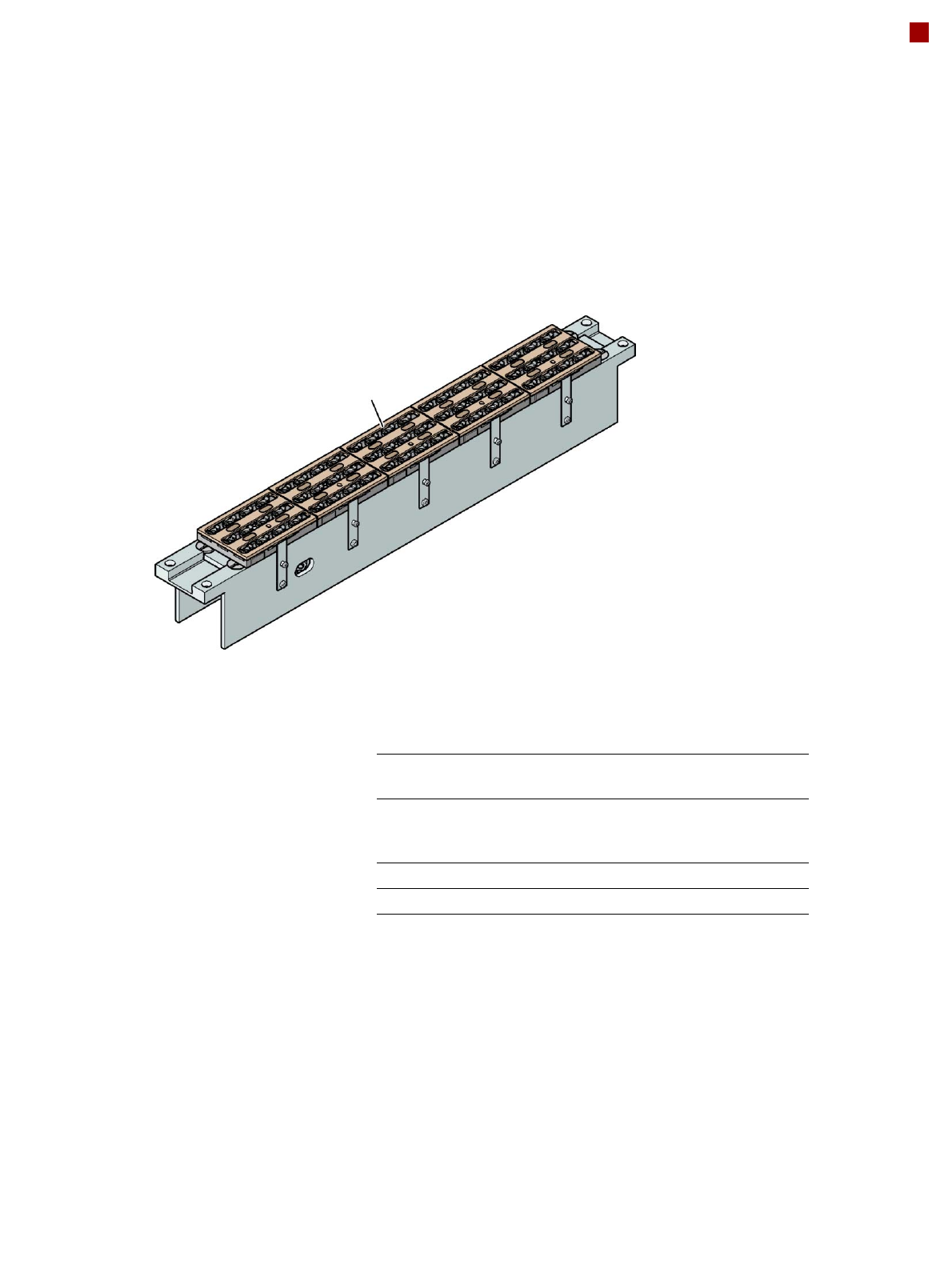

Nozzle changer for the 12-nozzle Collect&Place head

(5 magazines

→ 60 nozzle holders in total)

Magazine for 12

type 9xx nozzles

Description

Nozzle changers increase

the flexibility of placement

heads when processing dif-

ferent components. The noz-

zle configuration can be

quickly modified for new

placement jobs. Exactly

defined positions and the per-

fect seating of the nozzle in

the garage guarantee mini-

mal radial eccentricity at the

placement head.

Up to eight nozzle changers

may be installed on the

SIPLACE D4i machine as an

option.

PCB Conveyor

Overview

Conveyor principle

If the board has reached the

placement area and passed

a light barrier, it is braked. An

additional laser light barrier

determines the position of

the board. As soon as the

circuit board has reached its

target position, the conveyor

belt is stopped and the board

is clamped from below. The

placement process then

starts immediately. Move-

ment and clamping of the

PCBs are monitored.

The conveyor can be easily

matched to many different

PCB widths by the automatic

electrical width adjustment.

The fixed conveyor rail may

be located on the left or right

for both the flexible dual con-

veyor and the single con-

veyor.

Single conveyor

On the single conveyor,

PCBs are moved one after

the other into the placement

machine and placed on a

conveyor track.

Flexible dual conveyor

To keep the range of PCBs to

be processed as wide as

possible - whilst maintaining

maximum productivity - the

flexible SIPLACE dual con-

veyor allows you to choose

between single conveyor

mode and dual conveyor

mode.

In dual conveyor mode, two

PCBs are moved into the

placement machine and

placed either simultaneously

(synchronous operation) or

alternately (asynchronous

operation).

In synchronous mode, two

PCBs are moved into the

placement position at the

same time. They are pro-

cessed as a common panel.

This allows the top and bot-

tom of PCB to be processed

on the same line and, for

products with very different

components to be placed,

the common optimization of

all the components to be

placed on both PCBs makes

it possible to increase output.

In asynchronous mode,

only one PCB in a transport

track is processed. At the

same time, another PCB in

the second transport track is

moved into the placement

position. This saves the full

conveying time of one PCB,

thus considerably increasing

performance, particularly for

PCBs with a short cycle time.

The placement process

starts as soon as one PCB is

transported into the process-

ing area.

Conveyor buffer

SIPLACE PCB conveyors

have buffer zones. If shorter

waiting times occur in a

placement area (due to lon-

ger cycle times in the oven,

for example), the down-

stream placement areas can

continue to work since the

unaffected area can easily

access the PCB that is wait-

ing in the buffer zone. This

increases the true output of

the placement line.

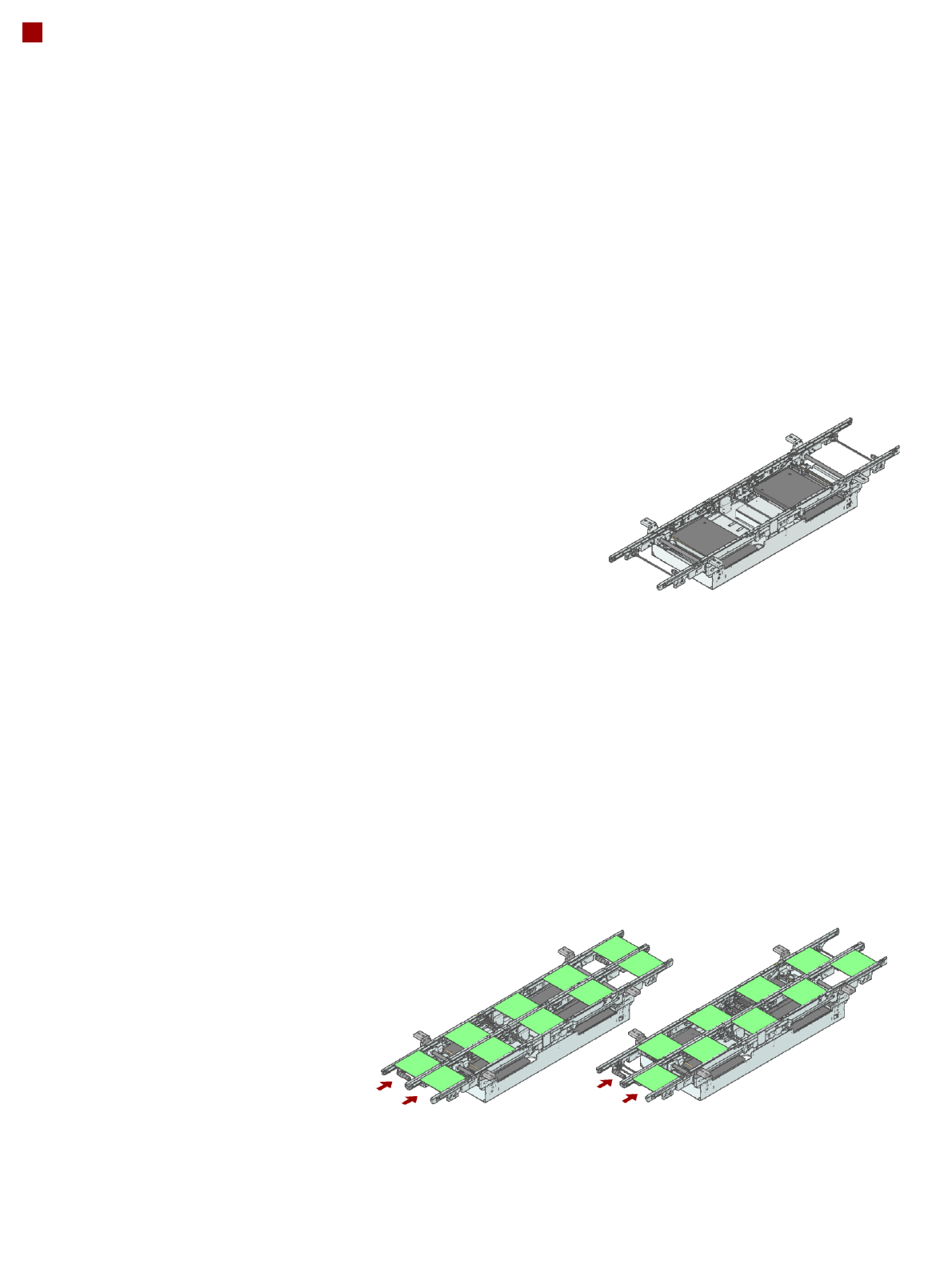

Flexible dual conveyor:

synchronous mode

Flexible dual conveyor:

asynchronous mode

Single conveyor
