Component Feeding
Component Changeover Table
Technical Data
Length 753 mm
Width 470 mm
Height 922 mm for 830 mm PCB transport height
992 mm for 900 mm PCB transport height
1022 mm for 930 mm PCB transport height
1042 mm for 950 mm PCB transport height
Height of bottom edge of table bed 680 mm for 830 mm PCB transport height
750 mm for 900 mm PCB transport height
780 mm for 930 mm PCB transport height
802 mm for 950 mm PCB transport height
Weight
without feeder modules
with feeder modules at all locations
74 kg
102 kg
Reel diameter
standard
maximum
up to 432 mm (17")
483 mm (19")
Locations for feeder modules max. 12 (3 x 8 mm S)
Changeover time < 1 minute
Component feeding 4 component changeover tables with tape
reel holders and integral waste containers,
12 locations, each 30 mm wide, for each
component changeover table
Feeder module types Tapes, bulk cases, stick magazines, OEM
feeder modules (surf tape, component dis-
posal module, label feeder modules, inline
programming feeder modules)
Waste container
for remaining empty tape
Communication unit

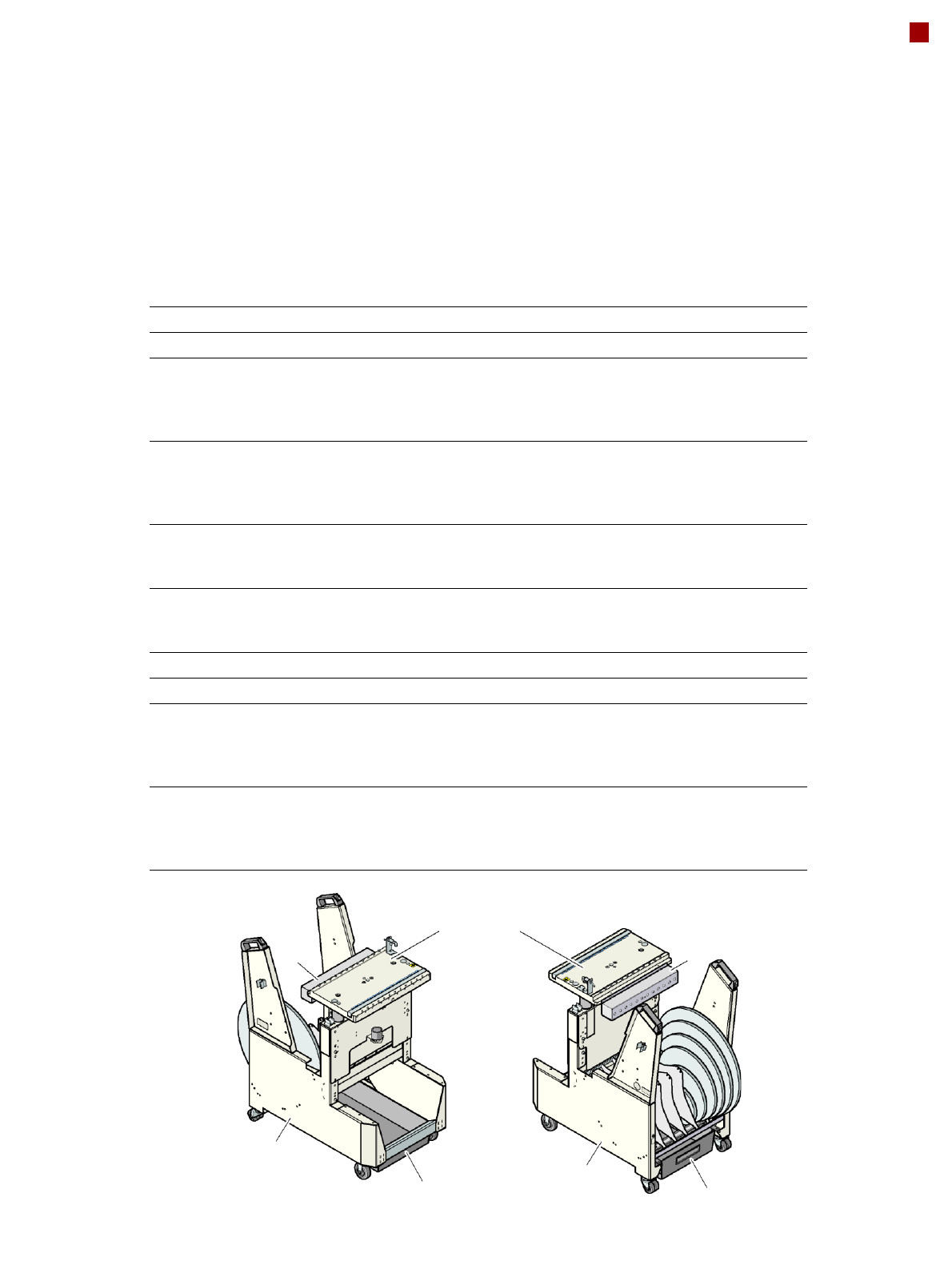

Component
feeder table
Communication
unit
Tape container
Tape container
Waste container
for remaining empty tape
20
Component Feeding

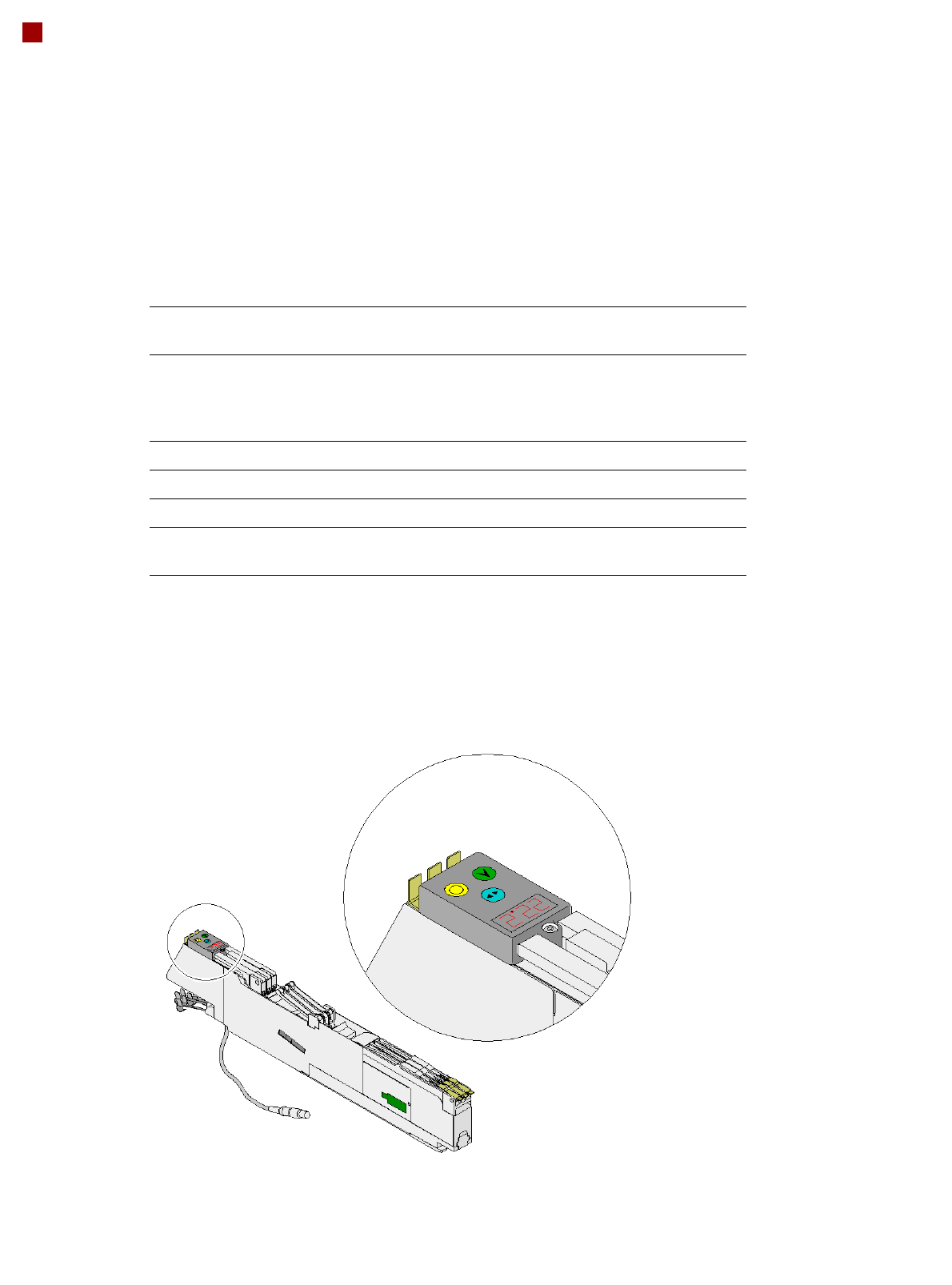

S Tape Feeder Modules
Packaging Feeder module Width Loca-
tions
Transport
distance
Max.
CO height
Paper and
blister tapes
2 x 8 mm S
a
3 x 8 mm S 01005
b
3 x 8 mm SL
c
1 x 12/16 mm S
a) Extra fiducials provided for feeder position recognition
b) for 01005, 0201 and 0402 in paper tapes
c) SL = Shutterless, from 0201 in paper or blister tapes
30.6 mm
30.6 mm
30.6 mm
30.3 mm
1
1
1
1
2/4 mm
2/4 mm
2/4/8 mm
4/24 mm
d
d) Variable in 4 mm increments
2.5 mm
e
0.7 mm
2.5 mm
14 mm
e
e) PSA Kit available as an option
Blister tapes 1 x 24/32 mm S 42.4 mm 1.5 4/40 mm
d
14 mm
Tape reels 178 - 483 mm diameter (7" - 19")
Cycle S feeder modules up to 20 mm transport distance < 150 ms
Changeover
time
≤ 15 s
21
Component Feeding
Alternative SIPLACE Feeder Modules
Technical data
Bulk case feeder modules
a
Packaging form
Feeding rails
Location
Bulk case
Chip 0402 component height:
0.5 mm
Chip 0603 component height:
0.8 mm
1
Linear vibratory feeder, type 3
Packaging form
Number of tracks and width
Location
Stick steel magazines
3 x ≤ 9.5 mm
2 x ≤ 15 mm
1 x ≤ 30 mm
1
a) Extra fiducials provided for feeder position recognition
Description
The SIPLACE bulk case
feeder module processes
bulk cases on two tracks. It
feeds rectangular and round,
passive components. The
PCB magazines (bulk cases)
are simply replaced for refill-
ing - without stopping the ma-
chine.
The module essentially con-
sists of the basic element
plus two feeder rails and
PCB magazines to suit the
component type and height.
The components are sepa-
rated and fed along the rails
by compressed air.
The principle of the fixed
component table has proven
its worth, even when bulk
cases are used: the vibra-
tions that can occur with oth-
er placement machine
concepts can have a highly
detrimental effect on the
component quality due to
abrasion, for example.
Even with stick magazines,
the stationary component
supply has significant
advantages: the universal vi-
bratory stick feeder can be
topped up during placement.

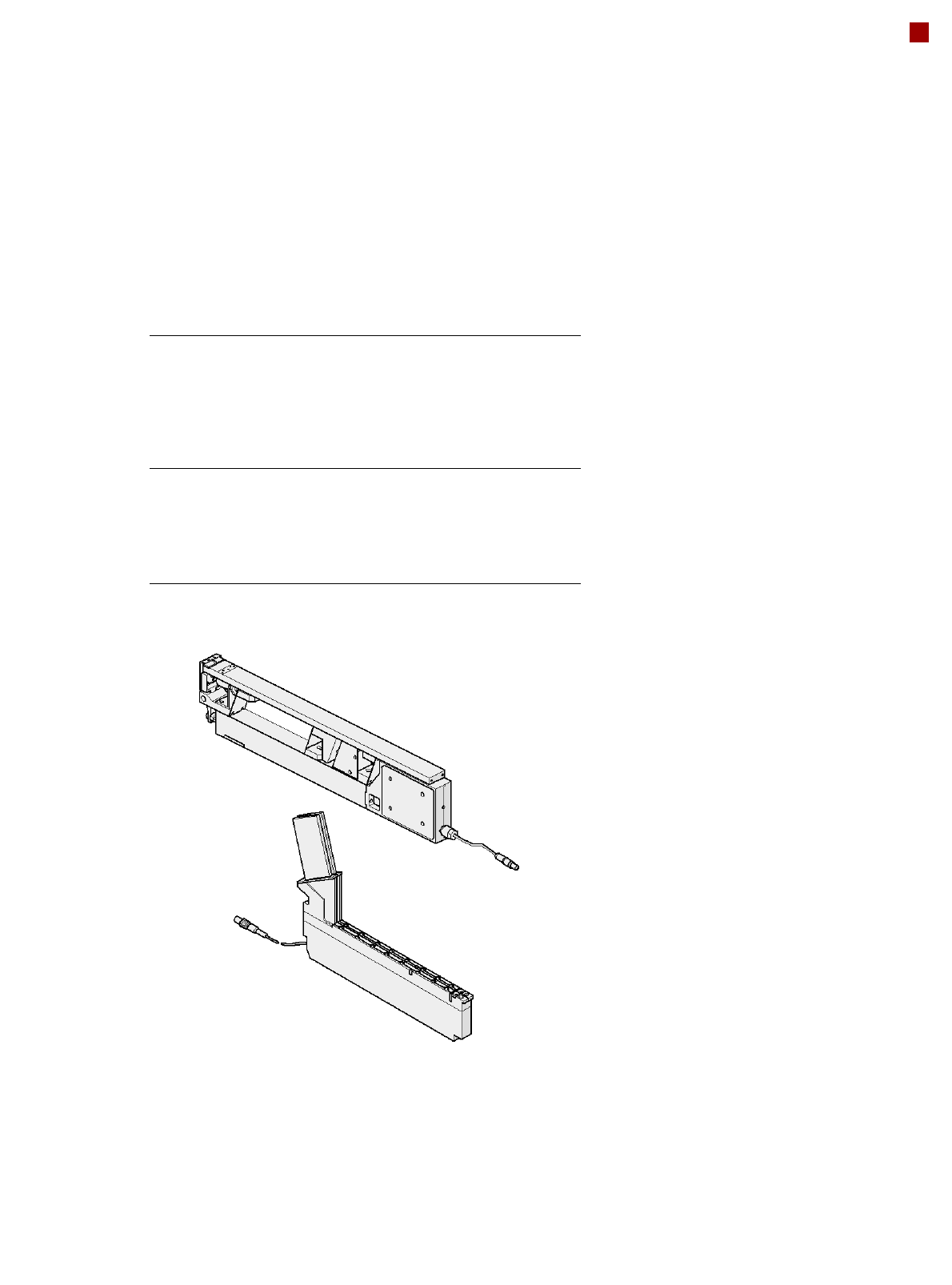

Bulk case feeder module
Linear vibratory feeder, type 3
