32 Technical Data Electrical Ratings and Compressed Air Supply Electrical ratings Supply voltage 3 x 200 VAC ± 5 %; 50/60 Hz (Japanese version) 3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A. version) 3 x 230 VAC ± 5 %; 50/60 Hz 3 x…

Maximum Quality in Production

The SIPLACE D4i not only

provides market-leading

machine quality; it also guar-

antees maximum product

quality through a combina-

tion of the following features:

100% placement process

control

The SIPLACE D4i has vari-

ous control mechanisms as

standard that guarantee

maximum placement reliabil-

ity. For example, sensors

check whether the compo-

nent was picked up or set

down correctly. The force

measurement also checks

the specified component set-

down forces and compen-

sates for differences in

height during pick-up and

any bumps on the PCB dur-

ing placement.

Digital vision inspection

The digital SIPLACE vision

system guarantees

extremely fast and reliable

component recognition,

while being very simple to

use. The system identifies

each individual component

from its shape and color.

Using different illumination

and brightness levels, every

component shape can be

easily detected. The system

also stores images of the

components, known as

"vision dumps". These show

which components were

rejected. As a result, errors

can be detected earlier when

introducing new products,

thus increasing process reli-

ability. The vision dumps

also provide good negotia-

tion tools if defective compo-

nents are supplied.

Intelligent software for

set-up verification

The SIPLACE D4i set-ups

are verified on the compo-

nent roll with reference to the

barcode scanner. This helps

to avoid set-up errors.

This network of tests con-

siderably lowers dpm rates

and increases the first pass

yield.

Quality values for the SIPLACE D4i

Pickup rate ≥ 99.95%

a) Based on average values from evaluations

Dpm rate ≤ 5 dpm

Technical Data

Electrical Ratings and Compressed Air Supply

Electrical ratings

Supply voltage 3 x 200 VAC ± 5 %; 50/60 Hz (Japanese version)

3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A. version)

3 x 230 VAC ± 5 %; 50/60 Hz

3 x 380 VAC ± 5 %; 50/60 Hz

3 x 400 VAC ± 5 %; 50/60 Hz (European version)

3 x 415 VAC ± 5 %; 50/60 Hz

Fuses 3 x 32 A (3 x 200 VAC / 3 x 208 VAC / 3 x 230 VAC)

3 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)

Nominal apparent power 3.3 kVA

Rated current consumption 8.2 A / 3 x 400 VAC

Compressed air supply

Compressed air ratings

min

max

0.55 MPa = 5.5 bar

1.0 MPa = 10 bar

Compressed air connection R 3/4" internal thread (pipe thread) with

1/2" hose connector

Compressed air consumption with four

tape cutters and four C&P heads

a) Under normal atmospheric conditions at 20°C and 1013 hPa

950 Nl/min

400 Nl/min with vacuum pump

Operating pressure 0.51 MPa ± 0.01 MPa (5.1 bar ± 0.1 bar)

Compressed air specification

Particle size 5 µm ISO class 3

Particle density 5 mg/m³ ISO class 3

Maximum oil content 0,01 mg/m³ ISO class 1

Pressure dewpoint + 3°C ISO class 4

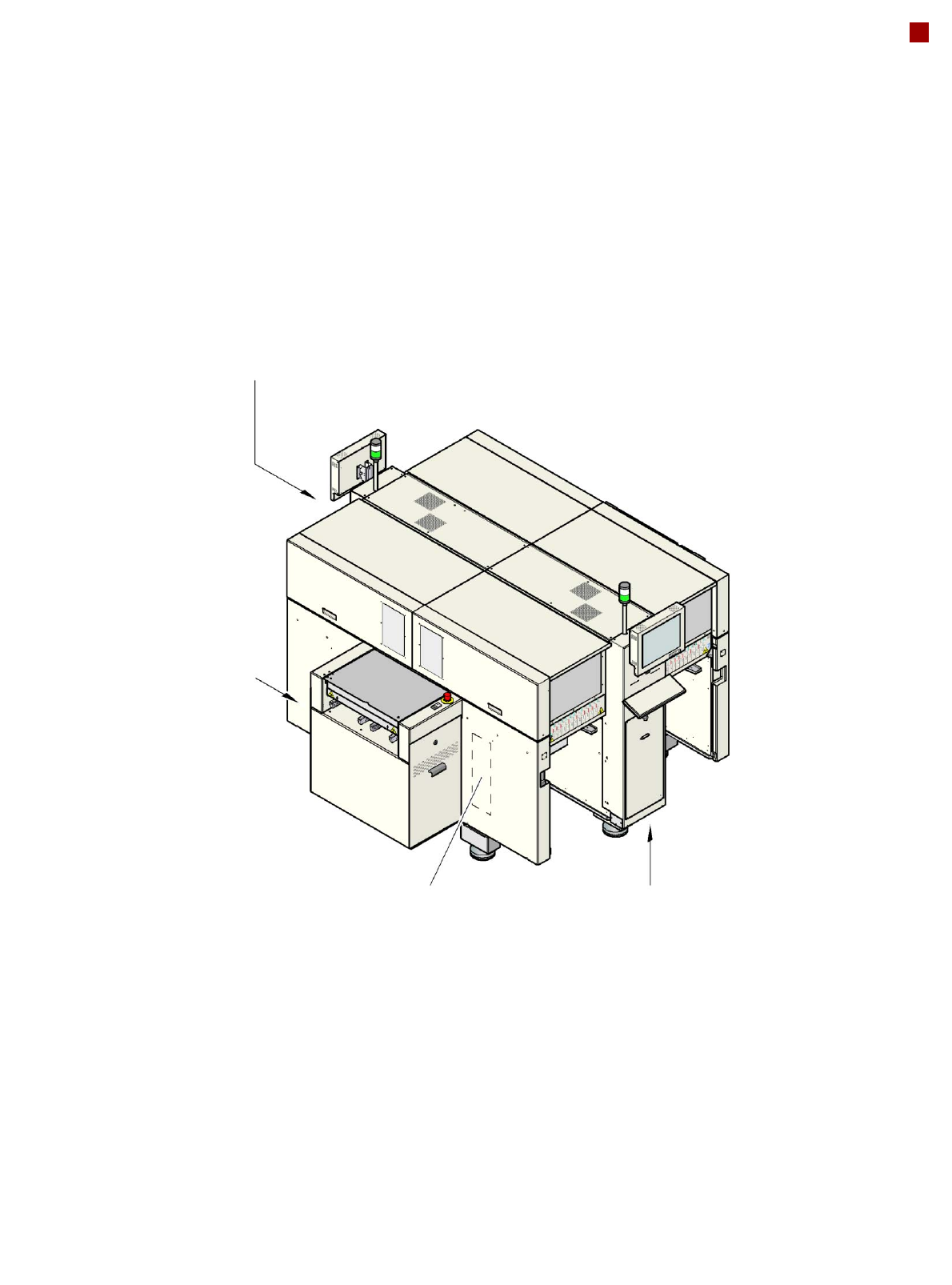

Technical Data

Electrical Connection, Interfaces and

Compressed Air Connection

Compressed air connection

SMEMA/Siemens interface

PC and

LAN connection

Power connector 5 x 6 mm² cable with CEKON plug 5 x 32 A (3 x 208 VAC / 3 x 230 VAC)

5 x 4 mm² cable with CEKON plug 5 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
