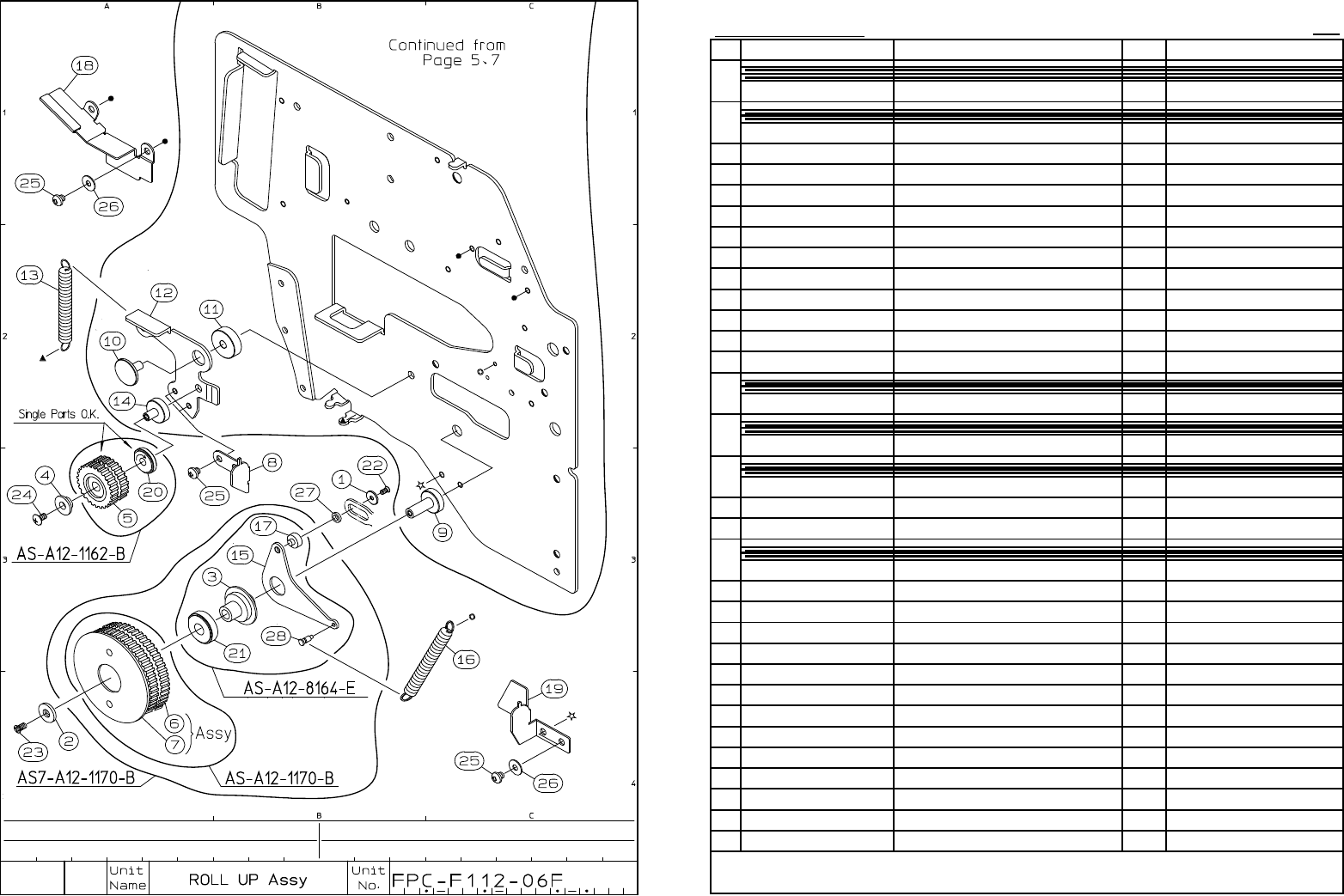

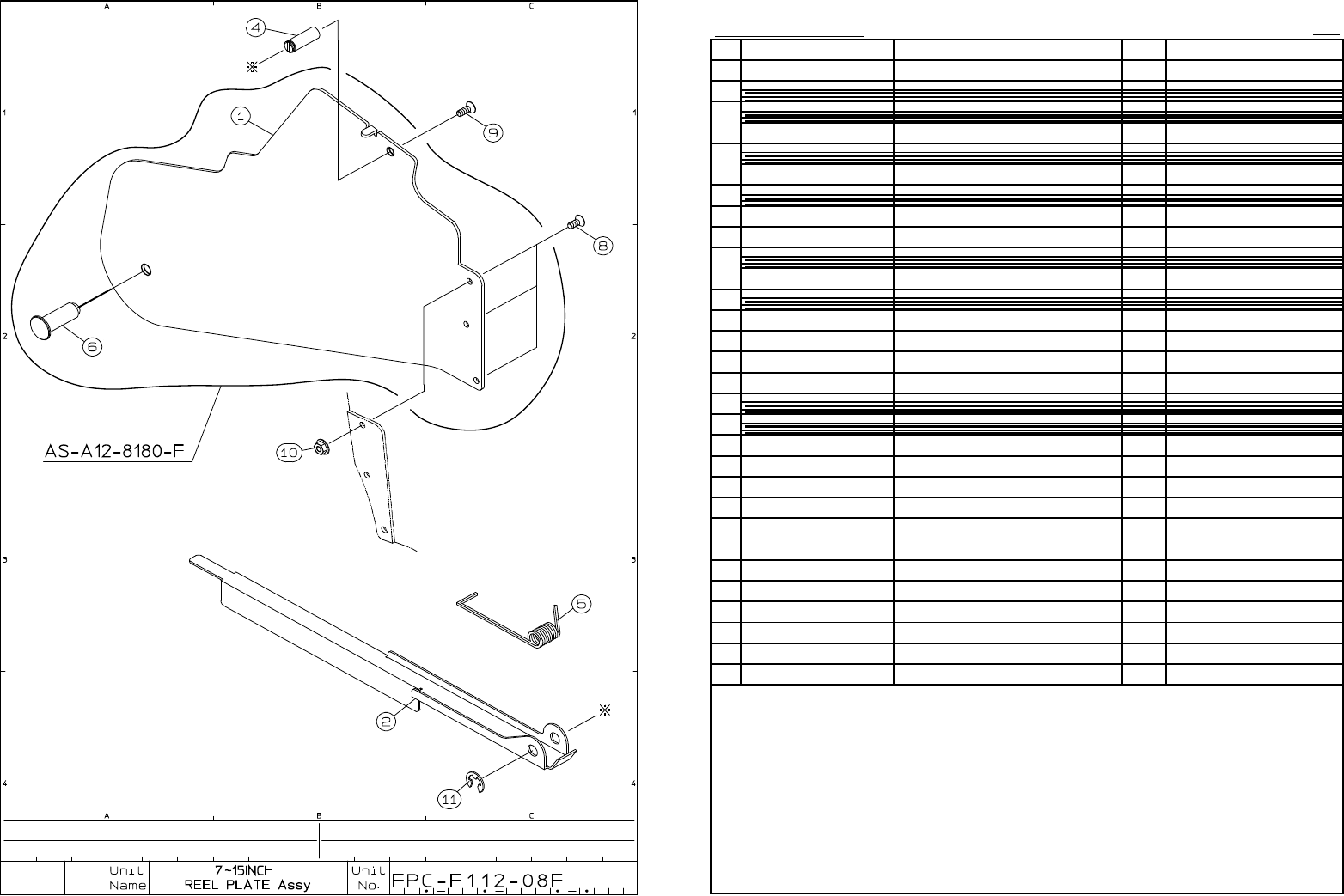

I･pulse F2 Series
F2-12 (E type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A81-011
D. ROLLER ALL ASSY 1 AS6-A12-1170-B
LG4-M4A81-012
D. ROLLER ALL ASSY 1 AS7-A12-1170-B
LG4-M4A82-011 INDEKING LEVER ASSY
1 AS1-A12-8164-D
LG4-M4A82-012 INDEKING LEVER ASSY
1 AS-A12-8164-E
KW1-M229F-000
DRIVE ROLLER ASSY
1 AS-A12-1170-B
KW1-M229L-000
IDLER ROLLER ASSY
1 AS-A12-1162-B
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M117B-000 PLANE WASHER 1 CTF-M08- 76-B
3 KW1-M229D-000
LEVER METAL
1 FTA-A12-1168
4 KW1-M229R-000
COLLAR
1 FTA-A12-1161
5 KW1-M229M-000
IDLE ROLLER
1 FTA-A12-1162-B
6 KW1-M229G-000
DRIVE ROLLER
1 FTA-A12-1170-B
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M22A3-001
LOWER GUIDE PLATE L
1 FTA-A12-1179-B
9
LG4-M4A62-000 METAL SHAFT
1 FTA-A12-8155
LG4-M4A63-000 LEVER AXIS PIN
1 FTA-A12-8159
LG4 M4A63 010
LEVER AXIS PIN
1
FTA A12 8159 B
※1
※1
※
1
10
LG4-M4A63-010 LEVER AXIS PIN
1 FTA-A12-8159-B
LG4-M4A64-000 COLLAR
1 FTA-A12-8159-1
LG4-M4A64-001 COLLAR
1 FTA-A12-8159-1B
LG4-M4A65-000 TENSION LEVER
1 FTA-A12-8160
LG4-M1A65-020
TENSION LEVER
1 FTA-A08-8160-C
13
LG4-M4A8B-000 TENSION LEVER RE.SP.
1 FTA-A12-8160-700
14 KW1-M226G-000
ROLLER AXIS
1 FTA-A12-1163
LG4-M4A83-002 INDEKING LEVER
1 FTA-A12-8164-D
LG4-M4A83-003 INDEKING LEVER
1 FTA-A12-8164-E
16 LG4-M4A8A-011 INDEKING LEVER RE.SP.
1 FTA-A12-8164-310C
17
LG4-M4A84-010 ARM STUD
1 FTA-A12-8166-B
18 LG4-M4A6M-010 MIDDLE GUIDE PLATE T
1 FTA-A12-8176-1C
19 LG4-M4A6P-011 LOWER GUIDE PLATE,R
1 FTA-A12-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000
SCREW,FLAT HEAD+
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD+
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
28 K87-M116A-100 SPRING HOOK PIN 1 CTF-M08- 166-B
※1
11
※1
12
※1
15
※1
10
※1…F2-12-003248E～
I･pulse F2 Series
F2-12 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M1AH1-021
BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-100 CONTROL BOARD COVER
1
FTA-A08-8253
8 K87-M111N-000 SCREW,PAN HEAD+ 3
3MC-3-P
9
K87-M111W-000
SCREW,PAN HEAD+ 3
3MC-5-P
※1
11
LG4-M4AC1-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS
12
LG4-M4AC3-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS1
※1…F2-12-004208E～
I･pulse F2 Series
F2-12 (E type)
P 8
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M4A90-020 REEL PLATE ASSY
1
AS-A12-8180-F
※1
LG4-M4A9D-001 TENSION LEVER ASSY
1
AS-A12-8181-E
LG4-M4A91-012 REEL PLATE
1
FTA-A12-8180-E
LG4-M4A91-020 REEL PLATE
1
FTA-A12-8180-F
LG4-M4A9A-002 TENSION LEVER
1
FTA-A12-8181-E
LG4-M4A9A-003 TENSION LEVER
1
FTA-A12-8181-F
※1 3
LG4-M4A9C-001 GUIDE ARM
1 FTA-A12-8181-E1
4 LG4-M4A92-011 TENSION AXIS
1
FTA-A12-8182-C
※1
5 LG4-M4A9B-002 COIL SPRING
1 FTA-A12-8183-D
LG4-M4A93-010 REEL AXIS
1 FTA-A12-8185-C
LG4-M4A93-020 REEL AXIS
1 FTA-A12-8185-D
※1 7 LG4-M4A9E-010
SPACER
1
FTA-A12-8187-C
8
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
9 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
10 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
11
LG4-M4AD4-000 CIRCLIP E
1 E.50
※1
12
LG4 M4AD5 000
FLAT RIVET
2
2×4 2 5 BS
※1 1
※1 2
※1 6
※
112
LG4-M4AD5-000 FLAT RIVET
2
2×4-2.5-BS
※1 13
LG4-M4ADH-000
SCREW,FLAT HEAD+ 1 4MK-12-P
14
15
16
17
18
19
20
21
22
23
24
25
※1…F2-12-003248E～
