I･pulse F2 Series F2-44 (D type) P 3 No. Code No. Parts Name Q'ty Parts No. LG4-M6A30-010 HOLD LEVER ASSY 1 AS-A24-8190-C LG4-M8A3A-003 CLAMP LEVER ASSY 1 AS9-A24-8191-B 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4…

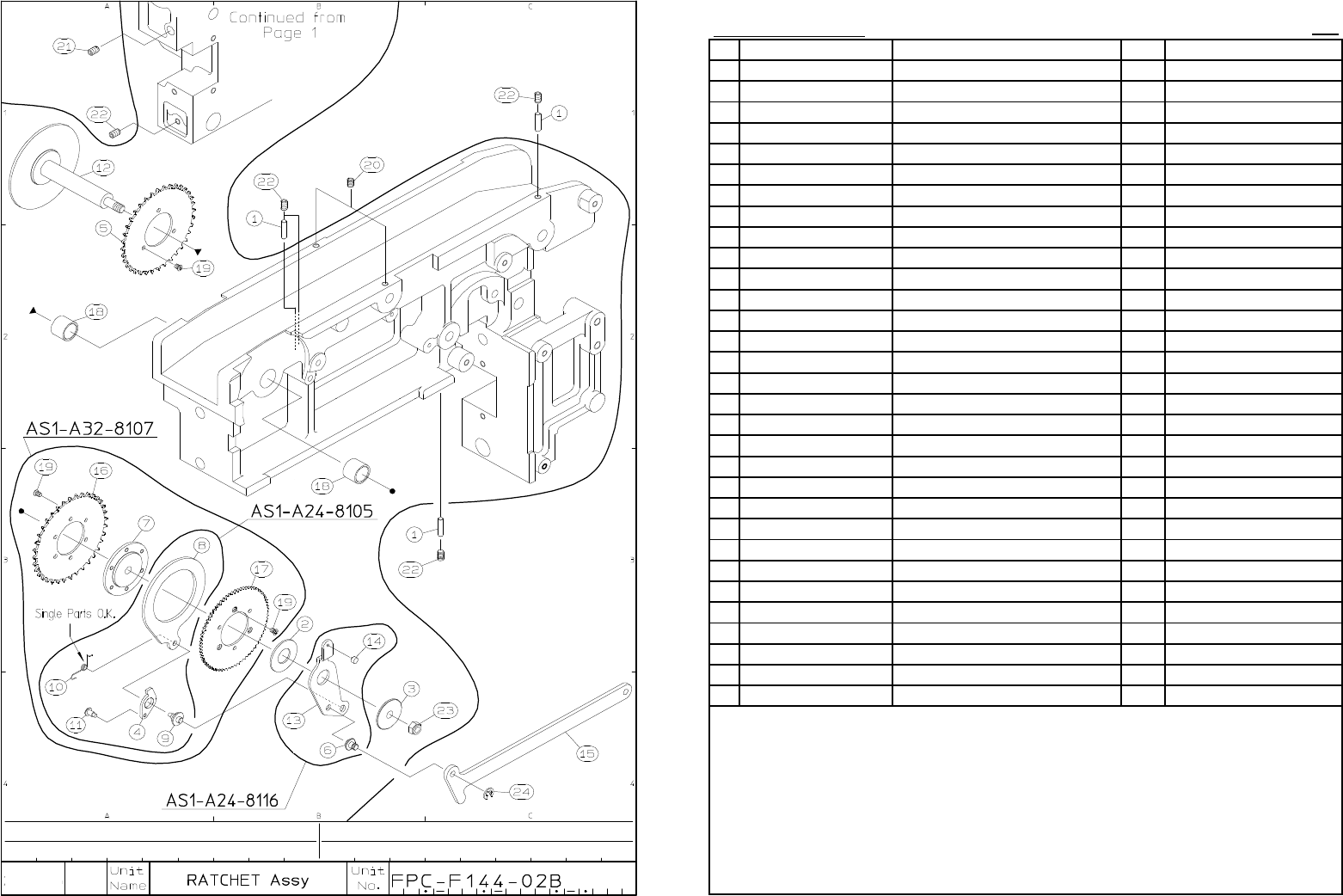

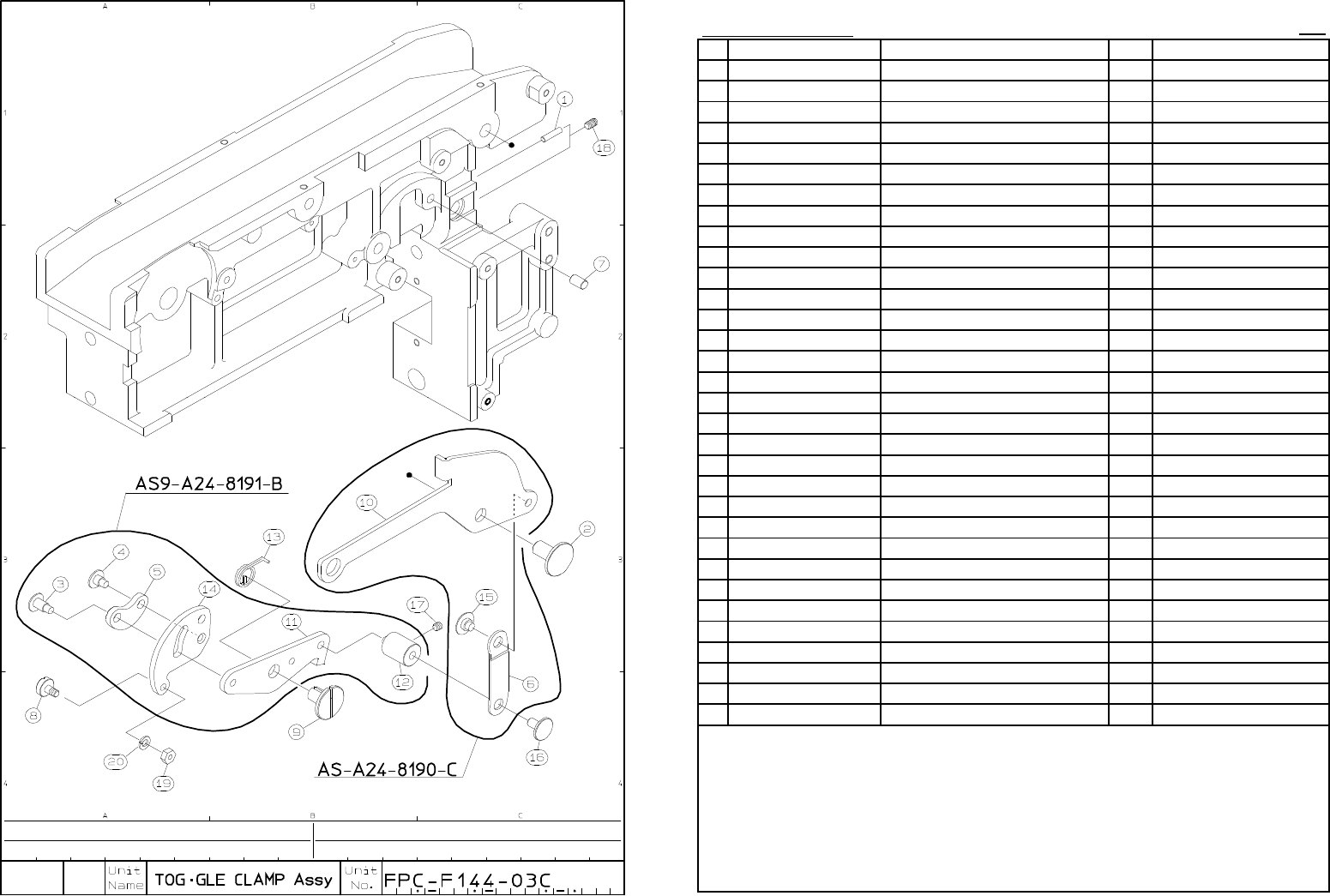

I･pulse F2 Series
F2-44 (D type)
P 2
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A27-001
RACKING M.LEVER ASSY 1 AS1-A24-8105
LG4-M7A20-001
SPROCKET ASSY 1 AS1-A32-8107
LG4-M6A2A-001
RACKING SUB LEV. ASSY 1 AS1-A24-8116
1 K87-M111G-100 PUSH PIN 3
CTF-M08- 325
2 LG4-M6A2F-000
THRUST WASHER
1
CTF-A32- 08
3
LG4-M7A2E-000
LEVER METAL 1 FTA-A32-8108
4 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
5 KW1-M4523-000 SPROCKET 1
FTA-A24-1104
6 KW1-M452W-001 STUD 1 FTA-A24-1118-B
7 LG4-M7A21-000 METAL 1
FTA-A32-8103-B
8 LG4-M6A22-000 RACKING MAIN LEVER 1
FTA-A24-8105
9 LG4-M6A25-000
RACKING POLE AXIS
1
FTA-A24-8110
10 LG4-M6A2G-000 SCREW COIL SPRING 1
FTA-A24-8111-1
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12
LG4-M8A2N-000 RATCHET AXIS
1
FTA-A44-8112
13
LG4-M6A2B-000
RACKING SUB LEVER 1 FTA-A24-8116
14
LG4 M6A2C 000
S
HUTTER DRIVE PIN
1
FTA A24 8116 1
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A2D-000 MAIN ARM
1
FTA-A24-8117
16 LG4-M7A23-000 SPROCKET 1 FTA-A32-8104
17 LG4-M7A24-000 RATCHET 1
FTA-A32-8107
18 KW1-M552F-001 BEARING 2 K5B0808
19 K87-M111P-000 SCREW,FLAT HEAD+ 9 P2MK-3
20 K87-M111Y-000 SCREW,SET 2 3MY-4-F
21 K87-M23B3-000 SCREW,SET 1 3MY-5
22 K87-M111R-000 SCREW,SET 5 3MY-5-F
23 K87-M55BL-000 U NUT 1 4MH-U-P
24 K87-M11B9-000
CIRCLIP E
1 E.24
25
26
27
28
I･pulse F2 Series
F2-44 (D type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-010
HOLD LEVER ASSY 1 AS-A24-8190-C
LG4-M8A3A-003
CLAMP LEVER ASSY 1 AS9-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-001 HINGE PIN 1
1
FTA-A08-8191-1C
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10 LG4-M6A31-010 HOLD LEVER
1 FTA-A24-8190-C
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M8A3D-000
STUD 1 FTA-A44-8191
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14 LG4-M6A3C-001 CLANK ARM
1 FTA-A24-8192-B
15
LG4 M6A32 000
LINK PIN T
1
FTA A24 8198
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18
K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000
SCREW NUT
1
3MH-P
20 K87-M21BM-000 SPRING LOCK WASHER 1
3MU-P
21
22
23
24
25
26
27
28
29
30
I･pulse F2 Series
F2-44 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M8A40-011
TAPE GUIDE UNIT 1 AS2-A44-8119-D
LG4-M8A4A-000
TAPE GUIDE ASSY 1 AS1-A44-8119-D
1 LG4-M7A46-001 LOCK LEVER
1
FTA-A32-8127-B
2
LG4-M6A48-000 T.G. PUSH SPRING
1
FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4
LG4-M7A43-000 SHUTTER PIECE
1
FTA-A32-8120-1
5
LG4-M6A44-000
SHUTTER GUIDE PIN
2
FTA-A24-8121-B
6
LG4-M8A41-010
TAPE GUIDE PLATE 1
FTA-A44-8119-D
7 LG4-M6A4F-000 SIDE COVER
1
FTA-A24-8125-1
8
LG4-M8A42-010
SHUTTER PLATE 1
FTA-A44-8120-C
9 LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
10
LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
11 LG4-M6A47-000 T.G. GUIDE PIN
1
FTA-A24-8125
12 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
13
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
