I･pulse F2 Series F2-44 (D type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M6A80-000 INDENTATION LEV. ASSY 1 AS-A24-8159 LG4-M6A8A-001 SUB LEVER ASSY 1 AS-A24-8160-B LG4-M7A84-000 REEL SHAFT ASSY 1 AS-A32-8152 …

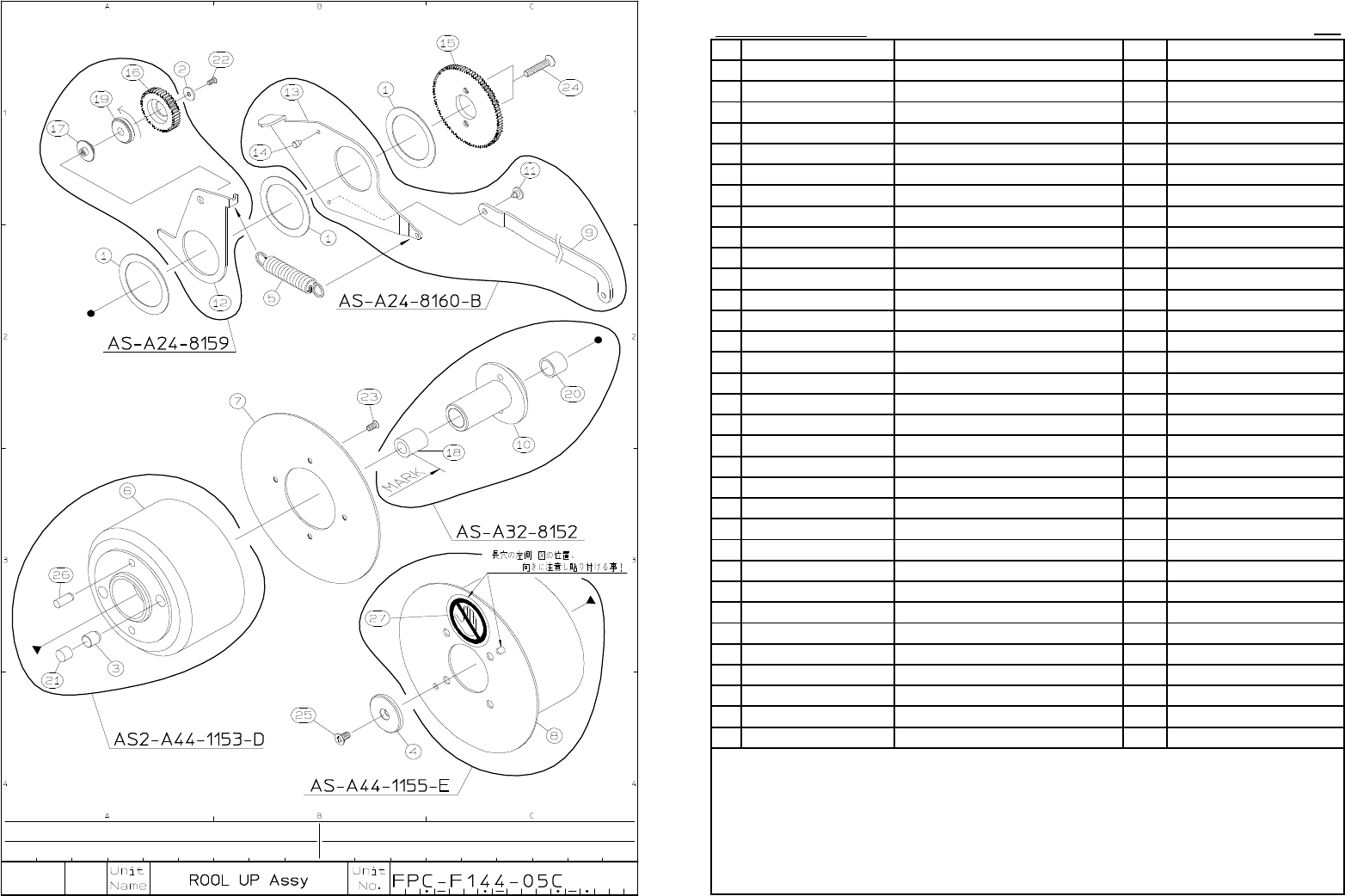

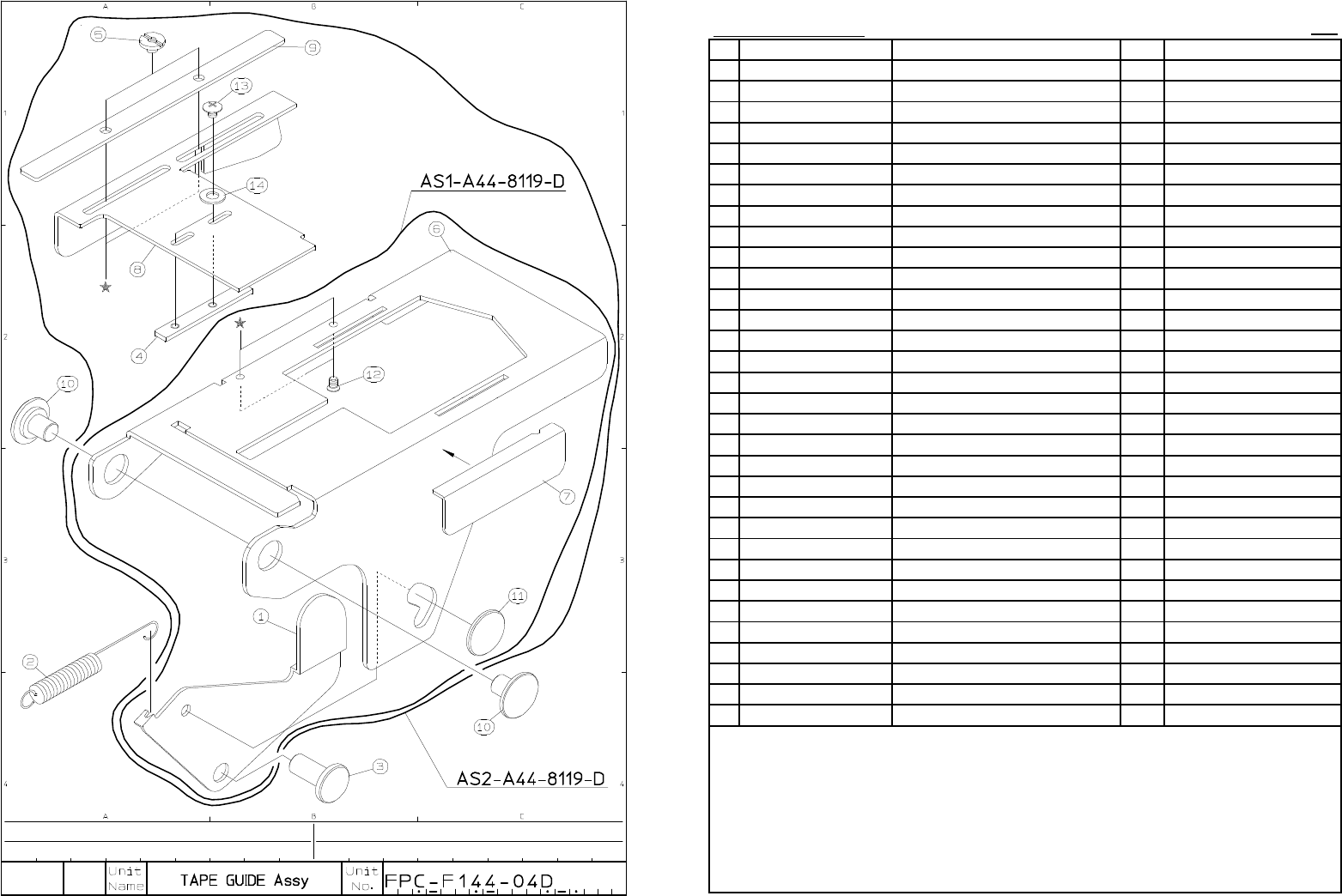

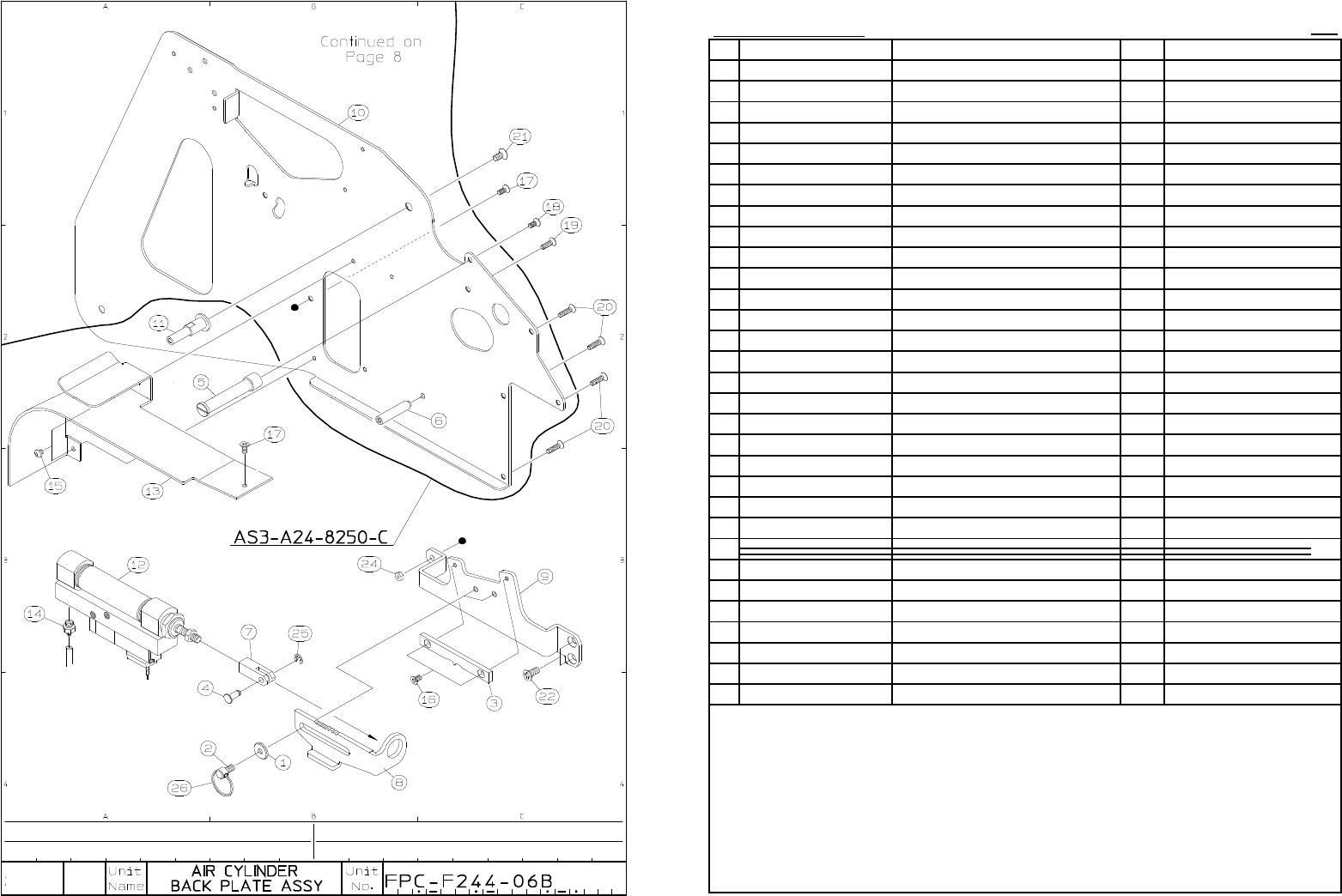

I･pulse F2 Series
F2-44 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M8A40-011
TAPE GUIDE UNIT 1 AS2-A44-8119-D
LG4-M8A4A-000
TAPE GUIDE ASSY 1 AS1-A44-8119-D
1 LG4-M7A46-001 LOCK LEVER
1
FTA-A32-8127-B
2
LG4-M6A48-000 T.G. PUSH SPRING
1
FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4
LG4-M7A43-000 SHUTTER PIECE
1
FTA-A32-8120-1
5
LG4-M6A44-000
SHUTTER GUIDE PIN
2
FTA-A24-8121-B
6
LG4-M8A41-010
TAPE GUIDE PLATE 1
FTA-A44-8119-D
7 LG4-M6A4F-000 SIDE COVER
1
FTA-A24-8125-1
8
LG4-M8A42-010
SHUTTER PLATE 1
FTA-A44-8120-C
9 LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
10
LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
11 LG4-M6A47-000 T.G. GUIDE PIN
1
FTA-A24-8125
12 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
13
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
I･pulse F2 Series
F2-44 (D type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A80-000
INDENTATION LEV. ASSY 1
AS-A24-8159
LG4-M6A8A-001
SUB LEVER ASSY 1 AS-A24-8160-B
LG4-M7A84-000
REEL SHAFT ASSY 1 AS-A32-8152
LG4-M8A8N-000
METAL ASSY 1 AS2-A44-1153-D
LG4-M8A8F-000
REEL PLATE ASSY 1 AS-A44-1155-E
1 K87-M119J-000 THRUST WASHER 3 CTF- 42- 60-L
2 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
3 KW1-M459P-000 METAL PIN 2 CTF-A12- 653-1
4 K87-M459Y-000 PLANE WASHER 1 CTF-A12- 656
5 LG4-M6A89-000
SPRING 1 FTA-A24-8159-68
6 KW1-M659T-000 METAL 1 FTA-A44-1153-D
7 KW1-M459V-000 REEL FLANGE 1 FTA-A24-1154-D
8 KW1-M659U-000 REEL PLATE 1 FTA-A44-1155-E
9
LG4-M6A8E-000
SUB ARM 1 FTA-A24-8146-B
10
LG4-M7A85-000
REEL SHAFT 1 FTA-A32-8152
11
LG4-M6A8D-000
ARM STUD 1 FTA-A24-8158
12
LG4 M6A81 000
INDENTATION LEVER
1
FTA A24 8159
12
LG4-M6A81-000
INDENTATION LEVER 1 FTA-A24-8159
13
LG4-M6A8B-001
SUB LEVER 1 FTA-A24-8160-B
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A8G-000
INDEX GEAR 1 FTA-A24-8161
16
LG4-M6A83-000
DRIVE GEAR 1 FTA-A24-8162
17
LG4-M6A82-000
GEAR AXIS 1 FTA-A24-8163
18 K87-M219E-100 ONE-WAY CRUTCH 1 FC-6
19 KW1-M119B-000 ONE-WAY CRUTCH 1 OWC4-13-3.1-L
20 K87-M5596-000 OILLESS BEARING 1 80B-0808
21
LG4-M6A8R-000
MAGNET 2 φ6-5
22 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD 4 P2.6MK-5-IB
24 KW1-M45BF-000 SCREW,FLAT HEAD+ 2 3MK-16-P
25 K87-M111S-000 SCREW,FLAT HEAD+ 1 3MK-6-P
26
KW1-M459S-000 STRAIGHT PIN 2 A4×9.8
27
LG4-M6A8H-000
WARNING LABEL 1 FTA-A24-8151-WL
28
I･pulse F2 Series
F2-44 (D type)
P 6
Code No. Parts Name Q'ty Parts No.
LG4-M8A60-111
BACK PLATE ASSY 1 AS3-A24-8250-C
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4
LG4-M1A72-000
CONNECT PIN 1 FTA-A08-8146
5
LG4-M8A63-011
ROLLER SHAFT 1 FTA-A44-8132-D
6
LG4-M8A64-000
SHAFT 1 FTA-A44-8140
7
LG4-M6A71-000
ROD CONNECTER 1 FTA-A24-8142
8
LG4-M6A73-001
ADJUST PLATE 1 FTA-A24-8148-C
9
LG4-M6A74-000
CYLINDER BRACKET 1 FTA-A24-8149-B
10
LG4-M6A61-111
BACK PLATE 1 FTA-A24-8250-C
11
LG4-M7A62-010
REEL SHAFT 1 FTA-A32-8151-B
12
LG4-M6AB1-000
VAL PACK CYLINDER 1 FTA-A24-8157
13 LG4-M8A6A-010
GUIDE PLATE 1 FTA-A44-8177-B
14 K87-M56C1-000
BARB CONNECTOR
1 BF4BU
15
K87-M111N-000
SCREW,PAN HEAD+ 2 3MC-3-P
16
K87 M111S 000
SCREW FLAT HEAD+
2
3MK6P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17
LG4-M4ADE-000
SCREW,FLAT HEAD+ 2 3MK-7-P
18 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
19 KW1-M45BG-000 SCREW,FLAT HEAD+ 1 3MK-10-P
20 K87-M11B4-100 SCREW,FLAT HEAD+ 4 3MK-12-P
21 LG4-M6ADJ-000 SCREW,FLAT HEAD LEFT 1 4MK-8-P-L
22 LG4-M6ADE-000 SCREW,FLAT HEAD+ 2 4MK-10-P
23 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
24 K87-M21BN-000 SCREW NUT 1 3MH-P
25 K87-M11D7-000
CIRCLIP E
1 E.32
26 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
27
28
29
30
