MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

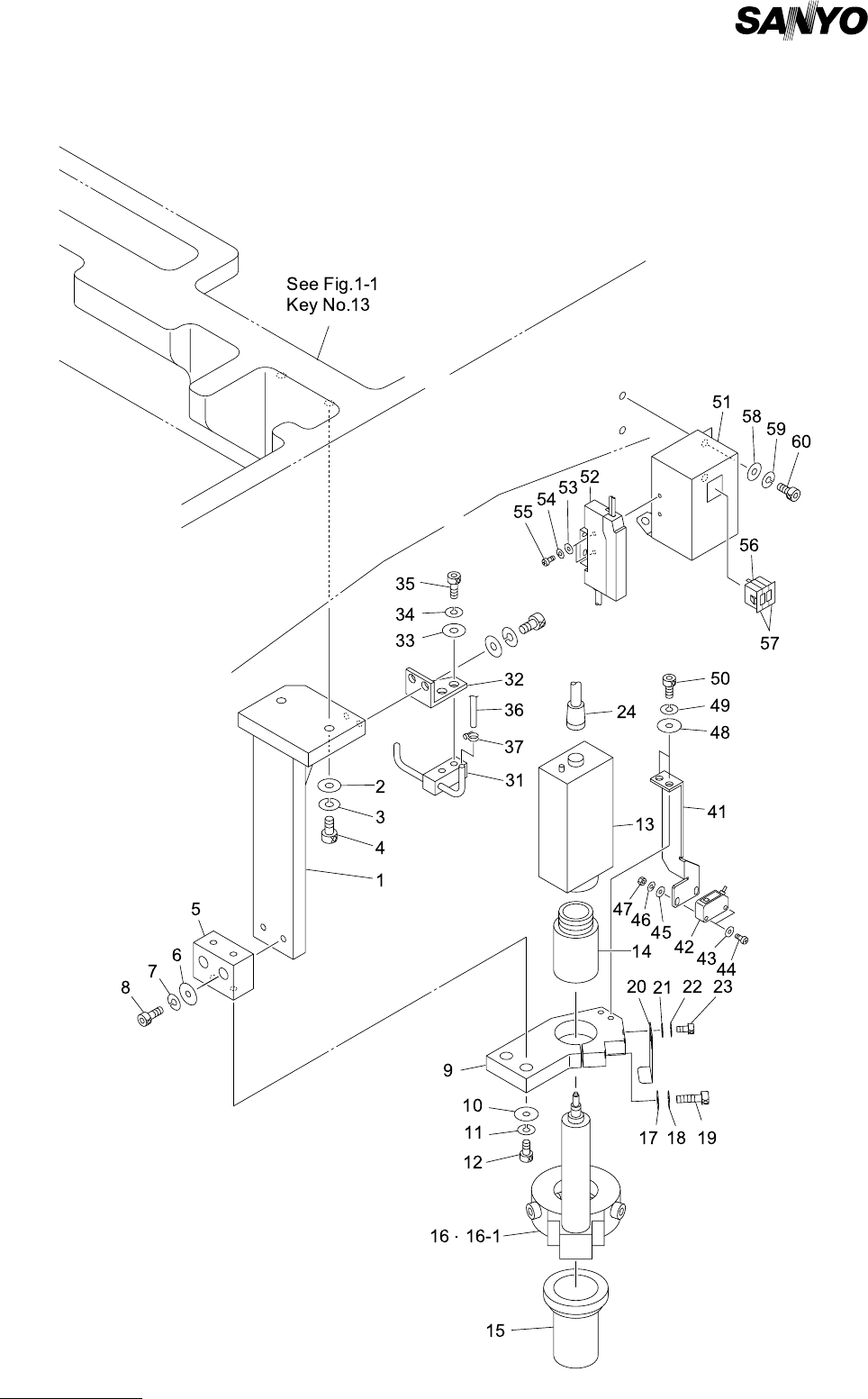

Fig. 4-10 基板認識カメラ P.E.C. Camera
MODEL TCM-3700
9912-001
4-10
PART No. PART NAME Q'ty REMARKS
1 630 052 1016 SUPPORT 1 739E--01B-002
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7909 BOLT,HEX-SCT 2 M6X25
5 630 048 7381 BLOCK 1 739E--01B-003
6 630 001 0220 WASHER 2 739E--01H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7794 BOLT,HEX-SCT 2 M5X30
9 630 084 2654 BRACKET 1 739E--01B-004
10 630 001 0220 WASHER 2 739E--01H-008
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7787 BOLT,HEX-SCT 2 M5X25
13 630 085 9348 UNIT,CAMERA 1 739R--01D-002
14 630 085 7641 SCOPE UNIT 1 739R--01D-004
15 630 066 2580 ACCESSORY,LIGHT 1 739R--01D-005
16 630 066 2009 LIGHTING UNIT 1 739R--01D-001
16 -1 630 005 5580 LAMP 1
17 411 141 4107 WASHER V 5X10X1 1 FW5
18 411 141 6705 WASHER SPR 5 1 SW5
19 630 000 7794 BOLT,HEX-SCT 1 M5X30
20 630 038 9294 PLATE 1 739E--01B-034
21 411 141 4008 WASHER V 4X9X0.8 2 FW4
22 411 141 2905 WASHER SPR 4 2 SW4
23 630 000 7626 BOLT,HEX-SCT 2 M4X10
24 630 009 2875 ACCESSORY,CAMERA 1 739R--01D-003
31 630 051 7972 BLOCK 1 739E--01B-038
32 630 051 7965 BRACKET 1 739E--01B-037
33 411 141 4107 WASHER V 5X10X1 4 FW5
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7756 BOLT,HEX-SCT 4 M5X12
37 630 029 6389 PIPE FITTINGS 1 739E--01H-012
41 630 084 2661 BRACKET 1 739E--01B-043
42 630 055 3055 SENSOR,PELEC 1 739E--01H-015
43 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
44 411 113 0700 SCR PAN 3X16 2 M3X16 PAN
45 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
46 411 086 4408 WASHER SPR 3 2 SW3 F
47 411 054 6809 NUT HEX 3 2 M3 F
48 411 141 4008 WASHER V 4X9X0.8 2 FW4
49 411 141 2905 WASHER SPR 4 2 SW4
50 630 000 7619 BOLT,HEX-SCT 2 M4X8
51 630 059 8605 BRACKET 1 739E--01B-042
52 630 055 3048 SENSOR,PELEC 1 739E--01H-016
53 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
54 411 086 4408 WASHER SPR 3 2 SW3 F
55 411 113 0700 SCR PAN 3X16 2 M3X16 PAN
56 630 007 6622 SWITCH,ROTARY 1 739FB-01D-503
57 630 007 6554 ACCESSORY,SW 1 739FB-01D-504
58 411 141 4107 WASHER V 5X10X1 2 FW5
59 411 141 6705 WASHER SPR 5 2 SW5
Key No.
NOTE
MODEL TCM-3700
9912-001
4-10
PART No. PART NAME Q'ty REMARKS
60 630 000 7749 BOLT,HEX-SCT 2 M5X10
