P-138-001e - 第12页

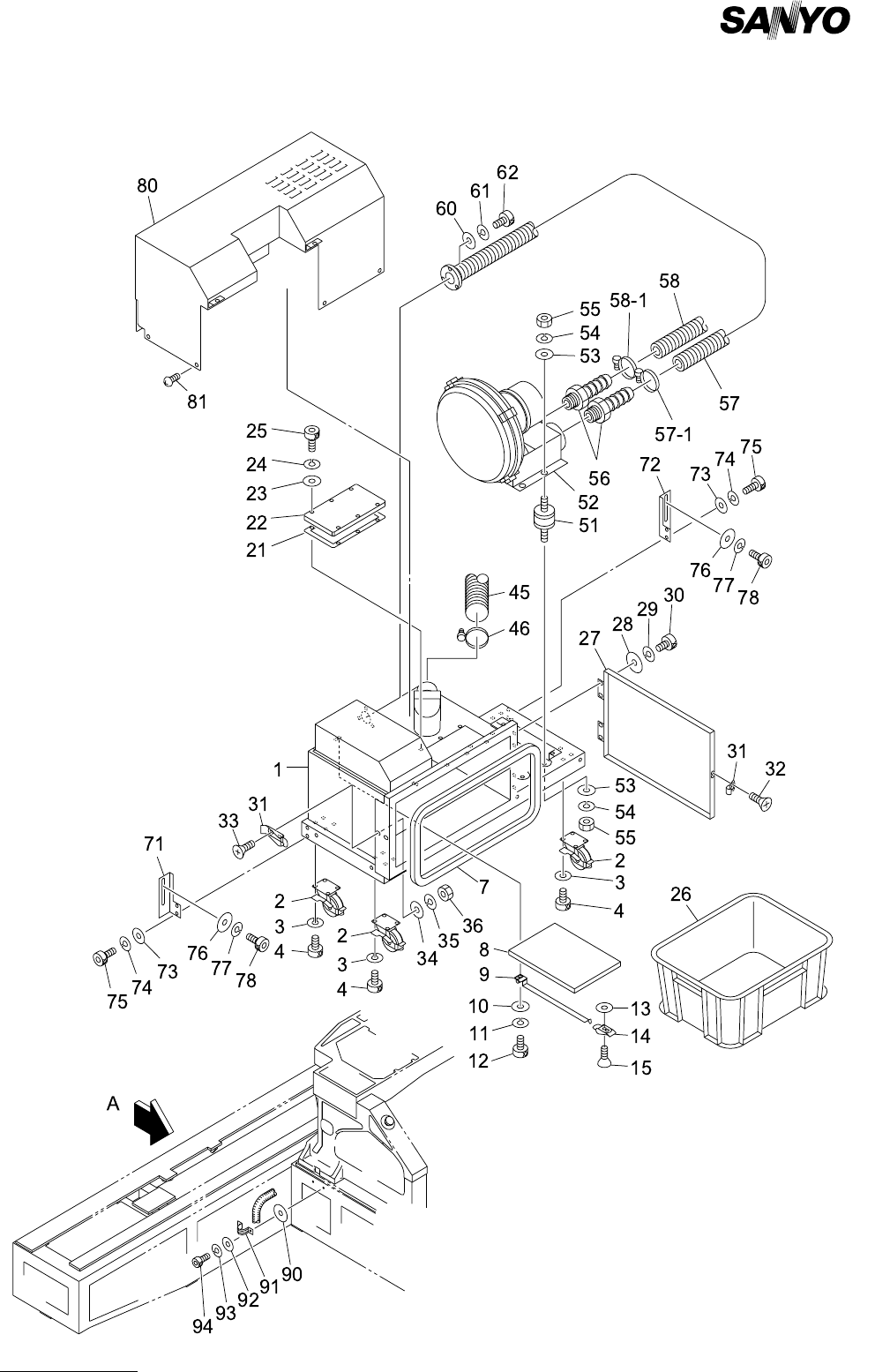

MODEL TCM-3700 9912-001 本体部 MAIN BODY SECTION Fig. 1-2 ダストボックス Dust Box
MODEL TCM-3700
9912-001
1- 1
PART No. PART NAME Q'ty REMARKS
1 630 048 9910 BLOCK,LOCATE 6 739L--01B-005
1 -1 630 048 9637 BLOCK,LOCATE 2 739L--01B-007
1 -2 630 048 9927 BLOCK,LOCATE 6 739L--01B-006
2 630 084 1206 FRAME 1 739L--01B-001
3 630 042 5697 NUT 14 739L--01H-018
3 -1 630 041 6770 COLLAR 14 739L--01B-008
3 -2 630 000 8975 SET SCREW 14 M6X6 SET
4 630 042 5673 BOLT,HEX 12 739L--01H-017
4 -1 630 042 5680 BOLT,HEX 2 739L--01H-030
11 630 084 1220 FRAME(L) 1 739L--01B-003
12 630 084 1213 FRAME(R) 1 739L--01B-002
13 630 057 9055 FRAME(HEAD) 1 739L--01B-004
14 411 141 5401 WASHER V 20X37X3 20 FW20
15 411 141 6804 WASHER SPR 20 20 SW20
16 630 009 5814 BOLT,HEX-SCT 20 M20X70
17 411 141 5203 WASHER V 16X30X3 2 FW16
18 411 141 3407 WASHER SPR 16 2 SW16
19 630 083 4253 BOLT,HEX-SCT 2 739L--01H-095
21 630 064 6320 NAME PLATE,NOTICE 2 739FB-01D-078
22 630 064 6528 SWITCH,BUTTON 2 739FB-01D-001
Key No.
NOTE
MODEL TCM-3700
9912-001
本体部 MAIN BODY SECTION
Fig. 1-2 ダストボックス Dust Box
MODEL TCM-3700
9912-001
1- 2
PART No. PART NAME Q'ty REMARKS
1 630 059 7165 FRAME 1 739LB-01B-018
2 630 058 0648 CASTER 4 739LB-01H-031
3 411 141 3001 WASHER SPR 6 16 SW6
4 630 000 7862 BOLT,HEX-SCT 16 M6X10
7 630 003 6206 MECH PARTS 1 739LB-01H-036
8 630 003 6718 AIR LINE EQPT 1 739LB-01H-026
9 630 058 0259 BRACKET 1 739LB-01B-024
10 411 141 3902 WASHER V 3X7X0.5 2 FW3
11 411 141 2806 WASHER SPR 3 2 SW3
12 630 000 7510 BOLT,HEX-SCT 2 M3X8
13 411 141 4107 WASHER V 5X10X1 2 FW5
14 630 003 6220 MECH PARTS(SNAP LOCKS) 1 739LB-01H-035
15 411 002 2600 SCR FLT 3X6 2 M3X6 FLT
21 630 059 7196 SHEET 1 739LB-01B-023
22 630 059 7189 PLATE 1 739LB-01B-022
23 411 141 4107 WASHER V 5X10X1 6 FW5
24 411 141 6705 WASHER SPR 5 6 SW5
25 630 000 7763 BOLT,HEX-SCT 6 M5X16
26 630 003 6503 MECH PARTS 1 739LB-01H-025
27 630 058 0204 COVER 1 739LB-01B-019
28 630 001 0220 WASHER 4 739L--01H-071
29 411 141 6705 WASHER SPR 5 4 SW5
30 630 000 7756 BOLT,HEX-SCT 4 M5X12
31 630 003 6244 MECH PARTS(SNAP FASTENER) 1 739LB-01H-033
32 411 002 2600 SCR FLT 3X6 2 M3X6 FLT
33 411 108 7103 SCR FLT 3X10 2 M3X10 FLT
34 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
35 411 086 4408 WASHER SPR 3 4 SW3 F
36 411 054 6809 NUT HEX 3 4 M3 F
45 630 069 1450 TUBE 1 739L--01H-040
46 630 033 6955 PIPE FITTINGS(BAND) 2 739L--01H-029
630 003 6138 MECH PARTS(RUBBER DAMPER) 4 739LB-01H-024
52
630 000 4816 MOTOR,AC 1 739LB-01H-023
53 411 141 4404 WASHER V 8X17X1.6 8 FW8 F
54 411 086 8208 WASHER SPR 8 8 SW8 F
55
411 108 8704 NUT HEX 8 8 M8 F
56 630 003 8767 PIPE FITTINGS 2 739LB-01H-027
57 630 058 0211 TUBE 1 739LB-01B-020
57 -1 630 009 3544 PIPE FITTINGS(BAND) 1 739LB-01H-028
58 630 052 3638 TUBE 1 739L--01B-021
58 -1 630 009 3544 PIPE FITTINGS(BAND) 1 739L--01H-028
60 411 141 4107 WASHER V 5X10X1 3 FW5
61 411 141 6705 WASHER SPR 5 3 SW5
62 630 000 7763 BOLT,HEX-SCT 3 M5X16
71 630 058 0273 BRACKET 1 739LB-01B-042
72 630 058 0266 BRACKET 1 739LB-01B-041
73 411 141 4107 WASHER V 5X10X1 4 FW5
74 411 141 6705 WASHER SPR 5 4 SW5
75 630 000 7763 BOLT,HEX-SCT 4 M5X16
76 630 001 0220 WASHER 4 739LB-01H-071
Key No.
51
NOTE
